MCV30-BEAGK (2001)
Toyota Windom
(0107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58387 - PLATE, REAR FLOOR FINISH | ||||
| 58387-33080 |
MCV30 |
1 | ||
| 58387-33080 |
MCV30 |
1 | ||
| 58460F - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
MCV30 |
2 | ||
| 58460-33020 |
MCV30 |
2 | ||
| 58460F - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
MCV30 |
2 | ||
| 58460-33020 |
MCV30 |
2 | ||
| 58460H - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
MCV30 |
2 | ||
| 58460-33020 |
MCV30 |
2 | ||
| 64033E - GRILLE SUB-ASSY, REAR SPEAKER | ||||
| 64033-33110C0 |
MCV30 BLACK,TRIM2# |
1 | ||
| 64033-33110A1 |
MCV30 NEW IVORY,TRIM0# |
1 | ||
| 64033-33110C0 |
MCV30 BLACK,TRIM2# |
1 | ||
| 64033-33110A0 |
MCV30 IVORY,TRIM0# |
1 | ||
| 64033E - GRILLE SUB-ASSY, REAR SPEAKER | ||||
| 64033-33110C0 |
MCV30 BLACK,TRIM2# |
1 | ||
| 64033-33110A1 |
MCV30 NEW IVORY,TRIM0# |
1 | ||
| 64033-33110C0 |
MCV30 BLACK,TRIM2# |
1 | ||
| 64033-33110A0 |
MCV30 IVORY,TRIM0# |
1 | ||
| 64195A - INSULATOR, ROOM PARTITION PANEL | ||||
| 64195-33030 |
MCV30 |
1 | ||
| 64195-33020 |
MCV30 |
1 | ||
| 64270A - CLIP(FOR ROOM PARTITION BOARD SETTING) | ||||
| 90467-08186C0 |
MCV30 BLACK |
7 | ||
| 90467-08186C0 |
MCV30 BLACK,TRIM0#,2# |
7 | ||
| 64270C - BOARD ASSY, ROOM PARTITION | ||||
| 64271-33060C0 |
MCV30 BLACK,TRIM0#,2# |
1 | ||
| 64271-33060C0 |
MCV30 BLACK,TRIM0#,2# |
1 | ||
| 64271B - CLIP(FOR ROOM PARTITION BOARD) | ||||
| 90467-08186C0 |
MCV30 BLACK,TRIM0#,2# |
6 | ||
| 90467-08186C0 |
MCV30 BLACK |
6 | ||
| 64271B - CLIP(FOR ROOM PARTITION BOARD) | ||||
| 90467-08186C0 |
MCV30 BLACK,TRIM0#,2# |
6 | ||
| 90467-08186C0 |
MCV30 BLACK |
6 | ||
| 64271E - PANEL, ROOM PARTITION | ||||
| 64241-33030 |
MCV30 |
1 | ||
| 64241-33030 |
MCV30 |
1 | ||
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-33470A0 |
MCV30..30G ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ),IVORY,TRIM0# |
1 | ||
| 64330-33460A0 |
MCV30..30G ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ),IVORY,TRIM0# |
1 | ||
| 64330-33460C0 |
MCV30..30G ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ),BLACK,TRIM2# |
1 | ||
| 64330-33450A0 |
MCV30 IVORY,TRIM0# |
1 | ||
| 64330-33470C0 |
MCV30..30G ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ),BLACK,TRIM2# |
1 | ||
| 64330-33500A0 |
MCV30..30G ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ),IVORY,TRIM0# |
1 | ||
| 64330-33500C0 |
MCV30..30G ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ),BLACK,TRIM2# |
1 | ||
| 64330-33480C1 |
MCV30 BLACK,TRIM2# |
1 | ||
| 64330-33450C0 |
MCV30 BLACK,TRIM2# |
1 | ||
| 64330-33480A0 |
MCV30 IVORY,TRIM0# |
1 | ||
| 64330-33490A0 |
MCV30..30G ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ),IVORY,TRIM0# |
1 | ||
| 64330-33490C1 |
MCV30..30G ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ),BLACK,TRIM2# |
1 | ||
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-33470A0 |
MCV30..30G ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ),IVORY,TRIM0# |
1 | ||
| 64330-33460A0 |
MCV30..30G ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ),IVORY,TRIM0# |
1 | ||
| 64330-33460C0 |
MCV30..30G ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ),BLACK,TRIM2# |
1 | ||
| 64330-33450A0 |
MCV30 IVORY,TRIM0# |
1 | ||
| 64330-33470C0 |
MCV30..30G ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ),BLACK,TRIM2# |
1 | ||
| 64330-33500A0 |
MCV30..30G ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ),IVORY,TRIM0# |
1 | ||
| 64330-33500C0 |
MCV30..30G ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ),BLACK,TRIM2# |
1 | ||
| 64330-33480C1 |
MCV30 BLACK,TRIM2# |
1 | ||
| 64330-33450C0 |
MCV30 BLACK,TRIM2# |
1 | ||
| 64330-33480A0 |
MCV30 IVORY,TRIM0# |
1 | ||
| 64330-33490A0 |
MCV30..30G ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ),IVORY,TRIM0# |
1 | ||
| 64330-33490C1 |
MCV30..30G ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ),BLACK,TRIM2# |
1 | ||
| 64340B - PANEL ASSY, PACKAGE TRAY TRIM, NO.2 | ||||
| 64340-33020A1 |
MCV30..30G IVORY,TRIM0# |
1 | ||
| 64340-33010A0 |
MCV30..30G IVORY,TRIM0# |
1 | ||
| 64340-33020C1 |
MCV30..30G BLACK,TRIM2# |
1 | ||
| 64340-33010C0 |
MCV30..30G BLACK,TRIM2# |
1 | ||
| 64340-33020C0 |
MCV30..30G BLACK,TRIM2# |
1 | ||
| 64340-33020A0 |
MCV30..30G IVORY,TRIM0# |
1 | ||
| 64350A - SHADE ASSY, REAR WINDOW | ||||
| 64350-33020 |
MCV30..30G |
1 | ||
| 64350-33020 |
MCV30..30G |
1 | ||
| 64350-33021 |
MCV30..30G |
1 | ||
| 64490 - TRAY ASSY, LUGGAGE COMPARTMENT SIDE | ||||
| 64490-33020 |
MCV30 |
1 | ||
| 64490-33020 |
MCV30 |
1 | ||
| 64711 - MAT, LUGGAGE COMPARTMENT FLOOR | ||||
| 64711-33130C0 |
MCV30 BLACK,TRIM0#,2# |
1 | ||
| 64711-33130C0 |
MCV30 BLACK,TRIM0#,2# |
1 | ||
| 64711-33130C0 |
MCV30 BLACK,TRIM0#,2# |
1 | ||
| 64714G - CLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER) | ||||
| 90467-08186C0 |
MCV30 BLACK |
4 | ||
| 90467-08186C0 |
MCV30 BLACK,TRIM0#,2# |
4 | ||
| 64714G - CLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER) | ||||
| 90467-08186C0 |
MCV30 BLACK |
4 | ||
| 90467-08186C0 |
MCV30 BLACK,TRIM0#,2# |
4 | ||
| 64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) | ||||
| 90467-08186C0 |
MCV30 BLACK |
3 | ||
| 90467-08186C0 |
MCV30 BLACK,TRIM0#,2# |
3 | ||
| 64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT | ||||
| 64717-33060C0 |
MCV30 BLACK,TRIM0#,2# |
1 | ||
| 64717-33060C0 |
MCV30 BLACK,TRIM0#,2# |
1 | ||
| 64718B - COVER, LUGGAGE TRIM SERVICE HOLE | ||||
| 64718-22020 |
MCV30 NO.2 |
1 | ||
| 64718-33010 |
MCV30 NO.1 |
2 | ||
| 64718-33010 |
MCV30 NO.1 |
2 | ||
| 64718-22020 |
MCV30 NO.2 |
1 | ||
| 64718B - COVER, LUGGAGE TRIM SERVICE HOLE | ||||
| 64718-22020 |
MCV30 NO.2 |
1 | ||
| 64718-33010 |
MCV30 NO.1 |
2 | ||
| 64718-33010 |
MCV30 NO.1 |
2 | ||
| 64718-22020 |
MCV30 NO.2 |
1 | ||
| 64719A - COVER, LUGGAGE COMPARTMENT DOOR | ||||
| 64719-33050C0 |
MCV30 BLACK,TRIM0#,2# |
1 | ||
| 64719-33050C0 |
MCV30 BLACK,TRIM0#,2# |
1 | ||
| 64719B - CLIP(FOR LUGGAGE COMPARTMENT DOOR) | ||||
| 90467-08186C0 |
MCV30 BLACK |
11 | ||
| 90467-08186C0 |
MCV30 BLACK,TRIM0#,2# |
11 | ||
| 64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH | ||||
| 64721-33090C0 |
MCV30 BLACK,TRIM0#,2# |
1 | ||
| 64721-33090C0 |
MCV30 BLACK,TRIM0#,2# |
1 | ||
| 64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH | ||||
| 64722-33110C0 |
MCV30 BLACK,TRIM0#,2# |
1 | ||
| 64722-33110C0 |
MCV30 BLACK,TRIM0#,2# |
1 | ||
| 64725C - RETAINER, LUGGAGE COMPARTMENT COVER | ||||
| 64725-33020 |
MCV30 |
2 | ||
| 64725-33020 |
MCV30 |
2 | ||
| 64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-33060 |
MCV30 |
2 | ||
| 64725-33061 |
MCV30 |
2 | ||
| 64725-33061 |
MCV30 |
2 | ||
| 64771 - COVER, SPARE WHEEL | ||||
| 64771-24020 |
MCV30 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ |
1 | ||
| 64771-24030 |
MCV30 |
1 | ||
| 64771-24030 |
MCV30 ｽﾍﾟｱﾀｲﾔ = ｵｳｷﾕｳﾖｳﾀｲﾔ |
1 | ||
| 64777G - CUSHION, SPARE WHEEL | ||||
| 64779-33040 |
MCV30 |
1 | ||
| 64779-33040 |
MCV30 |
1 | ||
| Common parts | ||||
| 64323-33030 | ||||
| 90119-06018 | ||||
| 90119-06840 | ||||
| 90119-08983 | ||||
| 90119-08B12 | ||||
| 90159-50083 | ||||
| 90179-08162 | ||||
| 90183-05016 | ||||
| 90467-10161 | ||||
| 90468-05060 | ||||
| 90530-25010 | ||||

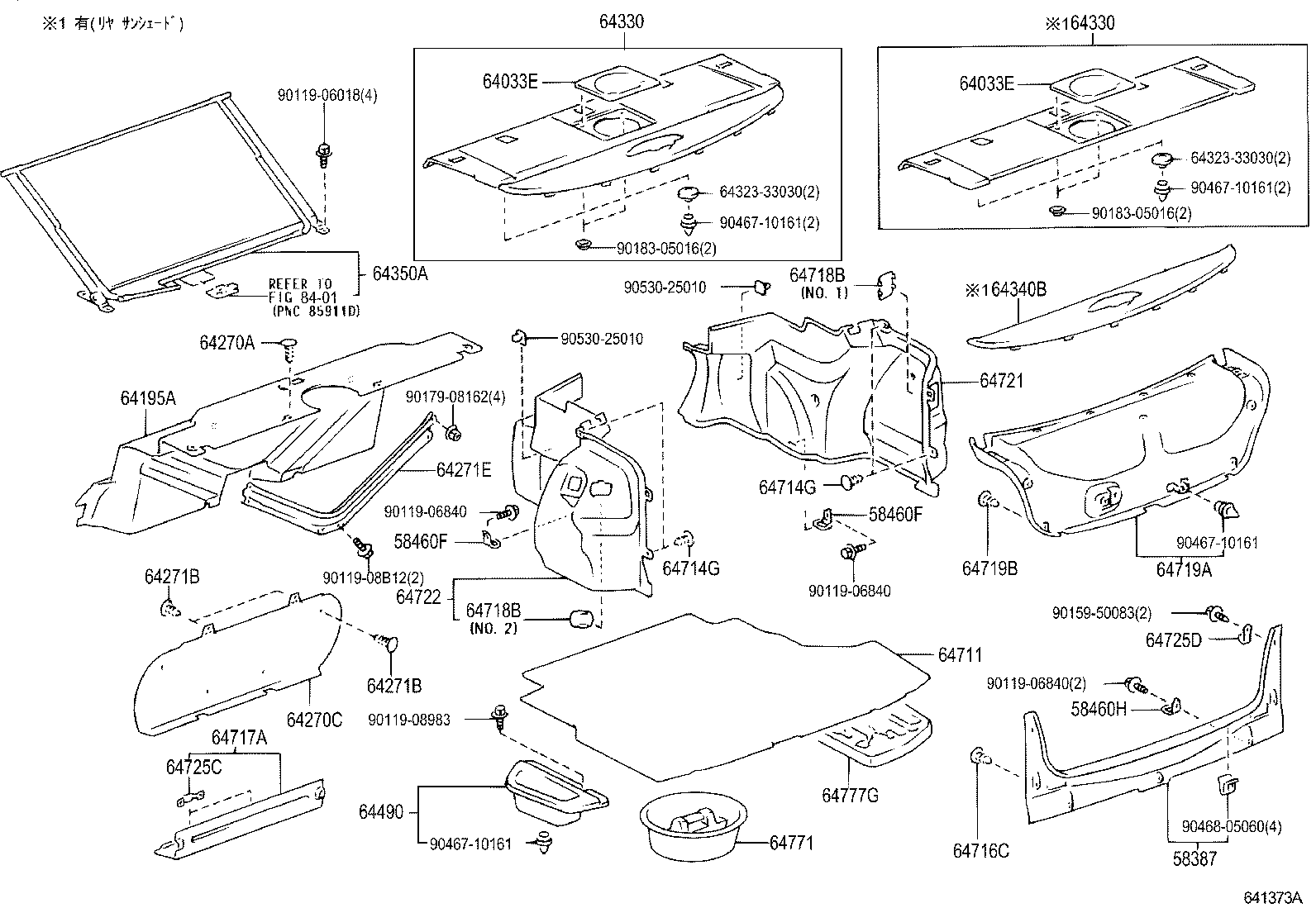

| Linked diagrams | ||||
| 8401 | ||||
