MCV21-ATPNK (1996)
Toyota Windom
Production
Aug 1996
-
Jul 2001
Engine
2MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9608-9808) ; (9808-9908)25X,30G ; (9908- )MCV21

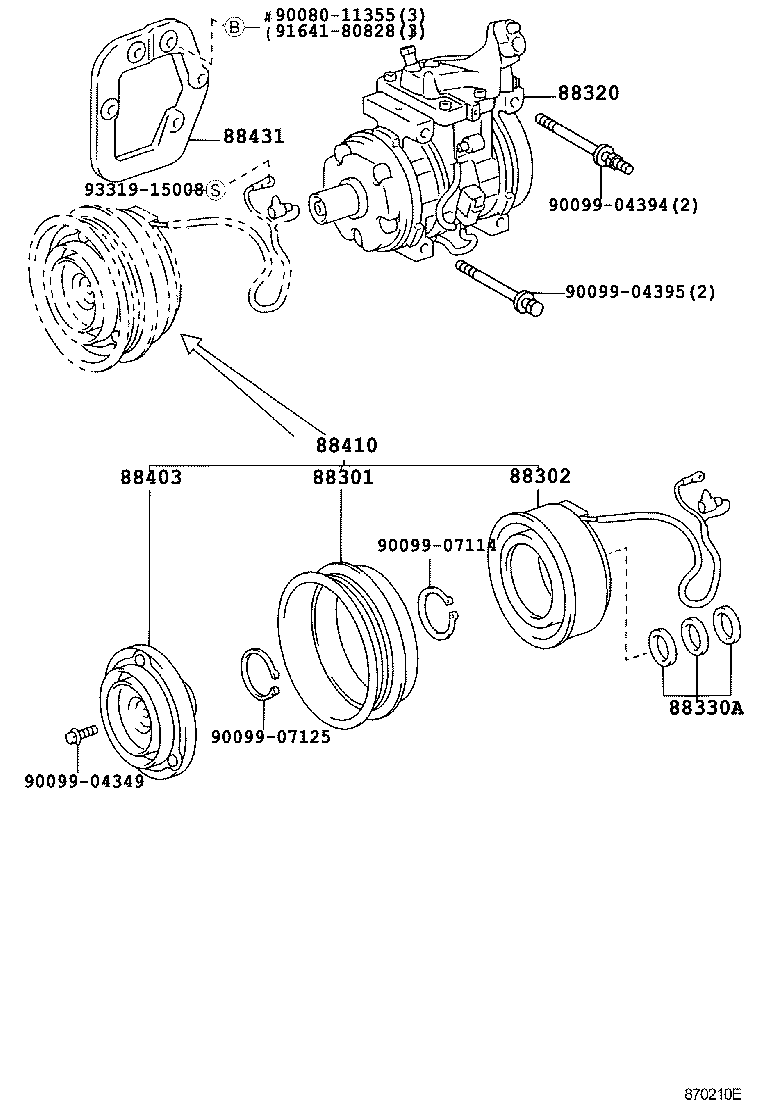

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-33010 |
MCV2#..25X,30G |
1 | ||
| 88412-33010 |
MCV2# |
1 | ||
| 88412-33010 |
MCV21 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-33050 |
MCV2# |
1 | ||
| 88411-33050 |
MCV21 |
1 | ||
| 88411-33050 |
MCV2#..25X,30G |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-33120 |
MCV2# |
1 | ||
| 88320-33120 |
MCV21 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
MCV2# |
1 | ||
| 88335-14020 |
MCV2#..25G,25X,30X |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-30290 |
MCV2# |
1 | ||
| 88403-30290 |
MCV2#..25X,30G |
1 | ||
| 88403-30290 |
MCV21 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-33110 |
MCV21 |
1 | ||
| 88410-33110 |
MCV2# |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-07010 |
MCV21 (L) |
1 | ||
| 88431-33020 |
MCV21 |
1 | ||
| 88431-33020 |
MCV2# |
1 | ||
| 88431-33020 |
MCV21 (J) |
1 | ||
| Common parts | ||||
| 90080-11355 | ||||
| 90099-04349 | ||||
| 90099-04394 | ||||
| 90099-04395 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 91641-80828 | ||||
| 93319-15008 | ||||
