MCV21-ATPNK (1996)

Toyota Windom

Production Aug 1996 - Jul 2001
Engine 2MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(9608- )

Click highlighted areas on diagram

SENSOR

diagram 88625H 88625P 88625Q
Part # Description Qty Price
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-41010

MCV2#

 1
88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR)
88790-22130

MCV2#

 1
88625-16200

MCV2#

 1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-20490

MCV2#

 1

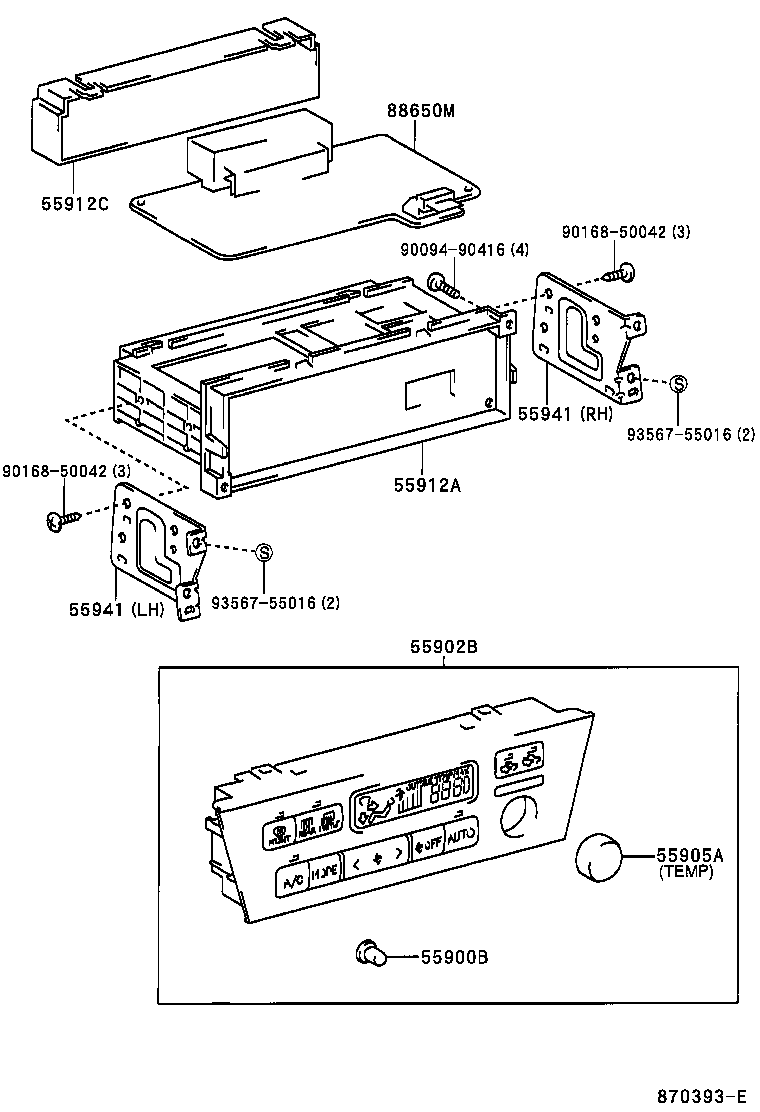

ILLUST NO. 1 OF 3(9608- )

Click highlighted areas on diagram

HEATER CONTROL

diagram 55900B 55902B 55905A 55912A 55912C 55941 55941 88650M 9009490416 9016850042 9016850042 9356755016 9356755016
Part # Description Qty Price
55900B - BULB, AIR CONDITIONER CONTROL
90010-03002

MCV2#

#,液晶

 2
90010-03001

MCV2#

14V 1.4W,ﾉﾌﾞ

 4
55902B - CONTROL SUB-ASSY, HEATER
55902-33150

MCV2#

 1
55902-33210

MCV2#

 1
55905A - KNOB, HEATER CONTROL
55905-33210

MCV2#

 1
55912A - HOUSING, HEATER CONTROL
55912-33010

MCV2#

 1
55912C - HOUSING, HEATER CONTROL
55912-33030

MCV2#

 1
55941 - BRACKET, HEATER CONTROL
55938-33020

MCV2#

右側

 1
55938-33010

MCV2#

左側

 1
55941 - BRACKET, HEATER CONTROL
55938-33020

MCV2#

右側

 1
55938-33010

MCV2#

左側

 1
88650M - COMPUTER ASSY, AIR CONDITIONER
88650-33320

MCV21

 1
88650-33240

MCV2#

 1
Common parts
90094-90416
90168-50042
93567-55016

ILLUST NO. 3 OF 3(9608- )

Click highlighted areas on diagram

DUCT

diagram 55843A 55844 55845A 8714 8714 87201 87201A 87201B 87201F 87201L 87201M 87212 87213 9356755016 9356755016 9356755016 9356755016
Part # Description Qty Price
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-33080

MCV2#

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-33100

MCV2#

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-33080

MCV2#

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87211-41010

MCV2#

 1
87201A - DUCT SUB-ASSY, AIR
87201-33160

MCV2#

 1
87201B - DUCT SUB-ASSY, AIR, NO.2
87201-33140

MCV2#

 1
87201F - DUCT SUB-ASSY, AIR, NO.3
87201-33220

MCV2#

 1
87201L - DUCT SUB-ASSY, AIR, NO.4
87201-33180

MCV2#

 1
87201M - DUCT SUB-ASSY, AIR, NO.5
87201-33240

MCV2#

 1
87212 - DUCT, AIR, REAR NO.1
87212-33010

MCV2#

 1
87212-33010

MCV2#

(J)

 1
87212-06010

MCV2#

(L)

 1
87213 - DUCT, AIR, REAR NO.2
87213-33010

MCV2#

(J)

 1
87213-06010

MCV2#

(L)

 1
87213-33010

MCV2#

 1
Common parts
93567-55016
Linked diagrams
8714
