MCV21-ATPNK (1996)

Toyota Windom

Production Aug 1996 - Jul 2001
Engine 2MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

Click highlighted areas on diagram

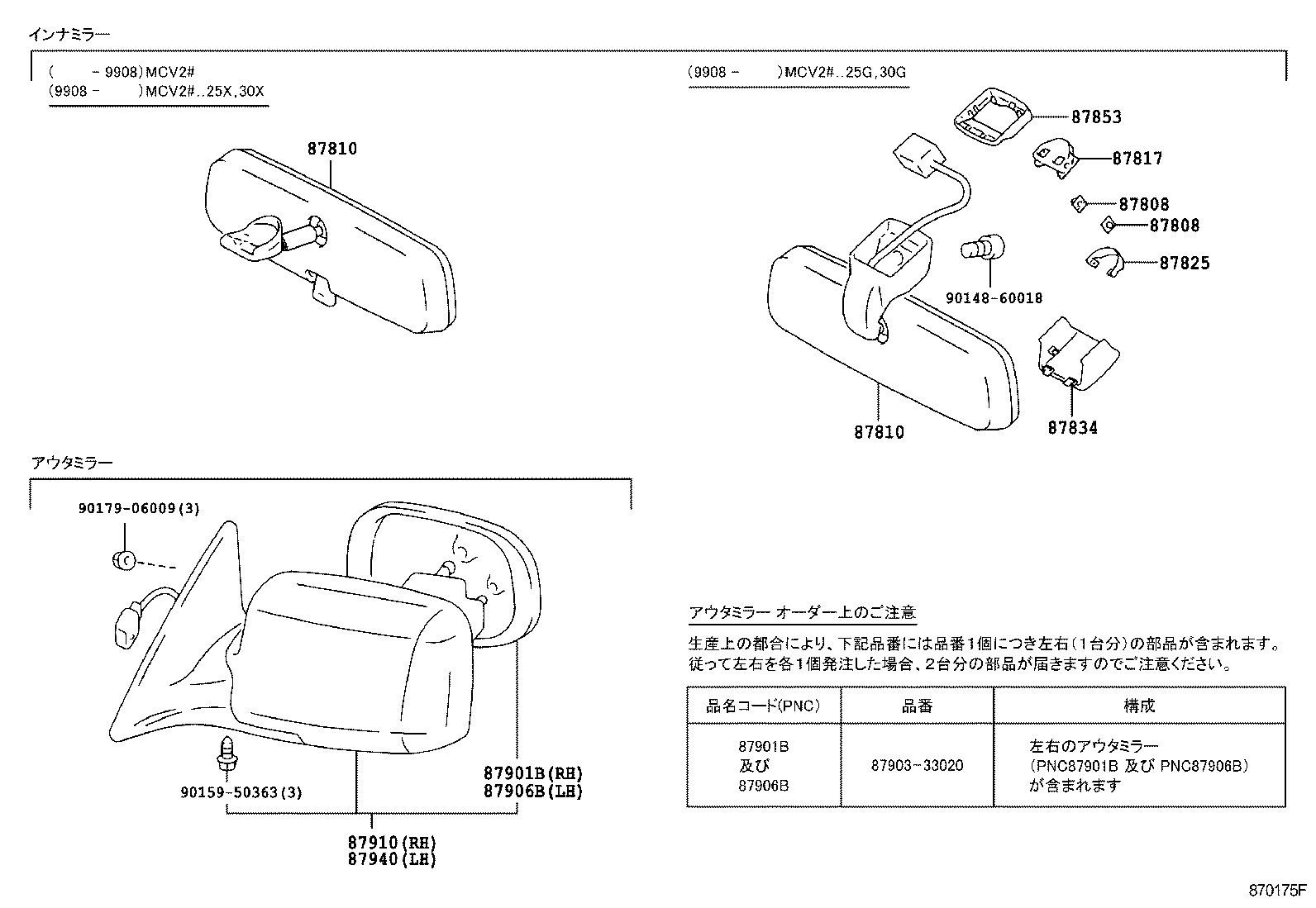

diagram 87808 87808 87810 87810 87817 87825 87834 87853 87901B 87906B 87910 87940 9014860018 9015950363 9017906009
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-0W030

MCV2#..25X,30X

 1
87810-0W030

MCV2#

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-0W030

MCV2#..25X,30X

 1
87810-0W030

MCV2#

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87931-33460

MCV2#

ﾜｲﾄﾞﾋﾞﾕ-ﾄﾞｱﾐﾗ-

 1
87931-33230

MCV2#

ﾅｼ(ﾜｲﾄﾞﾋﾞﾕｰﾄﾞｱﾐﾗｰ)

 1
87931-33200

MCV2#

ﾜｲﾄﾞﾋﾞﾕ-ﾄﾞｱﾐﾗ-

 1
87931-33470

MCV2#

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87961-33200

MCV2#

 1
87961-33420

MCV2#

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-33200G0

MCV2#

ﾜｲﾄﾞﾋﾞﾕ-ﾄﾞｱﾐﾗ-,DK.GREEN M.M.,6P2

 1
87910-33200E0

MCV2#

ﾜｲﾄﾞﾋﾞﾕ-ﾄﾞｱﾐﾗ-,FLAXEN MM,4M7

 1
87910-33200A0

MCV2#

ﾜｲﾄﾞﾋﾞﾕ-ﾄﾞｱﾐﾗ-,SU.WHITE PM,051

 1
87910-33230J0

MCV2#

ﾅｼ(ﾜｲﾄﾞﾋﾞﾕｰﾄﾞｱﾐﾗｰ),DK.BLUE M.M,8L3

 1
87910-33200C0

MCV2#

ﾜｲﾄﾞﾋﾞﾕ-ﾄﾞｱﾐﾗ-,BLACK,202

 1
87910-33230E0

MCV2#

ﾅｼ(ﾜｲﾄﾞﾋﾞﾕｰﾄﾞｱﾐﾗｰ),FLAXEN M.M,4M7

 1
87910-33230C0

MCV2#

ﾅｼ(ﾜｲﾄﾞﾋﾞﾕｰﾄﾞｱﾐﾗｰ),BLACK,202

 1
87910-33230A0

MCV2#

ﾅｼ(ﾜｲﾄﾞﾋﾞﾕｰﾄﾞｱﾐﾗｰ),SU.WHITE PM,051

 1
87910-33200B0

MCV2#

ﾜｲﾄﾞﾋﾞﾕ-ﾄﾞｱﾐﾗ-,SILVER ME,199

 1
87910-33230B0

MCV2#

ﾅｼ(ﾜｲﾄﾞﾋﾞﾕｰﾄﾞｱﾐﾗｰ),SILVER ME,199

 1
87910-33200J0

MCV2#

ﾜｲﾄﾞﾋﾞﾕ-ﾄﾞｱﾐﾗ-,DK.BLUE M.M.,8L3

 1
87910-33460B1

MCV2#

ﾜｲﾄﾞﾋﾞﾕ-ﾄﾞｱﾐﾗ-,DK.GRAY M.M,1C6

 1
87910-33230G1

MCV2#

ﾅｼ(ﾜｲﾄﾞﾋﾞﾕｰﾄﾞｱﾐﾗｰ),DK.GREEN MC.P.I.O.,6N9

 1
87910-33200G1

MCV2#

ﾜｲﾄﾞﾋﾞﾕ-ﾄﾞｱﾐﾗ-,DK.GREEN MC.P.I.O.,6N9

 1
87910-33460C0

MCV2#

ﾜｲﾄﾞﾋﾞﾕ-ﾄﾞｱﾐﾗ-,BLACK,202

 1
87910-33230G0

MCV2#

ﾅｼ(ﾜｲﾄﾞﾋﾞﾕｰﾄﾞｱﾐﾗｰ),DK.GREEN M.M,6P2

 1
87910-33460A0

MCV2#

ﾜｲﾄﾞﾋﾞﾕ-ﾄﾞｱﾐﾗ-,SU.WHITE PM,051

 1
87910-33470G0

MCV2#

DK.GREEN MC.P.I.O,6N9

 1
87910-33470A0

MCV2#

SU.WHITE PM,051

 1
87910-33470B0

MCV2#

SILVER ME,1C0

 1
87910-33460B0

MCV2#

ﾜｲﾄﾞﾋﾞﾕ-ﾄﾞｱﾐﾗ-,SILVER ME,1C0

 1
87910-33460G0

MCV2#

ﾜｲﾄﾞﾋﾞﾕ-ﾄﾞｱﾐﾗ-,DK. GREEN MC.P.I.O.,6N9

 1
87910-33470C0

MCV2#

BLACK,202

 1
87910-33460G1

MCV2#

ﾜｲﾄﾞﾋﾞﾕ-ﾄﾞｱﾐﾗ-,GRAYISH GREEN M.M.OP,6R6

 1
87910-33470B1

MCV2#

DK.GRAY M.M,1C6

 1
87910-33470G1

MCV2#

GRAYISH GREEN M.M.OP,6R6

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-33200A0

MCV2#

SU.WHITE PM,051

 1
87940-33200G0

MCV2#

DK.GREEN M.M.,6P2

 1
87940-33200G1

MCV2#

DK.GREEN MC.P.I.O.,6N9

 1
87940-33200C0

MCV2#

BLACK,202

 1
87940-33200J0

MCV2#

DK.BLUE M.M.,8L3

 1
87940-33420A0

MCV2#

SU.WHITE PM,051

 1
87940-33200B0

MCV2#

SILVER ME,199

 1
87940-33420G1

MCV2#

GRAYISH GREEN M.M.OP,6R6

 1
87940-33420B0

MCV2#

SILVER ME,1C0

 1
87940-33420B1

MCV2#

DK.GRAY M.M,1C6

 1
87940-33420G0

MCV2#

DK.GREEN MC.P.I.O,6N9

 1
87940-33420C0

MCV2#

BLACK,202

 1
87940-33200E0

MCV2#

FLAXEN MM,4M7

 1
Common parts
90148-60018
90159-50363
90179-06009
