MCV21-ATPNK (1996)

Toyota Windom

Production Aug 1996 - Jul 2001
Engine 2MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

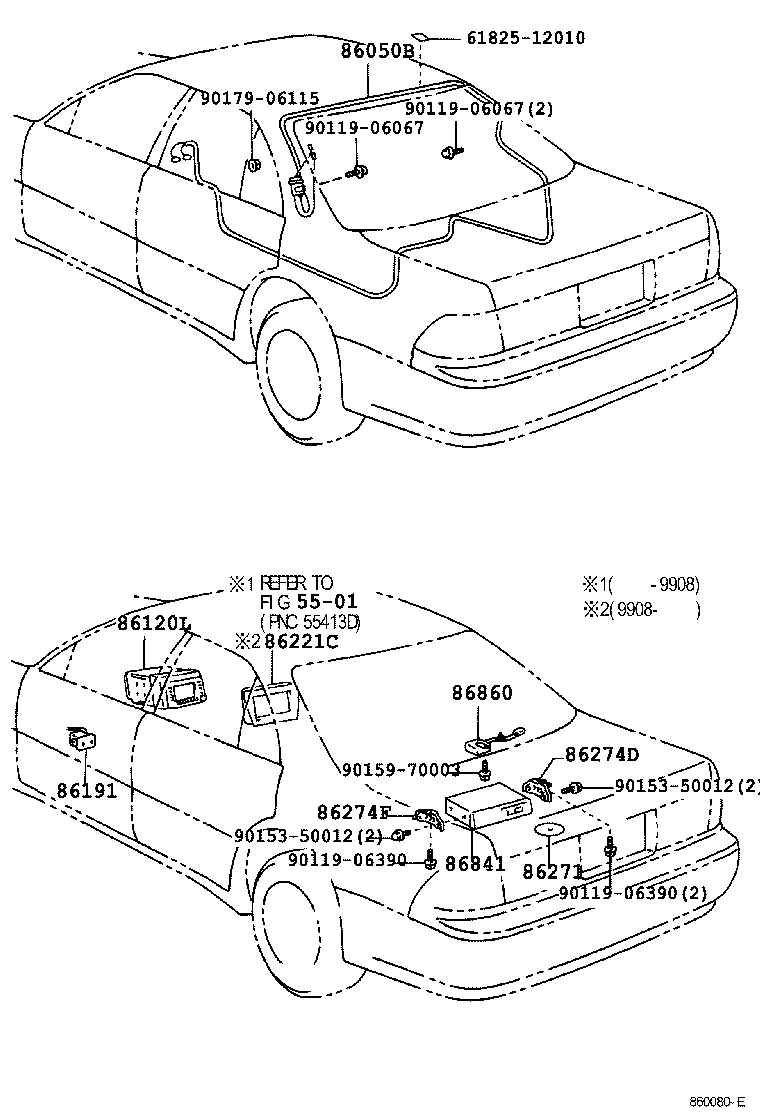

Click highlighted areas on diagram

diagram 5501 6182512010 86050B 86120L 86191 86221C 86271 86274D 86274F 86841 86860 9011906067 9011906067 9011906390 9011906390 9015350012 9015350012 9015970003 9017906115
Part # Description Qty Price
86050B - ANTENNA ASSY, TELEVISION
86050-33010

MCV2#

 1
86120L - RECEIVER ASSY, NAVIGATION
86120-33191

MCV2#

FUJITSU TEN,ID=16014

 1
86120-33190

MCV2#

FUJITSU TEN

 1
86191 - TERMINAL, VIDEO(VIDEO ADAPTER)
86191-32010

MCV2#

 1
86271 - DISC, DISC PLAYER
86271-30470

MCV2#

DENSO

 1
86271-33010

MCV2#

 1
86271-33011

MCV2#

 1
86271-33020

MCV2#

AISIN

 1
86274D - BRACKET, DISC PLAYER
86274-33050

MCV2#

 1
86274F - BRACKET, DISC PLAYER, NO.2
86274-33060

MCV2#

 1
86841 - COMPUTER, NAVIGATION
86841-33013

MCV2#

 1
86841-33010

MCV2#

 1
86841-33011

MCV2#

 1
86841-33050

MCV2#

DENSO

 1
86841-33012

MCV2#

 1
86841-33030

MCV2#

AISIN

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-33010

MCV2#

 1
Common parts
61825-12010
90119-06067
90119-06390
90153-50012
90159-70003
90179-06115
Linked diagrams
5501
