MCV21-ATPNK (1996)

Toyota Windom

Production Aug 1996 - Jul 2001
Engine 2MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

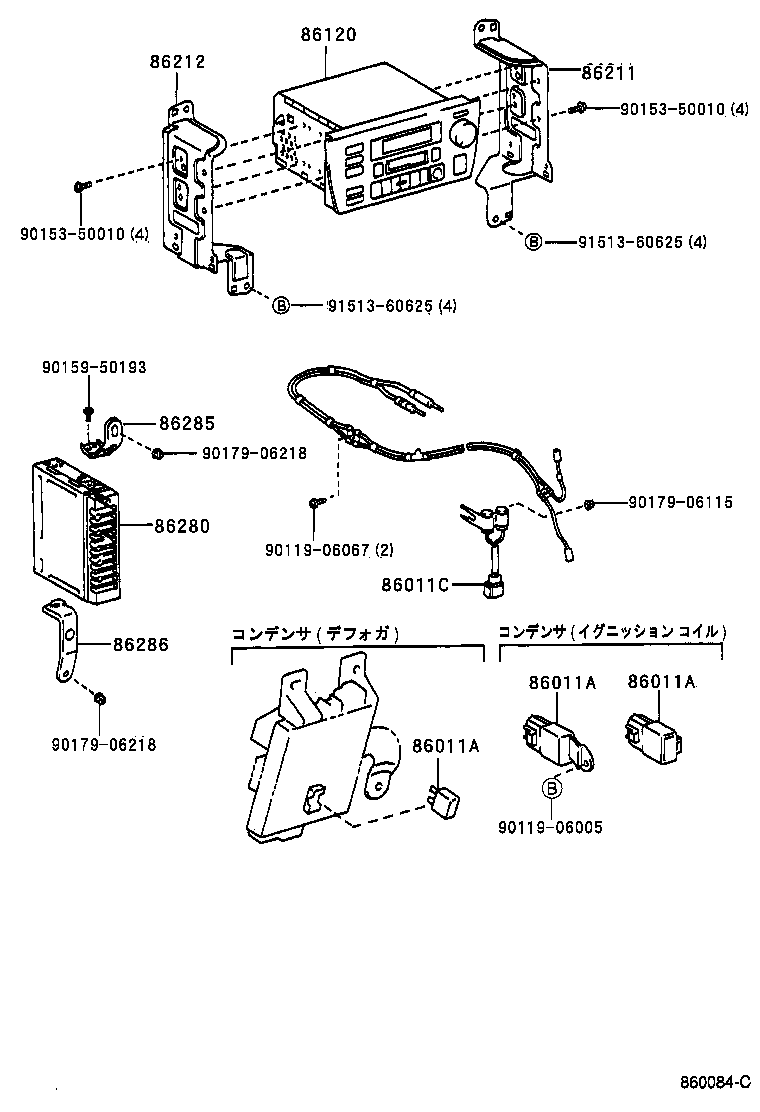

ILLUST NO. 1 OF 3(9608- )

Click highlighted areas on diagram

diagram 86011A 86011A 86011A 86011C 86120 86211 86212 86280 86285 86286 9011906005 9011906067 9015350010 9015350010 9015950193 9017906115 9017906218 9017906218 9151360625 9151360625
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04066

MCV2#

ﾃﾞﾌｫｶﾞ

 2
90980-04083

MCV21

ｲｸﾞﾆﾂｼﾖﾝ ｺｲﾙ

 1
90980-04083

MCV2#

ｲｸﾞﾆﾂｼﾖﾝ ｺｲﾙ

 1
86011A - CONDENSER, RADIO SETTING
90980-04066

MCV2#

ﾃﾞﾌｫｶﾞ

 2
90980-04083

MCV21

ｲｸﾞﾆﾂｼﾖﾝ ｺｲﾙ

 1
90980-04083

MCV2#

ｲｸﾞﾆﾂｼﾖﾝ ｺｲﾙ

 1
86011A - CONDENSER, RADIO SETTING
90980-04066

MCV2#

ﾃﾞﾌｫｶﾞ

 2
90980-04083

MCV21

ｲｸﾞﾆﾂｼﾖﾝ ｺｲﾙ

 1
90980-04083

MCV2#

ｲｸﾞﾆﾂｼﾖﾝ ｺｲﾙ

 1
86011C - FILTER, NOISE
90980-04129

MCV2#

 1
86120 - RECEIVER ASSY, RADIO
86120-33161

MCV2#..25X,30X

FUJITSU TEN,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86120-33340

MCV2#..25X,30X

FUJITSU TEN,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86120-33180

MCV21..25X

FUJITSU TEN,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86120-33161

MCV2#

FUJITSU TEN,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86120-33160

MCV2#

FUJITSU TEN,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86120-33162

MCV2#..25X,30X

FUJITSU TEN,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86211 - BRACKET, RADIO, NO.1
86211-33090

MCV2#

 1
86211-33110

MCV2#

ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ)

 1
86211-33140

MCV2#

 1
86211-33090

MCV2#..25X,30X

 1
86212 - BRACKET, RADIO, NO.2
86212-33090

MCV2#..25X,30X

 1
86212-33110

MCV2#

ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ)

 1
86212-33140

MCV2#

 1
86212-33090

MCV2#

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-33090

MCV2#

 1
86285 - BRACKET, AMPLIFIER, NO.1
86285-33040

MCV2#

 1
86286 - BRACKET, AMPLIFIER, NO.2
86286-33020

MCV2#

 1
Common parts
90119-06005
90119-06067
90153-50010
90159-50193
90179-06115
90179-06218
91513-60625

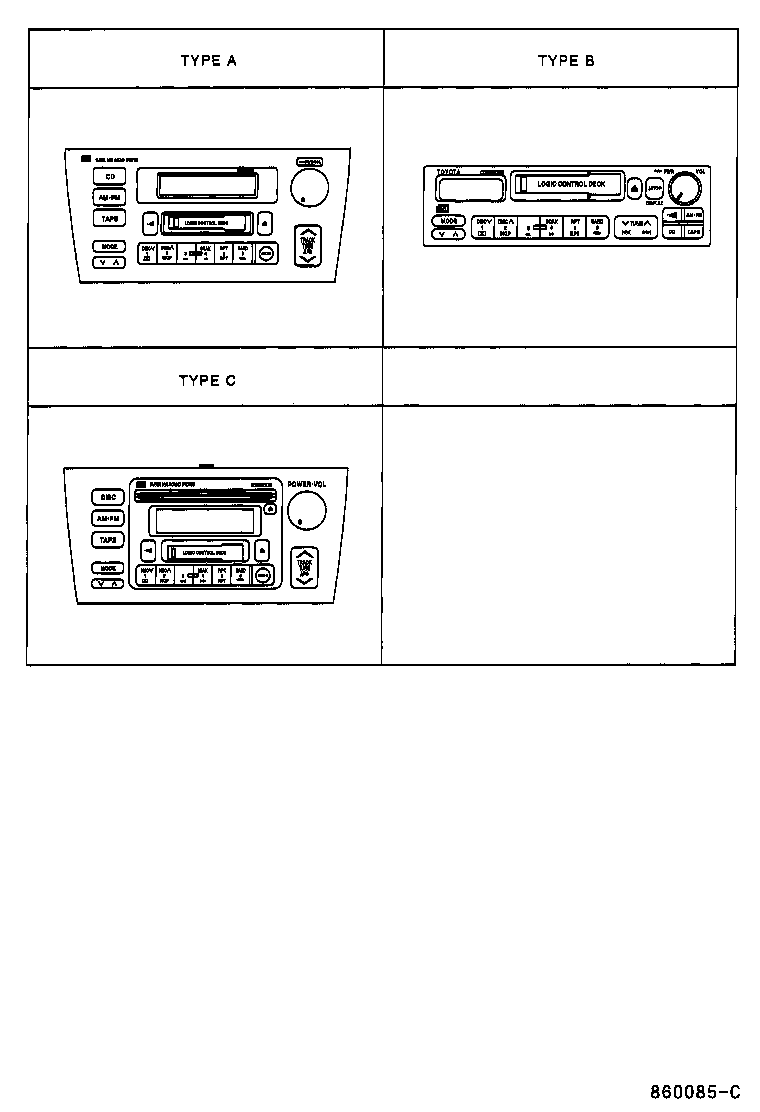

ILLUST NO. 3 OF 3(9608- )

Click highlighted areas on diagram

diagram
Part # Description Qty Price

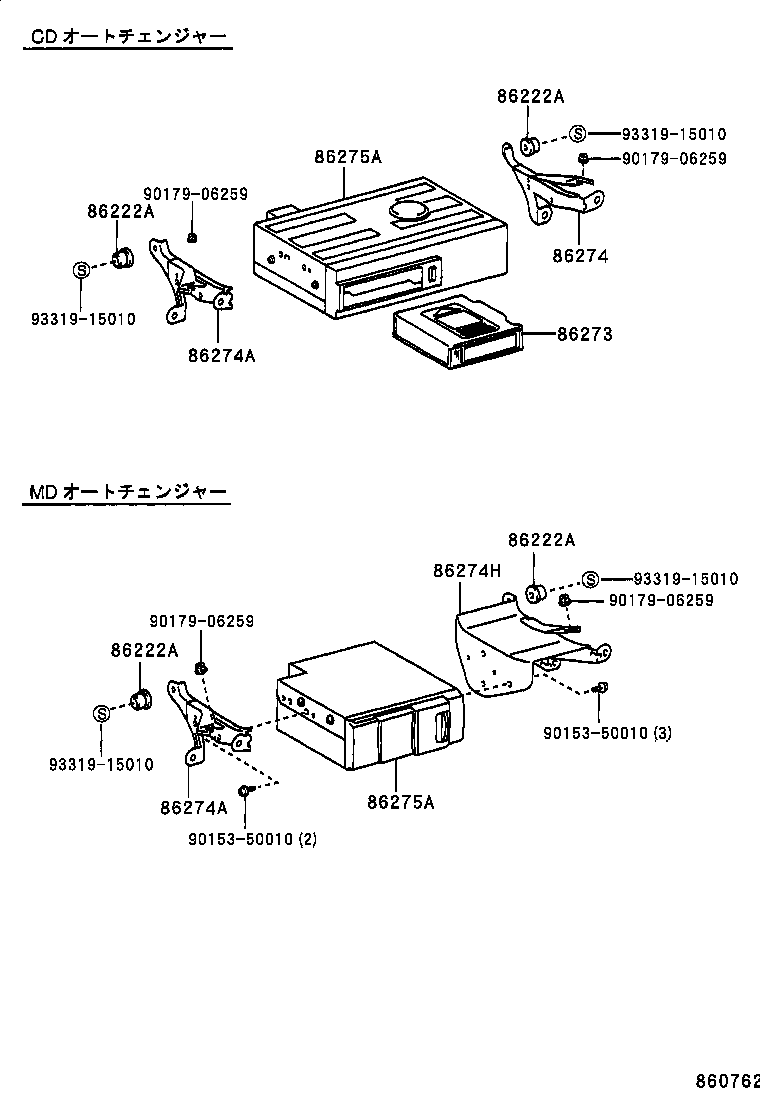

ILLUST NO. 2 OF 3(9608- )

Click highlighted areas on diagram

diagram 86222A 86222A 86222A 86222A 86273 86274 86274A 86274A 86274H 86275A 86275A 9015350010 9015350010 9017906259 9017906259 9017906259 9017906259 9331915010 9331915010 9331915010 9331915010
Part # Description Qty Price
86222A - CLIP, RADIO RECEIVER BRACKET NO.1
86222-33010

MCV2#

 2
86222A - CLIP, RADIO RECEIVER BRACKET NO.1
86222-33010

MCV2#

 2
86222A - CLIP, RADIO RECEIVER BRACKET NO.1
86222-33010

MCV2#

 2
86222A - CLIP, RADIO RECEIVER BRACKET NO.1
86222-33010

MCV2#

 2
86273 - MAGAZINE, DISC PLAYER
86273-50060

MCV2#

 1
86274 - BRACKET, DISC PLAYER
86274-33020

MCV2#

 1
86274A - BRACKET, DISC PLAYER
86274-33040

MCV2#

 1
86274A - BRACKET, DISC PLAYER
86274-33040

MCV2#

 1
86274H - BRACKET, DISC PLAYER
86274-33150

MCV2#

 1
86275A - CHANGER, DISC PLAYER
86275-33040

MCV2#

CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ

 1
86275-33070

MCV2#

MD ｵ-ﾄ ﾁｴﾝｼﾞﾔ

 1
86275A - CHANGER, DISC PLAYER
86275-33040

MCV2#

CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ

 1
86275-33070

MCV2#

MD ｵ-ﾄ ﾁｴﾝｼﾞﾔ

 1
Common parts
90153-50010
90179-06259
93319-15010
