MCV21-ATPNK (1996)
Toyota Windom
Production
Aug 1996
-
Jul 2001
Engine
2MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9608- )

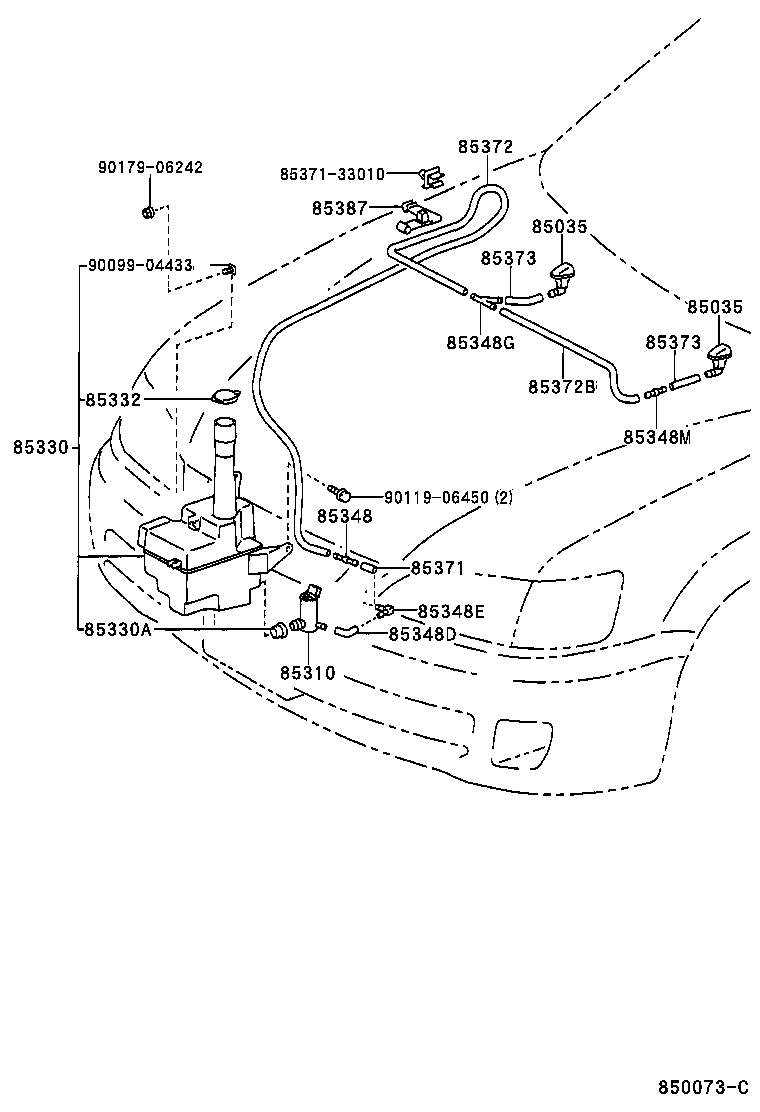

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85385-22020E0 |
MCV2# LIGHT BEIGE M M,4M7 |
2 | ||
| 85385-22020B1 |
MCV2# SILVER ME,199 |
2 | ||
| 85385-22020A2 |
MCV2# SUPER WHITE PEARL M,051 |
2 | ||
| 85385-32030 |
MCV2# |
2 | ||
| 85385-33090G0 |
MCV2# GRAYISH GREEN M.M.OP,6R6 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85385-22020E0 |
MCV2# LIGHT BEIGE M M,4M7 |
2 | ||
| 85385-22020B1 |
MCV2# SILVER ME,199 |
2 | ||
| 85385-22020A2 |
MCV2# SUPER WHITE PEARL M,051 |
2 | ||
| 85385-32030 |
MCV2# |
2 | ||
| 85385-33090G0 |
MCV2# GRAYISH GREEN M.M.OP,6R6 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-10280 |
MCV2# |
1 | ||
| 85330-10290 |
MCV2# ｱﾘ(ｶﾝｹﾂﾘﾔﾜｲﾊﾟ) |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-33050 |
MCV2# |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
MCV2# |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-33050 |
MCV2# |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
MCV2# |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
MCV2# |
1 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85355-20200 |
MCV2# |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85348-12250 |
MCV2# |
1 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85349-89122 |
MCV2# |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
MCV2# *H,L=40 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33589 |
MCV2# *H,L=2200 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90446-07001 |
MCV2# *H,L=490 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
MCV2# *H,L=130 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
MCV2# *H,L=130 |
2 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 85387-22410 |
MCV2# |
1 | ||
| Common parts | ||||
| 85371-33010 | ||||
| 90099-04433 | ||||
| 90119-06450 | ||||
| 90179-06242 | ||||
