MCV21-ATPNK (1996)

Toyota Windom

Production Aug 1996 - Jul 2001
Engine 2MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

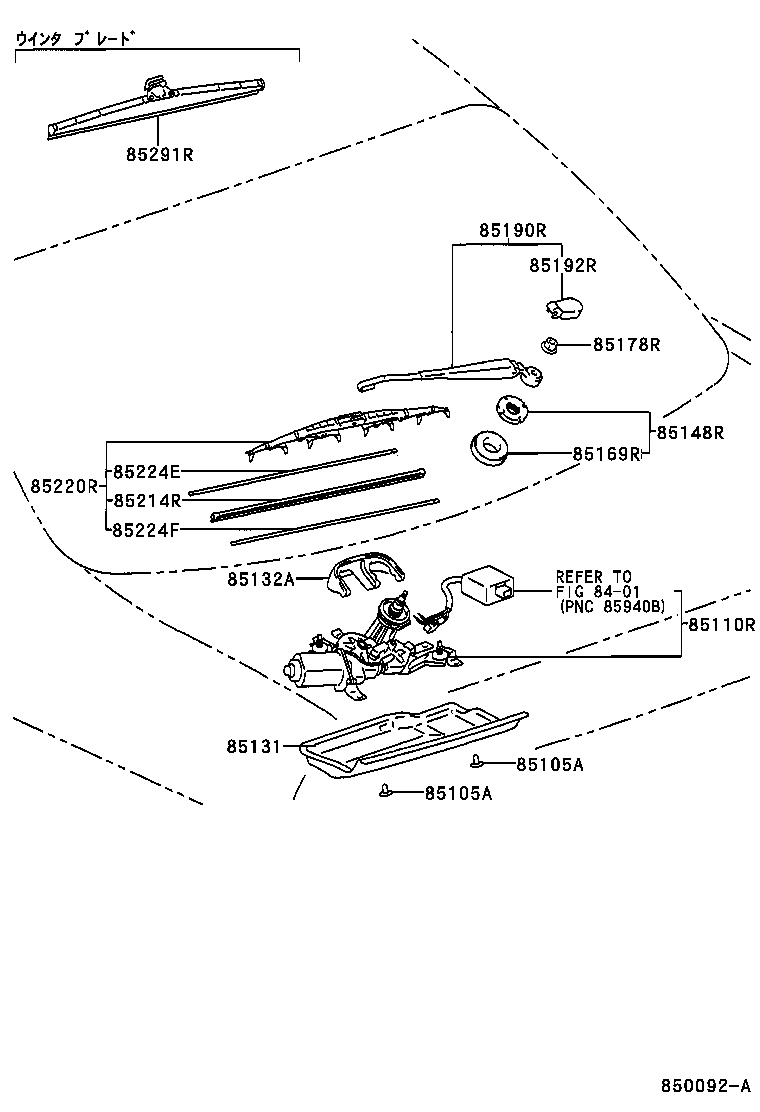

Click highlighted areas on diagram

diagram 8401 85105A 85105A 85110R 85131 85132A 85148R 85169R 85178R 85190R 85192R 85214R 85220R 85224E 85224F 85291R
Part # Description Qty Price
85105A - CLIP, REAR WIPER PROTECTOR
90467-08186

MCV2#

 2
85105A - CLIP, REAR WIPER PROTECTOR
90467-08186

MCV2#

 2
85110R - MOTOR ASSY, REAR WIPER
85130-33030

MCV2#

 1
85131 - COVER, REAR WIPER MOTOR
85131-33020

MCV2#

 1
85132A - COVER, REAR WIPER SHAFT
85132-33010C0

MCV2#

BLACK,TRIM2#

 1
85132-33010G0

MCV2#

DK.SAGE,TRIM6#

 1
85148R - NUT, W/WASHER PACKING, REAR WIPER LINK PIVOT
85133-12770

MCV2#

 1
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
90210-28002

MCV2#

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06158

MCV2#

 1
85190R - ARM ASSY, REAR WIPER
85241-33030

MCV2#

 1
85192R - COVER, REAR WIPER ARM
85192-13060

MCV2#

 1
85214R - RUBBER, REAR WIPER
85214-33160

MCV2#

 1
85220R - BLADE ASSY, REAR WIPER
85242-33020

MCV2#

 1
85224E - PLATE, REAR WIPER RUBBER BACKING, NO.1
85224-33070

MCV2#

 1
85224F - PLATE, REAR WIPER RUBBER BACKING, NO.2
85224-33070

MCV2#

 1
85291R - BLADE,REAR WIPER, WINTER
85291-60020

MCV2#

 1
Linked diagrams
8401
