MCV21-ATPNK (1996)

Toyota Windom

Production Aug 1996 - Jul 2001
Engine 2MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608-9708)

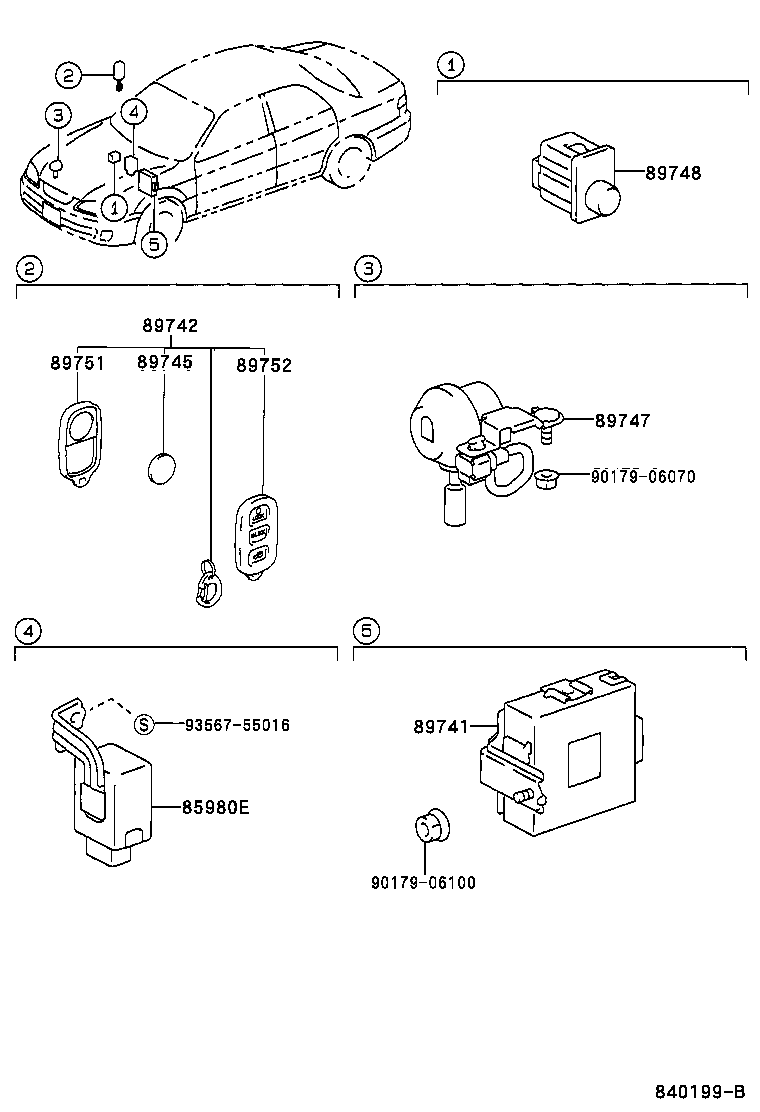

Click highlighted areas on diagram

diagram 85980E 89741 89742 89745 89747 89748 89751 89752 9017906070 9017906100 9356755016
Part # Description Qty Price
85980E - RELAY ASSY, DOOR CONTROL
85980-33101

MCV2#

 1
85980-33100

MCV2#

 1
89741 - RECEIVER, DOOR CONTROL
89741-33141

MCV2#

 1
89741-33140

MCV2#

 1
89742 - TRANSMITTER, DOOR CONTROL
89742-33090

MCV2#

 1
89745 - BATTERY, TRANSMITTER
89745-50010

MCV2#

 1
89745-40010

MCV2#

 1
89745-40010

MCV2#

 2
89747 - BUZZER, WIRELESS DOOR LOCK
89747-33020

MCV2#

 1
89748 - CONTROLLER, WIRELESS DOOR LOCK BUZZER
89748-33020

MCV2#

 1
89751 - COVER, TRANSMITTER HOUSING
89751-50120

MCV2#

 1
89752 - CASE, TRANSMITTER HOUSING
89752-50030

MCV2#

 1
Common parts
90179-06070
90179-06100
93567-55016

(9708-9908) ; (9908- )MCV21

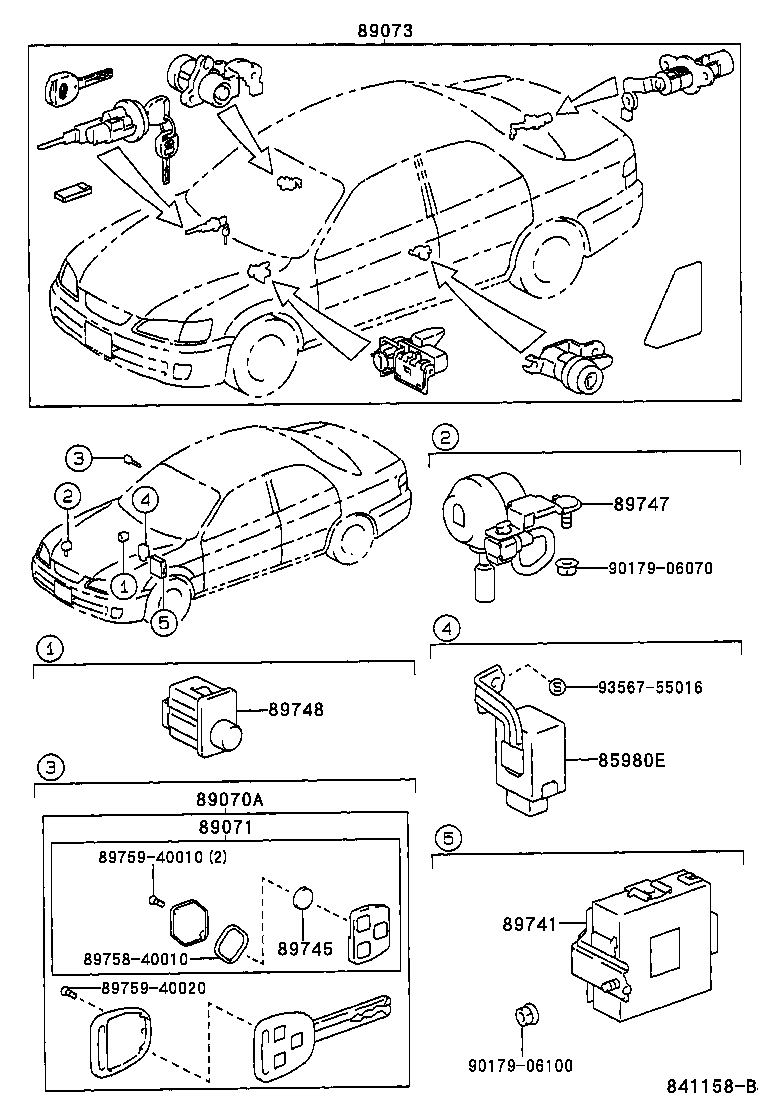

Click highlighted areas on diagram

diagram 85980E 89070A 89071 89073 89741 89745 89747 89748 8975840010 8975940010 8975940020 9017906070 9017906100 9356755016
Part # Description Qty Price
85980E - RELAY ASSY, DOOR CONTROL
85980-33101

MCV2#

 1
85980-33100

MCV2#

 1
89070A - TRANSMITTER, DOOR CONTROL (CUT KEY)
89070-33030

MCV2#

 1
89070-33030

MCV21

 1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-33010

MCV21

 2
89071-33011

MCV21

 2
89071-33010

MCV2#

 1
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
89073-33010

MCV2#

 1
89073-33270

MCV21

 1
89741 - RECEIVER, DOOR CONTROL
89741-33141

MCV2#

 1
89741-33140

MCV2#

 1
89745 - BATTERY, TRANSMITTER
89745-50010

MCV2#

 1
89745-40010

MCV2#

 1
89745-40010

MCV2#

 2
89747 - BUZZER, WIRELESS DOOR LOCK
89747-33020

MCV2#

 1
89748 - CONTROLLER, WIRELESS DOOR LOCK BUZZER
89748-33020

MCV2#

 1
Common parts
89758-40010
89759-40010
89759-40020
90179-06070
90179-06100
93567-55016
