MCV21-ATPNK (1996)

Toyota Windom

Production Aug 1996 - Jul 2001
Engine 2MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608-9808) ; (9808- )MCV21

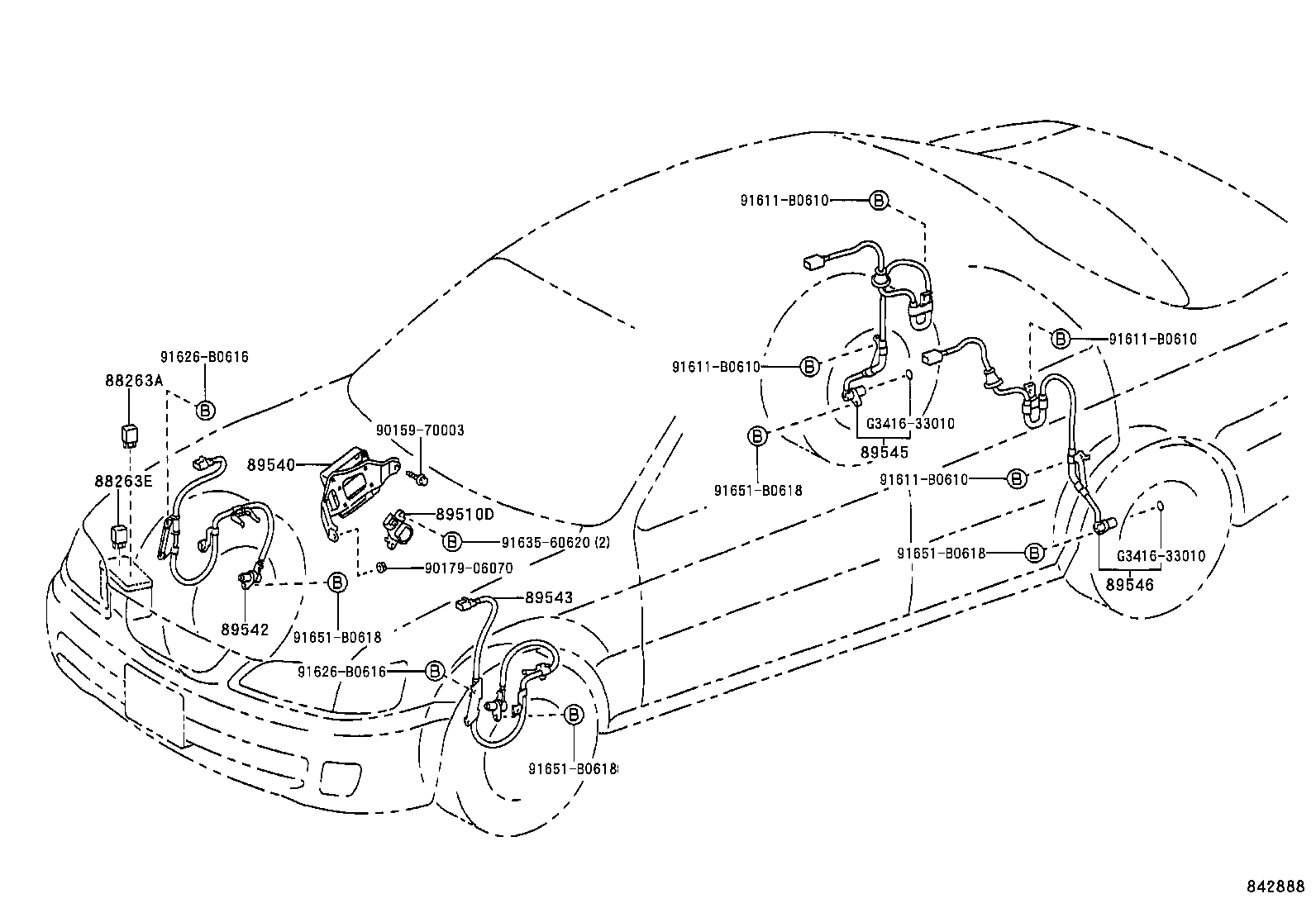

Click highlighted areas on diagram

diagram 88263A 88263E 89510D 89540 89542 89543 89545 89546 9015970003 9017906070 91611B0610 91611B0610 91611B0610 91611B0610 91626B0616 91626B0616 9163560620 91651B0618 91651B0618 91651B0618 91651B0618 G341633010 G341633010
Part # Description Qty Price
88263A - RELAY, SKID CONTROL
88263-14110

MCV2#

 1
88263-14110

MCV21

 1
88263E - RELAY, SKID CONTROL NO.2
88263-24030

MCV2#

 1
88263-24030

MCV2#..25G,25X,30G

 1
88263-24030

MCV2#

 1
89510D - SENSOR ASSY, BRAKE PEDAL STROKE
89510-33010

MCV21

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-33041

MCV2#..25G,25X,30X

 1
89540-33030

MCV2#

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
89540-33032

MCV2#

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
89540-33033

MCV21

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
89540-33033

MCV2#

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
89540-33040

MCV2#..25G,25X,30X

 1
89540-33220

MCV21

 1
89540-33250

MCV21

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
89540-33180

MCV21

 1
89542 - SENSOR, SPEED, FRONT RH
89542-33030

MCV2#

 1
89542-33050

MCV2#

 1
89543 - SENSOR, SPEED, FRONT LH
89543-33050

MCV2#

 1
89543-33030

MCV2#

 1
89545 - SENSOR, SPEED, REAR RH
89545-33020

MCV2#

 1
89546 - SENSOR, SPEED, REAR LH
89546-33020

MCV2#

 1
Common parts
90159-70003
90179-06070
91611-B0610
91626-B0616
91635-60620
91651-B0618
G3416-33010
