MCV21-ATPNK (1996)

Toyota Windom

Production Aug 1996 - Jul 2001
Engine 2MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

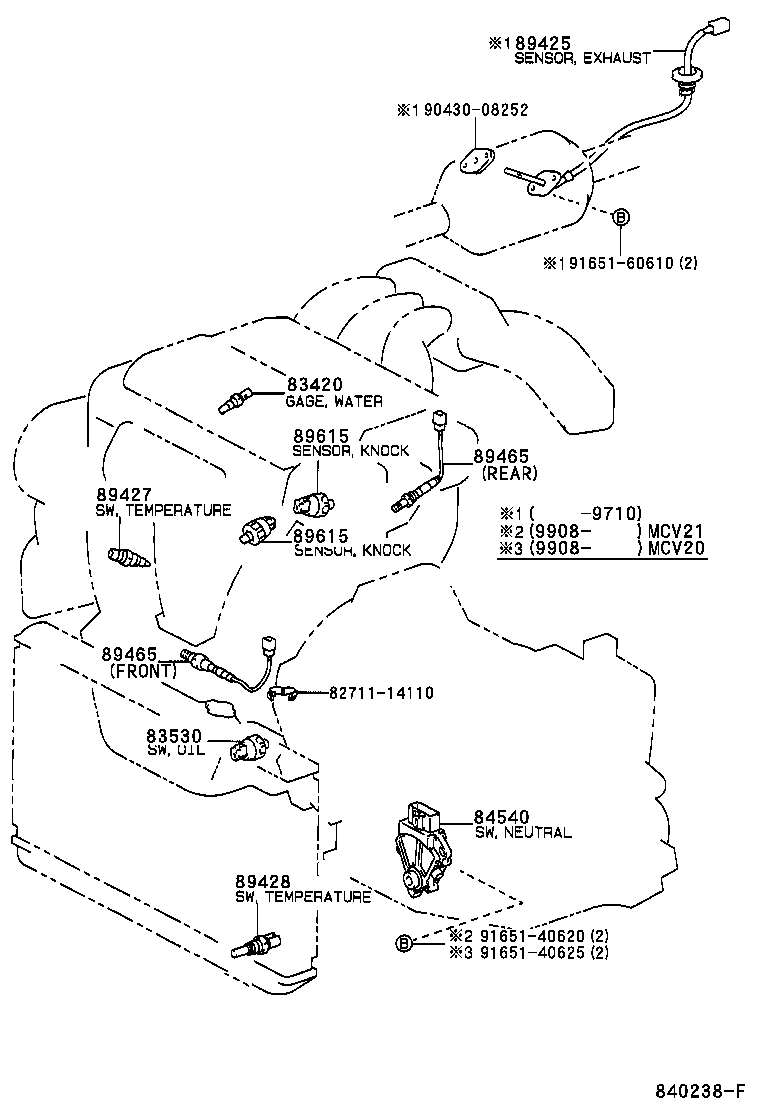

ILLUST NO. 1 OF 6(9608-9808) ; (9808-9908)MCV21 ; (9908- )

Click highlighted areas on diagram

ENGINE & TRANSMISSION

diagram 8271114110 83420 83530 84540 89425 89427 89428 89465 89465 89615 89615 9043008252 9165140620 9165140625 9165160610
Part # Description Qty Price
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-AA010

MCV2#

(L)

 1
83420-20040

MCV2#

 1
83420-20040

MCV2#

(J)

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-30090

MCV2#

 1
83530-28020

MCV2#

DENSO

 1
83530-60020

MCV2#

YAZAKI

 1
83530-AA011

MCV2#

東海理化

 1
84540 - SWITCH ASSY, NEUTRAL START
84540-20200

MCV2#

 1
84540-20200

MCV21

 1
89425 - SENSOR, EXHAUST GAS TEMPERATURE
89425-39585

MCV2#

 1
89427 - SWITCH, TEMPERATURE DETECT
89428-41010

MCV2#

 1
89428 - SWITCH, TEMPERATURE DETECT, NO.2
89428-33020

MCV2#

 1
89465 - SENSOR, OXYGEN
89465-33170

MCV21

ﾘﾔ

 1
89465-33170

MCV2#

ﾘﾔ

 1
89465-33160

MCV2#

ﾌﾛﾝﾄ

 1
89465-33160

MCV21

ﾌﾛﾝﾄ

 1
89465 - SENSOR, OXYGEN
89465-33170

MCV21

ﾘﾔ

 1
89465-33170

MCV2#

ﾘﾔ

 1
89465-33160

MCV2#

ﾌﾛﾝﾄ

 1
89465-33160

MCV21

ﾌﾛﾝﾄ

 1
89615 - SENSOR, KNOCK CONTROL
89615-12040

MCV2#

 2
89615-12090

MCV2#

 2
89615 - SENSOR, KNOCK CONTROL
89615-12040

MCV2#

 2
89615-12090

MCV2#

 2
Common parts
82711-14110
90430-08252
91651-40620
91651-40625
91651-60610

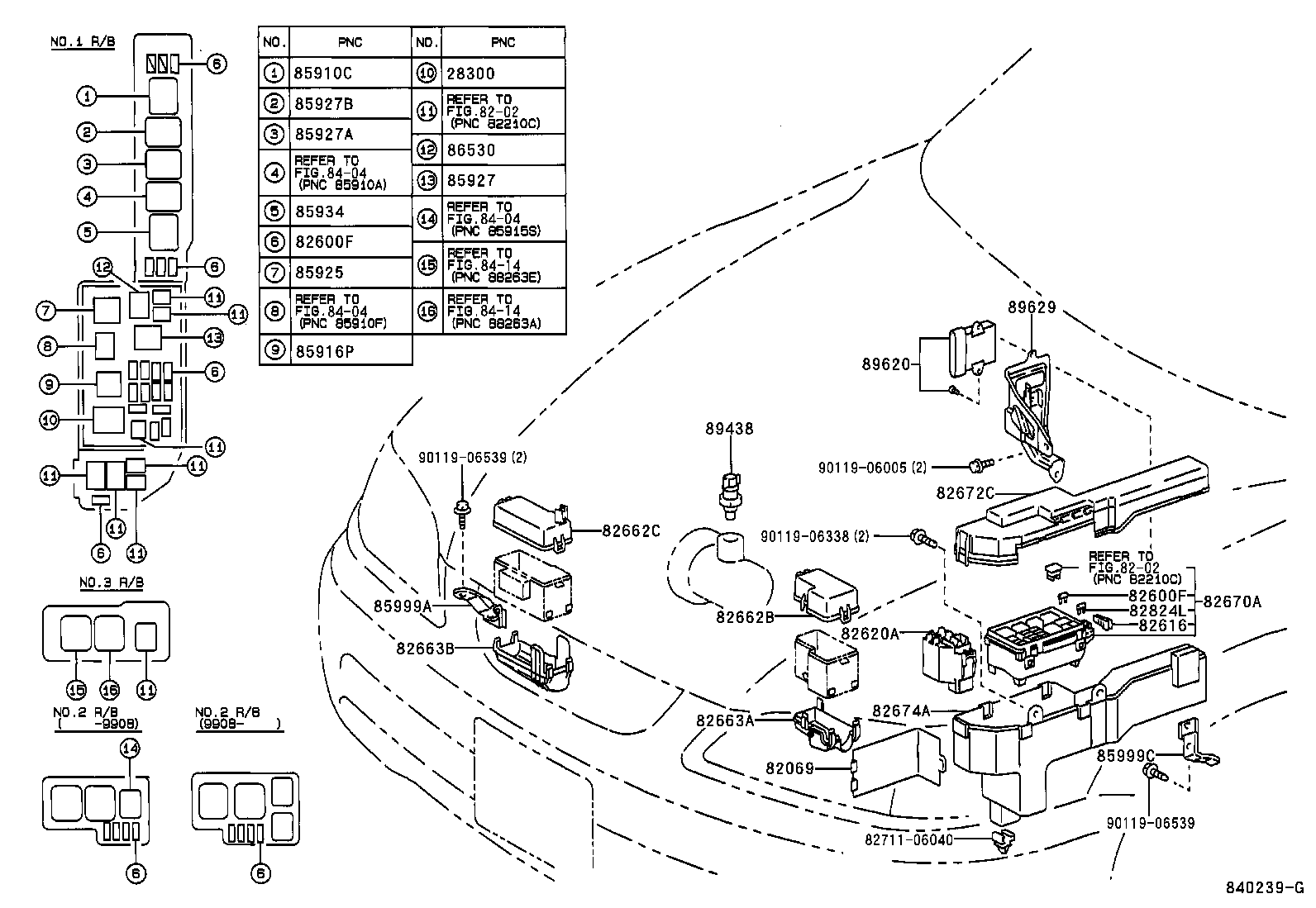

ILLUST NO. 2 OF 6(9608- )

Click highlighted areas on diagram

ENGINE ROOM

diagram 28300 8202 8202 82069 82600F 82600F 82616 82620A 82662B 82662C 82663A 82663B 82670A 82672C 82674A 8271106040 82824L 8404 8404 8404 8414 8414 85910C 85916P 85925 85927 85927A 85927B 85934 85999A 85999C 86530 89438 89620 89629 9011906005 9011906338 9011906539 9011906539
Part # Description Qty Price
28300 - RELAY ASSY, STARTER
28300-10020

1MZFE,2MZFE..MCV2#

 1
82069 - COVER SET, JUNCTION BLOCK
82069-06010

MCV2#

 1
82600F - FUSE, FUSE BLOCK
90080-82022

MCV2#

15A,ﾐﾆ ﾋｭｰｽﾞ,青

 1
90080-82031

MCV2#

5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色

 1
90080-82023

MCV2#

20A,ﾐﾆ ﾋｭｰｽﾞ,黄

 1
90982-09012

MCV2#

25A,ﾐﾆ ﾋｭｰｽﾞ

 1
90080-82020

MCV2#

7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶

 1
90080-82021

MCV2#

10A,ﾐﾆ ﾋｭｰｽﾞ,赤

 1
90080-82024

MCV2#

30A,ﾐﾆ ﾋｭｰｽﾞ,緑

 1
82600F - FUSE, FUSE BLOCK
90080-82022

MCV2#

15A,ﾐﾆ ﾋｭｰｽﾞ,青

 1
90080-82031

MCV2#

5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色

 1
90080-82023

MCV2#

20A,ﾐﾆ ﾋｭｰｽﾞ,黄

 1
90982-09012

MCV2#

25A,ﾐﾆ ﾋｭｰｽﾞ

 1
90080-82020

MCV2#

7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶

 1
90080-82021

MCV2#

10A,ﾐﾆ ﾋｭｰｽﾞ,赤

 1
90080-82024

MCV2#

30A,ﾐﾆ ﾋｭｰｽﾞ,緑

 1
82616 - PULLER, FUSE
82616-20010

MCV2#

 1
82620A - BLOCK ASSY, FUSIBLE LINK
82620-06010

MCV2#

 1
82620-45010

MCV2#

 1
82662B - COVER, RELAY BLOCK, UPPER, NO.2
82662-33120

MCV2#

 1
82662C - COVER, RELAY BLOCK, UPPER, NO.3
82662-33050

MCV2#

 1
82663A - COVER, RELAY BLOCK, LOWER, NO.2
82663-33050

MCV2#

 1
82663B - COVER, RELAY BLOCK, LOWER, NO.3
82663-33020

MCV2#

 1
82670A - BLOCK ASSY, JUNCTION, NO.1
82720-06020

MCV2#

 1
82720-06010

MCV2#

 1
82672C - COVER, JUNCTION BLOCK
82672-0W011

MCV2#

 1
82672-0W010

MCV2#

 1
82672-0W012

MCV2#

 1
82674A - COVER, JUNCTION BLOCK, LOWER
82674-06010

MCV2#

 1
82824L - PIN, SHORT
82824-20140

MCV2#

 1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04002

MCV2#

 1
85916P - RELAY, HEADLAMP
85916-30060

MCV2#

 1
90987-02006

MCV2#

 1
85925 - RELAY, RADIATOR FAN
85925-17010

MCV2#

 1
85927 - RELAY, COOLING FAN
90084-98011

MCV2#

BOSCH

 1
90987-03003

MCV2#

DENSO

 1
90987-03003

MCV2#

 1
85927A - RELAY, COOLING FAN, NO.2
90987-04004

MCV2#

 1
85927B - RELAY, COOLING FAN, NO.3
90987-02012

MCV2#

 1
85934 - RELAY, MAGNET-CLUTCH
90987-02012

MCV2#

 1
85999A - BRACKET, RELAY, NO.2
85999-33150

MCV2#

 1
85999C - BRACKET, RELAY, NO.3
85999-33050

MCV2#

 1
86530 - RELAY ASSY, HORN
90987-02012

MCV2#

 1
89438 - SWITCH, POWER STEERING OIL PRESSURE
89438-33010

MCV2#

 1
89620 - IGNITER ASSY
89621-35020

MCV21

 1
89621-35020

MCV2#

 1
89629 - BRACKET, IGNITER ASSY
89629-33100

MCV2#

 1
89629-33100

MCV21

 1
Common parts
82711-06040
90119-06005
90119-06338
90119-06539
Linked diagrams
8202
8404
8414

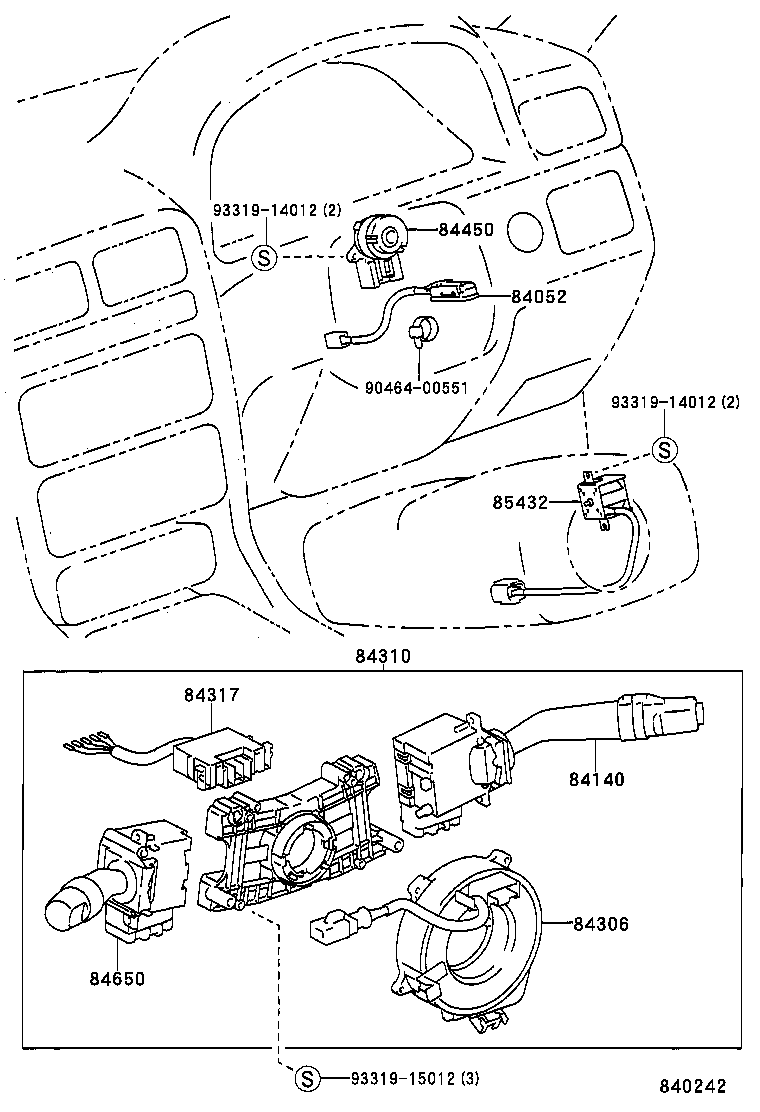

ILLUST NO. 5 OF 6(9608- )

Click highlighted areas on diagram

COMBINATION SWITCH

diagram 84052 84140 84306 84310 84317 84450 84650 85432 9046400551 9331914012 9331914012 9331915012
Part # Description Qty Price
84052 - SWITCH ASSY, UN-LOCK WARNING
84052-33040

MCV2#

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-33130

MCV2#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
84140-33060

MCV2#

 1
84140-33060

MCV2#

 1
84140-33060

MCV2#

 1
84306 - CABLE SUB-ASSY, SPIRAL
84306-33060

MCV2#..25G,25X,30G

 1
84306-33060

MCV2#

 1
84306-30120

MCV2#

 1
84306-12070

MCV21

ｶﾝﾚｲﾁ ｼﾖｳ

 1
84310 - SWITCH ASSY, TURN SIGNAL
84310-33580

MCV21

ｱﾘ(ﾘﾔﾜｲﾊﾟ)

 1
84310-33580

MCV2#..25G,25X,30X

ｱﾘ(ﾘﾔﾜｲﾊﾟ)

 1
84310-33820

MCV21

 1
84310-33570

MCV2#..25G,25X,30X

 1
84310-33720

MCV21

ｶﾝﾚｲﾁ ｼﾖｳ

 1
84310-33830

MCV21

ｱﾘ(ﾘﾔﾜｲﾊﾟ)

 1
84310-3T040

MCV21

ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾘﾔ ﾜｲﾊﾟ)

 1
84310-33570

MCV21

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-12200

MCV2#

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-2D860

MCV2#

ｱﾘ(ﾘﾔﾜｲﾊﾟ)

 1
84652-2D860

MCV2#..25G,25X,30G

ｱﾘ(ﾘﾔﾜｲﾊﾟ)

 1
84652-60790

MCV2#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
84652-2D860

MCV2#

ｱﾘ(ﾘﾔﾜｲﾊﾟ)

 1
84652-2D850

MCV2#..25G,25X,30G

 1
84652-35490

MCV2#

ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾘﾔ ﾜｲﾊﾟ)

 1
84652-2D850

MCV2#

 1
84652-2D850

MCV2#

 1
85432 - SOLENOID, KEY INTER LOCK
85432-33020

MCV2#

 1
Common parts
90464-00551
93319-14012
93319-15012

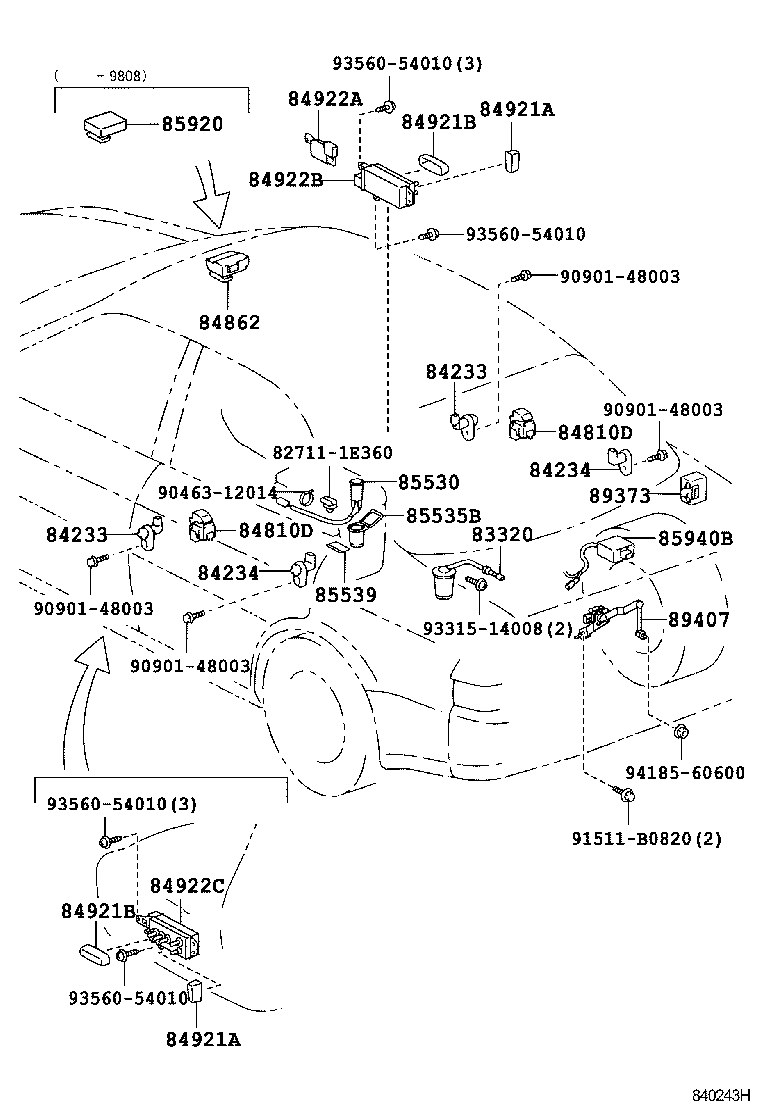

ILLUST NO. 6 OF 6(9608- )

Click highlighted areas on diagram

FLOOR, DOOR, LUGGAGE

diagram 827111E360 83320 84233 84233 84234 84234 84810D 84810D 84862 84921A 84921A 84921B 84921B 84922A 84922B 84922C 85530 85535B 85539 85920 85940B 89373 89407 9046312014 9090148003 9090148003 9090148003 9090148003 91511B0820 9331514008 9356054010 9356054010 9356054010 9356054010 9418560600
Part # Description Qty Price
83320 - GAGE ASSY, FUEL SENDER
83320-33040

MCV2#

 1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-53010

MCV2#

 2
84231-33071

MCV2#

 2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-53010

MCV2#

 2
84231-33071

MCV2#

 2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-53010

MCV2#

 2
84231-33071

MCV2#

 2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-53010

MCV2#

 2
84231-33071

MCV2#

 2
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84810-33030

MCV2#

 2
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84810-33030

MCV2#

 2
84862 - SWITCH, SLIDE ROOF MOTOR
84862-AA010B1

MCV2#

BLUE GRAY,TRIM2#

 1
84862-AA010G0

MCV2#

SAGE,TRIM6#

 1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-33010

MCV2#

 1
85535B - COVER, POWER OUTLET SOCKET, NO.1
85535-33020

MCV2#

 1
85539 - LABEL, POWER OUTLET NOTICE
85539-33010

MCV2#

 1
85920 - RELAY & SWITCH ASSY, SLIDING ROOF
85920-0W010B1

MCV2#

BLUE GRAY,TRIM2#

 1
85920-0W010G0

MCV2#

SAGE,TRIM6#

 1
85940B - RELAY ASSY, REAR WIPER
85940-33070

MCV2#

 1
89373 - SENSOR, LAMP FAILURE INDICATOR
89373-33130

MCV2#

 1
89407 - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH
89407-33010

MCV2#

 1
Common parts
82711-1E360
90463-12014
90901-48003
91511-B0820
93315-14008
93560-54010
94185-60600

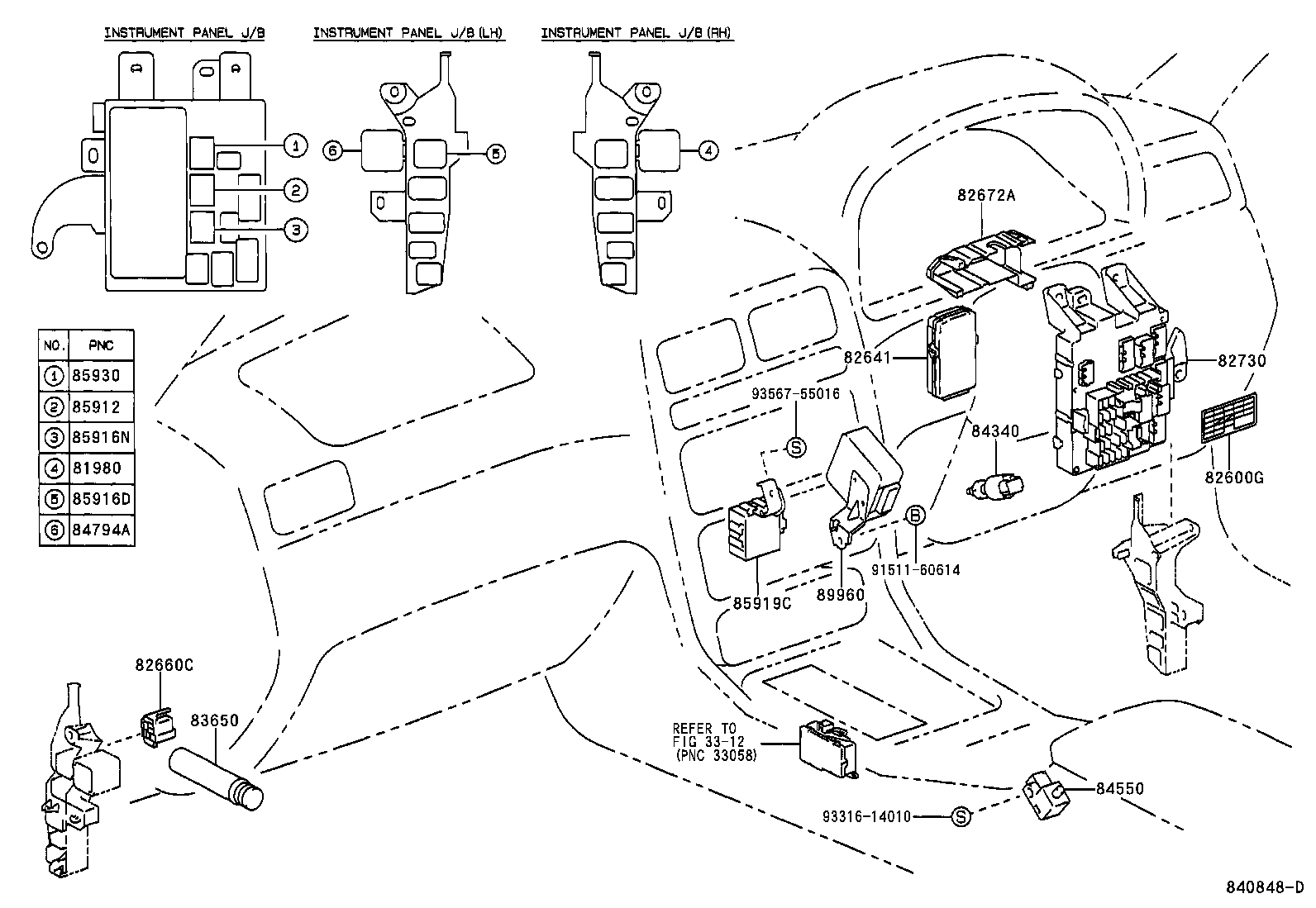

ILLUST NO. 4 OF 6(9608- )

Click highlighted areas on diagram

COWL

diagram 3312 81980 82600G 82641 82660C 82672A 82730 83650 84340 84550 84794A 85912 85916D 85916N 85919C 85930 89960 9151160614 9331614010 9356755016
Part # Description Qty Price
81980 - FLASHER ASSY, TURN SIGNAL
81980-12070

MCV2#

 1
81980-12110

MCV2#

 1
82600G - PLATE, CAUTION(FOR FUSE)
82683-33150

MCV2#

 1
82683-33130

MCV2#

 1
82641 - RELAY, INTEGRATION NO.1
82641-33061

MCV2#

 1
82641-33060

MCV2#

 1
82660C - BLOCK ASSY, RELAY
82660-20340

MCV2#

 1
82672A - COVER, JUNCTION BLOCK
82672-33150

MCV2#

 1
82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION
82730-0W010

MCV2#

 1
82730-0W020

MCV2#

 1
83650 - FUSEE
90986-01005

MCV2#

 1
84340 - SWITCH ASSY, STOP LAMP
84340-32090

MCV2#..25G,25X,30X

 1
84550 - SWITCH ASSY, PARKING BRAKE
84550-33010

MCV2#

 1
84794A - RELAY, FR WIPER DEICER
90987-02012

MCV2#

DENSO

 1
90080-87010

MCV2#

SIEMENS

 1
85912 - RELAY, DEFOGGER
90987-02012

MCV2#

DENSO

 1
90080-87010

MCV2#

SIEMENS

 1
85916D - RELAY, FOG LAMP
90987-02012

MCV2#

 1
85916N - RELAY, TAIL LAMP
90080-87010

MCV2#

SIEMENS

 1
90987-02012

MCV2#

DENSO

 1
85919C - RELAY, TAIL LIGHT CONTROL
85919-33010

MCV2#

 1
85930 - RELAY ASSY, POWER WINDOW
90080-87010

MCV2#

SIEMENS

 1
90987-02012

MCV2#

DENSO

 1
89960 - COMPUTER ASSY, HEADLAMP LEVELING
89960-33010

MCV2#

 1
Common parts
91511-60614
93316-14010
93567-55016
Linked diagrams
3312

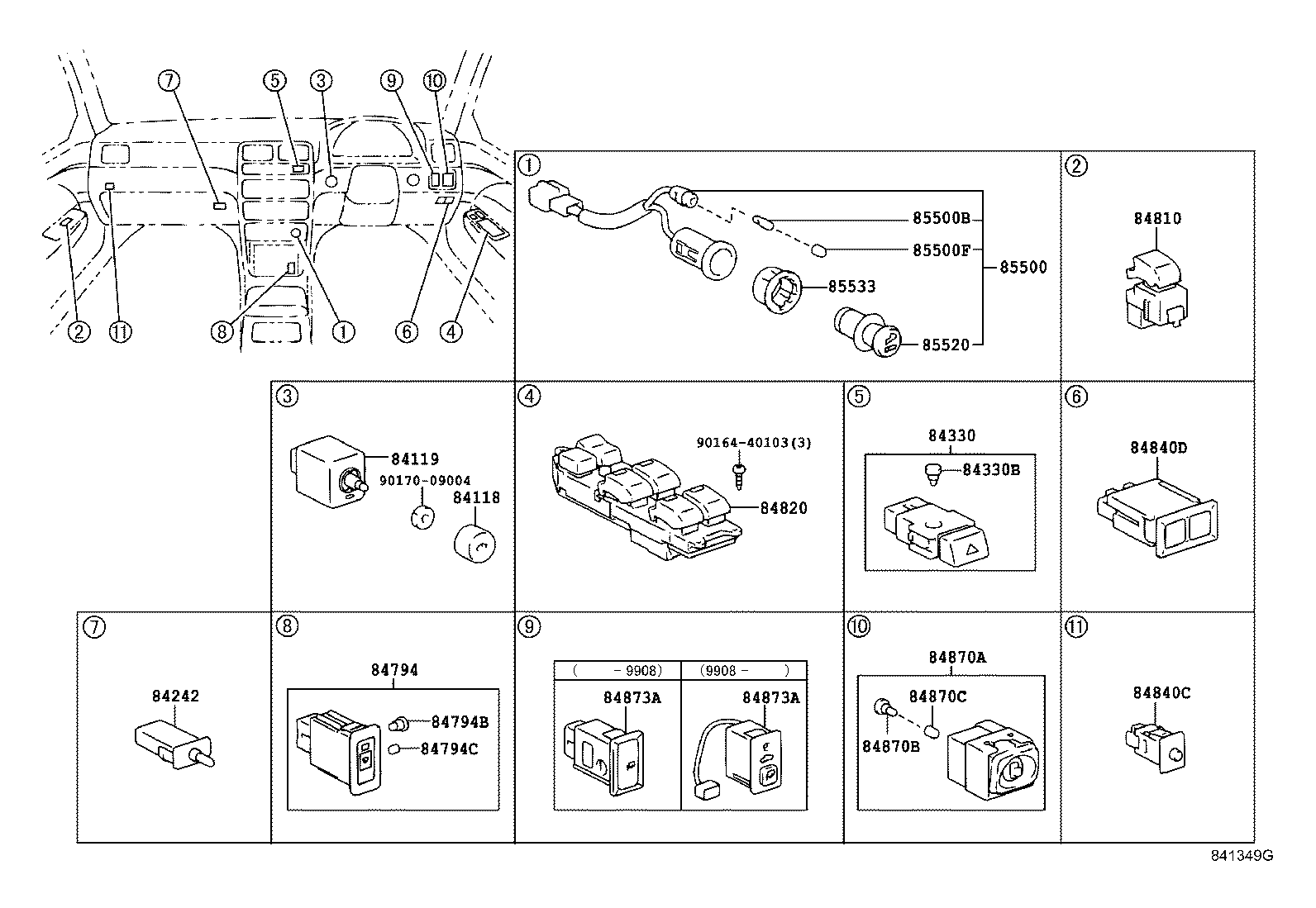

ILLUST NO. 3 OF 6(9608- )

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 84118 84119 84242 84330 84330B 84794 84794B 84794C 84810 84820 84840C 84840D 84870A 84870B 84870C 84873A 84873A 85500 85500B 85500F 85520 85533 9016440103 9017009004
Part # Description Qty Price
84118 - KNOB, LIGHT CONTROL RHEOSTAT
84118-20030

MCV2#

 1
84119 - RHEOSTAT, LIGHT CONTROL
84119-33110

MCV2#

 1
84242 - SWITCH, GLOVE BOX LAMP
84242-20030

MCV2#

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-20350

MCV2#

 1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
84999-10860

MCV2#

14V 0.91W

 1
84794 - SWITCH, FR WIPER DEICER
84794-33010

MCV2#

 1
84794B - BULB, FR WIPER DEICER SWITCH
84999-10780

MCV2#

14V 0.7W

 2
84794C - CAP BULB, FR WIPER DEICER SWITCH
84998-10640

MCV2#

 1
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-33030

MCV2#

 1
84810-33050

MCV2#

 1
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-33100

MCV2#

 1
84820-33130

MCV2#

 1
84840C - SWITCH ASSY, LUGGAGE DOOR OPENING, CANCEL
84840-33060

MCV2#

 1
84840D - SWITCH ASSY, LUGGAGE DOOR OPENING
84840-33040C0

MCV2#

BLACK,TRIM2#

 1
84840-33040G0

MCV2#

SAGE,TRIM6#

 1
84870A - SWITCH ASSY, OUTER MIRROR
84870-50180

MCV2#

 1
84870B - BULB, OUTER MIRROR SWITCH
84999-10470

MCV2#

14V 1.12W

 1
84870C - CAP, OUTER MIRROR SWITCH BULB
84998-10430

MCV2#

 1
84873A - SWITCH, RETRACTABLE OUTER MIRROR
84873-33020

MCV21

 1
84873-33020

MCV2#

 1
84873A - SWITCH, RETRACTABLE OUTER MIRROR
84873-33020

MCV21

 1
84873-33020

MCV2#

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-33020

MCV2#

 1
85500B - BULB, CIGARETTE LIGHTER
90981-11014

MCV2#

14V 1.4W

 1
85500F - CAP, CIGARETTE LIGHTER BULB
90339-04014

MCV2#

 1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-28010

MCV2#

 1
85533 - LENS, CIGARETTE LIGHTER INDICATOR
85533-50010

MCV2#

 1
Common parts
90164-40103
90170-09004
