MCV21-ATPNK (1996)
Toyota Windom

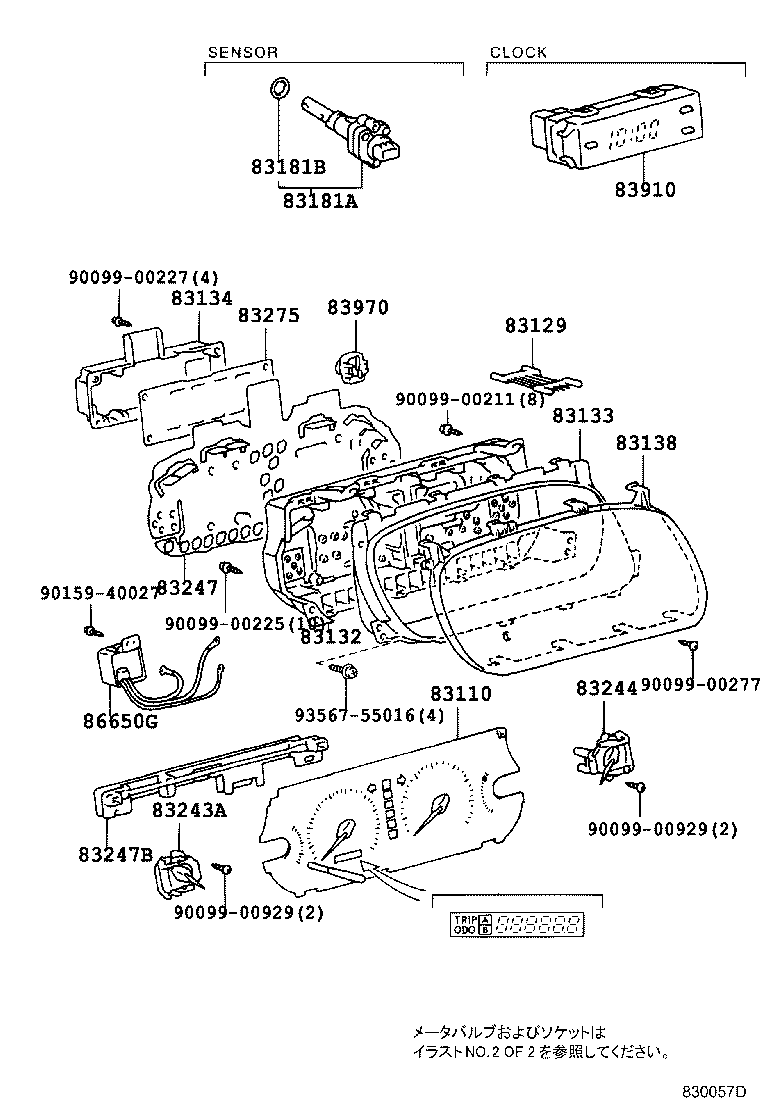

ILLUST NO. 1 OF 2(9608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-33041 |
MCV2# |
1 | ||
| 83220-33042 |
MCV2# |
1 | ||
| 83220-33210 |
MCV2# |
1 | ||
| 83220-33040 |
MCV2# |
1 | ||
| 83129 - WIRE, METER | ||||
| 83875-33150 |
MCV2# |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-33150 |
MCV2# |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-33150 |
MCV2# |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-33150 |
MCV2# |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-33150 |
MCV2# |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12040 |
MCV2# |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24018 |
MCV2# |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-33150 |
MCV2# |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-33150 |
MCV2# |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-33150 |
MCV2# |
1 | ||
| 83861-33152 |
MCV2# |
1 | ||
| 83861-33151 |
MCV2# |
1 | ||
| 83861-33530 |
MCV2# |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83864-33150 |
MCV2# |
1 | ||
| 83864-33180 |
MCV2# |
1 | ||
| 83275 - PLATE,COMPUTER METER CIRCUIT NO.1 | ||||
| 83275-33150 |
MCV2# |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20720 |
MCV2# |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-20010 |
MCV2# |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-33030 |
MCV2# |
1 | ||
| 86650-33020 |
MCV2# |
1 | ||
| Common parts | ||||
| 90099-00211 | ||||
| 90099-00225 | ||||
| 90099-00227 | ||||
| 90099-00277 | ||||
| 90099-00929 | ||||
| 90159-40027 | ||||
| 93567-55016 | ||||

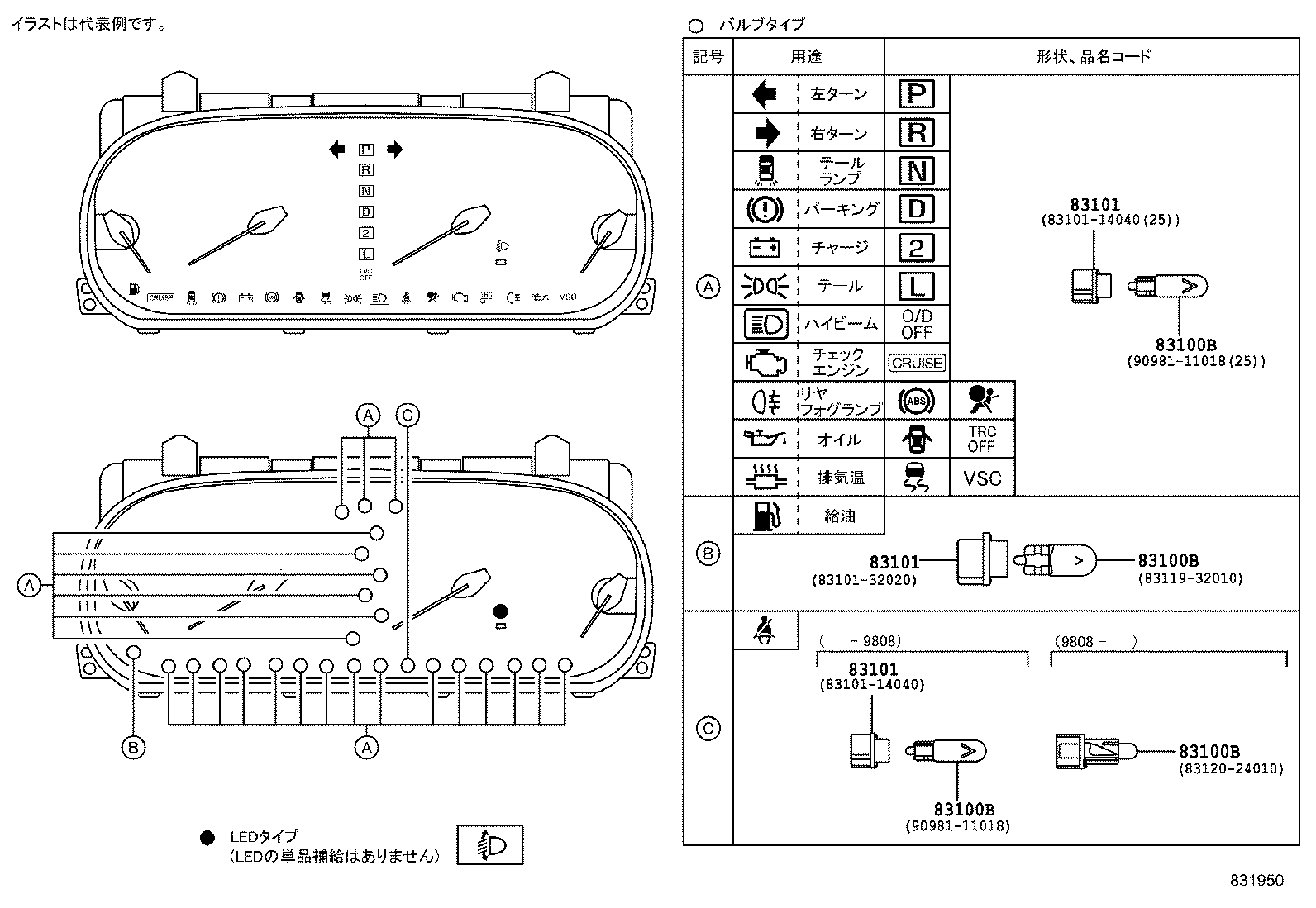

ILLUST NO. 2 OF 2(9608- )
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
MCV2# 12V 1.2W ｿｹｯﾄ無し |
24 | ||
| 90981-11018 |
MCV2# 12V 1.2W ｿｹｯﾄ無し |
23 | ||
| 83120-24010 |
MCV2# 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-32010 |
MCV2# 14V 3.0W |
1 | ||
| 90981-11018 |
MCV2# 12V 1.2W ｿｹｯﾄ無し |
24 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
MCV2# 12V 1.2W ｿｹｯﾄ無し |
24 | ||
| 90981-11018 |
MCV2# 12V 1.2W ｿｹｯﾄ無し |
23 | ||
| 83120-24010 |
MCV2# 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-32010 |
MCV2# 14V 3.0W |
1 | ||
| 90981-11018 |
MCV2# 12V 1.2W ｿｹｯﾄ無し |
24 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
MCV2# 12V 1.2W ｿｹｯﾄ無し |
24 | ||
| 90981-11018 |
MCV2# 12V 1.2W ｿｹｯﾄ無し |
23 | ||
| 83120-24010 |
MCV2# 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-32010 |
MCV2# 14V 3.0W |
1 | ||
| 90981-11018 |
MCV2# 12V 1.2W ｿｹｯﾄ無し |
24 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
MCV2# 12V 1.2W ｿｹｯﾄ無し |
24 | ||
| 90981-11018 |
MCV2# 12V 1.2W ｿｹｯﾄ無し |
23 | ||
| 83120-24010 |
MCV2# 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-32010 |
MCV2# 14V 3.0W |
1 | ||
| 90981-11018 |
MCV2# 12V 1.2W ｿｹｯﾄ無し |
24 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-32020 |
MCV2# 14V 3.0W |
1 | ||
| 83101-14040 |
MCV2# |
24 | ||
| 83101-14040 |
MCV2# |
24 | ||
| 83101-14040 |
MCV2# |
23 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-32020 |
MCV2# 14V 3.0W |
1 | ||
| 83101-14040 |
MCV2# |
24 | ||
| 83101-14040 |
MCV2# |
24 | ||
| 83101-14040 |
MCV2# |
23 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-32020 |
MCV2# 14V 3.0W |
1 | ||
| 83101-14040 |
MCV2# |
24 | ||
| 83101-14040 |
MCV2# |
24 | ||
| 83101-14040 |
MCV2# |
23 | ||
