MCV21-ATPNK (1996)

Toyota Windom

Production Aug 1996 - Jul 2001
Engine 2MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

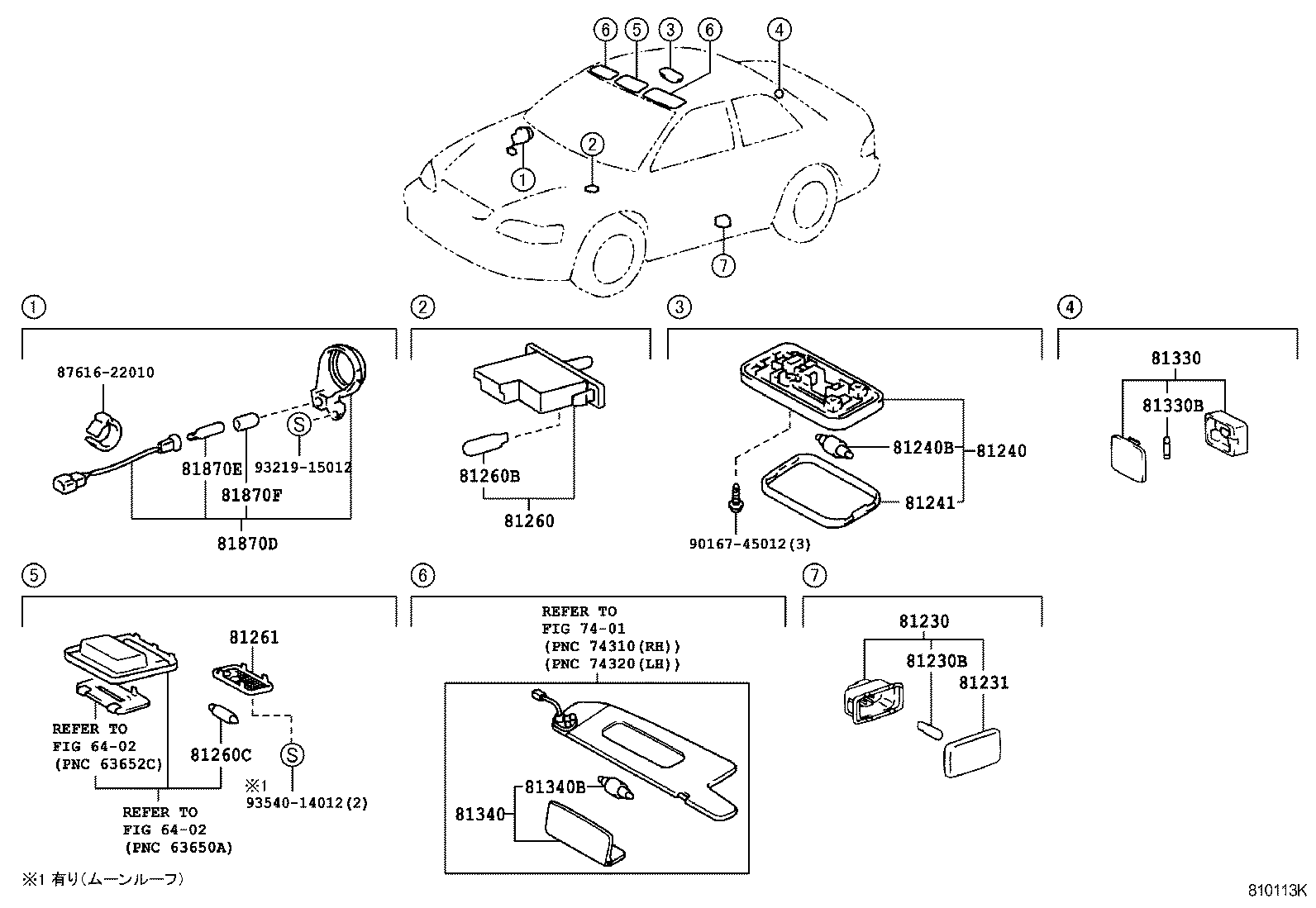

Click highlighted areas on diagram

diagram 6402 6402 7401 81230 81230B 81231 81240 81240B 81241 81260 81260B 81260C 81261 81330 81330B 81340 81340B 81870D 81870E 81870F 8761622010 9016745012 9321915012 9354014012
Part # Description Qty Price
81230 - LAMP ASSY, COURTESY
81230-30140

MCV2#

 2
81230B - BULB(FOR COURTESY LAMP)
90981-11020

MCV2#

12V 3.8W

 2
81231 - LENS, COURTESY LAMP
81231-50010

MCV2#

 2
81240 - LAMP ASSY, ROOM, NO.1
81240-32031G1

MCV2#

SAGE,TRIM6#

 1
81240-32031B3

MCV2#

BLUE GRAY,TRIM2#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14004

MCV2#

12V 8W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-32031

MCV2#

 1
81260 - LAMP ASSY, GLOVE BOX
81260-33010

MCV2#

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

MCV2#

12V 1.2W ｿｹｯﾄ無し

 1
81260C - BULB(FOR MAP LAMP)
90084-98049

MCV2#

12V 8W

 1
81261 - LENS AND COVER, MAP LAMP
81231-0W010

MCV2#

 1
81231-AA010

MCV2#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

 1
81231-0W010

MCV2#

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-33010

MCV2#

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90981-14009

MCV2#

12V 3W

 1
81340 - LAMP ASSY, VANITY
81340-33090B1

MCV2#

BLUE GRAY,TRIM2#,左側

 1
81350-33040B1

MCV2#

BLUE GRAY,TRIM2#,右側

 1
81340-33090G0

MCV2#

SAGE,TRIM6#,左側

 1
81350-33040G0

MCV2#

SAGE,TRIM6#,右側

 1
81340B - BULB (FOR VANITY LAMP)
90981-14003

MCV2#

12V 1.5W

 2
81870D - LAMP ASSY, KEY CYLINDER
81870-33030

MCV2#

 1
81870-33030

MCV21

 1
81870E - BULB, KEY CYLINDER LAMP
90981-11014

MCV2#

14V 1.4W

 1
81870F - CAP, KEY CYLINDER LAMP BULB
84998-10070

MCV2#

 1
Common parts
87616-22010
90167-45012
93219-15012
93540-14012
Linked diagrams
6402
7401
