MCV21-ATPNK (1996)
Toyota Windom
Production
Aug 1996
-
Jul 2001
Engine
2MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

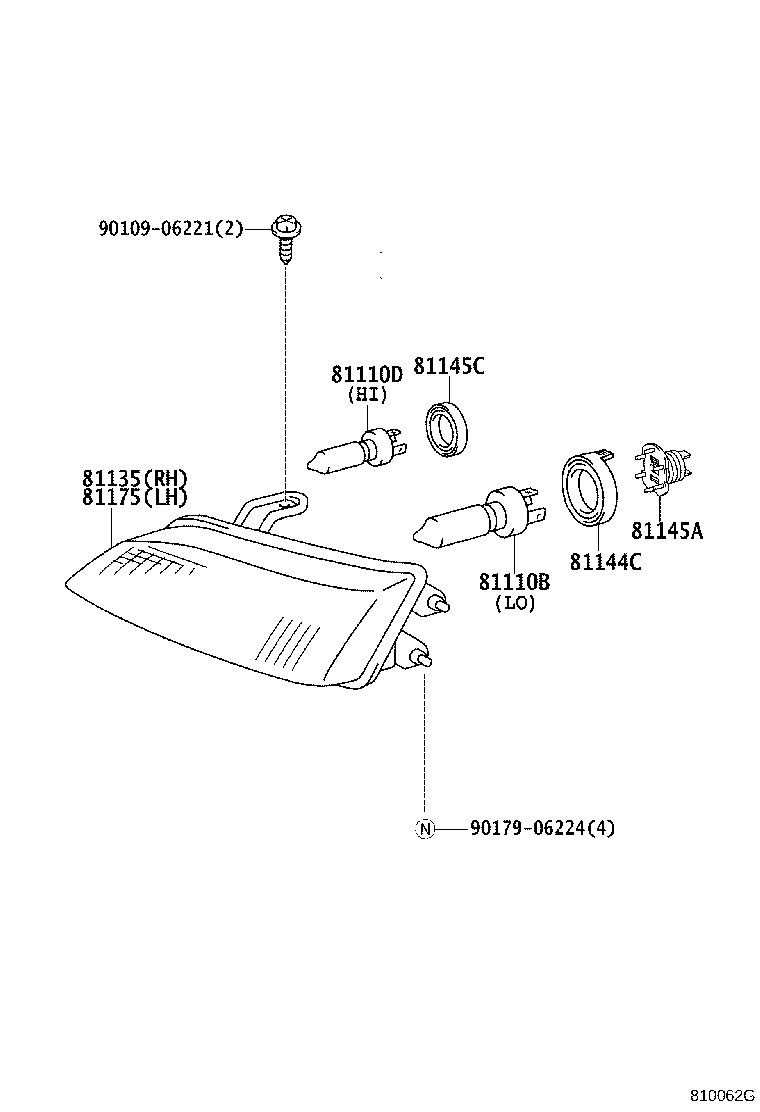

(9608-9908)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13059 |
MCV2# 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90080-81041 |
MCV2# 12V 65W |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-33350 |
MCV2# |
1 | ||
| 81130-33230 |
MCV2# |
1 | ||
| 81140-33350 |
MCV2# |
1 | ||
| 81144C - COVER, HEADLAMP SOCKET | ||||
| 90075-65002 |
MCV2# |
2 | ||
| 81145A - ADAPTER ASSY | ||||
| 90075-99117 |
MCV2# |
2 | ||
| 81145C - COVER, HEADLAMP SOCKET, NO.2 | ||||
| 90075-65006 |
MCV2# |
2 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-33230 |
MCV2# |
1 | ||
| 81170-33340 |
MCV2# |
1 | ||
| 81070-33340 |
MCV2# |
1 | ||
| Common parts | ||||
| 90109-06221 | ||||
| 90179-06224 | ||||

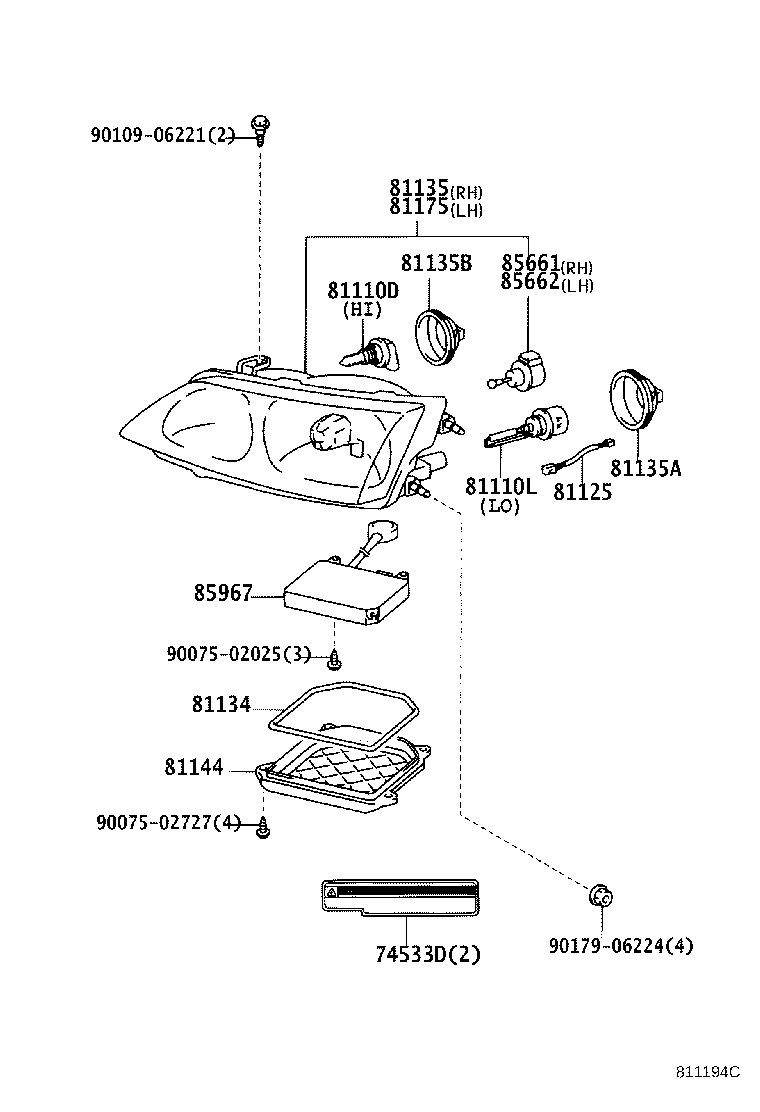

(9908-9910)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74533D - LABEL, HEADLAMP VOLTAGE CAUTION | ||||
| 74533-33010 |
MCV2# |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90080-81041 |
MCV2# 12V 65W |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20001 |
MCV2# 85V 35W |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-33350 |
MCV2# |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-99137 |
MCV2# |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-33350 |
MCV2# |
1 | ||
| 81130-33230 |
MCV2# |
1 | ||
| 81140-33350 |
MCV2# |
1 | ||
| 81135A - CAP, LOCKING | ||||
| 90075-66003 |
MCV2# |
2 | ||
| 81135B - CAP, LOCKING | ||||
| 81135-3A430 |
MCV2# |
2 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-99136 |
MCV2# |
2 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-33230 |
MCV2# |
1 | ||
| 81170-33340 |
MCV2# |
1 | ||
| 81070-33340 |
MCV2# |
1 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-33010 |
MCV2# |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-33010 |
MCV2# |
1 | ||
| 85967 - COMPUTER, LIGHT CONTROL | ||||
| 85967-33010 |
MCV2# |
2 | ||
| Common parts | ||||
| 90075-02025 | ||||
| 90075-02727 | ||||
| 90109-06221 | ||||
| 90179-06224 | ||||

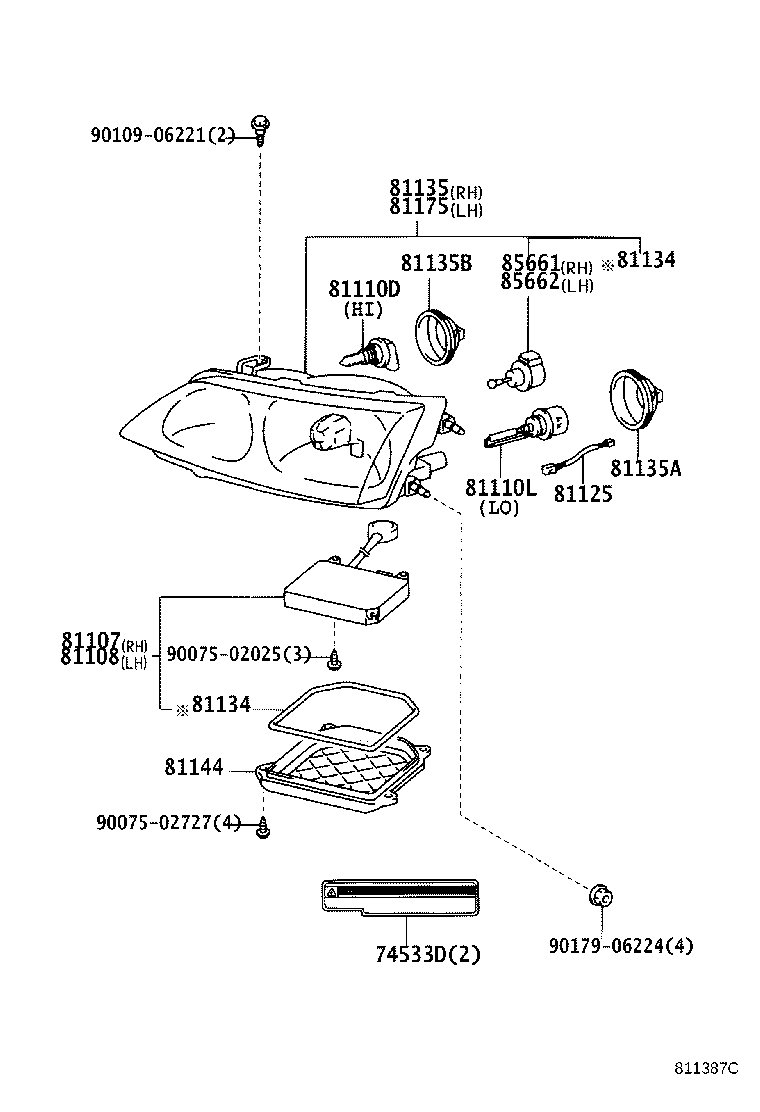

(9910- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74533D - LABEL, HEADLAMP VOLTAGE CAUTION | ||||
| 74533-33010 |
MCV2# |
2 | ||
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-33350 |
MCV2# |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-33350 |
MCV2# |
1 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90080-81041 |
MCV2# 12V 65W |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20001 |
MCV2# 85V 35W |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-33350 |
MCV2# |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-99137 |
MCV2# |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-99137 |
MCV2# |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-33350 |
MCV2# |
1 | ||
| 81130-33230 |
MCV2# |
1 | ||
| 81140-33350 |
MCV2# |
1 | ||
| 81135A - CAP, LOCKING | ||||
| 90075-66003 |
MCV2# |
2 | ||
| 81135B - CAP, LOCKING | ||||
| 81135-3A430 |
MCV2# |
2 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-99136 |
MCV2# |
2 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-33230 |
MCV2# |
1 | ||
| 81170-33340 |
MCV2# |
1 | ||
| 81070-33340 |
MCV2# |
1 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-33010 |
MCV2# |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-33010 |
MCV2# |
1 | ||
| Common parts | ||||
| 90075-02025 | ||||
| 90075-02727 | ||||
| 90109-06221 | ||||
| 90179-06224 | ||||
