MCV21-ATPNK (1996)

Toyota Windom

Production Aug 1996 - Jul 2001
Engine 2MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

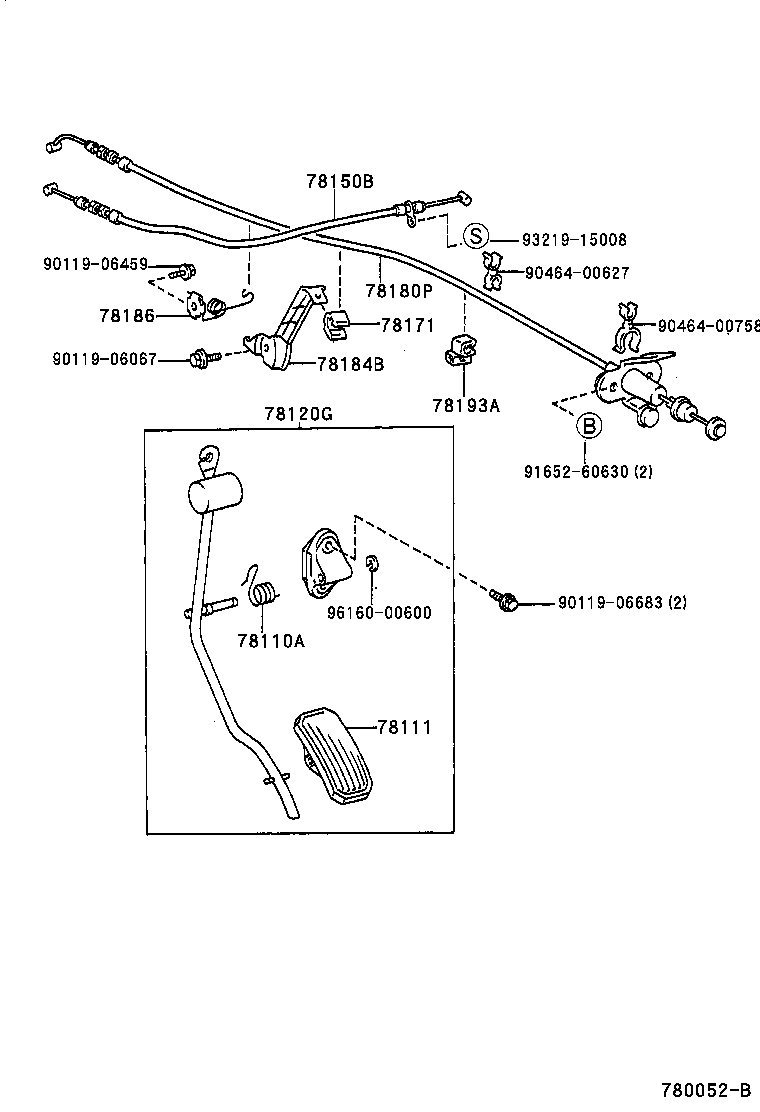

Click highlighted areas on diagram

diagram 78110A 78111 78120G 78150B 78171 78180P 78184B 78186 78193A 9011906067 9011906459 9011906683 9046400627 9046400758 9165260630 9321915008 9616000600
Part # Description Qty Price
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18048

MCV2#

 1
78111 - PEDAL, ACCELERATOR
78111-33020

MCV2#

 1
78111-20060

MCV2#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-33090

MCV2#

 1
78171 - BRACKET, ACCELERATOR CONTROL NO.2 ROD, RH
78171-33010

MCV2#

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-33230

MCV2#..25G,25X,30X

 1
78180-33230

MCV21

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-41010

MCV2#

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-33040

MCV2#..25G,25X,30X

 1
78193A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.3
78193-33010

MCV2#

 1
Common parts
90119-06067
90119-06459
90119-06683
90464-00627
90464-00758
91652-60630
93219-15008
96160-00600
