MCV21-ATPNK (1996)

Toyota Windom

Production Aug 1996 - Jul 2001
Engine 2MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

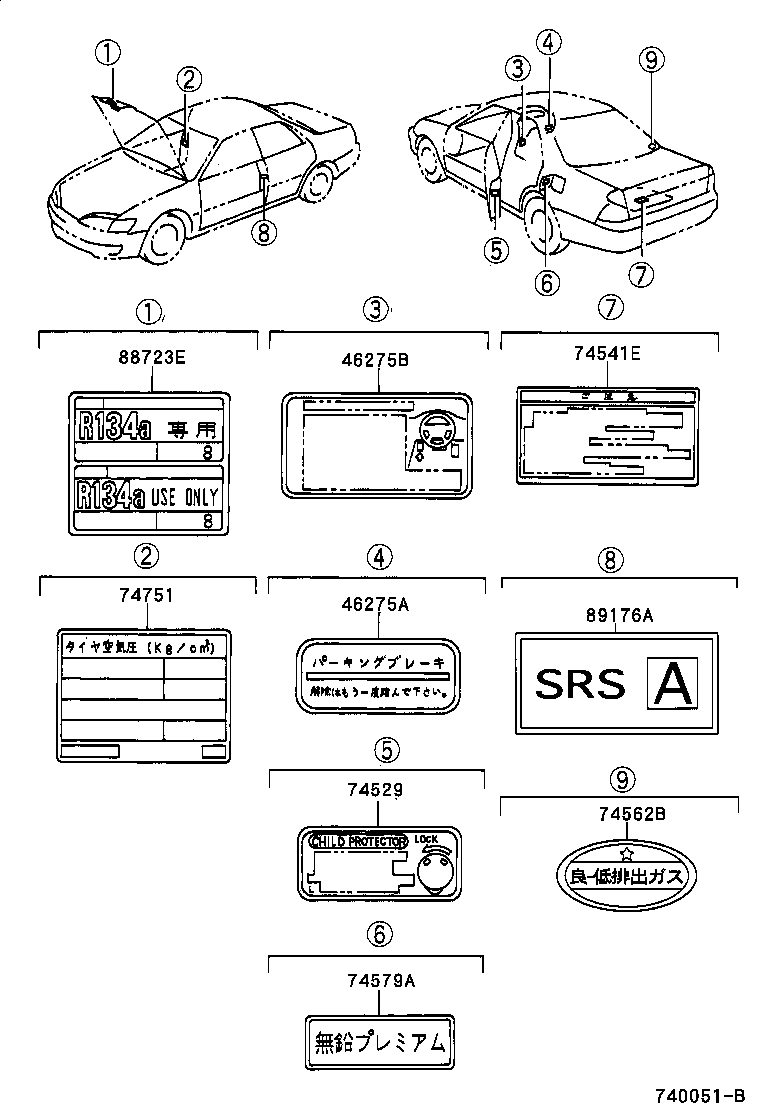

Click highlighted areas on diagram

diagram 46275A 46275B 74529 74541E 74562B 74579A 74751 88723E 89176A
Part # Description Qty Price
46275A - LABEL, PARKING BRAKE RELEASE INFORMATION, NO.1
46275-33010A0

MCV2#..25G,25X,30X

WHITE,TRIM6#

 1
46275-33010A0

MCV21..25X

WHITE,TRIM6#

 1
46275-33010B0

MCV2#

GRAY,TRIM2#

 1
46275B - LABEL, PARKING BRAKE RELEASE INFORMATION, NO.2
46275-33020

MCV2#

 1
74529 - PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION
69339-33020

MCV2#

 2
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-32010

MCV2#

 1
42668-28060

MCV2#

 1
42668-33010

MCV2#

 1
74579A - LABEL, UNLEADED FUEL INFORMATION
74579-24010

MCV2#

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-33420

MCV2#

 1
42661-33421

MCV2#

 1
42661-33202

MCV2#

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-14010

MCV2#

 1
89176A - LABEL, AIR BAG DEPLOYMENT INFORMATION
89176-32010

MCV2#

 1
