MCV21-ATPNK (1996)

Toyota Windom

Production Aug 1996 - Jul 2001
Engine 2MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

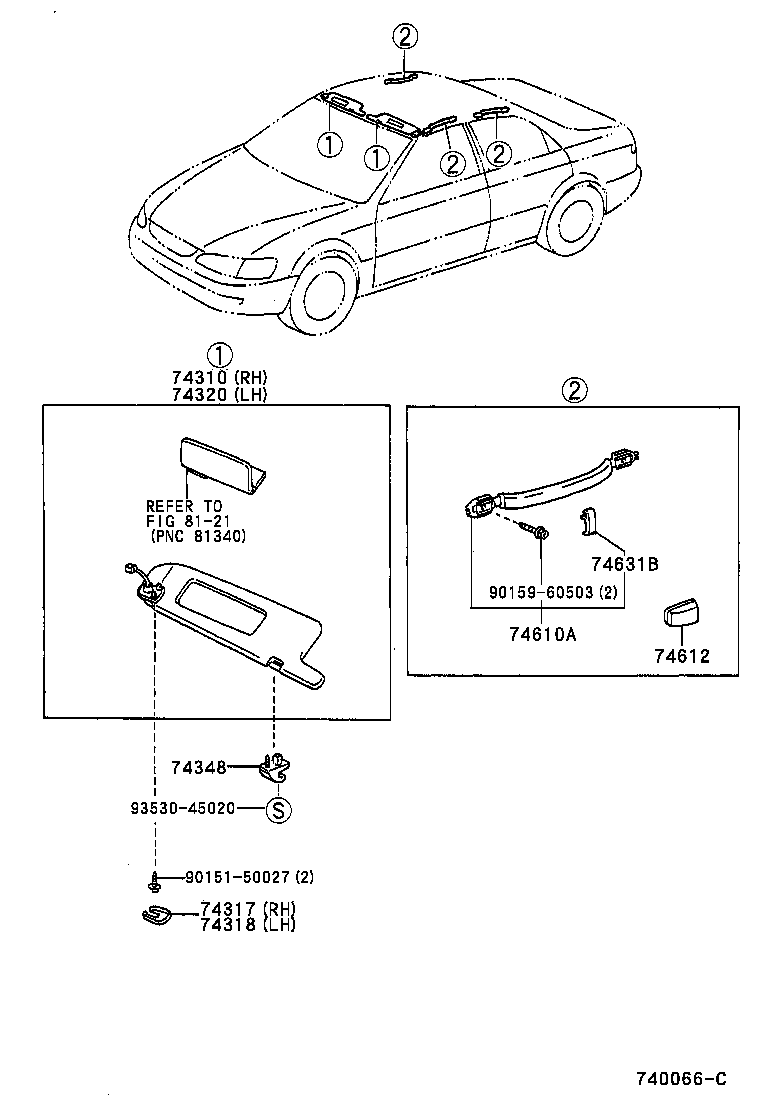

ILLUST NO. 2 OF 2(9608- )

Click highlighted areas on diagram

ｻﾝﾊﾞｲｻﾞ-

diagram 74310 74317 74318 74320 74348 74610A 74612 74631B 8121 9015150027 9015960503 9353045020
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-33771B1

MCV2#

BLUE GRAY,TRIM2#

 1
74310-33770G0

MCV2#

SAGE,TRIM6#

 1
74310-33771G0

MCV2#

SAGE,TRIM6#

 1
74310-33810B0

MCV2#

BLUE GRAY,TRIM2#

 1
74310-33770B1

MCV2#

BLUE GRAY,TRIM2#

 1
74310-33810G0

MCV2#

SAGE,TRIM6#

 1
74310-33870G0

MCV2#

SAGE,TRIM6#

 1
74317 - COVER, VISOR BRACKET, RH
74317-22030G1

MCV2#

SAGE,TRIM6#

 1
74317-30010G1

MCV2#

SAGE,TRIM6#

 1
74317-30010B2

MCV2#

BLUE GRAY,TRIM2#

 1
74317-22030B1

MCV2#

BLUE GRAY,TRIM2#

 1
74318 - COVER, VISOR BRACKET, LH
74317-30010B2

MCV2#

BLUE GRAY,TRIM2#

 1
74317-22030B1

MCV2#

BLUE GRAY,TRIM2#

 1
74317-30010G1

MCV2#

SAGE,TRIM6#

 1
74317-22030G1

MCV2#

SAGE,TRIM6#

 1
74320 - VISOR ASSY, LH
74320-33730G0

MCV2#

SAGE,TRIM6#

 1
74320-33731G0

MCV2#

SAGE,TRIM6#

 1
74320-33730B1

MCV2#

BLUE GRAY,TRIM2#

 1
74320-33750G0

MCV2#

SAGE,TRIM6#

 1
74320-33731B1

MCV2#

BLUE GRAY,TRIM2#

 1
74320-33820G0

MCV2#

SAGE,TRIM6#

 1
74320-33750B0

MCV2#

BLUE GRAY,TRIM2#

 1
74348 - HOLDER, VISOR
74348-22020B7

MCV2#

BLUE GRAY,TRIM2#

 2
74348-22020G1

MCV2#

SAGE,TRIM6#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-22070B4

MCV2#

BLUE GRAY,TRIM2#,ﾌﾛﾝﾄ

 1
74610-22070G1

MCV2#

SAGE,TRIM6#,ﾌﾛﾝﾄ

 1
74610-33060B1

MCV2#

BLUE GRAY,TRIM2#,ﾘﾔ

 2
74610-33060G0

MCV2#

SAGE,TRIM6#,ﾘﾔ

 2
74612 - COVER, ASSIST GRIP
74612-22050B5

MCV2#

BLUE GRAY,TRIM2#

 6
74612-22050G1

MCV2#

SAGE,TRIM6#

 6
74631B - HOOK, COAT
74631-33020G0

MCV2#

SAGE,TRIM6#

 2
74631-33020B1

MCV2#

BLUE GRAY,TRIM2#

 2
Common parts
90151-50027
90159-60503
93530-45020
Linked diagrams
8121

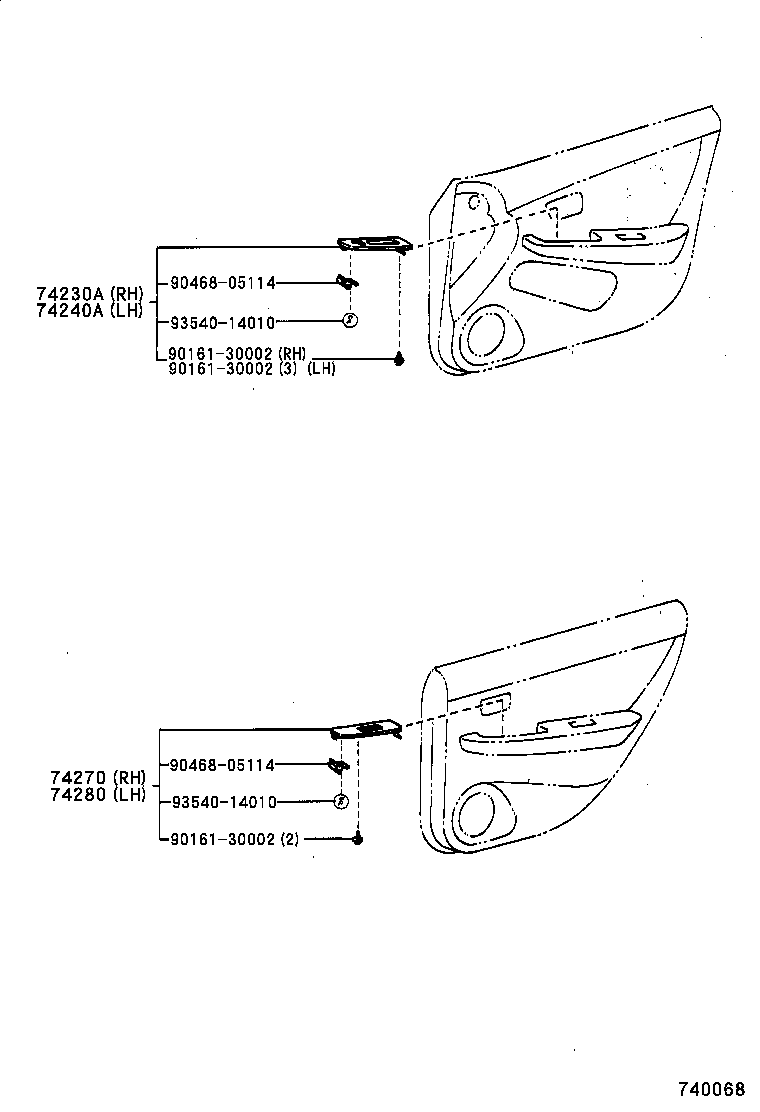

ILLUST NO. 1 OF 2(9608- )

Click highlighted areas on diagram

ｱ-ﾑﾚｽﾄ

diagram 74230A 74240A 74270 74280 9016130002 9016130002 9016130002 9046805114 9046805114 9354014010 9354014010
Part # Description Qty Price
74230A - PANEL ASSY, FRONT DOOR ARMREST BASE, RH
74230-33020

MCV2#

 1
74240A - PANEL ASSY, FRONT DOOR ARMREST BASE, LH
74240-33020

MCV2#

 1
74240-33030

MCV2#

 1
74270 - PANEL ASSY, REAR DOOR ARMREST BASE, RH
74270-33020

MCV2#

 1
74280 - PANEL ASSY, REAR DOOR ARMREST BASE, LH
74280-33020

MCV2#

 1
Common parts
90161-30002
90468-05114
93540-14010
