MCV21-ATPNK (1996)
Toyota Windom

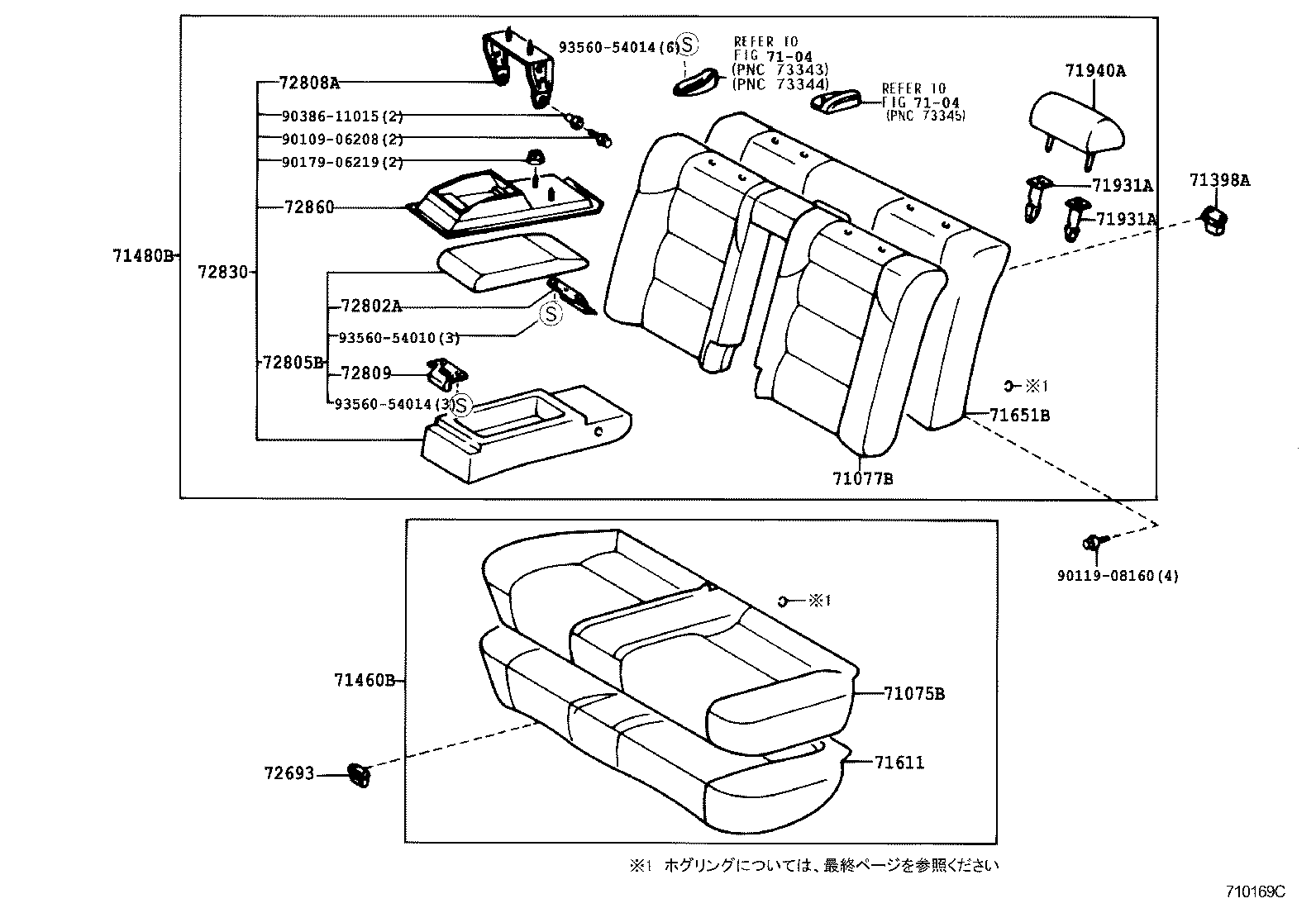

ILLUST NO. 1 OF 2(9608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-33220C0 |
MCV2# BLACK,TRIM2# |
1 | ||
| 71075-33220G0 |
MCV2# LIGHT SAGE,TRIM6# |
1 | ||
| 71075-33250C0 |
MCV2# ﾎﾝｶﾞﾜ,BLACK,TRIM2# |
1 | ||
| 71075-33250A0 |
MCV2# ﾎﾝｶﾞﾜ,IVORY,TRIM0# |
1 | ||
| 71075-33221G0 |
MCV2# LIGHT SAGE,TRIM6# |
1 | ||
| 71075-33250G0 |
MCV2# ﾎﾝｶﾞﾜ,SAGE,TRIM6# |
1 | ||
| 71075-33221C0 |
MCV2# BLACK,TRIM2# |
1 | ||
| 71075-33250C0 |
MCV2#..25X,30G ﾎﾝｶﾞﾜ,BLACK,TRIM2# |
1 | ||
| 71075-33250A0 |
MCV2#..25X,30G ﾎﾝｶﾞﾜ,IVORY,TRIM0# |
1 | ||
| 71075-33250G0 |
MCV2#..25X,30G ﾎﾝｶﾞﾜ,SAGE,TRIM6# |
1 | ||
| 71075-33222G2 |
MCV2# DK.SAGE,TRIM6# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-33400G0 |
MCV2#..25X,30G ﾎﾝｶﾞﾜ,SAGE,TRIM6# |
1 | ||
| 71077-33340G0 |
MCV2# LIGHT SAGE,TRIM6# |
1 | ||
| 71077-33341C0 |
MCV2# BLACK,TRIM2# |
1 | ||
| 71077-33400A0 |
MCV2#..25X,30G ﾎﾝｶﾞﾜ,IVORY,TRIM0# |
1 | ||
| 71077-33340C0 |
MCV2# BLACK,TRIM2# |
1 | ||
| 71077-33400C0 |
MCV2#..25X,30G ﾎﾝｶﾞﾜ,BLACK,TRIM2# |
1 | ||
| 71077-33341G0 |
MCV2# LIGHT SAGE,TRIM6# |
1 | ||
| 71077-33342G2 |
MCV2# DK.SAGE,TRIM6# |
1 | ||
| 71077-33400A0 |
MCV2# ﾎﾝｶﾞﾜ,IVORY,TRIM0# |
1 | ||
| 71077-33400C0 |
MCV2# ﾎﾝｶﾞﾜ,BLACK,TRIM2# |
1 | ||
| 71077-33400G0 |
MCV2# ﾎﾝｶﾞﾜ,SAGE,TRIM6# |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-33010 |
MCV2# |
3 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-33180G0 |
MCV2# ***,LIGHT SAGE,TRIM6# |
1 | ||
| 71460-33180C0 |
MCV2# ***,BLACK,TRIM2# |
1 | ||
| 71460-33181G0 |
MCV2# ***,LIGHT SAGE,TRIM6# |
1 | ||
| 71460-33210A0 |
MCV2# ***,ﾎﾝｶﾞﾜ,IVORY,TRIM0# |
1 | ||
| 71460-33210C0 |
MCV2# ***,ﾎﾝｶﾞﾜ,BLACK,TRIM2# |
1 | ||
| 71460-33181C0 |
MCV2# ***,BLACK,TRIM2# |
1 | ||
| 71460-33182G2 |
MCV2# ***,DK.SAGE,TRIM6# |
1 | ||
| 71460-33210G0 |
MCV2# ***,ﾎﾝｶﾞﾜ,SAGE,TRIM6# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-33340C0 |
MCV2# ***,BLACK,TRIM2# |
1 | ||
| 71480-33340G0 |
MCV2# ***,LIGHT SAGE,TRIM6# |
1 | ||
| 71480-33350A0 |
MCV2# ***,ﾎﾝｶﾞﾜ,IVORY,TRIM0# |
1 | ||
| 71480-33341G0 |
MCV2# ***,LIGHT SAGE,TRIM6# |
1 | ||
| 71480-33350G0 |
MCV2# ***,ﾎﾝｶﾞﾜ,LIGHT SAGE,TRIM6# |
1 | ||
| 71480-33350C0 |
MCV2# ***,ﾎﾝｶﾞﾜ,BLACK,TRIM2# |
1 | ||
| 71480-33342G2 |
MCV2# ***,DK.SAGE,TRIM6# |
1 | ||
| 71480-33341C0 |
MCV2# ***,BLACK,TRIM2# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-33020 |
MCV2# |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71507-33010 |
MCV2# |
1 | ||
| 71507-33011 |
MCV2# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-32020C0 |
MCV2# ﾛｯｸ付,BLACK,TRIM2# |
4 | ||
| 71930-32020C0 |
MCV2# ﾛｯｸ付,BLACK,TRIM2#,ｻｲﾄﾞ |
2 | ||
| 71930-32020A0 |
MCV2# ﾛｯｸ付,IVORY,TRIM0#,ｻｲﾄﾞ |
2 | ||
| 71930-32020G2 |
MCV2# ﾛｯｸ付,SAGE,TRIM6#,ｻｲﾄﾞ |
2 | ||
| 71930-32020G2 |
MCV2# ﾛｯｸ付,SAGE,TRIM6# |
4 | ||
| 71931-32020C0 |
MCV2# ﾛｯｸ無,BLACK,TRIM2# |
4 | ||
| 71931-32020G2 |
MCV2# ﾛｯｸ無,SAGE,TRIM6#,ｻｲﾄﾞ |
2 | ||
| 71931-32020C0 |
MCV2# ﾛｯｸ無,BLACK,TRIM2#,ｻｲﾄﾞ |
2 | ||
| 71931-32020G2 |
MCV2# ﾛｯｸ無,SAGE,TRIM6# |
4 | ||
| 71931-32020A0 |
MCV2# ﾛｯｸ無,IVORY,TRIM0#,ｻｲﾄﾞ |
2 | ||
| 71930-44010G0 |
MCV2# ﾛｯｸ付,SAGE,TRIM6# |
4 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-32020C0 |
MCV2# ﾛｯｸ付,BLACK,TRIM2# |
4 | ||
| 71930-32020C0 |
MCV2# ﾛｯｸ付,BLACK,TRIM2#,ｻｲﾄﾞ |
2 | ||
| 71930-32020A0 |
MCV2# ﾛｯｸ付,IVORY,TRIM0#,ｻｲﾄﾞ |
2 | ||
| 71930-32020G2 |
MCV2# ﾛｯｸ付,SAGE,TRIM6#,ｻｲﾄﾞ |
2 | ||
| 71930-32020G2 |
MCV2# ﾛｯｸ付,SAGE,TRIM6# |
4 | ||
| 71931-32020C0 |
MCV2# ﾛｯｸ無,BLACK,TRIM2# |
4 | ||
| 71931-32020G2 |
MCV2# ﾛｯｸ無,SAGE,TRIM6#,ｻｲﾄﾞ |
2 | ||
| 71931-32020C0 |
MCV2# ﾛｯｸ無,BLACK,TRIM2#,ｻｲﾄﾞ |
2 | ||
| 71931-32020G2 |
MCV2# ﾛｯｸ無,SAGE,TRIM6# |
4 | ||
| 71931-32020A0 |
MCV2# ﾛｯｸ無,IVORY,TRIM0#,ｻｲﾄﾞ |
2 | ||
| 71930-44010G0 |
MCV2# ﾛｯｸ付,SAGE,TRIM6# |
4 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-33130C0 |
MCV2# BLACK,TRIM2# |
2 | ||
| 71940-33130G0 |
MCV2# SAGE,TRIM6# |
2 | ||
| 71940-33170G0 |
MCV2#..25X,30G ﾎﾝｶﾞﾜ,SAGE,TRIM6# |
2 | ||
| 71940-33131G2 |
MCV2# DK.SAGE,TRIM6# |
2 | ||
| 71940-33170G0 |
MCV2# ﾎﾝｶﾞﾜ,SAGE,TRIM6# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-20060 |
MCV2# |
2 | ||
| 72802A - HINGE SUB-ASSY, ARMREST CONSOLE | ||||
| 72802-50020 |
MCV2# |
1 | ||
| 72805B - DOOR SUB-ASSY, REAR SEAT CENTER ARMREST | ||||
| 72805-33020A0 |
MCV2#..25X,30G ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 72805-33020C0 |
MCV2#..25X,30G ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 72805-33010C0 |
MCV2# BLACK,TRIM2# |
1 | ||
| 72805-33020G0 |
MCV2# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 72805-33020C0 |
MCV2# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 72805-33010G0 |
MCV2# SAGE,TRIM6# |
1 | ||
| 72805-33020G0 |
MCV2#..25X,30G ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 72805-33011G3 |
MCV2# DK.SAGE,TRIM6# |
1 | ||
| 72805-33020A0 |
MCV2# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 72808A - BRACKET SUB-ASSY, SEAT CENTER ARMREST | ||||
| 72883-33020 |
MCV2# |
1 | ||
| 72809 - LOCK SUB-ASSY, CENTER ARMREST | ||||
| 72809-50020C0 |
MCV2# BLAK,TRIM2# |
1 | ||
| 72809-50020G0 |
MCV2# SAGE,TRIM6# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-33220C0 |
MCV2#..25X,30G ﾎﾝｶﾞﾜ,BLACK,TRIM2# |
1 | ||
| 72830-33210C0 |
MCV2# BLACK,TRIM2# |
1 | ||
| 72830-33210G0 |
MCV2# SAGE,TRIM6# |
1 | ||
| 72830-33220G0 |
MCV2#..25X,30G ﾎﾝｶﾞﾜ,SAGE,TRIM6# |
1 | ||
| 72830-33220A0 |
MCV2# ﾎﾝｶﾞﾜ,IVORY,TRIM0# |
1 | ||
| 72830-33211G2 |
MCV2# DK.SAGE,TRIM6# |
1 | ||
| 72830-33220A0 |
MCV2#..25X,30G ﾎﾝｶﾞﾜ,IVORY,TRIM0# |
1 | ||
| 72830-33220G0 |
MCV2# ﾎﾝｶﾞﾜ,SAGE,TRIM6# |
1 | ||
| 72830-33220C0 |
MCV2# ﾎﾝｶﾞﾜ,BLACK,TRIM2# |
1 | ||
| 72860 - BOX ASSY, REAR SEAT CENTER ARMREST | ||||
| 72860-33020C0 |
MCV2# BLACK,TRIM2# |
1 | ||
| 72860-33020G0 |
MCV2# SAGE,TRIM6# |
1 | ||
| Common parts | ||||
| 90109-06208 | ||||
| 90119-08160 | ||||
| 90179-06219 | ||||
| 90386-11015 | ||||
| 93560-54010 | ||||
| 93560-54014 | ||||
| Linked diagrams | ||||
| 7104 | ||||
ILLUST NO. 2 OF 2(9608- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
