MCV21-ATPNK (1996)
Toyota Windom

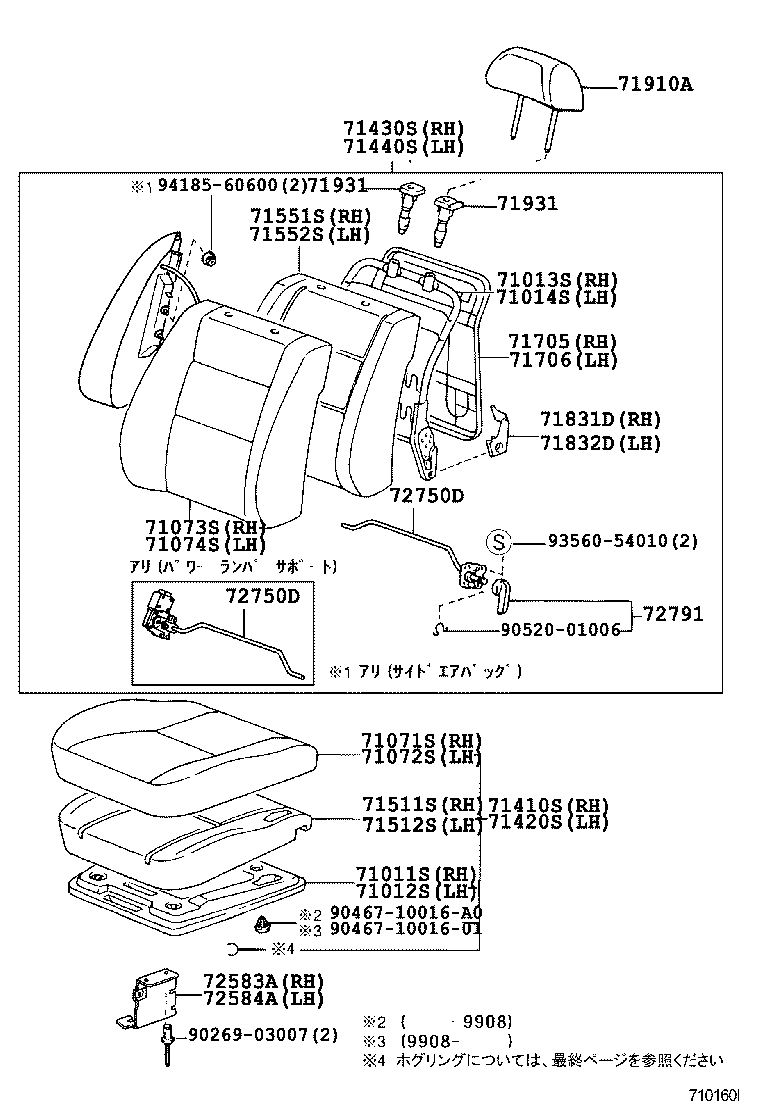

ILLUST NO. 1 OF 3(9608- )
ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-33010 |
MCV2# |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-33010 |
MCV2# |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-33100 |
MCV2# |
1 | ||
| 71013-33090 |
MCV21..25X |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71013-33100 |
MCV21..25X |
1 | ||
| 71013-33090 |
MCV2# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-33550G0 |
MCV2# LIGHT SAGE,TRIM6# |
1 | ||
| 71071-33400C0 |
MCV2#..25X,30G ﾎﾝｶﾞﾜ,BLACK,TRIM2# |
1 | ||
| 71071-33400A0 |
MCV2#..25X,30G ﾎﾝｶﾞﾜ,IVORY,TRIM0# |
1 | ||
| 71071-33400G0 |
MCV2#..25X,30G ﾎﾝｶﾞﾜ,SAGE,TRIM6# |
1 | ||
| 71071-33550C0 |
MCV2# BLACK,TRIM2# |
1 | ||
| 71071-33551C0 |
MCV2# BLACK,TRIM2# |
1 | ||
| 71071-33400A0 |
MCV2# ﾎﾝｶﾞﾜ,IVORY,TRIM0# |
1 | ||
| 71071-33400G0 |
MCV2# ﾎﾝｶﾞﾜ,SAGE,TRIM6# |
1 | ||
| 71071-33400C0 |
MCV2# ﾎﾝｶﾞﾜ,BLACK,TRIM2# |
1 | ||
| 71071-33551G0 |
MCV2# LIGHT SAGE,TRIM6# |
1 | ||
| 71071-33552G2 |
MCV2# DK.SAGE,TRIM6# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-33530G0 |
MCV2# LIGHT SAGE,TRIM6# |
1 | ||
| 71072-33580G0 |
MCV2#..25X,30G ﾎﾝｶﾞﾜ,SAGE,TRIM6# |
1 | ||
| 71072-33580A0 |
MCV2# ﾎﾝｶﾞﾜ,IVORY,TRIM0# |
1 | ||
| 71072-33531C0 |
MCV2# BLACK,TRIM2# |
1 | ||
| 71072-33580A0 |
MCV2#..25X,30G ﾎﾝｶﾞﾜ,IVORY,TRIM0# |
1 | ||
| 71072-33530C0 |
MCV2# BLACK,TRIM2# |
1 | ||
| 71072-33580G0 |
MCV2# ﾎﾝｶﾞﾜ,SAGE,TRIM6# |
1 | ||
| 71072-33580C0 |
MCV2#..25X,30G ﾎﾝｶﾞﾜ,BLACK,TRIM2# |
1 | ||
| 71072-33532G2 |
MCV2# DK.SAGE,TRIM6# |
1 | ||
| 71072-33580C0 |
MCV2# ﾎﾝｶﾞﾜ,BLACK,TRIM2# |
1 | ||
| 71072-33531G0 |
MCV2# LIGHT SAGE,TRIM6# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-33620C0 |
MCV21..25X BLACK,TRIM2# |
1 | ||
| 71073-33470A0 |
MCV2#..25X,30G ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & ﾚｻﾞ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71073-33810C0 |
MCV2#..25X,30G ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & *80,ｻｲﾄﾞ),BLACK,TRIM2# |
1 | ||
| 71073-33470C0 |
MCV2#..25X,30G ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & ﾚｻﾞ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 71073-33470G0 |
MCV2#..25X,30G ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & ﾚｻﾞ-ｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 71073-33810G0 |
MCV2#..25X,30G ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & *80,ｻｲﾄﾞ),LIGHT SAGE,TRIM6# |
1 | ||
| 71073-33810A0 |
MCV2#..25X,30G ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & *80,ｻｲﾄﾞ),IVORY,TRIM0# |
1 | ||
| 71073-33800G0 |
MCV21..25X ｱﾘ(*80, ｻｲﾄﾞ),LIGHT SAGE,TRIM6# |
1 | ||
| 71073-33810A0 |
MCV2# ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & *80,ｻｲﾄﾞ),IVORY,TRIM0# |
1 | ||
| 71073-33470C0 |
MCV2# ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & ﾚｻﾞ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 71073-33621G0 |
MCV21..25X LIGHT SAGE,TRIM6# |
1 | ||
| 71073-33810C0 |
MCV2# ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & *80,ｻｲﾄﾞ),BLACK,TRIM2# |
1 | ||
| 71073-33470G0 |
MCV2# ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & ﾚｻﾞ-ｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 71073-33620G0 |
MCV21..25X LT. SAGE,TRIM6# |
1 | ||
| 71073-33621C0 |
MCV21..25X BLACK,TRIM2# |
1 | ||
| 71073-33810G0 |
MCV2# ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & *80,ｻｲﾄﾞ),LIGHT SAGE,TRIM6# |
1 | ||
| 71073-33800C0 |
MCV21..25X ｱﾘ(*80, ｻｲﾄﾞ),BLACK,TRIM2# |
1 | ||
| 71073-33470A0 |
MCV2# ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & ﾚｻﾞ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71073-33801G2 |
MCV21..25X ｱﾘ(*80, ｻｲﾄﾞ),DK.SAGE,TRIM6# |
1 | ||
| 71073-33622G2 |
MCV21..25X DK.SAGE,TRIM6# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-33470G0 |
MCV2#..25X,30G ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & ﾚｻﾞ-ｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 71073-33470C0 |
MCV2#..25X,30G ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & ﾚｻﾞ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 71073-33570G0 |
MCV2# LIGHT SAGE,TRIM6# |
1 | ||
| 71074-33660A0 |
MCV2#..25X,30G ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & *80,ｻｲﾄﾞ),IVORY,TRIM0# |
1 | ||
| 71074-33630G0 |
MCV2# ｱﾘ(*80, ｻｲﾄﾞ),LIGHT SAGE,TRIM6# |
1 | ||
| 71073-33470A0 |
MCV2#..25X,30G ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & ﾚｻﾞ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71073-33571G0 |
MCV2# LIGHT SAGE,TRIM6# |
1 | ||
| 71073-33470A0 |
MCV2# ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & ﾚｻﾞ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71074-33660G0 |
MCV2#..25X,30G ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & *80,ｻｲﾄﾞ),LIGHT SAGE,TRIM6# |
1 | ||
| 71074-33660A0 |
MCV2# ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & *80,ｻｲﾄﾞ),IVORY,TRIM0# |
1 | ||
| 71074-33660G0 |
MCV2# ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & *80,ｻｲﾄﾞ),LIGHT SAGE,TRIM6# |
1 | ||
| 71074-33660C0 |
MCV2# ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & *80,ｻｲﾄﾞ),BLACK,TRIM2# |
1 | ||
| 71074-33630C0 |
MCV2# ｱﾘ(*80, ｻｲﾄﾞ),BLACK,TRIM2# |
1 | ||
| 71073-33470C0 |
MCV2# ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & ﾚｻﾞ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 71073-33571C0 |
MCV2# BLACK,TRIM2# |
1 | ||
| 71073-33470G0 |
MCV2# ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & ﾚｻﾞ-ｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 71073-33570C0 |
MCV2# BLACK,TRIM2# |
1 | ||
| 71074-33660C0 |
MCV2#..25X,30G ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & *80,ｻｲﾄﾞ),BLACK,TRIM2# |
1 | ||
| 71073-33572G2 |
MCV2# DK.SAGE,TRIM6# |
1 | ||
| 71074-33631G2 |
MCV2# ｱﾘ(*80, ｻｲﾄﾞ),DK.SAGE,TRIM6# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-33510C0 |
MCV2#..25X,30G ***,ﾎﾝｶﾞﾜ,BLACK,TRIM2# |
1 | ||
| 71410-33510A0 |
MCV2#..25X,30G ***,IVORY,TRIM0# |
1 | ||
| 71410-33180G0 |
MCV2# ***,LIGHT SAGE,TRIM6# |
1 | ||
| 71410-33181G0 |
MCV2# ***,LIGHT SAGE,TRIM6# |
1 | ||
| 71410-33510G0 |
MCV2#..25X,30G ***,SAGE,TRIM6# |
1 | ||
| 71410-33510G0 |
MCV2# ***,ﾎﾝｶﾞﾜ ｼ-ﾄ,SAGE,TRIM6# |
1 | ||
| 71410-33510C0 |
MCV2# ***,ﾎﾝｶﾞﾜ ｼ-ﾄ,BLACK,TRIM2# |
1 | ||
| 71410-33181C0 |
MCV2# ***,BLACK,TRIM2# |
1 | ||
| 71410-33180C0 |
MCV2# ***,BLACK,TRIM2# |
1 | ||
| 71410-33182G2 |
MCV2# ***,DK.SAGE,TRIM6# |
1 | ||
| 71410-33510A0 |
MCV2# ***,ﾎﾝｶﾞﾜ ｼ-ﾄ,IVORY,TRIM0# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-33340G0 |
MCV2# ***,LIGHT SAGE,TRIM6# |
1 | ||
| 71420-33490C0 |
MCV2#..25X,30G ***,ﾎﾝｶﾞﾜ,BLACK,TRIM2# |
1 | ||
| 71420-33340C0 |
MCV2# ***,BLACK,TRIM2# |
1 | ||
| 71420-33490A0 |
MCV2# ***,ﾎﾝｶﾞﾜ ｼ-ﾄ,IVORY,TRIM0# |
1 | ||
| 71420-33490C0 |
MCV2# ***,ﾎﾝｶﾞﾜ,BLACK,TRIM2# |
1 | ||
| 71420-33490A0 |
MCV2#..25X,30G ***,IVORY,TRIM0# |
1 | ||
| 71420-33341C0 |
MCV2# ***,BLACK,TRIM2# |
1 | ||
| 71420-33341G0 |
MCV2# ***,LIGHT SAGE,TRIM6# |
1 | ||
| 71420-33342G2 |
MCV2# ***,DK.SAGE,TRIM6# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-33800C0 |
MCV21..25X BLACK,TRIM2# |
1 | ||
| 71430-33610C0 |
MCV2#..25X,30G ***,ﾎﾝｶﾞﾜ,BLACK,TRIM2# |
1 | ||
| 71430-33610A0 |
MCV2#..25X,30G ***,ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & ﾚｻﾞ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71430-33600C0 |
MCV21..25X ***,BLACK,TRIM2# |
1 | ||
| 71430-33610G0 |
MCV2#..25X,30G ***,SAGE,TRIM6# |
1 | ||
| 71430-33610A0 |
MCV2# ***,ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & ﾚｻﾞ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71430-33800G0 |
MCV21..25X LIGHT SAGE,TRIM6# |
1 | ||
| 71430-33801C0 |
MCV21..25X ｱﾘ(*80, ｻｲﾄﾞ),BLACK,TRIM2# |
1 | ||
| 71430-33610G0 |
MCV2# ***,SAGE,TRIM6# |
1 | ||
| 71430-33610C0 |
MCV2# ***,ﾎﾝｶﾞﾜ,BLACK,TRIM2# |
1 | ||
| 71430-33601C0 |
MCV21..25X ***,BLACK,TRIM2# |
1 | ||
| 71430-33601G0 |
MCV21..25X ***,ｱﾘ(*80,ｻｲﾄﾞ),LIGHT SAGE,TRIM6# |
1 | ||
| 71430-33821C0 |
MCV2# ｱﾘ(*80, ｻｲﾄﾞ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾊﾟﾜ- ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 71430-33821A0 |
MCV2# ｱﾘ(*80, ｻｲﾄﾞ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾊﾟﾜ- ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71430-33801G0 |
MCV21..25X LIGHT SAGE,TRIM6# |
1 | ||
| 71430-33602G2 |
MCV21..25X ***,DK.SAGE,TRIM6# |
1 | ||
| 71430-33821G0 |
MCV2# ｱﾘ(*80, ｻｲﾄﾞ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾊﾟﾜ- ｼ-ﾄ),LIGHT SAGE,TRIM6# |
1 | ||
| 71430-33600G0 |
MCV21..25X ***,LIGHT SAGE,TRIM6# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-33510A0 |
MCV2#..25X,30G ***,ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & ﾚｻﾞ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71440-33700G0 |
MCV2# ｱﾘ(*80, ｻｲﾄﾞ),LIGHT SAGE,TRIM6# |
1 | ||
| 71440-33510C0 |
MCV2#..25X,30G ***,ﾎﾝｶﾞﾜ,BLACK,TRIM2# |
1 | ||
| 71430-33350C0 |
MCV2# ***,BLACK,TRIM2# |
1 | ||
| 71440-33700C0 |
MCV2# ｱﾘ(*80, ｻｲﾄﾞ),BLACK,TRIM2# |
1 | ||
| 71440-33510G0 |
MCV2#..25X,30G ***,ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & ﾚｻﾞ-ｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 71430-33351C0 |
MCV2# ***,BLACK,TRIM2# |
1 | ||
| 71440-33510A0 |
MCV2# ***,ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & ﾚｻﾞ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71430-33350G0 |
MCV2# ***,LIGHT SAGE,TRIM6# |
1 | ||
| 71440-33510C0 |
MCV2# ***,ﾎﾝｶﾞﾜ,BLACK,TRIM2# |
1 | ||
| 71430-33351G0 |
MCV2# ***,LIGHT SAGE,TRIM6# |
1 | ||
| 71440-33510G0 |
MCV2# ***,ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & ﾚｻﾞ-ｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 71440-33701C0 |
MCV2# ｱﾘ(*80, ｻｲﾄﾞ),BLACK,TRIM2# |
1 | ||
| 71440-33701G0 |
MCV2# ｱﾘ(*80, ｻｲﾄﾞ),LT.SAGE,TRIM6# |
1 | ||
| 71430-33352G2 |
MCV2# ***,DK.SAGE,TRIM6# |
1 | ||
| 71440-33702G2 |
MCV2# ｱﾘ(*80, ｻｲﾄﾞ),DK.SAGE,TRIM6# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-33100 |
MCV2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-33100 |
MCV2# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-33060 |
MCV2# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-33060 |
MCV2# |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-33180G0 |
MCV2# SAGE,TRIM6# |
1 | ||
| 71705-33200C0 |
MCV2# ｱﾘ(*80, ｻｲﾄﾞ),BLACK,TRIM2# |
1 | ||
| 71705-33180C0 |
MCV2# BLACK,TRIM2# |
1 | ||
| 71705-33210C0 |
MCV2#..25X,30G ｱﾘ(*80, ｻｲﾄﾞ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾊﾟﾜ- ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 71705-33210G0 |
MCV2# ｱﾘ(*80, ｻｲﾄﾞ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾊﾟﾜ- ｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 71705-33210C0 |
MCV2# ｱﾘ(*80, ｻｲﾄﾞ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾊﾟﾜ- ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 71705-33200G0 |
MCV2# ｱﾘ(*80, ｻｲﾄﾞ),SAGE,TRIM6# |
1 | ||
| 71705-33240G0 |
MCV2# ｱﾘ(*80, ｻｲﾄﾞ),DK.SAGE,TRIM6# |
1 | ||
| 71705-33210G0 |
MCV2#..25X,30G ｱﾘ(*80, ｻｲﾄﾞ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾊﾟﾜ- ｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 71705-33210A0 |
MCV2#..25G,25X,30X ｱﾘ(*80, ｻｲﾄﾞ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾊﾟﾜ- ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71705-33220G0 |
MCV2# DK.SAGE,TRIM6# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-33210C0 |
MCV2#..25X,30G ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & *80,ｻｲﾄﾞ),BLACK,TRIM2# |
1 | ||
| 71705-33180C0 |
MCV2# BLACK,TRIM2# |
1 | ||
| 71705-33180G0 |
MCV2# SAGE,TRIM6# |
1 | ||
| 71705-33210G0 |
MCV2#..25X,30G ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & *80,ｻｲﾄﾞ),SAGE,TRIM6# |
1 | ||
| 71705-33200G0 |
MCV2# ｱﾘ(*80, ｻｲﾄﾞ),SAGE,TRIM6# |
1 | ||
| 71705-33210C0 |
MCV2# ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & *80,ｻｲﾄﾞ),BLACK,TRIM2# |
1 | ||
| 71705-33200C0 |
MCV2# ｱﾘ(*80, ｻｲﾄﾞ),BLACK,TRIM2# |
1 | ||
| 71705-33210G0 |
MCV2# ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & *80,ｻｲﾄﾞ),SAGE,TRIM6# |
1 | ||
| 71705-33220G0 |
MCV2# DK.SAGE,TRIM6# |
1 | ||
| 71705-33210A0 |
MCV2#..25G,25X,30X ｱﾘ(*80, ｻｲﾄﾞ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾊﾟﾜ- ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71705-33240G0 |
MCV2# ｱﾘ(*80, ｻｲﾄﾞ),DK.SAGE,TRIM6# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-33020 |
MCV2# |
2 | ||
| 71831-33010 |
MCV2# |
2 | ||
| 71831-33021 |
MCV2# |
2 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-33021 |
MCV2# |
2 | ||
| 71832-33020 |
MCV2# |
2 | ||
| 71832-33010 |
MCV2# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-33290A0 |
MCV2#..25X,30G ﾎﾝｶﾞﾜ,IVORY,TRIM0# |
2 | ||
| 71910-33290C0 |
MCV2#..25X,30G ﾎﾝｶﾞﾜ,BLACK,TRIM2# |
2 | ||
| 71910-33290G0 |
MCV2#..25X,30G ﾎﾝｶﾞﾜ,SAGE,TRIM6# |
2 | ||
| 71910-33270C0 |
MCV2# BLACK,TRIM2# |
2 | ||
| 71910-33290A0 |
MCV2# ﾎﾝｶﾞﾜ,IVORY,TRIM0# |
2 | ||
| 71910-33290C0 |
MCV2# ﾎﾝｶﾞﾜ,BLACK,TRIM2# |
2 | ||
| 71910-33290G0 |
MCV2# ﾎﾝｶﾞﾜ,SAGE,TRIM6# |
2 | ||
| 71910-33270G0 |
MCV2# SAGE,TRIM6# |
2 | ||
| 71910-33271G3 |
MCV2# DK.SAGE,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-32020C0 |
MCV2# ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-32020G2 |
MCV2# ﾛｯｸ付,SAGE,TRIM6# |
2 | ||
| 71930-44010G0 |
MCV2# ﾛｯｸ付,SAGE,TRIM6# |
2 | ||
| 71931-32020G2 |
MCV2# ﾛｯｸ無,SAGE,TRIM6# |
2 | ||
| 71931-32020C0 |
MCV2# ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-32020C0 |
MCV2# ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-32020G2 |
MCV2# ﾛｯｸ付,SAGE,TRIM6# |
2 | ||
| 71930-44010G0 |
MCV2# ﾛｯｸ付,SAGE,TRIM6# |
2 | ||
| 71931-32020G2 |
MCV2# ﾛｯｸ無,SAGE,TRIM6# |
2 | ||
| 71931-32020C0 |
MCV2# ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-33020 |
MCV21..25X |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-33020 |
MCV21..25X |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-12010G0 |
MCV21..25X SAGE,TRIM6# |
1 | ||
| 72791-12010C0 |
MCV21..25X BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90269-03007 | ||||
| 90467-1001601 | ||||
| 90467-10016A0 | ||||
| 90520-01006 | ||||
| 93560-54010 | ||||
| 94185-60600 | ||||

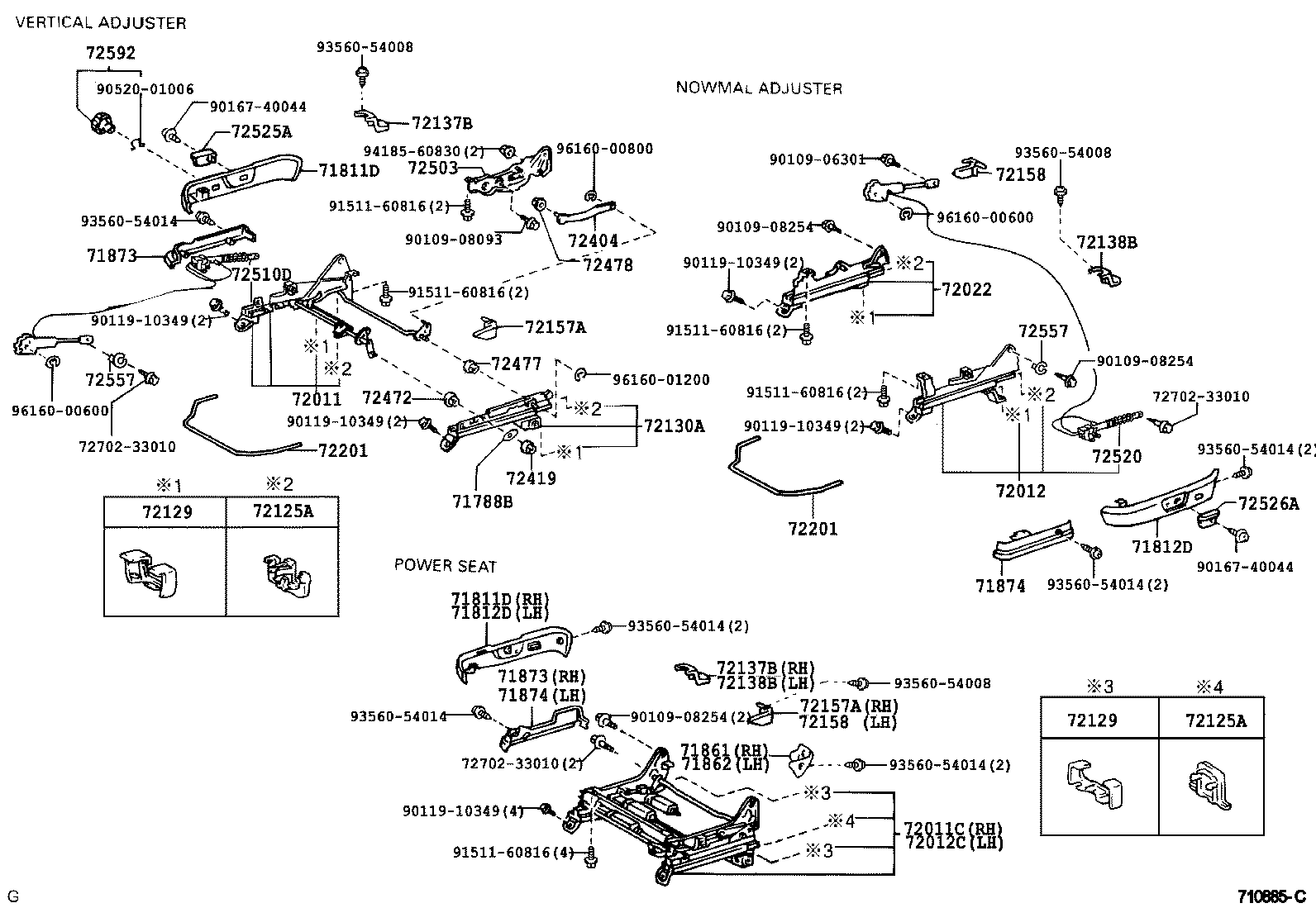

ILLUST NO. 2 OF 3(9608- )
ｱｼﾞﾔｽﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71788B - WASHER, FRONT SEAT BACK BOARD SETTING | ||||
| 71788-33010 |
MCV21..25X |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-33040C0 |
MCV21..25X ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),BLACK,TRIM2# |
1 | ||
| 71811-33040G0 |
MCV21..25X ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),SAGE,TRIM6# |
1 | ||
| 71811-33080C0 |
MCV21..25X ｱﾘ(*80,ｻｲﾄﾞ & ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),BLACK,TRIM2# |
1 | ||
| 71811-33080G0 |
MCV2#..25G,25X,30X ｱﾘ(*80,ｻｲﾄﾞ & ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),SAGE,TRIM6# |
1 | ||
| 71811-33080G0 |
MCV21..25X ｱﾘ(*80,ｻｲﾄﾞ & ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),SAGE,TRIM6# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-33040C0 |
MCV21..25X ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),BLACK,TRIM2# |
1 | ||
| 71811-33040G0 |
MCV21..25X ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),SAGE,TRIM6# |
1 | ||
| 71811-33080C0 |
MCV21..25X ｱﾘ(*80,ｻｲﾄﾞ & ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),BLACK,TRIM2# |
1 | ||
| 71811-33080G0 |
MCV2#..25G,25X,30X ｱﾘ(*80,ｻｲﾄﾞ & ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),SAGE,TRIM6# |
1 | ||
| 71811-33080G0 |
MCV21..25X ｱﾘ(*80,ｻｲﾄﾞ & ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),SAGE,TRIM6# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-33070C0 |
MCV2#..25G,25X,30X BLACK,TRIM2# |
1 | ||
| 71812-33070G0 |
MCV2#..25G,25X,30X SAGE,TRIM6# |
1 | ||
| 71812-33100C0 |
MCV2#..25G,25X,30X ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),BLACK,TRIM2# |
1 | ||
| 71812-33100G0 |
MCV2#..25G,25X,30X ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),SAGE,TRIM6# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-33070C0 |
MCV2#..25G,25X,30X BLACK,TRIM2# |
1 | ||
| 71812-33070G0 |
MCV2#..25G,25X,30X SAGE,TRIM6# |
1 | ||
| 71812-33100C0 |
MCV2#..25G,25X,30X ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),BLACK,TRIM2# |
1 | ||
| 71812-33100G0 |
MCV2#..25G,25X,30X ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),SAGE,TRIM6# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-33020G0 |
MCV2# SAGE,TRIM6# |
1 | ||
| 71861-33020C0 |
MCV2# BLACK,TRIM2# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-33030G0 |
MCV2# SAGE,TRIM6# |
1 | ||
| 71862-33030C0 |
MCV2# BLACK,TRIM2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-33040G0 |
MCV21..25X SAGE,TRIM6# |
1 | ||
| 71873-33040C0 |
MCV21..25X BLACK,TRIM2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-33040G0 |
MCV21..25X SAGE,TRIM6# |
1 | ||
| 71873-33040C0 |
MCV21..25X BLACK,TRIM2# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-33060G0 |
MCV2#..25G,25X,30X SAGE,TRIM6# |
1 | ||
| 71874-33060C0 |
MCV2#..25G,25X,30X BLACK,TRIM2# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-33060G0 |
MCV2#..25G,25X,30X SAGE,TRIM6# |
1 | ||
| 71874-33060C0 |
MCV2#..25G,25X,30X BLACK,TRIM2# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-33080 |
MCV21..25X |
1 | ||
| 72011-33081 |
MCV21..25X |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-33060 |
MCV2#..25G,25X,30X |
1 | ||
| 72012-33061 |
MCV2#..25G,25X,30X |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-33061 |
MCV2#..25G,25X,30X |
1 | ||
| 72022-33060 |
MCV2#..25G,25X,30X |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-20020 |
MCV2# |
6 | ||
| 72125-20020 |
MCV21..25X |
6 | ||
| 72125-33010 |
MCV2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-20020 |
MCV2# |
6 | ||
| 72125-20020 |
MCV21..25X |
6 | ||
| 72125-33010 |
MCV2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-33030 |
MCV2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
4 | ||
| 72129-12010 |
MCV21..25X |
6 | ||
| 72129-20040 |
MCV2# |
6 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-33030 |
MCV2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
4 | ||
| 72129-12010 |
MCV21..25X |
6 | ||
| 72129-20040 |
MCV2# |
6 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-33011 |
MCV21..25X |
1 | ||
| 72130-33010 |
MCV21..25X |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-33020C0 |
MCV2# BLACK,TRIM2# |
1 | ||
| 72137-33020G0 |
MCV2# SAGE,TRIM6# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-33020C0 |
MCV2# BLACK,TRIM2# |
1 | ||
| 72137-33020G0 |
MCV2# SAGE,TRIM6# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-33020C0 |
MCV2# BLACK,TRIM2# |
1 | ||
| 72137-33020G0 |
MCV2# SAGE,TRIM6# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-33020C0 |
MCV2# BLACK,TRIM2# |
1 | ||
| 72137-33020G0 |
MCV2# SAGE,TRIM6# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-33020C0 |
MCV2# BLACK,TRIM2# |
1 | ||
| 72157-33020G0 |
MCV2# SAGE,TRIM6# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-33020C0 |
MCV2# BLACK,TRIM2# |
1 | ||
| 72157-33020G0 |
MCV2# SAGE,TRIM6# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-33020C0 |
MCV2# BLACK,TRIM2# |
1 | ||
| 72158-33020G0 |
MCV2# SAGE,TRIM6# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-33020C0 |
MCV2# BLACK,TRIM2# |
1 | ||
| 72158-33020G0 |
MCV2# SAGE,TRIM6# |
1 | ||
| 72201 - HANDLE SUB-ASSY, SEAT TRACK | ||||
| 72201-33010 |
MCV21..25X |
2 | ||
| 72201 - HANDLE SUB-ASSY, SEAT TRACK | ||||
| 72201-33010 |
MCV21..25X |
2 | ||
| 72404 - LINK SUB-ASSY, VERTICAL SEAT | ||||
| 72404-33030 |
MCV21..25X |
1 | ||
| 72404-33031 |
MCV21..25X |
1 | ||
| 72419 - NUT, FRON SEAT VERTICAL GEAR | ||||
| 72419-33010 |
MCV21..25X |
1 | ||
| 72472 - SPACER, VERTICAL ADJUSTER, NO.1 | ||||
| 72472-33010 |
MCV21..25X |
1 | ||
| 72477 - SPACER, VERTICAL ADJUSTER | ||||
| 72477-33020 |
MCV21..25X |
1 | ||
| 72478 - BUSH, VERTICAL ADJUSTER | ||||
| 72478-33010 |
MCV21..25X |
1 | ||
| 72503 - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH | ||||
| 72503-33010 |
MCV21..25X |
1 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-33010 |
MCV2#..25G,25X,30X |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-33010 |
MCV2#..25G,25X,30X |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-33020C0 |
MCV21..25X BLACK,TRIM2# |
1 | ||
| 72525-33020G0 |
MCV21..25X SAGE,TRIM6# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-33020G0 |
MCV2#..25G,25X,30X SAGE,TRIM6# |
1 | ||
| 72526-33020C0 |
MCV2#..25G,25X,30X BLACK,TRIM2# |
1 | ||
| 72557 - SPACER, RECLINING ADJUSTER | ||||
| 72557-33010 |
MCV2# |
4 | ||
| 72557 - SPACER, RECLINING ADJUSTER | ||||
| 72557-33010 |
MCV2# |
4 | ||
| 72592 - KNOB, RECLINING ADJUSTER | ||||
| 72457-18010C0 |
MCV21..25X BLACK,TRIM2# |
1 | ||
| 72457-18010G0 |
MCV21..25X SAGE,TRIM6# |
1 | ||
| Common parts | ||||
| 72702-33010 | ||||
| 90109-06301 | ||||
| 90109-08093 | ||||
| 90109-08254 | ||||
| 90119-10349 | ||||
| 90167-40044 | ||||
| 90520-01006 | ||||
| 91511-60816 | ||||
| 93560-54008 | ||||
| 93560-54014 | ||||
| 94185-60830 | ||||
| 96160-00600 | ||||
| 96160-00800 | ||||
| 96160-01200 | ||||
ILLUST NO. 3 OF 3(9608- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
