MCV21-ATPNK (1996)
Toyota Windom
Production
Aug 1996
-
Jul 2001
Engine
2MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

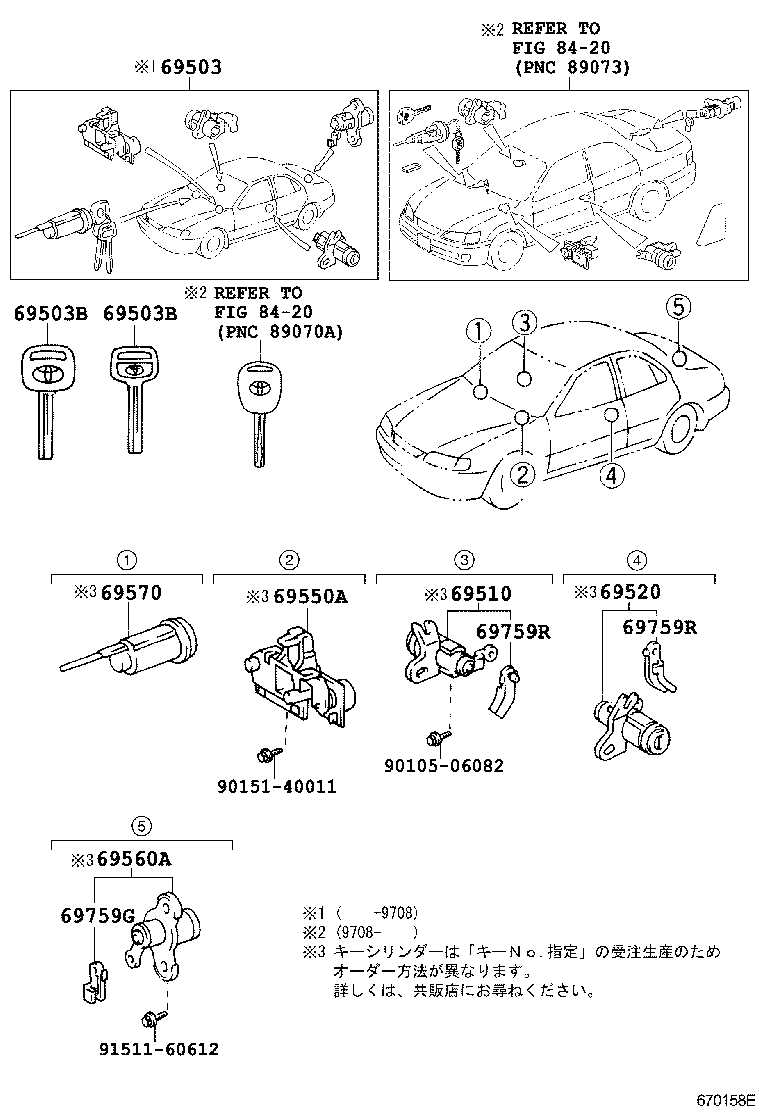

(9608-9908)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-33530 |
MCV2# |
1 | ||
| 69503B - KEY, CUT | ||||
| 69515-50120 |
MCV2# ﾏｽﾀｰｷｰ,W(*68) |
2 | ||
| 69516-50070 |
MCV2# ｻﾌﾞｷｰ,W(*68) |
1 | ||
| 69516-50070 |
MCV21 ｻﾌﾞｷｰ,W(*68) |
1 | ||
| 69515-50120 |
MCV2# ﾏｽﾀｰｷｰ,W(*68) |
1 | ||
| 69503B - KEY, CUT | ||||
| 69515-50120 |
MCV2# ﾏｽﾀｰｷｰ,W(*68) |
2 | ||
| 69516-50070 |
MCV2# ｻﾌﾞｷｰ,W(*68) |
1 | ||
| 69516-50070 |
MCV21 ｻﾌﾞｷｰ,W(*68) |
1 | ||
| 69515-50120 |
MCV2# ﾏｽﾀｰｷｰ,W(*68) |
1 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-33100 |
MCV2# |
1 | ||
| 69510-33100 |
MCV2# |
1 | ||
| 69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH | ||||
| 69520-33110 |
MCV2# |
1 | ||
| 69520-33110 |
MCV2# |
1 | ||
| 69550A - CYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 69550-33080 |
MCV2# |
1 | ||
| 69550-33080 |
MCV2# |
1 | ||
| 69560A - CYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 69560-33120 |
MCV2# |
1 | ||
| 69560-33120 |
MCV2# |
1 | ||
| 69570 - CYLINDER ASSY, IGNITION SWITCH LOCK | ||||
| 69570-33070 |
MCV21 |
1 | ||
| 69570-33070 |
MCV2# |
1 | ||
| 69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER | ||||
| 69759-24080 |
MCV2# |
1 | ||
| 69759-24080 |
MCV2# |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-32100 |
MCV2# 左側 |
1 | ||
| 69759-32090 |
MCV2# 右側 |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-32100 |
MCV2# 左側 |
1 | ||
| 69759-32090 |
MCV2# 右側 |
1 | ||
| Common parts | ||||
| 90105-06082 | ||||
| 90151-40011 | ||||
| 91511-60612 | ||||
| Linked diagrams | ||||
| 8420 | ||||

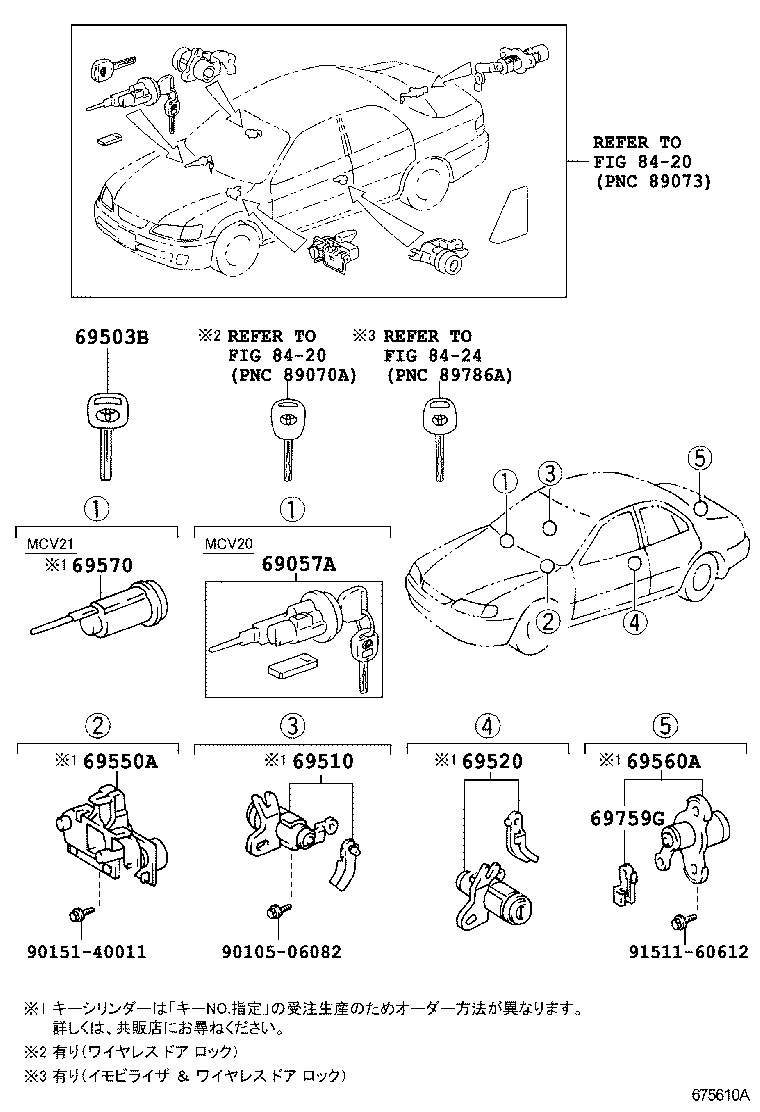

(9908- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69503B - KEY, CUT | ||||
| 69515-50120 |
MCV2# ﾏｽﾀｰｷｰ,W(*68) |
2 | ||
| 69516-50070 |
MCV2# ｻﾌﾞｷｰ,W(*68) |
1 | ||
| 69516-50070 |
MCV21 ｻﾌﾞｷｰ,W(*68) |
1 | ||
| 69515-50120 |
MCV2# ﾏｽﾀｰｷｰ,W(*68) |
1 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-33100 |
MCV2# |
1 | ||
| 69510-33100 |
MCV2# |
1 | ||
| 69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH | ||||
| 69520-33110 |
MCV2# |
1 | ||
| 69520-33110 |
MCV2# |
1 | ||
| 69550A - CYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 69550-33080 |
MCV2# |
1 | ||
| 69550-33080 |
MCV2# |
1 | ||
| 69560A - CYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 69560-33120 |
MCV2# |
1 | ||
| 69560-33120 |
MCV2# |
1 | ||
| 69570 - CYLINDER ASSY, IGNITION SWITCH LOCK | ||||
| 69570-33070 |
MCV21 |
1 | ||
| 69570-33070 |
MCV2# |
1 | ||
| 69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER | ||||
| 69759-24080 |
MCV2# |
1 | ||
| 69759-24080 |
MCV2# |
1 | ||
| Common parts | ||||
| 90105-06082 | ||||
| 90151-40011 | ||||
| 91511-60612 | ||||
| Linked diagrams | ||||
| 8420 | ||||
| 8424 | ||||
