MCV21-ATPNK (1996)

Toyota Windom

Production Aug 1996 - Jul 2001
Engine 2MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

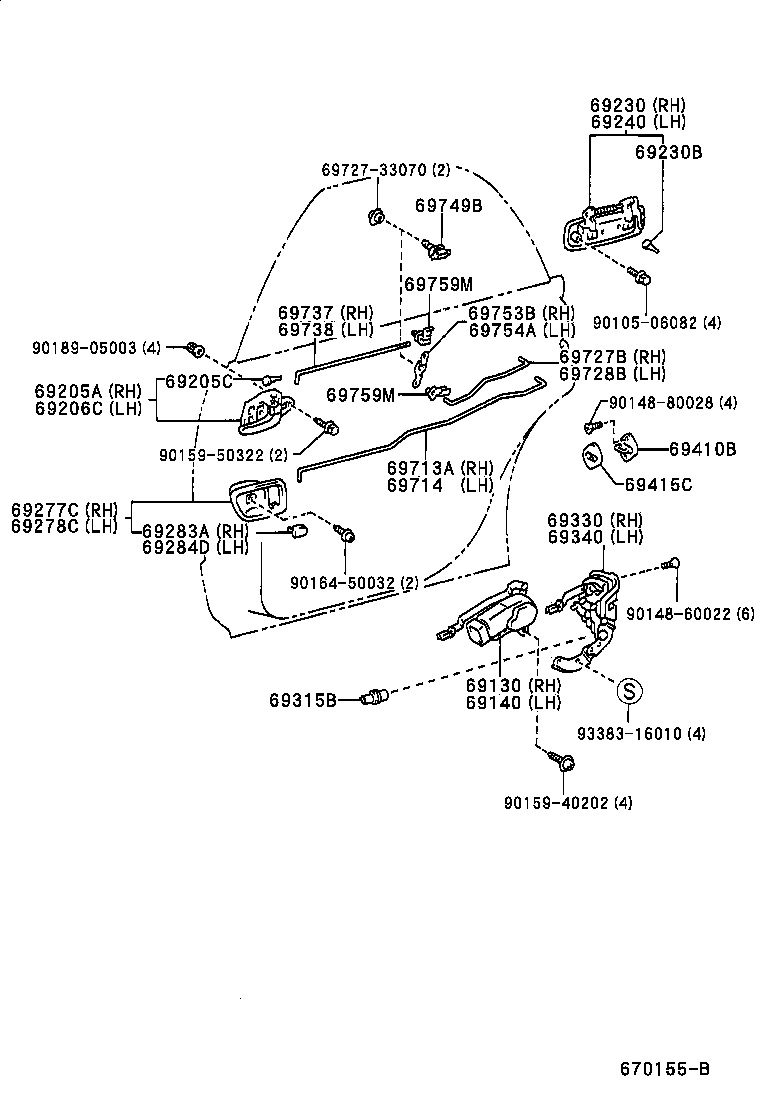

Click highlighted areas on diagram

diagram 69130 69140 69205A 69205C 69206C 69230 69230B 69240 69277C 69278C 69283A 69284D 69315B 69330 69340 69410B 69415C 69713A 69714 6972733070 69727B 69728B 69737 69738 69749B 69753B 69754A 69759M 69759M 9010506082 9014860022 9014880028 9015940202 9015950322 9016450032 9018905003 9338316010
Part # Description Qty Price
69130 - ACTUATOR ASSY, REAR DOOR LOCK, RH
69130-33030

MCV2#

 1
69140 - ACTUATOR ASSY, REAR DOOR LOCK, LH
69140-33030

MCV2#

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-30120C0

MCV2#

BLACK,TRIM2#

 1
69205-30120G0

MCV2#

SAGE,TRIM6#

 1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90541-04014

MCV2#

 2
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-30120C0

MCV2#

BLACK,TRIM2#

 1
69206-30120G0

MCV2#

SAGE,TRIM6#

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-33040B1

MCV2#

SILVER ME,199

 1
69230-33040G0

MCV2#

DK.GREEN M.M.,6P2

 1
69230-33040G1

MCV2#

DK.GREEN MC.P.I.O.,6N9

 1
69230-33040B2

MCV2#

SILVER ME.,1C0

 1
69230-33040E0

MCV2#

FLAXEN MM,4M7

 1
69230-33040C0

MCV2#

BLACK,202

 1
69230-33040G3

MCV2#

GRAYISH GREEN M.M.OP,6R6

 1
69230-33040A0

MCV2#

SU.WHITE PM,051

 1
69230-33040B3

MCV2#

DK.GRAY M.M.,1C6

 1
69230-33040J0

MCV2#

DK.BLUE M.M.,8L3

 1
69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE)
90541-04018

MCV2#

 4
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-33040B1

MCV2#

SILVER ME,199

 1
69240-33040J0

MCV2#

DK.BLUE M.M.,8L3

 1
69240-33040G0

MCV2#

DK.GREEN M.M.,6P2

 1
69240-33040E0

MCV2#

FLAXEN MM,4M7

 1
69240-33040G1

MCV2#

DK.GREEN MC.P.I.O.,6N9

 1
69240-33040B3

MCV2#

DK.GRAY M.M.,1C6

 1
69240-33040A0

MCV2#

SU.WHITE PM,051

 1
69240-33040C0

MCV2#

BLACK,202

 1
69240-33040B2

MCV2#

SILVER ME.,1C0

 1
69240-33040G3

MCV2#

GRAYISH GREEN M.M.OP,6R6

 1
69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH
69277-33030C0

MCV2#

BLACK,TRIM2#

 1
69277-33030G1

MCV2#

SAGE,TRIM6#

 1
69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH
69278-33030G1

MCV2#

SAGE,TRIM6#

 1
69278-33030C0

MCV2#

BLACK,TRIM2#

 1
69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69283-30040G1

MCV2#

SAGE,TRIM6#

 1
69283-30040C0

MCV2#

BLACK,TRIM2#

 1
69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69284-30040C0

MCV2#

BLACK,TRIM2#

 1
69284-30040G1

MCV2#

SAGE,TRIM6#

 1
69315B - RETAINER, REAR DOOR LOCK SOLENOID
69315-33030

MCV2#

 2
69330 - LOCK ASSY, REAR DOOR, RH
69330-33040

MCV2#

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-33040

MCV2#

 1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-50010

MCV2#

 2
69415C - COVER, DOOR LOCK STRIKER, REAR
69415-50010

MCV2#

 2
69713A - LINK, REAR DOOR LOCK REMOTE CONTROL, RH
69713-33020

MCV2#

 1
69714 - LINK, REAR DOOR LOCK REMOTE CONTROL, LH
69714-33020

MCV2#

 1
69727B - LINK, REAR DOOR INSIDE LOCKING, NO.2 RH
69727-33040

MCV2#

 1
69728B - LINK, REAR DOOR INSIDE LOCKING, NO.2 LH
69727-33040

MCV2#

 1
69737 - LINK, REAR DOOR INSIDE LOCKING, RH
69737-33020

MCV2#

 1
69738 - LINK, REAR DOOR INSIDE LOCKING, LH
69737-33020

MCV2#

 1
69749B - CLAMP, REAR DOOR LOCK LINK
69749-32030

MCV2#

 2
69749-33010

MCV2#

 2
69753B - BELLCRANK, REAR DOOR LOCK CONTROL, RH
69753-33020

MCV2#

 1
69754A - BELLCRANK, REAR DOOR LOCK CONTROL, LH
69753-33020

MCV2#

 1
69759M - SNAP, DOOR LOCK CONTROL LINK
69759-20100

MCV2#

ﾚｯﾄﾞ

 2
69759-20410

MCV2#

ｲｴﾛｰ

 2
69759M - SNAP, DOOR LOCK CONTROL LINK
69759-20100

MCV2#

ﾚｯﾄﾞ

 2
69759-20410

MCV2#

ｲｴﾛｰ

 2
Common parts
69727-33070
90105-06082
90148-60022
90148-80028
90159-40202
90159-50322
90164-50032
90189-05003
93383-16010
