MCV21-ATPNK (1996)
Toyota Windom
ILLUST NO. 1 OF 2(9608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-33070 |
MCV2# ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) |
1 | ||
| 67491-33080 |
MCV21..25X |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-33080 |
MCV21..25X |
1 | ||
| 67492-33070 |
MCV2# ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-33770C0 |
MCV21..25X BLACK,TRIM2# |
1 | ||
| 67610-33770G0 |
MCV21..25X SAGE,TRIM6# |
1 | ||
| 67610-33790G0 |
MCV2#..25X,30G ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 67610-33790C0 |
MCV2# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 67610-33790C0 |
MCV2#..25X,30G ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 67610-33790A0 |
MCV2#..25X,30G ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 67610-33790A0 |
MCV2# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 67610-33780G0 |
MCV2# ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),SAGE,TRIM6# |
1 | ||
| 67610-33780C0 |
MCV2# ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),BLACK,TRIM2# |
1 | ||
| 67610-33790G0 |
MCV2# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 67650-33100G1 |
MCV2# DK.SAGE,TRIM6# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12050 |
MCV2# |
14 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-01800G2 |
MCV2# DK. SAGE,TRIM6# |
2 | ||
| 90950-01800C0 |
MCV2# BLACK,TRIM2# |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-33740A0 |
MCV2#..25X,30G ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 67620-33720C0 |
MCV21..25X BLACK,TRIM2# |
1 | ||
| 67620-33740G0 |
MCV2#..25X,30G ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 67620-33740A0 |
MCV2# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 67620-33740C0 |
MCV2#..25X,30G ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 67620-33720G0 |
MCV21..25X SAGE,TRIM6# |
1 | ||
| 67620-33730G0 |
MCV2# ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),SAGE,TRIM6# |
1 | ||
| 67620-33740C0 |
MCV2# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 67660-33020G1 |
MCV2# DK.SAGE,TRIM6# |
1 | ||
| 67620-33730C0 |
MCV2# ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),BLACK,TRIM2# |
1 | ||
| 67620-33740G0 |
MCV2# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 74293 - PLATE, FRONT DOOR ARMREST, NO.1 | ||||
| 74294-32010 |
MCV2# |
2 | ||
| Common parts | ||||
| 90159-50287 | ||||
| 90159-60370 | ||||
| 90168-40108 | ||||
| 90189-05055 | ||||

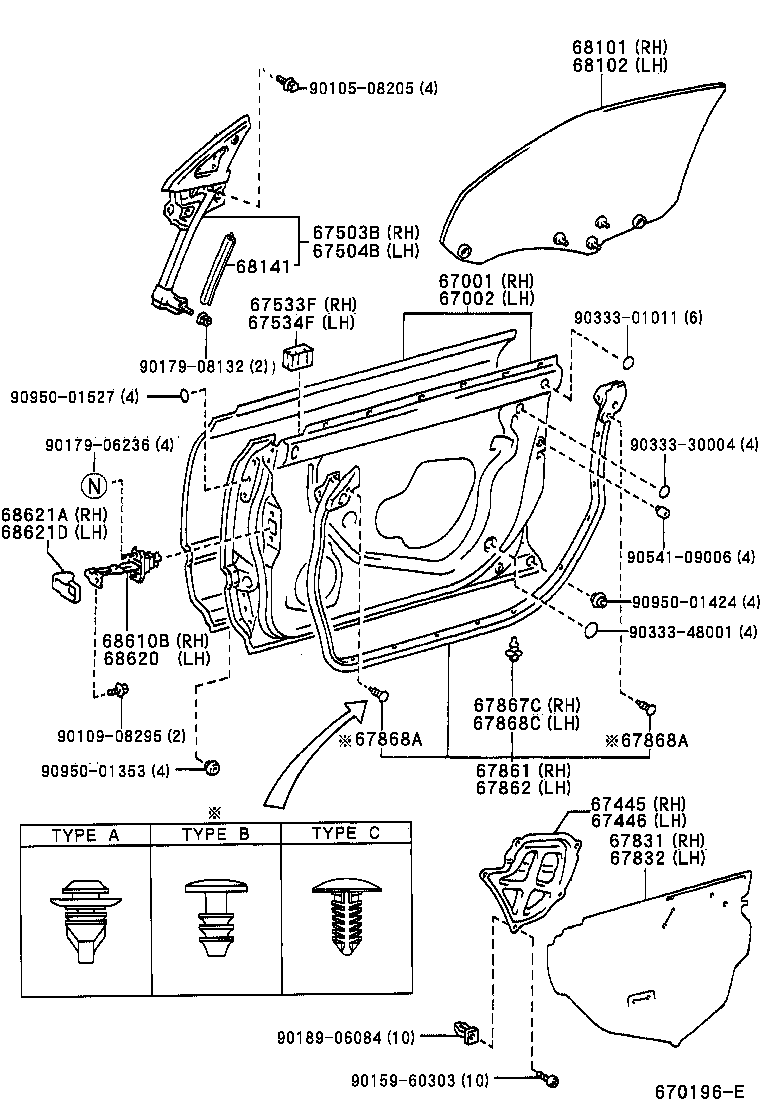

ILLUST NO. 2 OF 2(9608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-33080 |
MCV2# |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-33080 |
MCV2# |
1 | ||
| 67445 - PLATE, FRONT DOOR WINDOW OPENING, INNER RH | ||||
| 67445-33020 |
MCV2# |
1 | ||
| 67446 - PLATE, FRONT DOOR WINDOW OPENING, INNER LH | ||||
| 67446-33020 |
MCV2# |
1 | ||
| 67503B - BRACKET SUB-ASSY, FRONT DOOR MIRROR, RH | ||||
| 67503-33021 |
MCV2# |
1 | ||
| 67503-33020 |
MCV2# |
1 | ||
| 67504B - BRACKET SUB-ASSY, FRONT DOOR MIRROR, LH | ||||
| 67504-33021 |
MCV2# |
1 | ||
| 67504-33020 |
MCV2# |
1 | ||
| 67533F - PAD, FRONT DOOR LOWER FRAME GARNISH, RH | ||||
| 67533-33020 |
MCV2# |
1 | ||
| 67534F - PAD, FRONT DOOR LOWER FRAME GARNISH, LH | ||||
| 67533-33020 |
MCV2# |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-33040 |
MCV2# |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-33040 |
MCV2# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-33030 |
MCV2# |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-33030 |
MCV2# |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
MCV2# |
19 | ||
| 67868A - CLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67869-20030 |
MCV2# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾌﾞﾗｯｸ |
2 | ||
| 67869-20030 |
MCV2# ﾌﾞﾗｯｸ |
4 | ||
| 90467-0509722 |
MCV2# TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK,051 ,1C0 ,1C6 ,202 ,6N9 ,6R6 |
4 | ||
| 67869-33010 |
MCV2# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾎﾜｲﾄ |
6 | ||
| 67868A - CLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67869-20030 |
MCV2# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾌﾞﾗｯｸ |
2 | ||
| 67869-20030 |
MCV2# ﾌﾞﾗｯｸ |
4 | ||
| 90467-0509722 |
MCV2# TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK,051 ,1C0 ,1C6 ,202 ,6N9 ,6R6 |
4 | ||
| 67869-33010 |
MCV2# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾎﾜｲﾄ |
6 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
MCV2# |
19 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-33050 |
MCV2# *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68101-33060 |
MCV2# *TT,ｸﾞﾘｰﾝ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-33060 |
MCV2# *TT,ｸﾞﾘｰﾝ |
1 | ||
| 68102-33050 |
MCV2# *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68141-33050 |
MCV2# |
2 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-33040 |
MCV2# |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-33040 |
MCV2# |
1 | ||
| 68621A - COVER, FRONT DOOR CHECK, RH | ||||
| 68621-33010 |
MCV2# |
1 | ||
| 68621D - COVER, FRONT DOOR CHECK, LH | ||||
| 68622-33010 |
MCV2# |
1 | ||
| Common parts | ||||
| 90105-08205 | ||||
| 90109-08295 | ||||
| 90159-60303 | ||||
| 90179-06236 | ||||
| 90179-08132 | ||||
| 90189-06084 | ||||
| 90333-01011 | ||||
| 90333-30004 | ||||
| 90333-48001 | ||||
| 90541-09006 | ||||
| 90950-01353 | ||||
| 90950-01424 | ||||
| 90950-01527 | ||||
