MCV21-ATPNK (1996)

Toyota Windom

Production Aug 1996 - Jul 2001
Engine 2MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

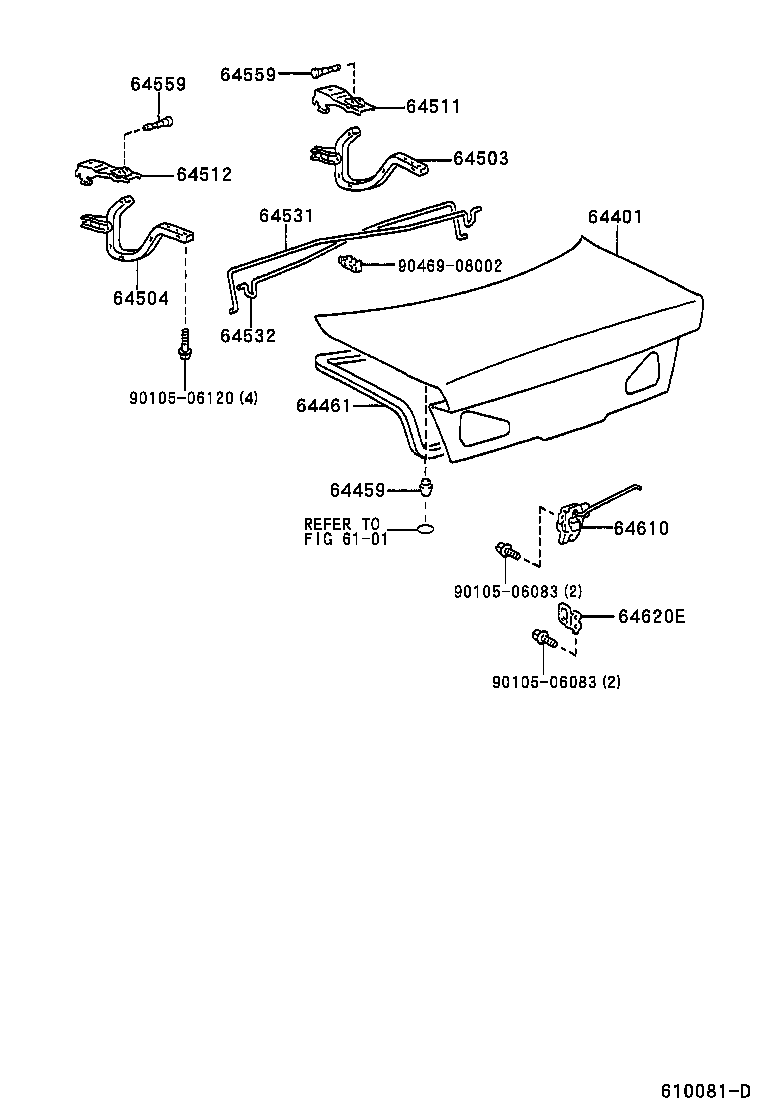

Click highlighted areas on diagram

diagram 6101 64401 64459 64461 64503 64504 64511 64512 64531 64532 64559 64559 64610 64620E 9010506083 9010506083 9010506120 9046908002
Part # Description Qty Price
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-33210

MCV2#

 1
64401-33211

MCV2#

 1
64459 - CUSHION, LUGGAGE COMPARTMENT DOOR
64459-33010

MCV2#

 2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-33040

MCV2#

 1
64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64503-33040

MCV2#

 1
64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64503-33040

MCV2#

 1
64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64511-33040

MCV2#

 1
64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH
64512-33040

MCV2#

 1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-33050

MCV2#

 1
64531-33051

MCV2#

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-33060

MCV2#

 1
64532-33061

MCV2#

 1
64559 - PIN, LUGGAGE DOOR HINGE
64559-32020

MCV2#

 2
64559 - PIN, LUGGAGE DOOR HINGE
64559-32020

MCV2#

 2
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64600-33060

MCV2#

 1
64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64621-12070

MCV2#

 1
Common parts
90105-06083
90105-06120
90469-08002
Linked diagrams
6101
