MCV21-ATPNK (1996)
Toyota Windom
ILLUST NO. 2 OF 2(9608- )
W(MOON ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-33050 |
MCV2# *TT,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 63201-33051 |
MCV2# *TT,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 63202H - RAIL SUB-ASSY, SLIDE ROOF | ||||
| 63202-33020 |
MCV2# |
1 | ||
| 63206G - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-33010 |
MCV2# |
1 | ||
| 63260-33030 |
MCV2# |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-33090 |
MCV2# |
1 | ||
| 63209-33080 |
MCV2# |
1 | ||
| 63209-33030 |
MCV2# |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-33020 |
MCV2# |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-33030 |
MCV2# |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63217-33030 |
MCV2# |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-33020 |
MCV2# |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-33020 |
MCV2# |
1 | ||
| 63233F - FRAME, REMOVABLE ROOF HOUSING | ||||
| 63233-33020 |
MCV2# |
1 | ||
| 63237B - FRAME, SLIDING ROOF HOUSING, REAR | ||||
| 63237-33010 |
MCV2# |
1 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-12030 |
MCV2# |
2 | ||
| 63239C - PLATE, SLIDING ROOF HOUSING COVER | ||||
| 63239-33040 |
MCV2# |
1 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-33030 |
MCV2# |
1 | ||
| 63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH | ||||
| 63241-33030 |
MCV2# |
1 | ||
| 63245D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH | ||||
| 63241-33030 |
MCV2# |
1 | ||
| 63246D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH | ||||
| 63241-33030 |
MCV2# |
1 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-33050 |
MCV2# 長さ=1600 |
2 | ||
| 63249-33051 |
MCV2# 長さ=1600 |
2 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-32090 |
MCV2# 長さ=1518 |
2 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-33020 |
MCV2# |
1 | ||
| 63251-33021 |
MCV2# |
1 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-12040 |
MCV2# |
1 | ||
| 63625 - BLOCK, SLIDING ROOF GUIDE, RH | ||||
| 63625-33020 |
MCV2# |
1 | ||
| 63626 - BLOCK, SLIDING ROOF GUIDE, LH | ||||
| 63626-33020 |
MCV2# |
1 | ||
| Common parts | ||||
| 90119-06357 | ||||
| 90149-40031 | ||||
| 90155-40002 | ||||
| 90159-50336 | ||||
| 90168-40027 | ||||
| 90179-06069 | ||||
| 90467-14001 | ||||
| 90469-15002 | ||||
| 90480-30035 | ||||
| 90959-01434 | ||||
| 90959-01553 | ||||
| 91621-40614 | ||||
| 96160-00400 | ||||

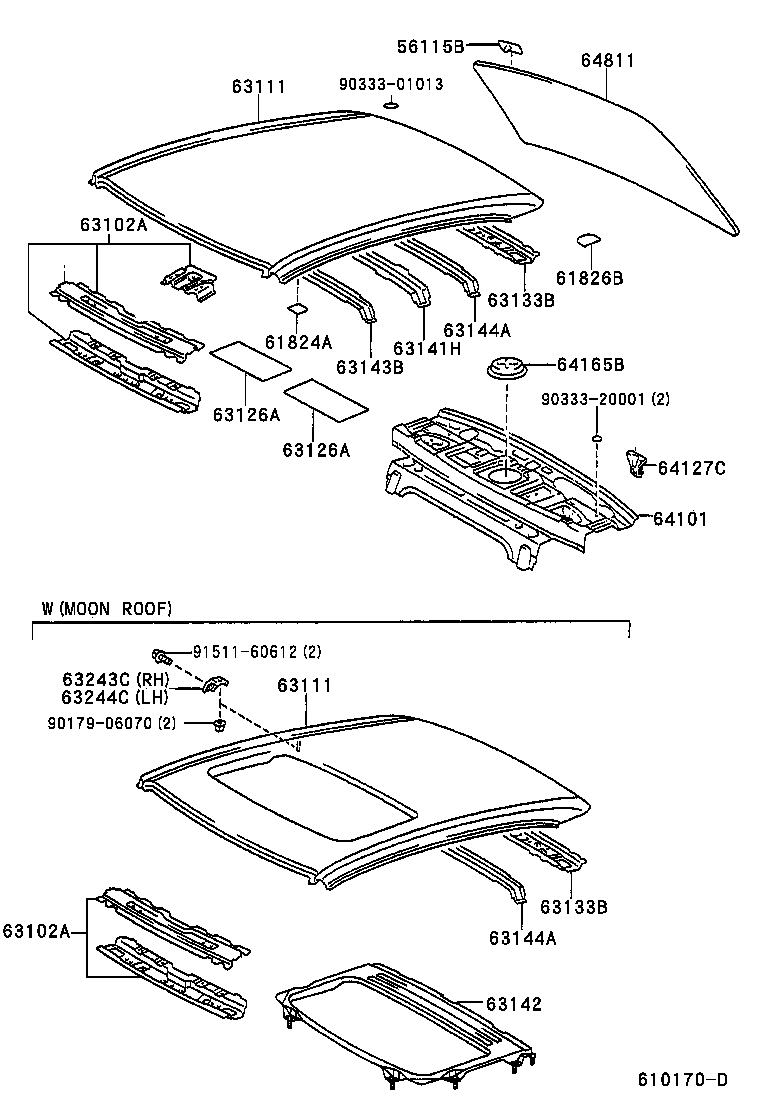

ILLUST NO. 1 OF 2(9608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56116-35040 |
MCV2# |
2 | ||
| 61824A - PLATE, NOISE CONTROL, NO.1 | ||||
| 62939-23010 |
MCV2# |
2 | ||
| 61826B - PLATE, NOISE CONTROL, NO.3 | ||||
| 61826-33010 |
MCV2# |
2 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-33090 |
MCV2# ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63102-33080 |
MCV2# |
1 | ||
| 63102-33091 |
MCV2# ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63102-33081 |
MCV2# |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-33090 |
MCV2# ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63102-33080 |
MCV2# |
1 | ||
| 63102-33091 |
MCV2# ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63102-33081 |
MCV2# |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-33130 |
MCV2# |
1 | ||
| 63111-33140 |
MCV2# ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-33130 |
MCV2# |
1 | ||
| 63111-33140 |
MCV2# ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63126A - DAMPER, WINDSHIELD HEADER PANEL | ||||
| 63126-32010 |
MCV2# |
2 | ||
| 63126A - DAMPER, WINDSHIELD HEADER PANEL | ||||
| 63126-32010 |
MCV2# |
2 | ||
| 63133B - FRAME, BACK WINDOW | ||||
| 63133-33030 |
MCV2# |
1 | ||
| 63133B - FRAME, BACK WINDOW | ||||
| 63133-33030 |
MCV2# |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-33030 |
MCV2# |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-33020 |
MCV2# |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-33030 |
MCV2# |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-33050 |
MCV2# ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63144-33040 |
MCV2# |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-33050 |
MCV2# ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63144-33040 |
MCV2# |
1 | ||
| 63243C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH | ||||
| 63243-33060 |
MCV2# |
1 | ||
| 63244C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH | ||||
| 63243-33060 |
MCV2# |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-33180 |
MCV2# |
1 | ||
| 64127C - BRACKET, LUGGAGE DOOR DAMPER STAY | ||||
| 64127-32050 |
MCV2# |
1 | ||
| 64165B - COVER, UPPER BACK PANEL HOLE, NO.1 | ||||
| 64165-33030 |
MCV21..25X |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-33901 |
MCV2# *UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾃﾚﾋﾞ & ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 64811-33320 |
MCV2# *UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾃﾚﾋﾞ) |
1 | ||
| 64811-33902 |
MCV2# *UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 64811-33330 |
MCV2# *UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 64811-33330 |
MCV2#..25X,30X *UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 64811-33902 |
MCV2#..25X,30X *UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90333-01013 | ||||
| 90333-20001 | ||||
| 91511-60612 | ||||
