MCV21-ATPNK (1996)
Toyota Windom
Production
Aug 1996
-
Jul 2001
Engine
2MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9608- )

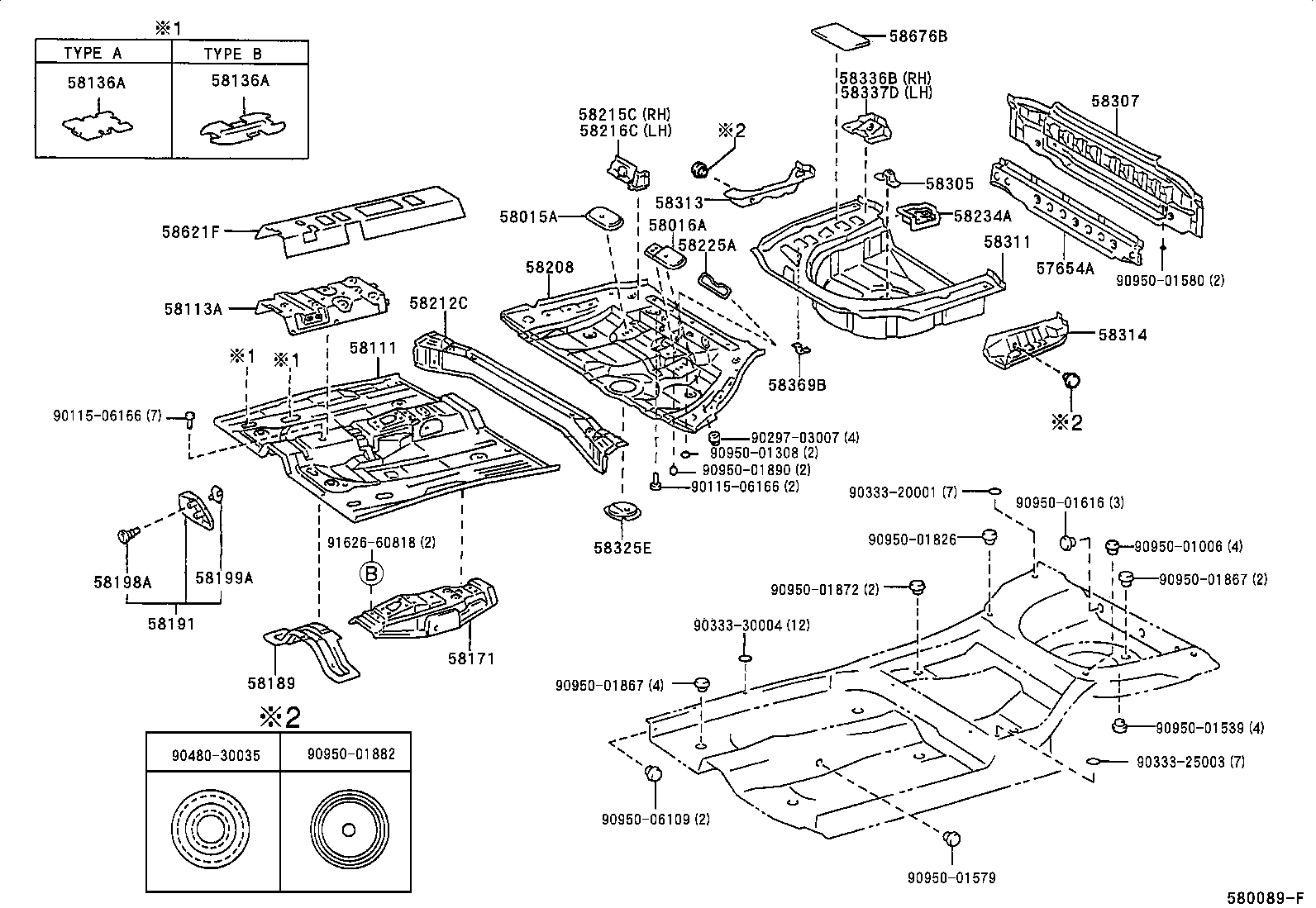

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57654A - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57654-33010 |
MCV2# |
1 | ||
| 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH | ||||
| 58015-33020 |
MCV2# |
1 | ||
| 58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH | ||||
| 58016-33040 |
MCV2# |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-33030 |
MCV2# |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58013-33040 |
MCV2# |
1 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-12020 |
MCV2# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 58136-33010 |
MCV2# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-12020 |
MCV2# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 58136-33010 |
MCV2# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58107-33030 |
MCV2# |
1 | ||
| 58189 - REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET | ||||
| 58189-33020 |
MCV2# |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-33030 |
MCV2# |
1 | ||
| 58198A - CLIP, FOOTREST, NO.1 | ||||
| 58198-33010 |
MCV2# |
2 | ||
| 58199A - CLIP, FOOTREST, NO.2 | ||||
| 58199-33020 |
MCV2# 上側 |
1 | ||
| 58199-33010 |
MCV2# 下側 |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-33090 |
MCV2# |
1 | ||
| 58211-33070 |
MCV2# |
1 | ||
| 58211-33091 |
MCV2# |
1 | ||
| 58212C - PAN, CENTER FLOOR, FRONT | ||||
| 58212-33010 |
MCV2# |
1 | ||
| 58215C - REINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH | ||||
| 58215-33020 |
MCV2# |
1 | ||
| 58216C - REINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH | ||||
| 58216-33020 |
MCV2# |
1 | ||
| 58225A - BRACKET, CENTER MOUNTING | ||||
| 58225-33010 |
MCV2# |
1 | ||
| 58234A - BRACKET, EXHAUST PIPE MOUNTING, INNER | ||||
| 58234-41010 |
MCV2# |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58351-33010 |
MCV2# |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-33080 |
MCV2# |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-33030 |
MCV2# |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58305-33020 |
MCV2# |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-33021 |
MCV2# |
1 | ||
| 58314-33020 |
MCV2# |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-33020 |
MCV2# |
1 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-33010 |
MCV2# |
1 | ||
| 58337D - REINFORCEMENT, REAR FLOOR PAN, LH | ||||
| 58337-33020 |
MCV2# |
1 | ||
| 58369B - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-32010 |
MCV2# |
2 | ||
| 58621F - SILENCER, CENTER CONSOLE, NO.1 | ||||
| 58621-33030 |
MCV2# |
1 | ||
| 58676B - PAD, REAR FLOOR SILENCER, NO.1 RH | ||||
| 58676-33010 |
MCV2# |
1 | ||
| Common parts | ||||
| 90115-06166 | ||||
| 90297-03007 | ||||
| 90333-20001 | ||||
| 90333-25003 | ||||
| 90333-30004 | ||||
| 90480-30035 | ||||
| 90950-01006 | ||||
| 90950-01308 | ||||
| 90950-01539 | ||||
| 90950-01579 | ||||
| 90950-01580 | ||||
| 90950-01616 | ||||
| 90950-01826 | ||||
| 90950-01867 | ||||
| 90950-01872 | ||||
| 90950-01882 | ||||
| 90950-01890 | ||||
| 90950-06109 | ||||
| 91626-60818 | ||||
