MCV21-ATPNK (1996)

Toyota Windom

Production Aug 1996 - Jul 2001
Engine 2MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

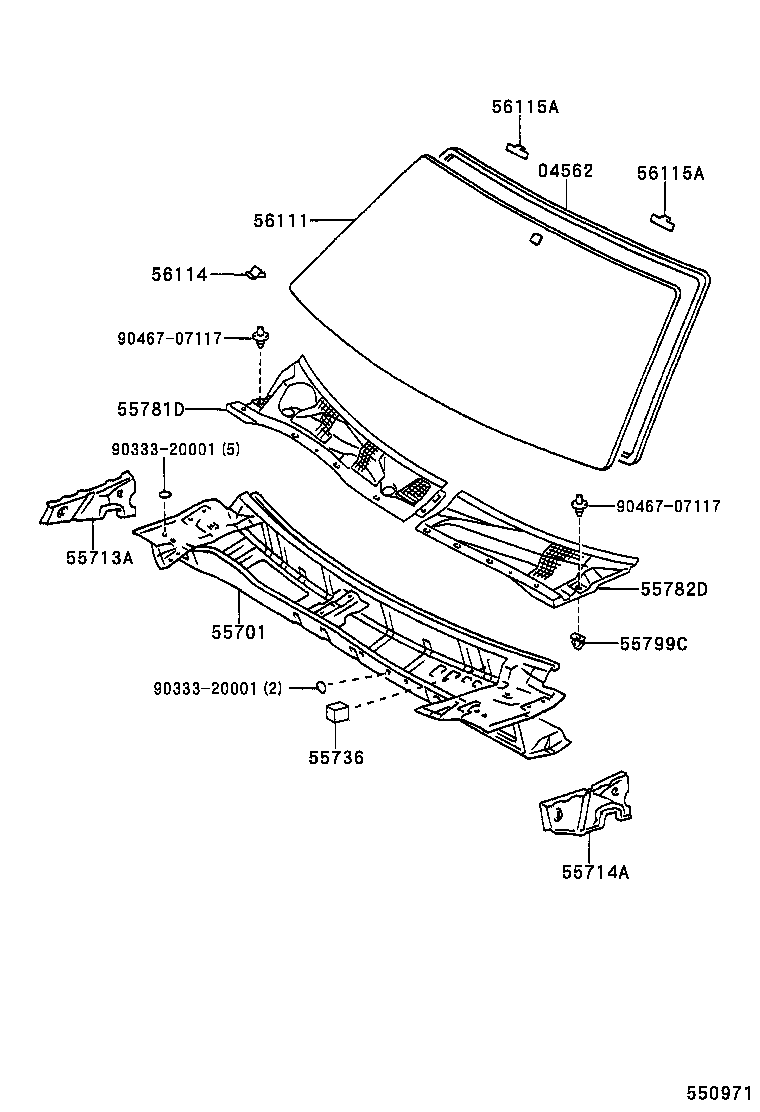

Click highlighted areas on diagram

diagram 04562 55701 55713A 55714A 55736 55781D 55782D 55799C 56111 56114 56115A 56115A 9033320001 9033320001 9046707117 9046707117
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-12010

MCV2#

 1
55701 - PANEL SUB-ASSY, COWL
55700-33180

MCV2#

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-33020

MCV2#

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-33020

MCV2#

 1
55736 - SEAL, WATER GUARD PLATE
55736-33010

MCV2#

 1
55781D - LOUVER, COWL TOP VENTILATOR, RH
55781-33150

MCV2#

 1
55781-33151

MCV2#

 1
55782D - LOUVER, COWL TOP VENTILATOR, LH
55782-33200

MCV2#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
55782-33201

MCV2#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
55782-33152

MCV2#

 1
55782-33150

MCV2#

 1
55782-33151

MCV2#

 1
55799C - CLIP, COWL TOP VENTILATOR LOUVER
55799-33010

MCV2#

 1
56111 - GLASS, WINDSHIELD
56101-33190

MCV2#

*TL,T=4.76,ｸﾞﾘｰﾝ

 1
56101-33190

MCV2#..25X,30X

*TL,T=4.76,ｸﾞﾘｰﾝ

 1
56101-33200

MCV2#..25X,30X

*EHTL,T=4.76,ｸﾞﾘｰﾝ

 1
56101-33200

MCV2#

*EHTL,T=4.76,ｸﾞﾘｰﾝ

 1
56114 - RETAINER, WINDSHIELD GLASS
56114-22050

MCV2#

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-33020

MCV2#

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-33020

MCV2#

 2
Common parts
90333-20001
90467-07117
