MCV21-ATPNK (1996)

Toyota Windom

Production Aug 1996 - Jul 2001
Engine 2MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

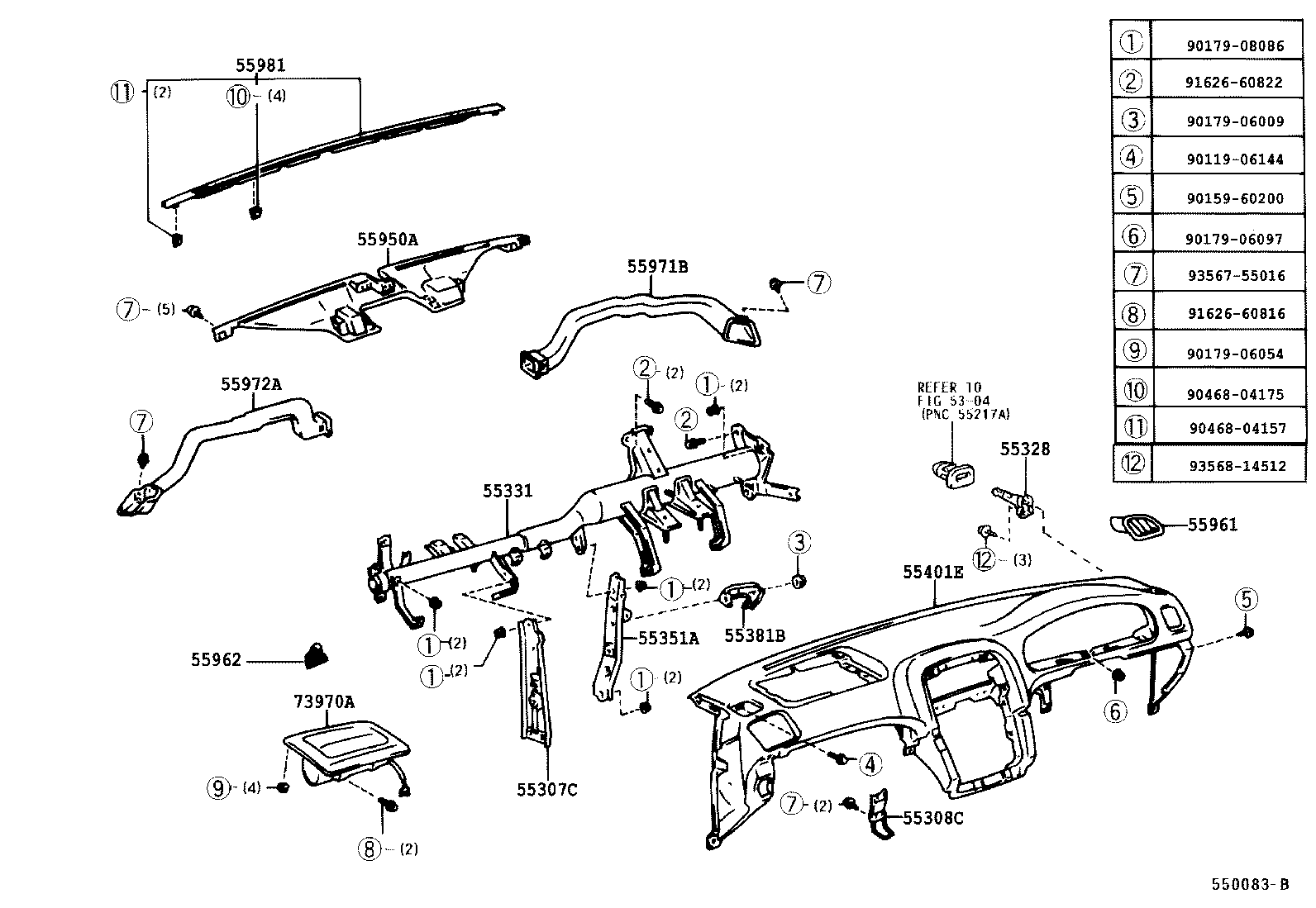

ILLUST NO. 1 OF 2(9608- )

Click highlighted areas on diagram

diagram 55307C 55308C 55328 55331 55351A 55381B 55401E 55950A 55961 55962 55971B 55972A 55981 73970A 9011906144 9015960200 9017906009 9017906054 9017906097 9017908086 9046804157 9046804175 9162660816 9162660822 9356755016 9356814512
Part # Description Qty Price
55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55307-33100

MCV2#

 1
55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55308-33080

MCV2#

 1
55328 - PIN, INSTRUMENT PANEL, NO.1
55328-24010

MCV2#

 3
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-33160

MCV2#

 1
55351A - BRACE, INSTRUMENT PANEL TO FLOOR
55351-33060

MCV2#

 1
55381B - BRACKET, FINISH PANEL MOUNTING, NO.1
55381-33060

MCV2#

 1
55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55401-33150G0

MCV2#

DK.SAGE,TRIM6#

 1
55401-33150C0

MCV2#

BLACK,TRIM2#

 1
55950A - NOZZLE ASSY, DEFROSTER
55950-33071

MCV2#

 1
55950-33070

MCV2#

 1
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55961-33050G0

MCV2#

DK.SAGE,TRIM6#

 1
55961-33050C0

MCV2#

BLACK,TRIM2#

 1
55962 - NOZZLE, SIDE DEFROSTER, NO.2
55962-33070C0

MCV2#

BLACK,TRIM2#

 1
55962-33070G0

MCV2#

DK.SAGE,TRIM6#

 1
55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-33060

MCV2#

 1
55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-33060

MCV2#

 1
55981 - GARNISH, DEFROSTER NOZZLE, NO.1
55981-33060

MCV2#

 1
73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER
73970-0W071C0

MCV2#

BLACK,TRIM2#

 1
73970-0W071G0

MCV2#

DK.SAGE,TRIM6#

 1
73970-33050C0

MCV2#

BLACK,TRIM2#

 1
73970-33050G0

MCV2#

DK.SAGE,TRIM6#

 1
73970-33070G0

MCV2#

DK.SAGE,TRIM6#

 1
73970-33073G0

MCV2#

DK.SAGE,TRIM6#

 1
73970-33072G0

MCV2#

DK.SAGE,TRIM6#

 1
73970-33070C0

MCV2#

BLACK,TRIM2#

 1
73970-33072C0

MCV2#

BLACK,TRIM2#

 1
Common parts
90119-06144
90159-60200
90179-06009
90179-06054
90179-06097
90179-08086
90468-04157
90468-04175
91626-60816
91626-60822
93567-55016
93568-14512

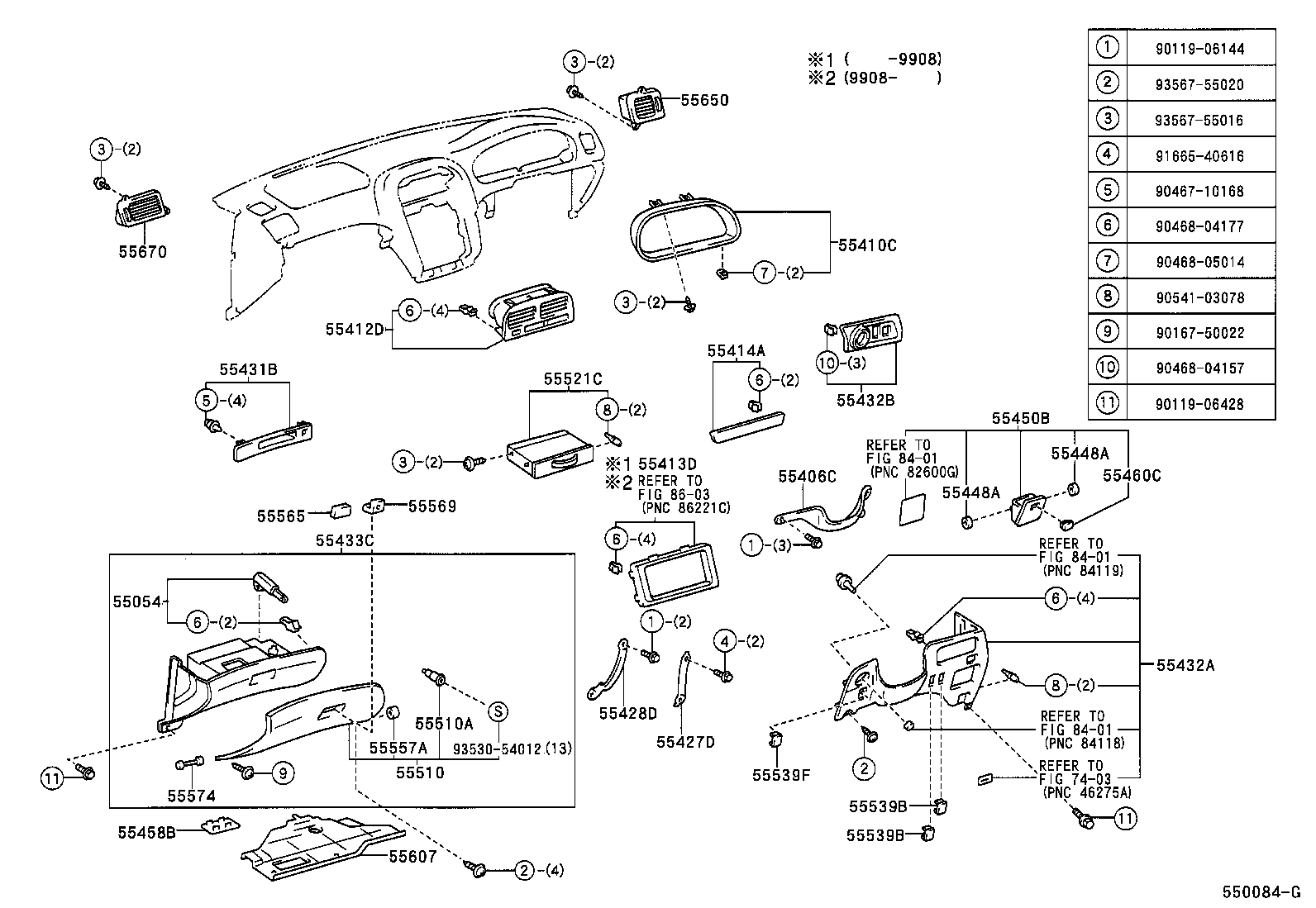

ILLUST NO. 2 OF 2(9608- )

Click highlighted areas on diagram

diagram 55054 55406C 55410C 55412D 55413D 55414A 55427D 55428D 55431B 55432A 55432B 55433C 55448A 55448A 55450B 55458B 55460C 55510 55510A 55521C 55539B 55539B 55539F 55557A 55565 55569 55574 55607 55650 55670 7403 8401 8401 8401 8603 9011906144 9011906428 9016750022 9046710168 9046804157 9046804177 9046805014 9054103078 9166540616 9353054012 9356755016 9356755020
Part # Description Qty Price
55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR
55054-33050

MCV2#

 1
55406C - INSERT SUB-ASSY, INSTRUMENT PANEL, LOWER LH
55406-33040

MCV2#

 1
55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH
55404-33070

MCV2#

 1
55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER
55405-33070

MCV2#

 1
55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER
55413-33010

MCV2#

 1
55414A - PANEL, INSTRUMENT CLUSTER FINISH, END
55414-33050

MCV2#

 1
55414-33070

MCV2#

ﾓｸﾒ

 1
55427D - RETAINER, INSTRUMENT FINISH PANEL, LOWER, NO.1
55427-33060

MCV2#

 1
55428D - RETAINER, INSTRUMENT FINISH PANEL, LOWER NO.2
55428-33060

MCV2#

 1
55431B - PANEL, INSTRUMENT PANEL FINISH, UPPER
55431-33030

MCV2#

ｱﾘ(MD ｵ-ﾄ ﾁｴﾝｼﾞﾔ-)

 1
55431-33040

MCV2#

ｱﾘ(CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ-)

 1
55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH
55302-33080G0

MCV2#

SAGE,TRIM6#

 1
55302-33080C0

MCV2#

BLACK,TRIM2#

 1
55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER
55480-33080G0

MCV2#

SAGE,TRIM6#

 1
55480-33080C0

MCV2#

BLACK,TRIM2#

 1
55433C - PANEL, INSTRUMENT PANEL FINISH, LOWER LH
55303-33100C0

MCV21

BLACK,TRIM2#

 1
55303-33100G0

MCV21

SAGE,TRIM6#

 1
55303-33090C0

MCV2#

ｱﾘ(CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ- OR MD ｵ-ﾄ ﾁｴﾝｼﾞﾔ-),BLACK,TRIM2#

 1
55303-33090G0

MCV2#

ｱﾘ(CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ- OR MD ｵ-ﾄ ﾁｴﾝｼﾞﾔ-),SAGE,TRIM6#

 1
55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1
55448-33050

MCV2#

 2
55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1
55448-33050

MCV2#

 2
55450B - BOX ASSY, COIN
55450-33061C0

MCV2#

BLACK,TRIM2#

 1
55450-33060C0

MCV2#

BLACK,TRIM2#

 1
55450-33061G0

MCV2#

SAGE,TRIM6#

 1
55450-33060G0

MCV2#

SAGE,TRIM6#

 1
55458B - COVER, INSTRUMENT, LWR
55458-33070

MCV2#

 1
55460C - LOCK ASSY, INSTRUMENT PANEL BOX
55460-33010C0

MCV2#

BLACK,TRIM2#

 1
55460-33010G0

MCV2#

SAGE,TRIM6#

 1
55510 - DOOR ASSY, GLOVE COMPARTMENT
55501-33040C0

MCV2#

ｱﾘ(CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ-),BLACK,TRIM2#

 1
55501-33070G0

MCV21

SAGE,TRIM6#

 1
55501-33070C0

MCV21

BLACK,TRIM2#

 1
55501-33040G0

MCV2#

ｱﾘ(CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ-),SAGE,TRIM6#

 1
55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR)
90541-05020

MCV2#

 2
55521C - COVER, STEREO OPENING
55521-32011

MCV21..25X

 1
55539B - COVER, SPARE SWITCH HOLE, NO.2
55539-20080C0

MCV2#

BLACK,TRIM2#

 2
55539-20080G3

MCV2#

SAGE,TRIM6#

 2
55539B - COVER, SPARE SWITCH HOLE, NO.2
55539-20080C0

MCV2#

BLACK,TRIM2#

 2
55539-20080G3

MCV2#

SAGE,TRIM6#

 2
55539F - COVER, SPARE SWITCH HOLE
55539-20080C0

MCV2#

BLACK,TRIM2#

 1
55539-20080C0

MCV21

BLACK,TRIM2#

 1
55539-20080G3

MCV2#

SAGE,TRIM6#

 1
55539-20080G3

MCV21

SAGE,TRIM6#

 1
55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK
55557-16010

MCV2#

 2
55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK
55565-22020C0

MCV2#

BLACK,TRIM2#

 1
55565-22020G1

MCV2#

SAGE,TRIM6#

 1
55569 - COVER, GLOVE COMPARTMENT DOOR LOCK
55569-22030C0

MCV2#

BLACK,TRIM2#

 1
55569-22030G1

MCV2#

SAGE,TRIM6#

 1
55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE
55574-10010

MCV2#

 2
55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
55607-33050

MCV2#

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-33070G0

MCV2#

DK.SAGE,TRIM6#

 1
55650-33070C0

MCV2#

BLACK,TRIM2#

 1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-33080G0

MCV2#

DK.SAGE,TRIM6#

 1
55670-33080C0

MCV2#

BLACK,TRIM2#

 1
Common parts
90119-06144
90119-06428
90167-50022
90467-10168
90468-04157
90468-04177
90468-05014
90541-03078
91665-40616
93530-54012
93567-55016
93567-55020
Linked diagrams
7403
8401
8603
