MCV21-ATPNK (1996)
Toyota Windom
Production
Aug 1996
-
Jul 2001
Engine
2MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9608- )

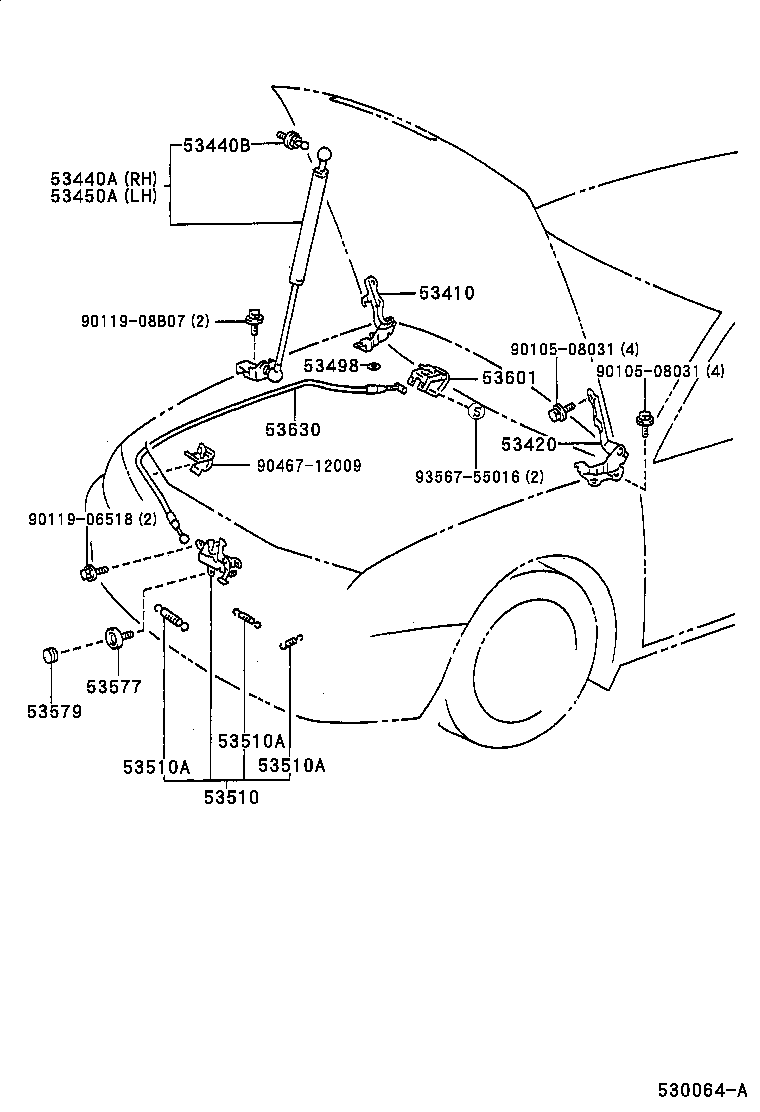

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-33040 |
MCV2# |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-33040 |
MCV2# |
1 | ||
| 53440A - SUPPORT ASSY, HOOD, RH | ||||
| 53440-39155 |
MCV2# |
1 | ||
| 53440B - BOLT, HOOD SUPPORT, NO.1 | ||||
| 68961-23010 |
MCV2# |
2 | ||
| 53450A - SUPPORT ASSY, HOOD, LH | ||||
| 53440-39155 |
MCV2# |
1 | ||
| 53498 - PAD, HOOD HINGE, NO.2 | ||||
| 53497-12050 |
MCV2# 厚さ=1.0 |
4 | ||
| 53497-20070 |
MCV2# 厚さ=2.0 |
4 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-33100 |
MCV2# |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-20065 |
MCV2# 線径=2.0,ｺｲﾙ巻数=16.0 |
1 | ||
| 90506-12067 |
MCV2# 線径=1.4,ｺｲﾙ巻数=7.25 |
1 | ||
| 90506-09057 |
MCV2# 線径=0.9,ｺｲﾙ巻数=23 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-20065 |
MCV2# 線径=2.0,ｺｲﾙ巻数=16.0 |
1 | ||
| 90506-12067 |
MCV2# 線径=1.4,ｺｲﾙ巻数=7.25 |
1 | ||
| 90506-09057 |
MCV2# 線径=0.9,ｺｲﾙ巻数=23 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-20065 |
MCV2# 線径=2.0,ｺｲﾙ巻数=16.0 |
1 | ||
| 90506-12067 |
MCV2# 線径=1.4,ｺｲﾙ巻数=7.25 |
1 | ||
| 90506-09057 |
MCV2# 線径=0.9,ｺｲﾙ巻数=23 |
1 | ||
| 53577 - BOLT, HOOD LOCK | ||||
| 53577-33010 |
MCV2# |
1 | ||
| 53579 - CAP, HOOD LOCK NUT | ||||
| 53579-50010 |
MCV2# |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-33020C0 |
MCV2# BLACK,TRIM2# |
1 | ||
| 53601-33020G0 |
MCV2# SAGE,TRIM6# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-33100 |
MCV2# |
1 | ||
| Common parts | ||||
| 90105-08031 | ||||
| 90119-06518 | ||||
| 90119-08B07 | ||||
| 90467-12009 | ||||
| 93567-55016 | ||||
