MCV21-ATPNK (1996)

Toyota Windom

Production Aug 1996 - Jul 2001
Engine 2MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

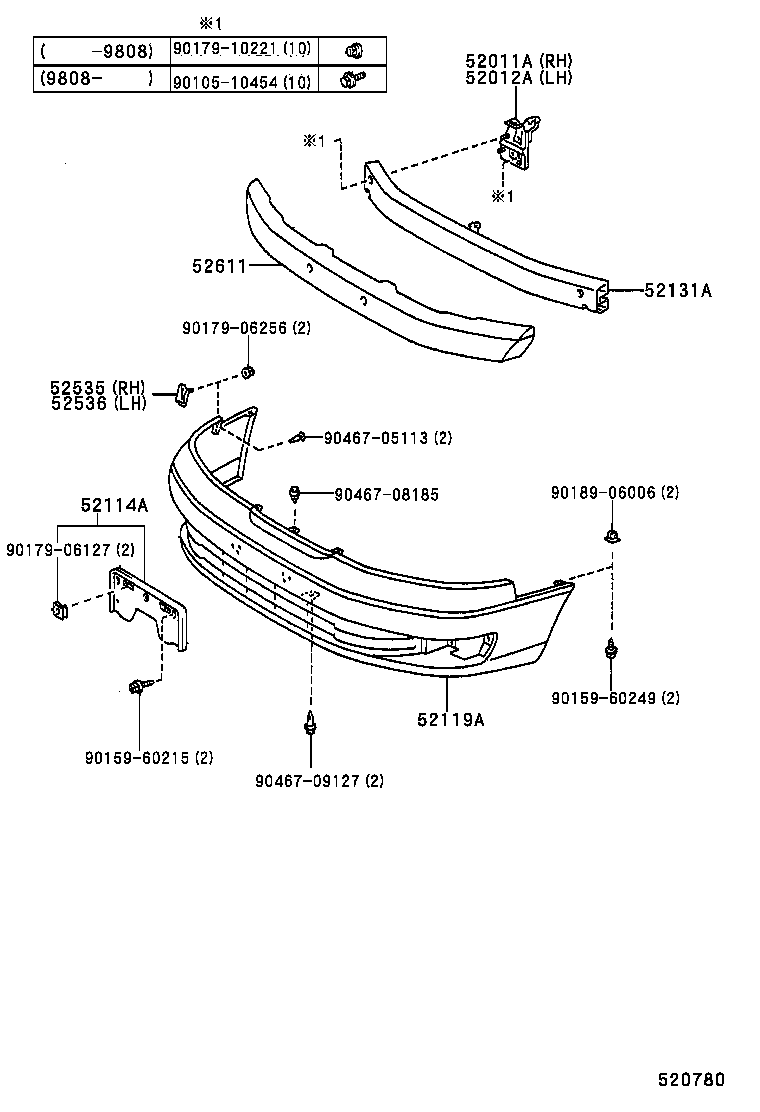

Click highlighted areas on diagram

diagram 52011A 52012A 52114A 52119A 52131A 52535 52536 52611 9010510454 9015960215 9015960249 9017906127 9017906256 9017910221 9018906006 9046705113 9046708185 9046709127
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-33030

MCV2#

 1
52011-33040

MCV2#

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-33030

MCV2#

 1
52012-33040

MCV2#

 1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-33070

MCV2#

 1
52119A - COVER, FRONT BUMPER
52119-33160G0

MCV2#

DK. GREEN M.M.,6P2

 1
52119-33160J0

MCV2#

DK. BLUE M.M.,8L3

 1
52119-33160C0

MCV2#

BLACK,202

 1
52119-33160B1

MCV2#

SILVER ME,199

 1
52119-33160E0

MCV2#

FLAXEN MM,4M7

 1
52119-33210B1

MCV2#

SILVER ME.,1C0

 1
52119-33160C1

MCV2#

BLACK,202

 1
52119-33160A0

MCV2#

SU. WHITE PM,051

 1
52119-33160J1

MCV2#

DK.BLUE M.M.,8L3

 1
52119-33210C0

MCV2#

BLACK,202

 1
52119-33210A0

MCV2#

SU.WHITE PM,051

 1
52119-33210B2

MCV2#

DK.GRAY M.M.,1C6

 1
52119-33210A2

MCV21..25X

SU. WHITE PM.,TRIM6#&051

 1
52119-33160G1

MCV2#

DK.GREEN MC.P.I.O.,6N9

 1
52119-33210B5

MCV21..25X

DK.GRAY M.M.,TRIM6#&1C6

 1
52119-33210G1

MCV2#

GRAYISH GREEN M.M.OP,6R6

 1
52119-33210C1

MCV21..25X

BLACK,TRIM6#&202

 1
52119-33210G3

MCV2#..25X,30X

GRAYISH GREEN M.M.OP,TRIM6#&6R6

 1
52119-33210G0

MCV2#

DK.GREEN MC.P.I.O.,6N9

 1
52119-33210B4

MCV2#..25X,30X

SILVER ME.,TRIM6#&1C0

 1
52119-33210G2

MCV21..25X

DK.GREEN MC.P.I.O.,TRIM6#&6N9

 1
52131A - REINFORCEMENT, FRONT BUMPER
52021-33070

MCV2#

 1
52021-33030

MCV2#

 1
52021-33060

MCV2#

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-33010

MCV2#

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-33030

MCV2#

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-33050

MCV2#

 1
52611-33070

MCV2#

 1
Common parts
90105-10454
90159-60215
90159-60249
90179-06127
90179-06256
90179-10221
90189-06006
90467-05113
90467-08185
90467-09127
