MCV21-ATPNK (1996)
Toyota Windom
Production
Aug 1996
-
Jul 2001
Engine
2MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9608- )

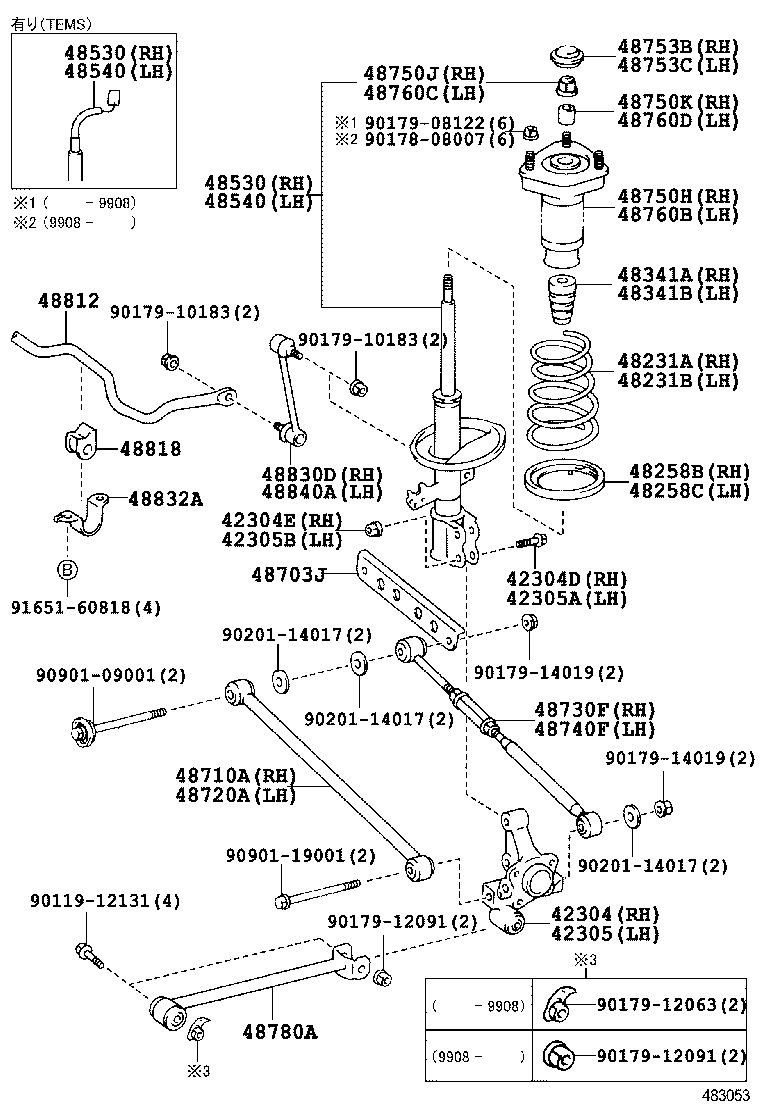

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-20090 |
MCV2# |
1 | ||
| 42304D - BOLT (FOR REAR AXLE CARRIER RH) | ||||
| 90105-15001 |
MCV2# |
2 | ||
| 42304E - NUT (FOR REAR AXLE CARRIER RH) | ||||
| 90179-15001 |
MCV2# |
2 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-20090 |
MCV2# |
1 | ||
| 42305A - BOLT (FOR REAR AXLE CARRIER LH) | ||||
| 90105-15001 |
MCV2# |
2 | ||
| 42305B - NUT (FOR REAR AXLE CARRIER LH) | ||||
| 90179-15001 |
MCV2# |
2 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-AA060 |
MCV2# ｲｴﾛｰ ﾍﾟｲﾝﾄ |
1 | ||
| 48231-33210 |
MCV2# |
1 | ||
| 48231-33410 |
MCV2# ｲｴﾛ- & ﾊﾟ-ﾌﾟﾙ ﾍﾟｲﾝﾄ |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-33410 |
MCV2# ｲｴﾛ- & ﾊﾟ-ﾌﾟﾙ ﾍﾟｲﾝﾄ |
1 | ||
| 48231-33210 |
MCV2# |
1 | ||
| 48231-AA060 |
MCV2# ｲｴﾛｰ ﾍﾟｲﾝﾄ |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-32020 |
MCV2# |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-32020 |
MCV2# |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-32053 |
MCV2# |
1 | ||
| 48341-32052 |
MCV2# |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-32052 |
MCV2# |
1 | ||
| 48341-32053 |
MCV2# |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-39386 |
MCV2#..25G,25X,30X |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-39386 |
MCV2#..25G,25X,30X |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-39266 |
MCV2#..25G,25X,30X |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-39266 |
MCV2#..25G,25X,30X |
1 | ||
| 48703J - WASHER, NO.2(FOR REAR SUSPENSION ARM) | ||||
| 48715-33020 |
MCV2# |
1 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-33050 |
MCV2# |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-33050 |
MCV2# |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-33050 |
MCV2# |
1 | ||
| 48730-33060 |
MCV2# |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48740-33060 |
MCV2# |
1 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-33020 |
MCV2# |
1 | ||
| 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90177-14001 |
MCV2# |
1 | ||
| 48750K - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90387-15027 |
MCV2# |
1 | ||
| 48753B - COVER, REAR SUSPENSION SUPOPORT, NO.1 RH | ||||
| 48753-33010 |
MCV2#..25G,25X,30X |
1 | ||
| 48753C - COVER, REAR SUSPENSION SUPOPORT, NO.1 LH | ||||
| 48753-33010 |
MCV2#..25G,25X,30X |
1 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48760-33020 |
MCV2# |
1 | ||
| 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90177-14001 |
MCV2# |
1 | ||
| 48760D - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90387-15027 |
MCV2# |
1 | ||
| 48780A - ROD ASSY, STRUT, REAR | ||||
| 48780-33010 |
MCV2# |
2 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-33100 |
MCV2# |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-33050 |
MCV2# |
2 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-33010 |
MCV2# |
1 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-33020 |
MCV2# |
2 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48830-33010 |
MCV2# |
1 | ||
| Common parts | ||||
| 90119-12131 | ||||
| 90178-08007 | ||||
| 90179-08122 | ||||
| 90179-10183 | ||||
| 90179-12063 | ||||
| 90179-12091 | ||||
| 90179-14019 | ||||
| 90201-14017 | ||||
| 90901-09001 | ||||
| 90901-19001 | ||||
| 91651-60818 | ||||
