MCV21-ATPNK (1996)
Toyota Windom
Production
Aug 1996
-
Jul 2001
Engine
2MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9608- )

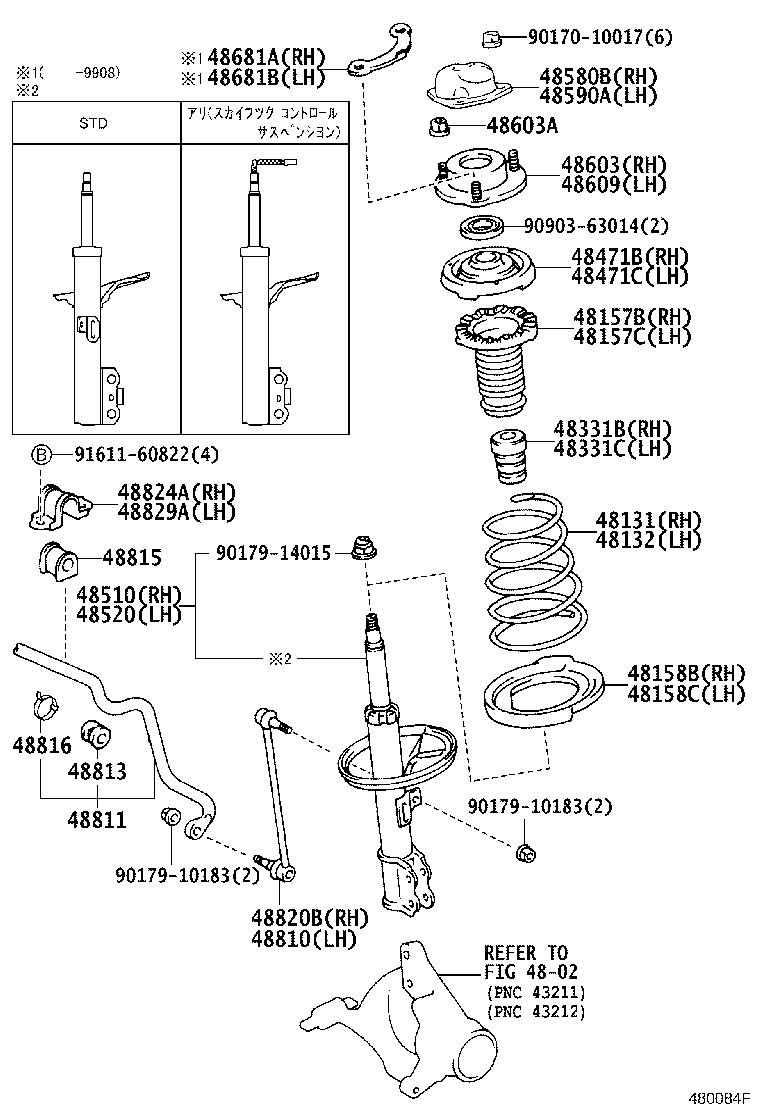

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-3T120 |
MCV2# |
1 | ||
| 48131-33830 |
MCV2# |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-33830 |
MCV2# |
1 | ||
| 48131-3T120 |
MCV2# |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-33030 |
MCV2# |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-33030 |
MCV2# |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-33020 |
MCV2# |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-33020 |
MCV2# |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-33020 |
MCV2# |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-33020 |
MCV2# |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48471-41010 |
MCV2# |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48471-41010 |
MCV2# |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-39506 |
MCV2#..25G,25X,30X |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-39186 |
MCV2#..25G,25X,30X |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48603-33010 |
MCV2# |
1 | ||
| 48603-06011 |
MCV2# (L) |
1 | ||
| 48603-33021 |
MCV2# (J) |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-10008 |
MCV2#..25G,25X,30X |
6 | ||
| 90179-10095 |
MCV2#..25G,25X,30X ｱﾘ(TEMS) |
6 | ||
| 90179-10095 |
MCV2# |
6 | ||
| 90178-10018 |
MCV2#..25G,25X,30X |
6 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-33110 |
MCV2# (J) |
1 | ||
| 48609-33121 |
MCV2# (J) |
1 | ||
| 48609-06061 |
MCV2# (L) |
1 | ||
| 48681A - GASKET, FRONT SUSPENSION SUPPORT, RH | ||||
| 48681-33010 |
MCV2#..25G,25X,30X |
1 | ||
| 48681B - GASKET, FRONT SUSPENSION SUPPORT, LH | ||||
| 48681-33010 |
MCV2#..25G,25X,30X |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48810-33010 |
MCV2# |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-07010 |
MCV2# (L) |
1 | ||
| 48811-33080 |
MCV2# (J) |
1 | ||
| 48813 - STOPPER, FRONT STABILIZER | ||||
| 48813-33020 |
MCV2# |
2 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-33050 |
MCV2# |
2 | ||
| 48816 - CLAMP, FRONT STABILIZER STOPPER | ||||
| 48816-33010 |
MCV2# |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-33020 |
MCV2# |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-33020 |
MCV2# |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-33020 |
MCV2# |
1 | ||
| Common parts | ||||
| 90170-10017 | ||||
| 90179-10183 | ||||
| 90179-14015 | ||||
| 90903-63014 | ||||
| 91611-60822 | ||||
| Linked diagrams | ||||
| 4802 | ||||
