MCV21-ATPNK (1996)

Toyota Windom

Production Aug 1996 - Jul 2001
Engine 2MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9608-9808)25G,25X,30X ; (9808- )MCV21

Click highlighted areas on diagram

ｱﾘ(ABS)

diagram 44510 44545D 44545D 44546A 44546A 44546A 44590 9009905277 9009905277 9011908827 9017908031
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44510-33070

MCV2#..25G,25X,30X

 1
44050-33020

MCV2#..25G,25X,30X

 1
44050-33020

MCV21

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42020

MCV2#

 2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42020

MCV2#

 2
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42020

MCV2#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42020

MCV2#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42020

MCV2#

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-33030

MCV2#

 1
Common parts
90099-05277
90119-08827
90179-08031

ILLUST NO. 1 OF 2(9608-9808)25G,25X,30X ; (9808- )MCV21

Click highlighted areas on diagram

ｱﾘ(ABS)

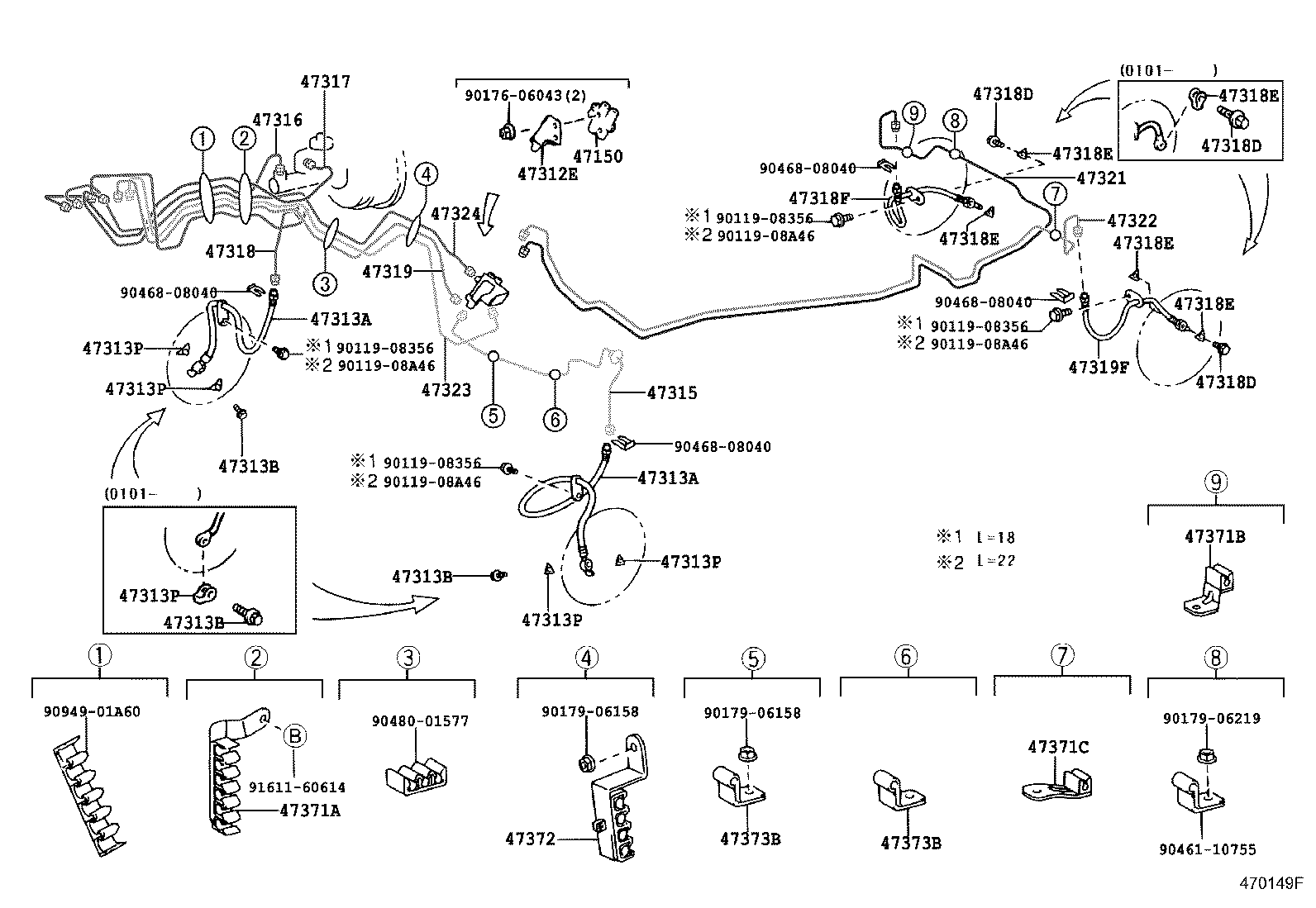

diagram 47150 47312E 47313A 47313A 47313B 47313B 47313B 47313P 47313P 47313P 47313P 47313P 47315 47316 47317 47318 47318D 47318D 47318D 47318E 47318E 47318E 47318E 47318E 47318F 47319 47319F 47321 47322 47323 47324 47371A 47371B 47371C 47372 47373B 47373B 9011908356 9011908356 9011908356 9011908356 9011908A46 9011908A46 9011908A46 9011908A46 9017606043 9017906158 9017906158 9017906219 9046110755 9046808040 9046808040 9046808040 9046808040 9048001577 9094901A60 9161160614
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-33020

MCV2#

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90904-12038

MCV2#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02876

MCV2#

左側

 1
90947-02875

MCV2#

右側

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02876

MCV2#

左側

 1
90947-02875

MCV2#

右側

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

MCV2#

 2
90401-10058

MCV2#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

MCV2#

 2
90401-10058

MCV2#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

MCV2#

 2
90401-10058

MCV2#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

MCV2#

 4
47389-50020

MCV2#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

MCV2#

 4
47389-50020

MCV2#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

MCV2#

 4
47389-50020

MCV2#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

MCV2#

 4
47389-50020

MCV2#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

MCV2#

 4
47389-50020

MCV2#

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-33100

MCV2#

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-33080

MCV2#..25G,25X,30X

 1
47316-33090

MCV2#

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
47316-33080

MCV21

 1
47316-33090

MCV21

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-33070

MCV2#..25G,25X,30X

 1
47317-33080

MCV2#

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
47317-33070

MCV21

 1
47317-33080

MCV21

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-33040

MCV2#..25G,25X,30X

 1
47318-33040

MCV21

 1
47318-33050

MCV2#

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
47318-33050

MCV21

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

MCV2#

 2
90401-10015

MCV2#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

MCV2#

 2
90401-10015

MCV2#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

MCV2#

 2
90401-10015

MCV2#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-30010

MCV2#

 4
47389-50020

MCV2#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-30010

MCV2#

 4
47389-50020

MCV2#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-30010

MCV2#

 4
47389-50020

MCV2#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-30010

MCV2#

 4
47389-50020

MCV2#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-30010

MCV2#

 4
47389-50020

MCV2#

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02877

MCV2#

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-33070

MCV21

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
47319-33060

MCV21

 1
47319-33070

MCV2#

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
47319-33060

MCV2#..25G,25X,30X

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02878

MCV2#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-33020

MCV2#

 1
47321-33120

MCV2#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-33020

MCV2#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-33080

MCV2#

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
47323-33070

MCV2#..25G,25X,30X

 1
47323-33070

MCV21

 1
47323-33080

MCV21

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-33080

MCV21

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
47324-33070

MCV2#..25G,25X,30X

 1
47324-33080

MCV2#

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
47324-33070

MCV21

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-33100

MCV21

 1
47371-33100

MCV2#

 1
47371B - CLAMP, BRAKE TUBE, NO.6
47371-32130

MCV2#

 1
47371C - CLAMP, BRAKE TUBE, NO.7
47371-32140

MCV2#

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47371-33260

MCV2#

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90461-10755

MCV2#

 2
47373B - CLAMP, BRAKE TUBE, NO.3
90461-10755

MCV2#

 2
Common parts
90119-08356
90119-08A46
90176-06043
90179-06158
90179-06219
90461-10755
90468-08040
90480-01577
90949-01A60
91611-60614

ILLUST NO. 1 OF 2(9608-9808) ; (9808- )MCV21

Click highlighted areas on diagram

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛｰﾙ)

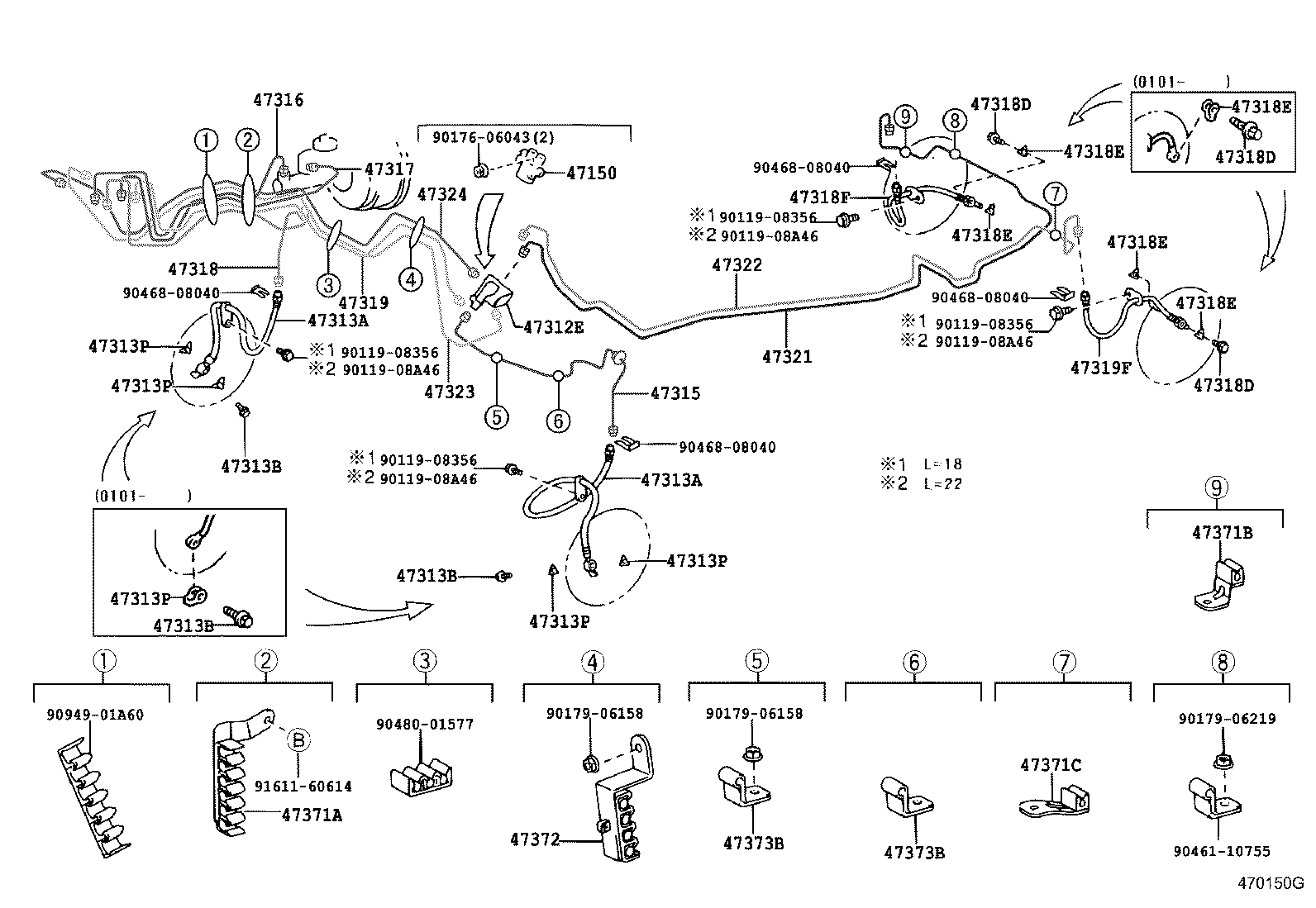

diagram 47150 47312E 47313A 47313A 47313B 47313B 47313B 47313P 47313P 47313P 47313P 47313P 47315 47316 47317 47318 47318D 47318D 47318D 47318E 47318E 47318E 47318E 47318E 47318F 47319 47319F 47321 47322 47323 47324 47371A 47371B 47371C 47372 47373B 47373B 9011908356 9011908356 9011908356 9011908356 9011908A46 9011908A46 9011908A46 9011908A46 9017606043 9017906158 9017906158 9017906219 9046110755 9046808040 9046808040 9046808040 9046808040 9048001577 9094901A60 9161160614
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-33020

MCV2#

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90904-12038

MCV2#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02876

MCV2#

左側

 1
90947-02875

MCV2#

右側

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02876

MCV2#

左側

 1
90947-02875

MCV2#

右側

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

MCV2#

 2
90401-10058

MCV2#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

MCV2#

 2
90401-10058

MCV2#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

MCV2#

 2
90401-10058

MCV2#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

MCV2#

 4
47389-50020

MCV2#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

MCV2#

 4
47389-50020

MCV2#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

MCV2#

 4
47389-50020

MCV2#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

MCV2#

 4
47389-50020

MCV2#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

MCV2#

 4
47389-50020

MCV2#

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-33100

MCV2#

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-33080

MCV2#..25G,25X,30X

 1
47316-33090

MCV2#

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
47316-33080

MCV21

 1
47316-33090

MCV21

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-33070

MCV2#..25G,25X,30X

 1
47317-33080

MCV2#

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
47317-33070

MCV21

 1
47317-33080

MCV21

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-33040

MCV2#..25G,25X,30X

 1
47318-33040

MCV21

 1
47318-33050

MCV2#

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
47318-33050

MCV21

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

MCV2#

 2
90401-10015

MCV2#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

MCV2#

 2
90401-10015

MCV2#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

MCV2#

 2
90401-10015

MCV2#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-30010

MCV2#

 4
47389-50020

MCV2#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-30010

MCV2#

 4
47389-50020

MCV2#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-30010

MCV2#

 4
47389-50020

MCV2#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-30010

MCV2#

 4
47389-50020

MCV2#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-30010

MCV2#

 4
47389-50020

MCV2#

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02877

MCV2#

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-33070

MCV21

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
47319-33060

MCV21

 1
47319-33070

MCV2#

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
47319-33060

MCV2#..25G,25X,30X

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02878

MCV2#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-33020

MCV2#

 1
47321-33120

MCV2#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-33020

MCV2#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-33080

MCV2#

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
47323-33070

MCV2#..25G,25X,30X

 1
47323-33070

MCV21

 1
47323-33080

MCV21

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-33080

MCV21

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
47324-33070

MCV2#..25G,25X,30X

 1
47324-33080

MCV2#

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
47324-33070

MCV21

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-33100

MCV21

 1
47371-33100

MCV2#

 1
47371B - CLAMP, BRAKE TUBE, NO.6
47371-32130

MCV2#

 1
47371C - CLAMP, BRAKE TUBE, NO.7
47371-32140

MCV2#

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47371-33260

MCV2#

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90461-10755

MCV2#

 2
47373B - CLAMP, BRAKE TUBE, NO.3
90461-10755

MCV2#

 2
Common parts
90119-08356
90119-08A46
90176-06043
90179-06158
90179-06219
90461-10755
90468-08040
90480-01577
90949-01A60
91611-60614

ILLUST NO. 2 OF 2(9608-9808) ; (9808- )MCV21

Click highlighted areas on diagram

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛｰﾙ)

diagram 44540 44545D 44545D 44546A 44546A 44546A 44590 9009905277 9009905277 9011908827 9017908031
Part # Description Qty Price
44540 - ACTUATOR ASSY, ABS & TRACTION
44050-33030

MCV21

 1
44540-33010

MCV2#

 1
44050-33030

MCV2#

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42020

MCV2#

 2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42020

MCV2#

 2
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42020

MCV2#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42020

MCV2#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42020

MCV2#

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-33030

MCV2#

 1
Common parts
90099-05277
90119-08827
90179-08031
