MCV21-ATPNK (1996)

Toyota Windom

Production Aug 1996 - Jul 2001
Engine 2MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )25X

Click highlighted areas on diagram

ｳﾚﾀﾝ

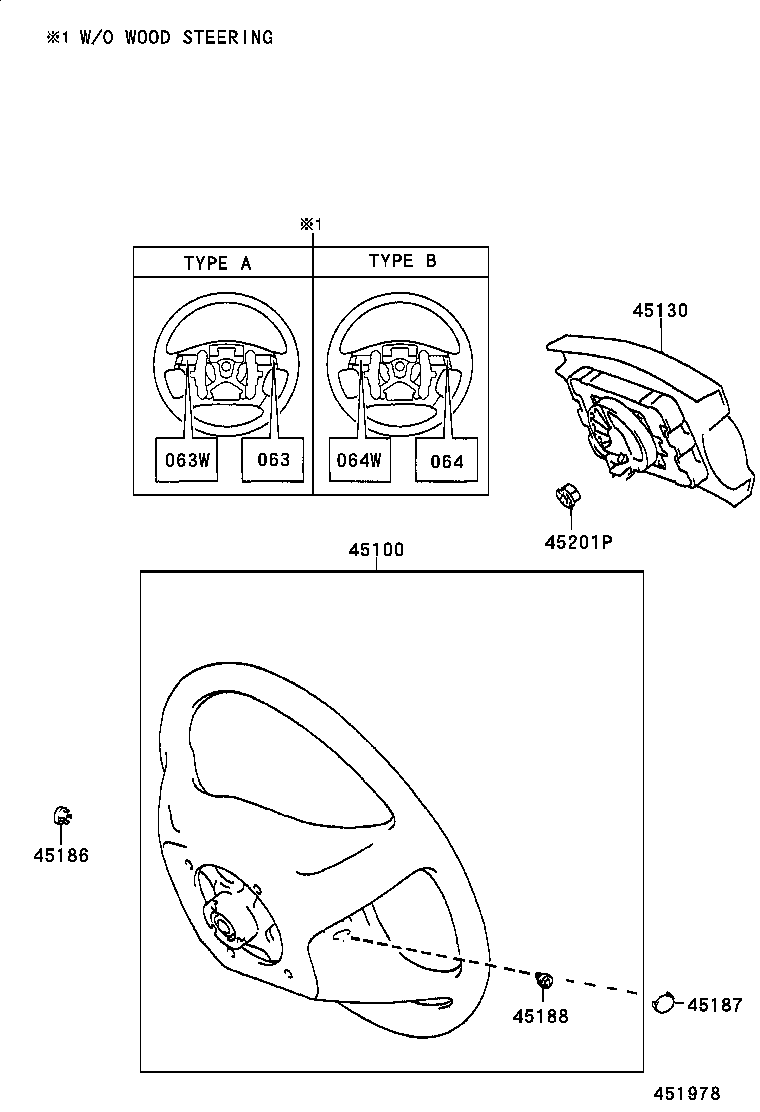

diagram 45100 45100 45130 45130 45186 45187 45188 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-33180C0

MCV21..25X

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2#

 1
45100-33180G0

MCV21..25X

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.SAGE,TRIM6#

 1
45100-22750C0

MCV21..25X

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#

 1
45100-33280G0

MCV21..25X

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ﾃﾞﾝｷｼｷ *80),DK.SAGE,TRIM6#

 1
45100-33281G0

MCV21..25X

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,DK.SAGE,TRIM6#

 1
45100-22750G0

MCV21..25X

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ﾃﾞﾝｷｼｷ *80),DK.SAGE,TRIM6#

 1
45100 - WHEEL ASSY, STEERING
45100-33180C0

MCV21..25X

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2#

 1
45100-33180G0

MCV21..25X

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.SAGE,TRIM6#

 1
45100-22750C0

MCV21..25X

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#

 1
45100-33280G0

MCV21..25X

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ﾃﾞﾝｷｼｷ *80),DK.SAGE,TRIM6#

 1
45100-33281G0

MCV21..25X

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,DK.SAGE,TRIM6#

 1
45100-22750G0

MCV21..25X

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ﾃﾞﾝｷｼｷ *80),DK.SAGE,TRIM6#

 1
45130 - BUTTON ASSY, HORN
45130-33190G0

MCV21..25X

DK.SAGE,TRIM6#

 1
45130-33190C0

MCV21..25X

BLACK,TRIM2#

 1
45130-33240C0

MCV21..25X

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),BLACK,TRIM2#

 1
45130-33230G0

MCV21..25X

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),DK.SAGE,TRIM6#

 1
45130-33240G0

MCV21..25X

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),DK.SAGE,TRIM6#

 1
45130-33260G0

MCV21..25X

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),DK.SAGE,TRIM6#

 1
45130-33280G0

MCV21..25X

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),DK.SAGE,TRIM6#

 1
45130-33230C0

MCV21..25X

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),BLACK,TRIM2#

 1
45130 - BUTTON ASSY, HORN
45130-33190G0

MCV21..25X

DK.SAGE,TRIM6#

 1
45130-33190C0

MCV21..25X

BLACK,TRIM2#

 1
45130-33240C0

MCV21..25X

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),BLACK,TRIM2#

 1
45130-33230G0

MCV21..25X

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),DK.SAGE,TRIM6#

 1
45130-33240G0

MCV21..25X

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),DK.SAGE,TRIM6#

 1
45130-33260G0

MCV21..25X

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),DK.SAGE,TRIM6#

 1
45130-33280G0

MCV21..25X

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),DK.SAGE,TRIM6#

 1
45130-33230C0

MCV21..25X

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),BLACK,TRIM2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-44010G0

MCV2#

DK.SAGE,TRIM6#

 1
45186-44010C0

MCV2#

BLACK,TRIM2#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45186-44010C0

MCV2#..25G,25X,30X

BLACK,TRIM2#

 1
45186-44010G0

MCV2#..25G,25X,30X

DK.SAGE,TRIM6#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60007

MCV21..25X

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

MCV2#

 1

(9908- )

Click highlighted areas on diagram

ﾚｻﾞ-&ﾓｸﾒ

diagram 45100 45130 45186 45187 45188 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-33180C0

MCV21..25X

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2#

 1
45100-33180G0

MCV21..25X

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.SAGE,TRIM6#

 1
45100-22750C0

MCV21..25X

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#

 1
45100-33280G0

MCV21..25X

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ﾃﾞﾝｷｼｷ *80),DK.SAGE,TRIM6#

 1
45100-33281G0

MCV21..25X

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,DK.SAGE,TRIM6#

 1
45100-22750G0

MCV21..25X

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ﾃﾞﾝｷｼｷ *80),DK.SAGE,TRIM6#

 1
45130 - BUTTON ASSY, HORN
45130-33190G0

MCV21..25X

DK.SAGE,TRIM6#

 1
45130-33190C0

MCV21..25X

BLACK,TRIM2#

 1
45130-33240C0

MCV21..25X

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),BLACK,TRIM2#

 1
45130-33230G0

MCV21..25X

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),DK.SAGE,TRIM6#

 1
45130-33240G0

MCV21..25X

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),DK.SAGE,TRIM6#

 1
45130-33260G0

MCV21..25X

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),DK.SAGE,TRIM6#

 1
45130-33280G0

MCV21..25X

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),DK.SAGE,TRIM6#

 1
45130-33230C0

MCV21..25X

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),BLACK,TRIM2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-44010G0

MCV2#

DK.SAGE,TRIM6#

 1
45186-44010C0

MCV2#

BLACK,TRIM2#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45186-44010C0

MCV2#..25G,25X,30X

BLACK,TRIM2#

 1
45186-44010G0

MCV2#..25G,25X,30X

DK.SAGE,TRIM6#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60007

MCV21..25X

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

MCV2#

 1
