MCV21-ATPNK (1996)

Toyota Windom

Production Aug 1996 - Jul 2001
Engine 2MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

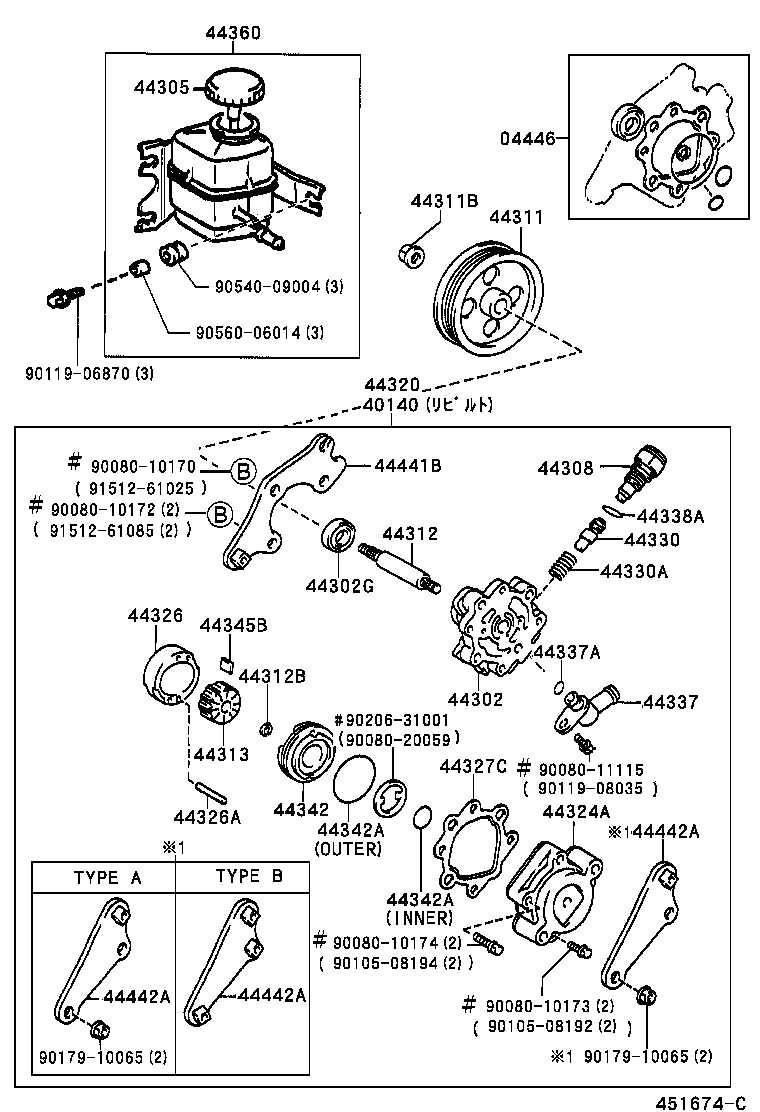

Click highlighted areas on diagram

diagram 04446 40140 44302 44302G 44305 44308 44311 44311B 44312 44312B 44313 44320 44324A 44326 44326A 44327C 44330 44330A 44337 44337A 44338A 44342 44342A 44342A 44345B 44360 44441B 44442A 44442A 44442A 9008010170 9008010172 9008010173 9008010174 9008011115 9008020059 9010508192 9010508194 9011906870 9011908035 9017910065 9017910065 9020631001 9054009004 9056006014 9151261025 9151261085
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-04010

MCV2#

(L)

 1
04446-34010

MCV2#

(J)

 1
40140 - PUMP ASSY,VANE REBUILT
40140-33111

MCV2#

TOYODA KOKI

 1
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-33020

MCV2#

(J)

 1
44302-07011

MCV2#

(L)

 1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90311-18015

MCV2#

(J)

 1
90080-31020

MCV2#

(L)

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-32020

MCV2#

 1
44308 - UNION SUB-ASSY, PRESSURE PORT
44308-33060

MCV2#

 1
44311 - PULLEY, VANE PUMP
44311-33020

MCV2#

(J)

 1
44311-07020

MCV2#

(L)

 1
44311-07010

MCV2#

(L)

 1
44311B - NUT(FOR VANE PUMP PULLEY)
90179-12022

MCV2#

 1
90178-12003

MCV2#

 1
44312 - SHAFT, VANE PUMP
44312-32020

MCV2#

(J)

 1
44312-06010

MCV2#

(L)

 1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90080-52033

MCV2#

(L)

 1
90520-10003

MCV2#

(J)

 1
44313 - ROTOR, VANE PUMP
44313-06050

MCV2#

ﾏｰｸ 4,(L)

 1
44313-06020

MCV2#

ﾏｰｸ 1,(L)

 1
44313-06030

MCV2#

ﾏｰｸ 2,(L)

 1
44313-26090

MCV2#

ﾏｰｸ 3,(J)

 1
44313-26100

MCV2#

ﾏｰｸ 4,(J)

 1
44313-06040

MCV2#

ﾏｰｸ 3,(L)

 1
44313-26060

MCV2#

ﾏｰｸ無し,(J)

 1
44313-06010

MCV2#

ﾏｰｸ無し,(L)

 1
44313-26080

MCV2#

ﾏｰｸ 2,(J)

 1
44313-26070

MCV2#

ﾏｰｸ 1,(J)

 1
44320 - PUMP ASSY, VANE
44320-33110

MCV2#

(J)

 1
44320-33111

MCV2#

(J)

 1
44320-07012

MCV2#

(L)

 1
44320-07011

MCV2#

(L)

 1
44324A - HOUSING, PUMP, REAR
44324-33030

MCV2#

(J)

 1
44324-07010

MCV2#

(L)

 1
44326 - RING, CAM(FOR VANE PUMP)
44325-06010

MCV2#

ﾏｰｸ無し,(L)

 1
44325-06040

MCV2#

ﾏｰｸ 3,(L)

 1
44325-06020

MCV2#

ﾏｰｸ 1,(L)

 1
44325-32310

MCV2#

ﾏｰｸ 4,(J)

 1
44325-32280

MCV2#

ﾏｰｸ 1,(J)

 1
44325-32300

MCV2#

ﾏｰｸ 3,(J)

 1
44325-06050

MCV2#

ﾏｰｸ 4,(L)

 1
44325-32270

MCV2#

ﾏｰｸ無し,(J)

 1
44325-06030

MCV2#

ﾏｰｸ 2,(L)

 1
44325-32290

MCV2#

ﾏｰｸ 2,(J)

 1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-04071

MCV2#

長さ=23.3,外径=4.0,(J)

 2
90080-25024

MCV2#

長さ=23.3,外径=4.0,(L)

 2
90250-04071

MCV2#

長さ=23.3,外径=4.0

 2
44327C - GASKET, VANE PUMP HOUSING
44327-26010

MCV2#

 1
44330 - VALVE ASSY, FLOW CONTROL
44330-26011

MCV2#

ﾏｰｸ A,(J)

 1
44330-26021

MCV2#

ﾏｰｸ B,(J)

 1
44330-26031

MCV2#

ﾏｰｸ C,(J)

 1
44330-06140

MCV2#

ﾏｰｸ B,(L)

 1
44330-26061

MCV2#

ﾏｰｸ F,(J)

 1
44330-26041

MCV2#

ﾏｰｸ D,(J)

 1
44330-06170

MCV2#

ﾏｰｸ E,(L)

 1
44330-06150

MCV2#

ﾏｰｸ C,(L)

 1
44330-26051

MCV2#

ﾏｰｸ E,(J)

 1
44330-06130

MCV2#

ﾏｰｸ A,(L)

 1
44330-06180

MCV2#

ﾏｰｸ F,(L)

 1
44330-06160

MCV2#

ﾏｰｸ D,(L)

 1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-13034

MCV2#

 1
90501-13034

MCV2#

(J)

 1
90080-50221

MCV2#

(L)

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-07010

MCV2#

(L)

 1
44337-33030

MCV2#

(J)

 1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-11010

MCV2#

(J)

 1
90080-30034

MCV2#

(L)

 1
90301-11016

MCV2#

(J)

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
90080-30035

MCV2#

(L)

 1
90301-19013

MCV2#

内径=19.2,外径=22.3,(J)

 1
90301-19003

MCV2#

内径=19.5,外径=22.5,(J)

 1
44342 - PLATE, VANE PUMP SIDE, REAR
44342-06010

MCV2#

(L)

 1
44342-26020

MCV2#

(J)

 1
44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR)
90301-18007

MCV2#

内側,(J)

 1
90080-30032

MCV2#

外側(L)

 1
90080-30031

MCV2#

内側,(L)

 1
90301-47001

MCV2#

外側(J)

 1
44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR)
90301-18007

MCV2#

内側,(J)

 1
90080-30032

MCV2#

外側(L)

 1
90080-30031

MCV2#

内側,(L)

 1
90301-47001

MCV2#

外側(J)

 1
44345B - PLATE, VANE PUMP
44345-26020

MCV2#

長さ=14.998

 10
44345-26050

MCV2#

長さ=14.992

 10
44345-26010

MCV2#

長さ=15.000

 10
44345-26040

MCV2#

長さ=14.994

 10
44345-04050

MCV2#

長さ=14.002,(L)

 10
44345-04030

MCV2#

長さ=14.006,(L)

 10
44345-04020

MCV2#

長さ=14.008,(L)

 10
44345-04040

MCV2#

長さ=14.004,(L)

 10
44345-04010

MCV2#

長さ=15.000,(L)

 10
44345-26030

MCV2#

長さ=14.996

 10
44345-26020

MCV2#

長さ=14.998,(J)

 10
44345-26030

MCV2#

長さ=14.996,(J)

 10
44345-26050

MCV2#

長さ=14.992,(J)

 10
44345-26010

MCV2#

長さ=15.000,(J)

 10
44345-26040

MCV2#

長さ=14.994,(J)

 10
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-33020

MCV2#

 1
44441B - BRACKET, PUMP, FRONT
44441-07011

MCV2#

(L)

 1
44441-33020

MCV2#

(J)

 1
44441-33022

MCV2#

(J)

 1
44441-33021

MCV2#

(J)

 1
44441-07010

MCV2#

(L)

 1
44442A - BRACKET, VANE PUMP, REAR
44442-33021

MCV2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,(J)

 1
44442-33020

MCV2#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,(J)

 1
44442-07010

MCV2#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,(L)

 1
44442A - BRACKET, VANE PUMP, REAR
44442-33021

MCV2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,(J)

 1
44442-33020

MCV2#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,(J)

 1
44442-07010

MCV2#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,(L)

 1
44442A - BRACKET, VANE PUMP, REAR
44442-33021

MCV2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,(J)

 1
44442-33020

MCV2#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,(J)

 1
44442-07010

MCV2#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,(L)

 1
Common parts
90080-10170
90080-10172
90080-10173
90080-10174
90080-11115
90080-20059
90105-08192
90105-08194
90119-06870
90119-08035
90179-10065
90206-31001
90540-09004
90560-06014
91512-61025
91512-61085
