MCV21-ATPNK (1996)

Toyota Windom

Production Aug 1996 - Jul 2001
Engine 2MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

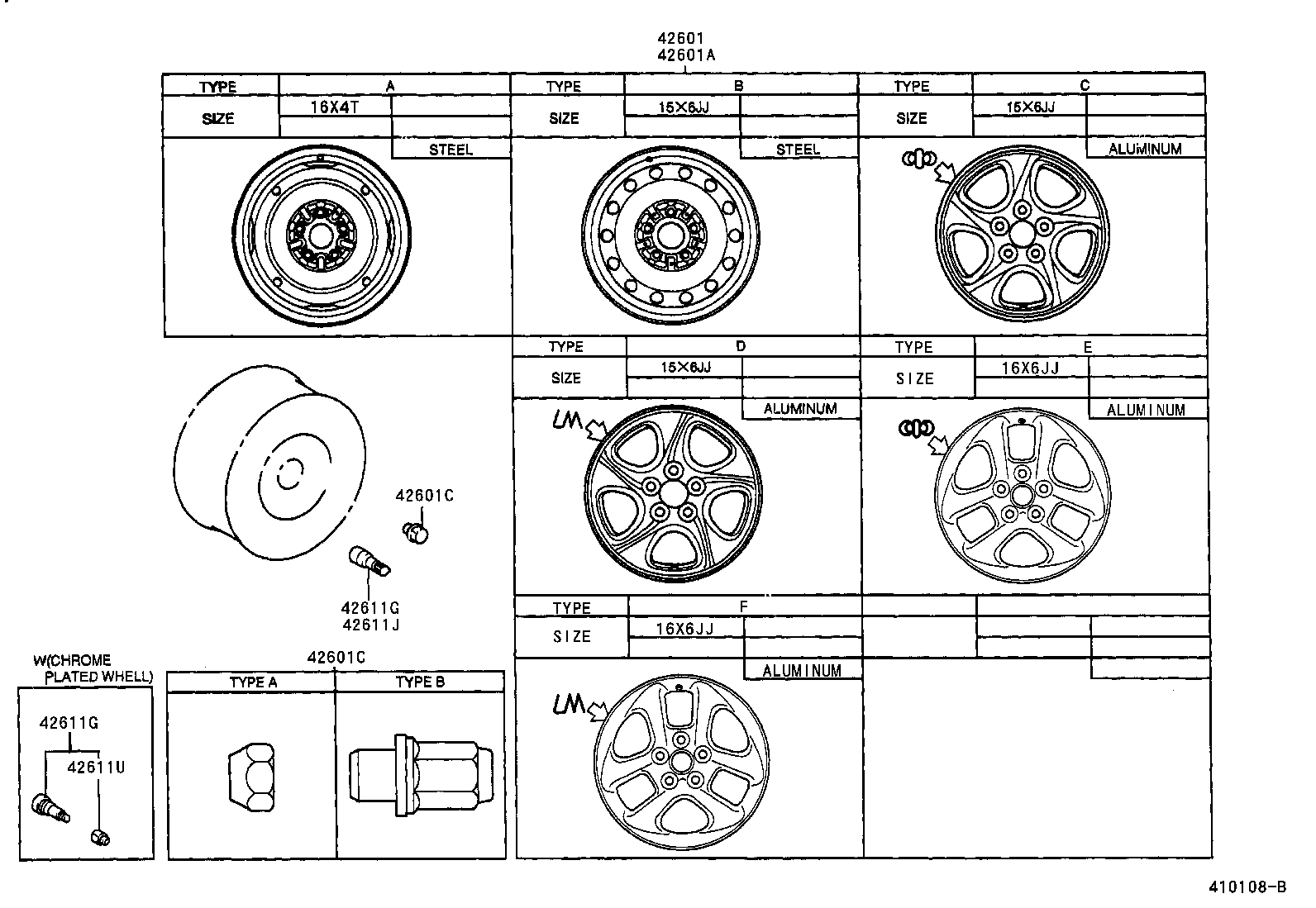

ILLUST NO. 1 OF 4(9608- )

Click highlighted areas on diagram

diagram 42601 42601A 42601C 42601C 42611G 42611G 42611J 42611U
Part # Description Qty Price
42601 - WHEEL, DISC
42611-33150

MCV2#

15X6JJ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 4
42611-33120

MCV2#

15X6JJ,ｵﾌｾｯﾄ 45,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 4
42611-3301001

MCV2#

15X6JJ,ｵﾌｾｯﾄ 45,#,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK

 4
42611-33210

MCV2#

15X6JJ,ｵﾌｾｯﾄ 45,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ, ﾊｲｸﾞﾛｽﾀｲﾌﾟ

 4
42611-3301001

MCV21..25X

15X6JJ,ｵﾌｾｯﾄ 45,#,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-28210

MCV2#

16X4T,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
42611-3301001

MCV2#

15X6JJ,ｵﾌｾｯﾄ 45,#,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK

 1
42611-3301001

MCV21..25X

15X6JJ,ｵﾌｾｯﾄ 45,#,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK

 1
42611-33150

MCV2#

15X6JJ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
42611-33120

MCV2#

15X6JJ,ｵﾌｾｯﾄ 45,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
42611-33210

MCV2#

15X6JJ,ｵﾌｾｯﾄ 45,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ, ﾊｲｸﾞﾛｽﾀｲﾌﾟ

 1
42601C - NUT, HUB (FOR AXLE)
90942-01007

MCV2#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 20
90942-01058

MCV2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 20
90942-01058

MCV2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 20
42601C - NUT, HUB (FOR AXLE)
90942-01007

MCV2#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 20
90942-01058

MCV2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 20
90942-01058

MCV2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 20
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009

MCV2#

 4
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009

MCV2#

 4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009

MCV2#

 1

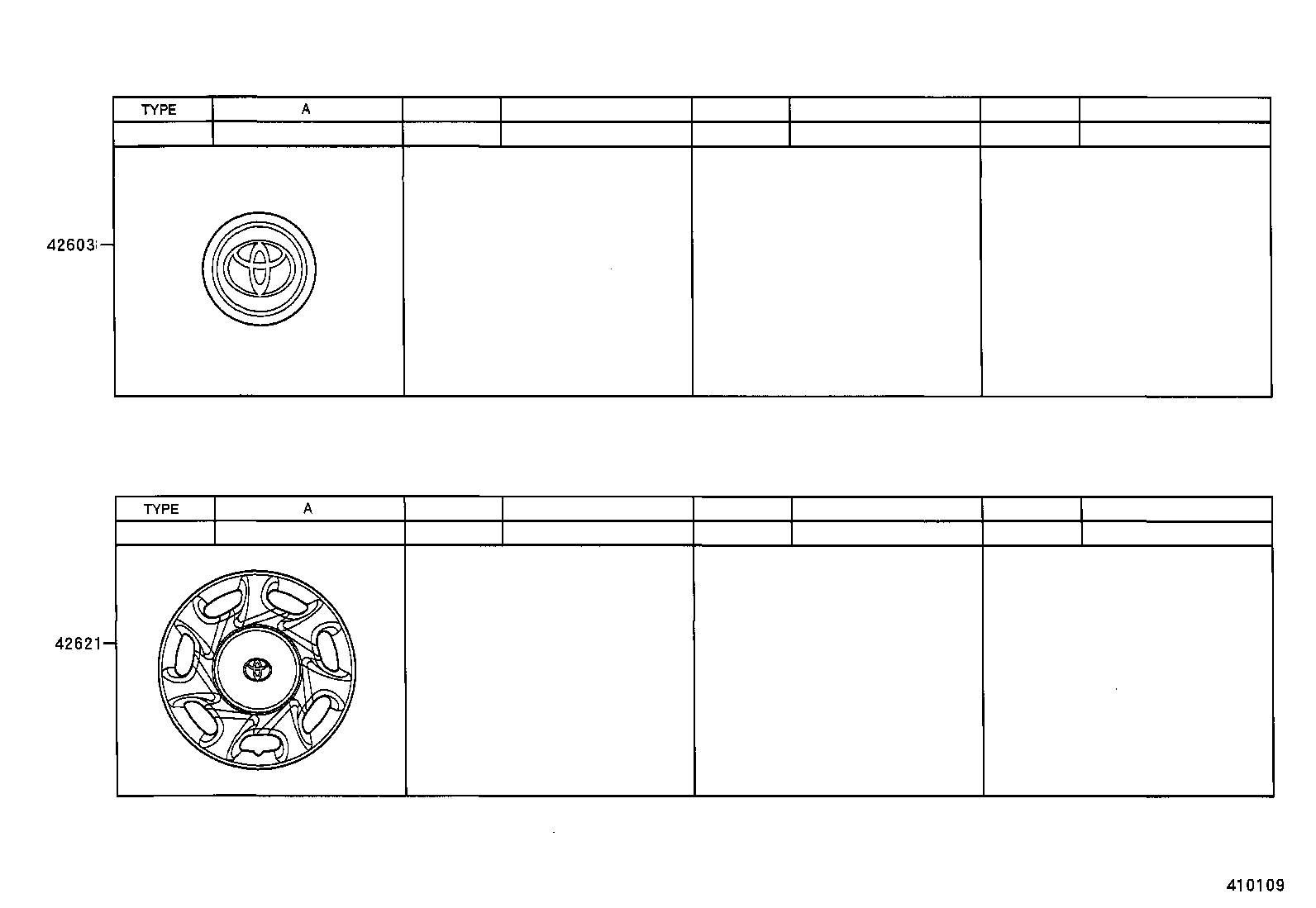

ILLUST NO. 2 OF 4(9608- )

Click highlighted areas on diagram

diagram 42603 42621
Part # Description Qty Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-33090

MCV2#

*ALU,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 4
42603-33090

MCV2#

*ALU,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 4
42621 - CAP, WHEEL
42621-33040

MCV2#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 4

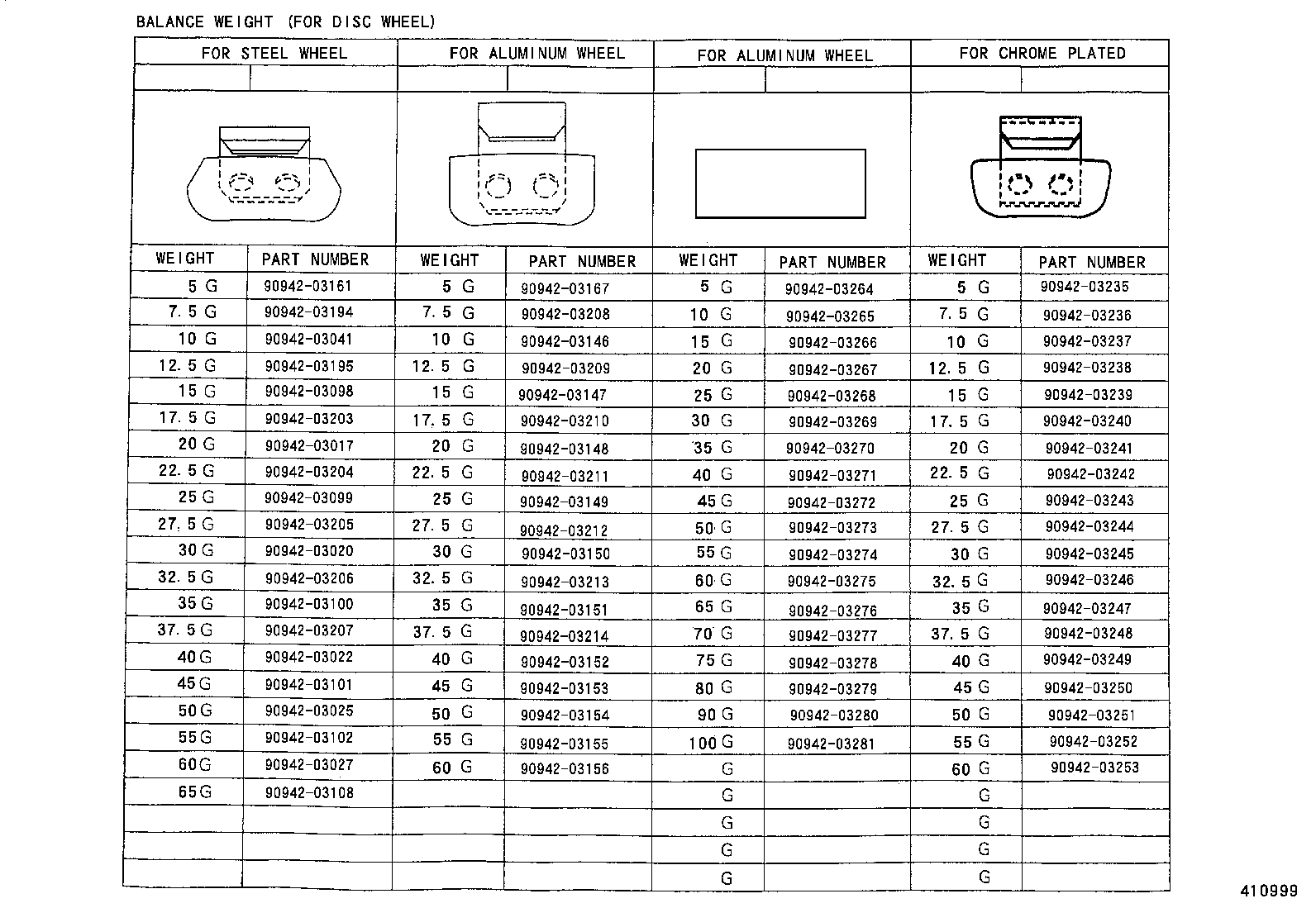

ILLUST NO. 3 OF 4(9608- )

Click highlighted areas on diagram

diagram 9094203017 9094203020 9094203022 9094203025 9094203027 9094203041 9094203098 9094203099 9094203100 9094203101 9094203102 9094203108 9094203146 9094203147 9094203148 9094203149 9094203150 9094203151 9094203152 9094203153 9094203154 9094203155 9094203156 9094203161 9094203167 9094203194 9094203195 9094203203 9094203204 9094203205 9094203206 9094203207 9094203208 9094203209 9094203210 9094203211 9094203212 9094203213 9094203214 9094203235 9094203236 9094203237 9094203238 9094203239 9094203240 9094203241 9094203242 9094203243 9094203244 9094203245 9094203246 9094203247 9094203248 9094203249 9094203250 9094203251 9094203252 9094203253 9094203264 9094203265 9094203266 9094203267 9094203268 9094203269 9094203270 9094203271 9094203272 9094203273 9094203274 9094203275 9094203276 9094203277 9094203278 9094203279 9094203280 9094203281
Part # Description Qty Price
Common parts
90942-03017
90942-03020
90942-03022
90942-03025
90942-03027
90942-03041
90942-03098
90942-03099
90942-03100
90942-03101
90942-03102
90942-03108
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03155
90942-03156
90942-03161
90942-03167
90942-03194
90942-03195
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
90942-03235
90942-03236
90942-03237
90942-03238
90942-03239
90942-03240
90942-03241
90942-03242
90942-03243
90942-03244
90942-03245
90942-03246
90942-03247
90942-03248
90942-03249
90942-03250
90942-03251
90942-03252
90942-03253
90942-03264
90942-03265
90942-03266
90942-03267
90942-03268
90942-03269
90942-03270
90942-03271
90942-03272
90942-03273
90942-03274
90942-03275
90942-03276
90942-03277
90942-03278
90942-03279
90942-03280
90942-03281

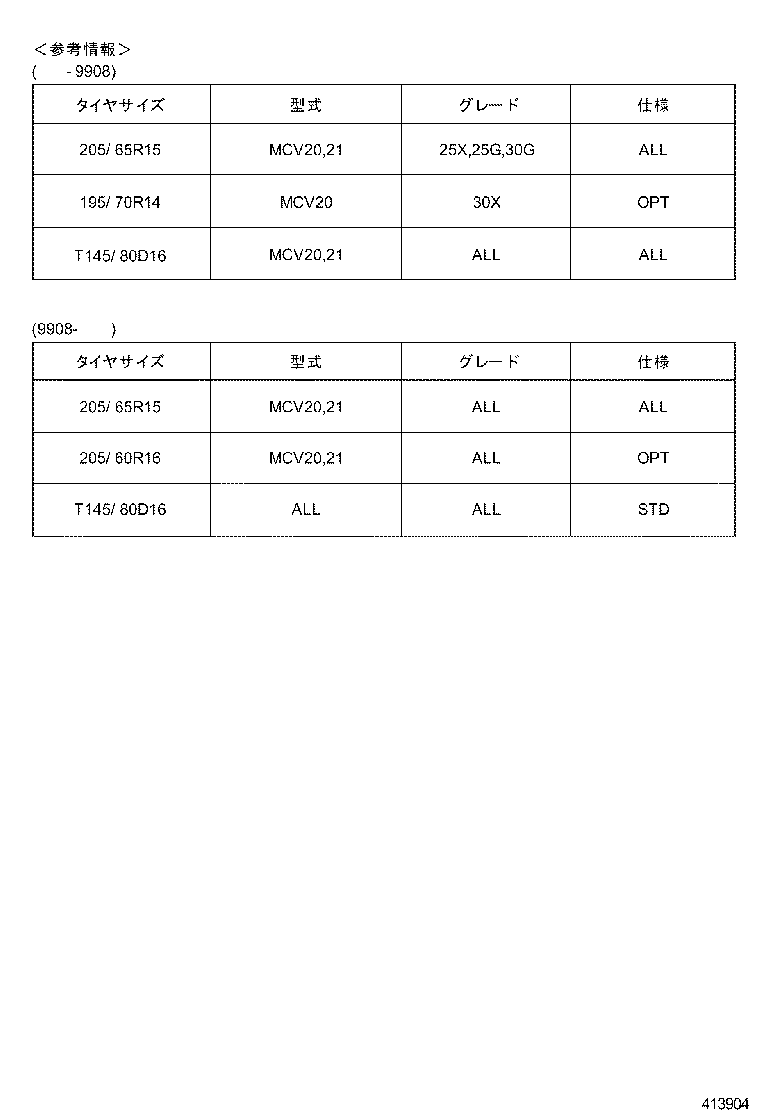

ILLUST NO. 4 OF 4(9608- )

Click highlighted areas on diagram

diagram
Part # Description Qty Price
