MCV21-ATPNK (1996)
Toyota Windom
Production
Aug 1996
-
Jul 2001
Engine
2MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

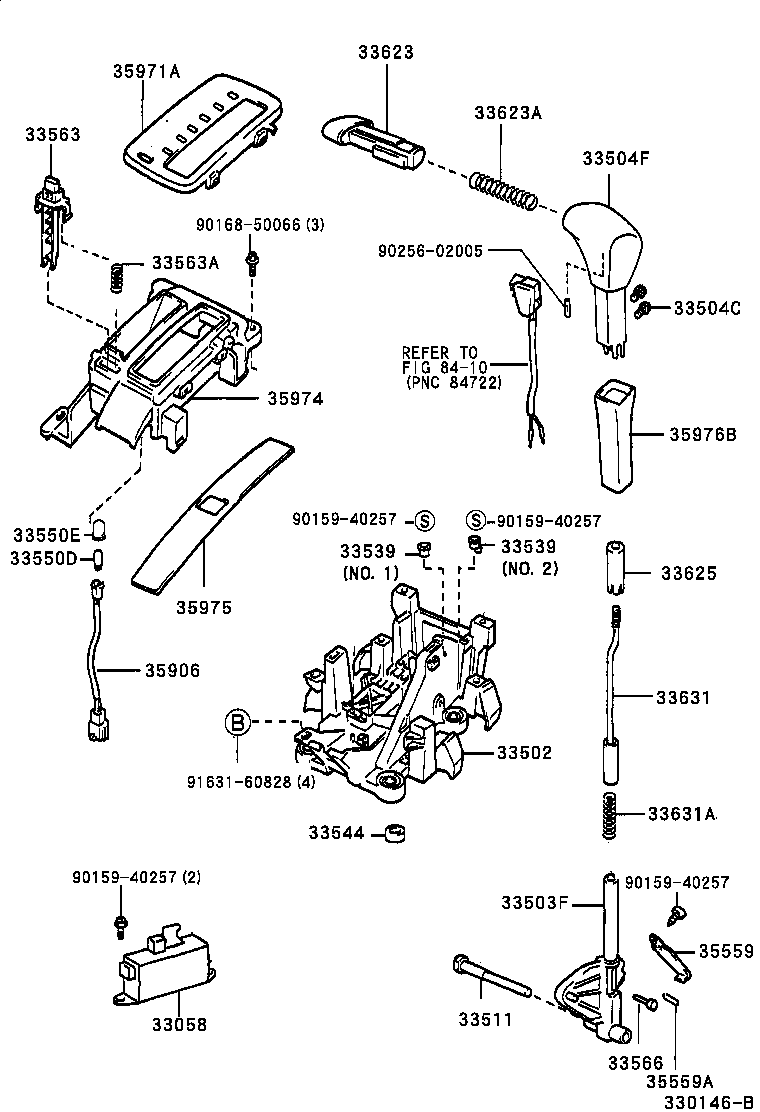

ILLUST NO. 1 OF 2(9608- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID | ||||
| 33560-33020 |
MCV2# |
1 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33521-33040 |
MCV2# |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-33090 |
MCV2# |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40238 |
MCV2# |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-33100C0 |
MCV21..25X BLACK,TRIM2# |
1 | ||
| 33542-33100G0 |
MCV21..25X DK.SAGE,TRIM6# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-33020 |
MCV2# |
1 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-33030 |
MCV2# NO.2 |
1 | ||
| 33539-33010 |
MCV2# NO.1 |
1 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-33030 |
MCV2# NO.2 |
1 | ||
| 33539-33010 |
MCV2# NO.1 |
1 | ||
| 33544 - INSERT, SHIFT LEVER, NO.1 | ||||
| 33544-33010 |
MCV2# |
4 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
MCV2# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-04055 |
MCV2# |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-33100 |
MCV2# |
1 | ||
| 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-06089 |
MCV2# |
1 | ||
| 33566 - PIN, SHIFT LEVER STOP | ||||
| 90256-04008 |
MCV2# |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-33080C0 |
MCV2# BLACK,TRIM2# |
1 | ||
| 33623-33080G0 |
MCV2# DK.SAGE,TRIM6# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
MCV2# |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-33030 |
MCV2# |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-33070 |
MCV2# |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07115 |
MCV2# |
1 | ||
| 35559 - SPRING, MANUAL DETENT | ||||
| 35559-33030 |
MCV2# |
1 | ||
| 35559A - PIN (FOR MANUAL DETENT SPRING) | ||||
| 90249-02005 |
MCV2# |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-33060 |
MCV2# |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-33090 |
MCV2# |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-33090 |
MCV2# |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-33040 |
MCV2# |
1 | ||
| 35976B - COVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT) | ||||
| 35976-33040G0 |
MCV2# DK.SAGE,TRIM6# |
1 | ||
| 35976-33040C0 |
MCV2# BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90159-40257 | ||||
| 90168-50066 | ||||
| 90256-02005 | ||||
| 91631-60828 | ||||
| Linked diagrams | ||||
| 8410 | ||||
ILLUST NO. 2 OF 2(9608- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33574B - RETAINER, SHIFT CABLE GROMMET, NO.2 | ||||
| 33574-33030 |
MCV2# |
1 | ||
| 33723Q - NUT (FOR CONNECTING ROD SWIVEL) | ||||
| 90179-08054 |
MCV2# |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-33140 |
MCV2# |
1 | ||
| 33820-33141 |
MCV21 |
1 | ||
| 33820-33140 |
MCV21 |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 33577-33010 |
MCV2# |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-33030 |
MCV21 |
1 | ||
| 33823-33030 |
MCV2# |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-33020 |
MCV2# |
1 | ||
| 33829-33020 |
MCV21 |
1 | ||
| Common parts | ||||
| 90119-06374 | ||||
| 90119-08760 | ||||
| 90159-50328 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 91611-60816 | ||||
| Linked diagrams | ||||
| 1904 | ||||
