MCV21-ATPNK (1996)

Toyota Windom

Production Aug 1996 - Jul 2001
Engine 2MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

Click highlighted areas on diagram

diagram
Part # Description Qty Price

(9608-9808) ; (9808- )2MZFE

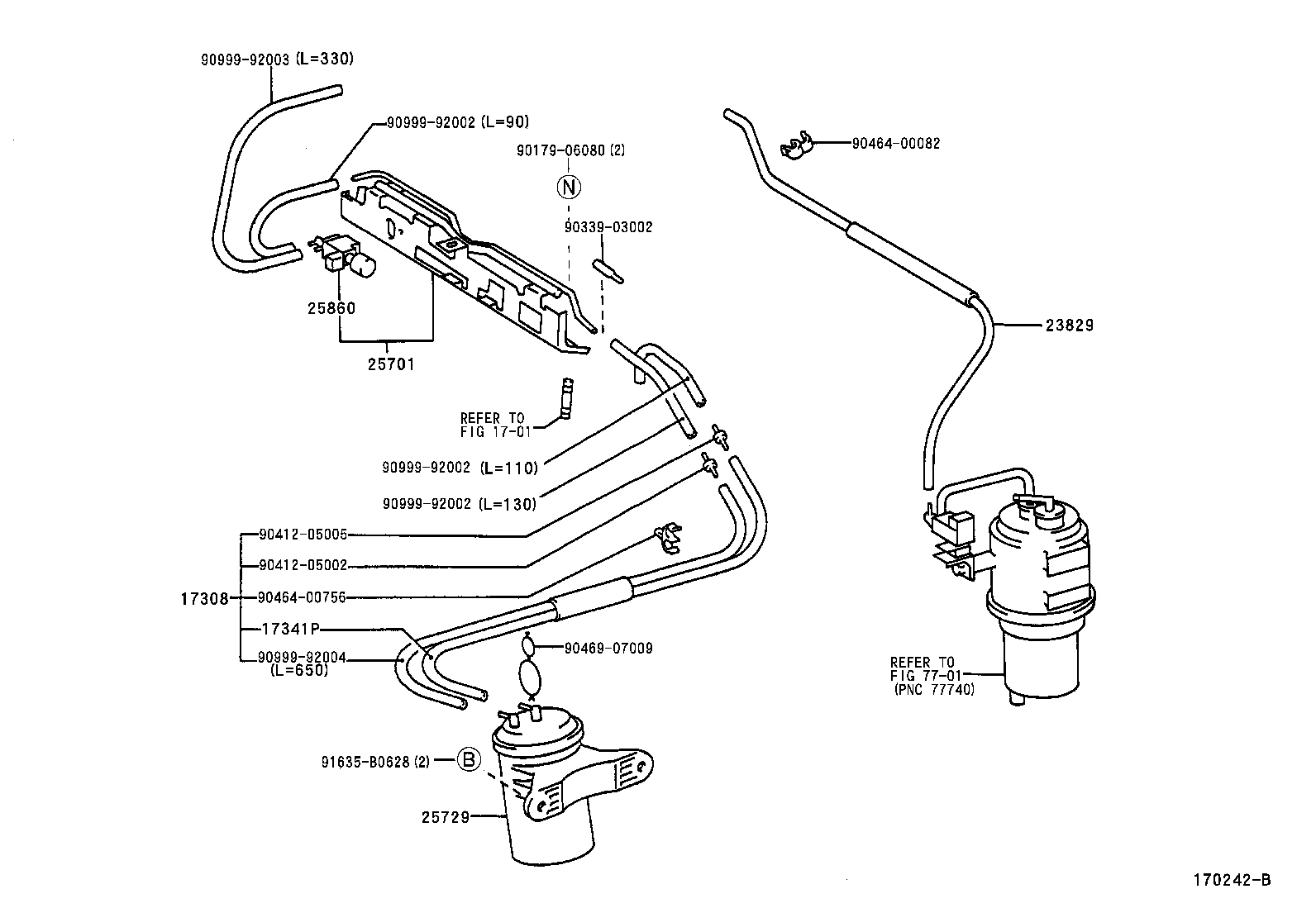

Click highlighted areas on diagram

diagram 1701 17308 17341P 23829 25701 25729 25860 7701 9017906080 9033903002 9041205002 9041205005 9046400082 9046400756 9046907009 9099992002 9099992002 9099992002 9099992003 9099992004 91635B0628
Part # Description Qty Price
17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)
17308-20050

2MZFE..MCV21

 1
17308-20050

1MZFE,2MZFE..MCV2#

 1
17341P - HOSE, AIR
17341-20040

2MZFE..MCV21

 1
17341-20040

1MZFE,2MZFE..MCV2#

 1
23829 - HOSE, FUEL VAPOR FEED, NO.3
23829-20020

2MZFE..MCV21

 1
25701 - VALVE SET, EMISSION CONTROL
25701-20080

2MZFE..MCV21

 1
25701-20080

1MZFE,2MZFE..MCV2#

 1
25729 - TANK, VACUUM SURGE W/BRACKET
25729-20010

1MZFE,2MZFE..MCV2#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-62010

2MZFE..MCV21

 1
25860-62010

1MZFE,2MZFE..MCV2#

 1
Common parts
90179-06080
90339-03002
90412-05002
90412-05005
90464-00082
90464-00756
90469-07009
90999-92002
90999-92003
90999-92004
91635-B0628
Linked diagrams
1701
7701
