MCV21-ATPNK (1996)

Toyota Windom

Production Aug 1996 - Jul 2001
Engine 2MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608-9808) ; (9808- )2MZFE

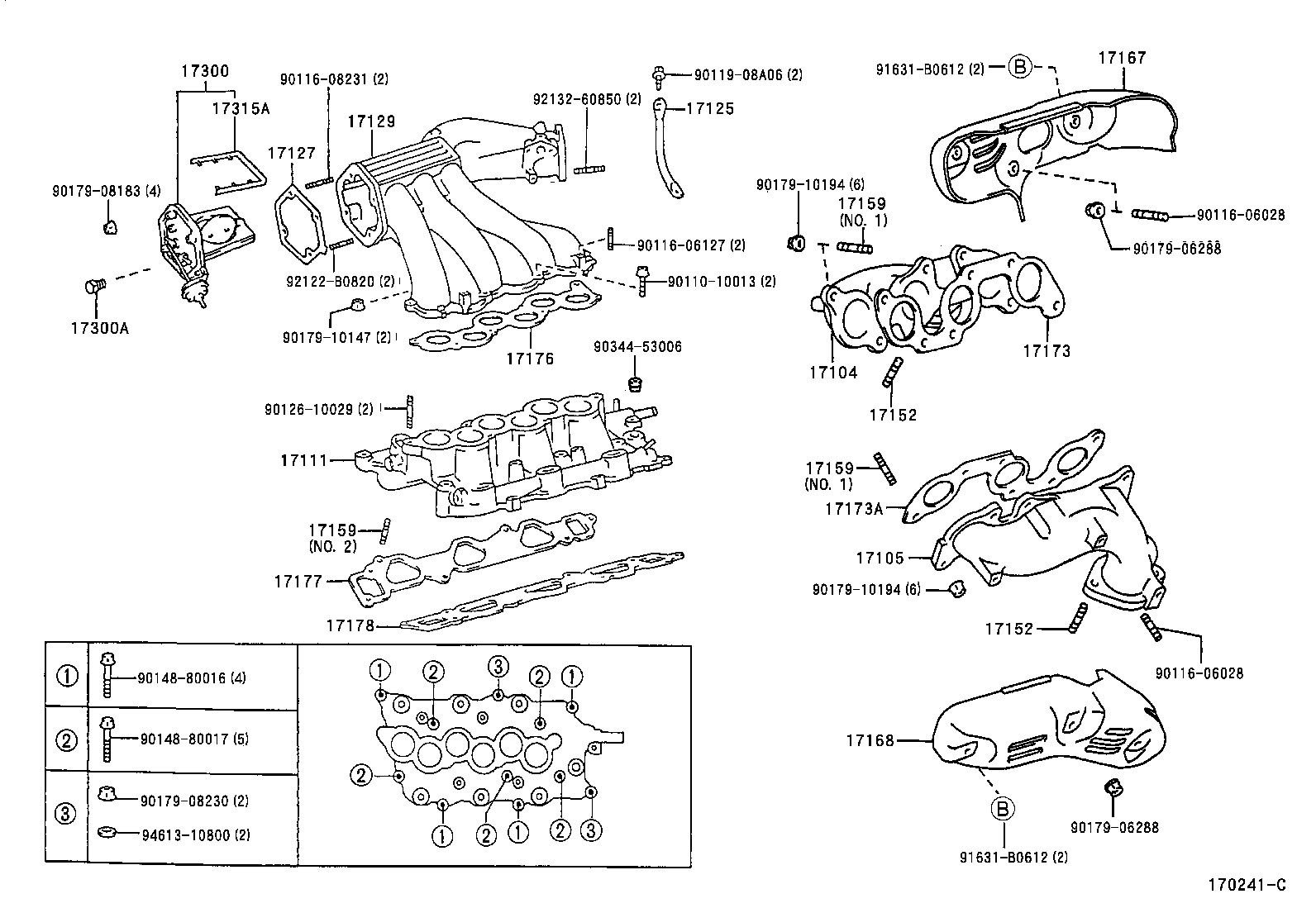

Click highlighted areas on diagram

diagram 17104 17105 17111 17125 17127 17129 17152 17152 17159 17159 17159 17167 17168 17173 17173A 17176 17177 17178 17300 17300A 17315A 9011010013 9011606028 9011606028 9011606127 9011608231 9011908A06 9012610029 9014880016 9014880017 9017906288 9017906288 9017908183 9017908230 9017910147 9017910194 9017910194 9034453006 91631B0612 91631B0612 92122B0820 9213260850 9461310800
Part # Description Qty Price
17104 - MANIFOLD SUB-ASSY, EXHAUST, RH
17141-20020

1MZFE,2MZFE..MCV2#

 1
17141-20020

2MZFE..MCV21

 1
17105 - MANIFOLD SUB-ASSY, EXHAUST, LH
17142-20020

1MZFE,2MZFE..MCV2#

 1
17142-20020

2MZFE..MCV21

 1
17111 - MANIFOLD, INTAKE
17101-20020

2MZFE..MCV21

 1
17101-20020

1MZFE,2MZFE..MCV2#

 1
17125 - STAY, SURGE TANK, NO.1
17125-20010

2MZFE..MCV21

 1
17125-20010

1MZFE,2MZFE..MCV2#

 1
17127 - GASKET, SURGE TANK COVER
17127-62030

1MZFE,2MZFE..MCV2#

 1
17129 - TANK, INTAKE AIR SURGE
17109-20060

1MZFE,2MZFE..MCV2#

 1
17109-20060

2MZFE..MCV21

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10149

1MZFE,2MZFE..MCV2#

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10149

1MZFE,2MZFE..MCV2#

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10169

1MZFE,2MZFE..MCV2#

NO.1

 12
90126-08013

1MZFE,2MZFE..MCV2#

NO.2

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10169

1MZFE,2MZFE..MCV2#

NO.1

 12
90126-08013

1MZFE,2MZFE..MCV2#

NO.2

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10169

1MZFE,2MZFE..MCV2#

NO.1

 12
90126-08013

1MZFE,2MZFE..MCV2#

NO.2

 4
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-20020

1MZFE,2MZFE..MCV2#

 1
17167-20020

2MZFE..MCV21

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-20020

1MZFE,2MZFE..MCV2#

 1
17168-20020

2MZFE..MCV21

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-20010

1MZFE,2MZFE..MCV2#

 1
17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH
17173-20010

1MZFE,2MZFE..MCV2#

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-62030

1MZFE,2MZFE..MCV2#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-20010

1MZFE,2MZFE..MCV2#

 1
17177-20020

1MZFE,2MZFE..MCV2#

 1
17178 - GASKET, INTAKE MANIFOLD TO HEAD, NO.2
17178-20010

1MZFE,2MZFE..MCV2#

 1
17178-20020

1MZFE,2MZFE..MCV2#

 1
17300 - VALVE ASSY, INTAKE AIR CONTROL
17300-20020

1MZFE,2MZFE..MCV2#

 1
17300A - PLUG, W/HEAD TAPER SCREW(FOR AIR CONTROL VALVE)
90345-51006

1MZFE,2MZFE..MCV2#

 1
90345-51006

2MZFE..MCV21

 1
17315A - GASKET, INTAKE AIR CONTROL VALVE
17315-62020

1MZFE,2MZFE..MCV2#

 1
Common parts
90110-10013
90116-06028
90116-06127
90116-08231
90119-08A06
90126-10029
90148-80016
90148-80017
90179-06288
90179-08183
90179-08230
90179-10147
90179-10194
90344-53006
91631-B0612
92122-B0820
92132-60850
94613-10800
