MCV21-ATPGK (1996)
Toyota Windom
Production
Aug 1996
-
Jul 2001
Engine
2MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

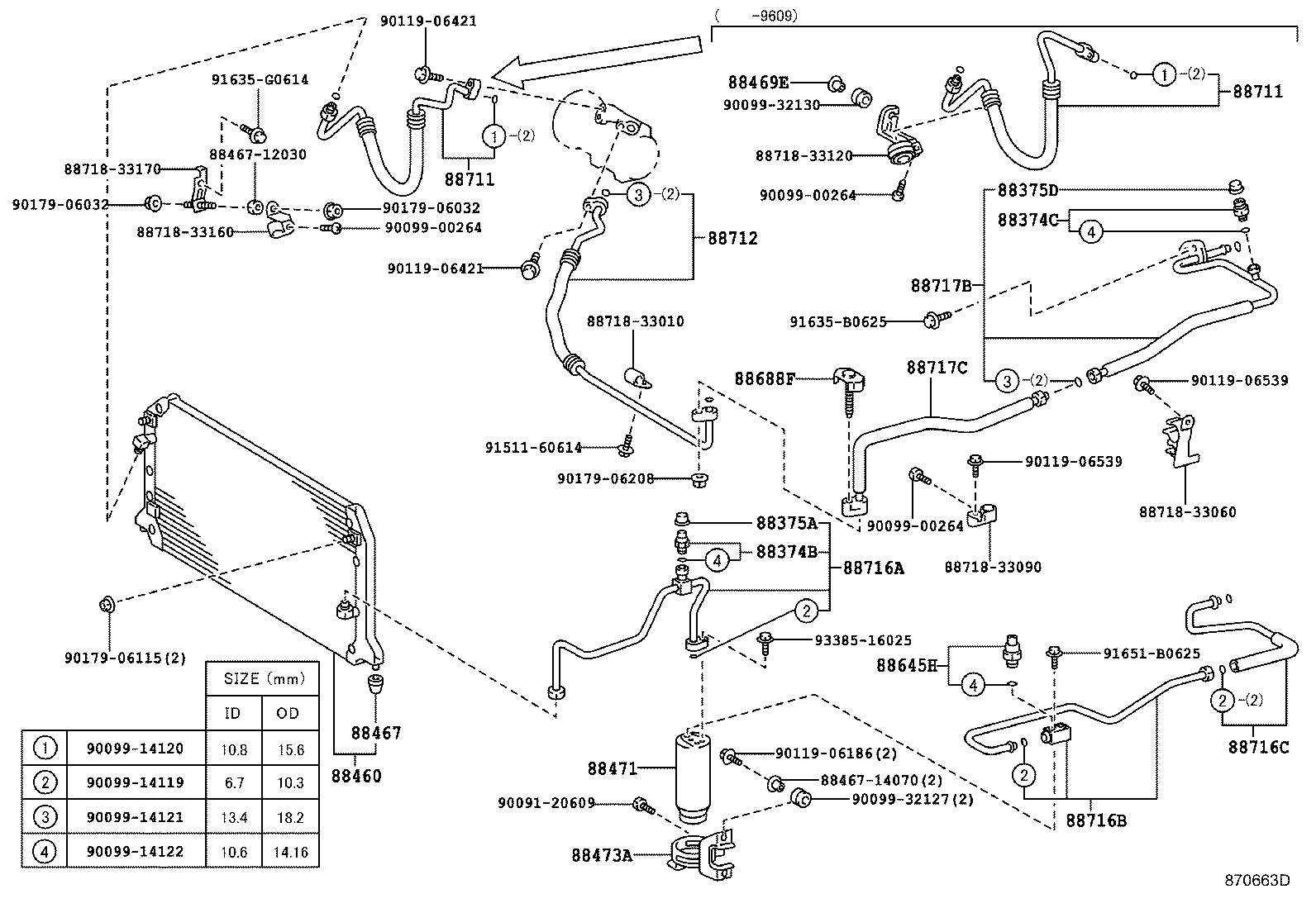

ILLUST NO. 1 OF 2(9608-9705)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
MCV2# |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
MCV2# |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
MCV2# |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
MCV2# |
1 | ||
| 88375-30290 |
MCV21 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0W011 |
MCV2# |
1 | ||
| 88460-0W010 |
MCV2# |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-06020 |
MCV2# |
2 | ||
| 88469E - COLLAR, CONDENSER BRACKET, NO.2 | ||||
| 88469-28010 |
MCV2# |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-20050 |
MCV2# |
1 | ||
| 88473A - HOLDER, RECEIVER | ||||
| 88473-33050 |
MCV2# |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20050 |
MCV2# |
1 | ||
| 88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2 | ||||
| 88688-33240 |
MCV2# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-33111 |
MCV2# |
1 | ||
| 88711-33110 |
MCV2# |
1 | ||
| 88711-33111 |
MCV21 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-33111 |
MCV2# |
1 | ||
| 88711-33110 |
MCV2# |
1 | ||
| 88711-33111 |
MCV21 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-33090 |
MCV2# |
1 | ||
| 88712-33091 |
MCV2# |
1 | ||
| 88712-33170 |
MCV21 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-33240 |
MCV2# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-33290 |
MCV2# |
1 | ||
| 88716-33290 |
MCV21 |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-33280 |
MCV2# |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-33170 |
MCV2# |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-33160 |
MCV21 |
1 | ||
| 88717-33160 |
MCV2# |
1 | ||
| Common parts | ||||
| 88467-12030 | ||||
| 88467-14070 | ||||
| 88718-33010 | ||||
| 88718-33060 | ||||
| 88718-33090 | ||||
| 88718-33120 | ||||
| 88718-33160 | ||||
| 88718-33170 | ||||
| 90091-20609 | ||||
| 90099-00264 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90099-32127 | ||||
| 90099-32130 | ||||
| 90119-06186 | ||||
| 90119-06421 | ||||
| 90119-06539 | ||||
| 90179-06032 | ||||
| 90179-06115 | ||||
| 90179-06208 | ||||
| 91511-60614 | ||||
| 91635-B0625 | ||||
| 91635-G0614 | ||||
| 91651-B0625 | ||||
| 93385-16025 | ||||
ILLUST NO. 2 OF 2(9608- )
Click highlighted areas on diagram
O-ﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||

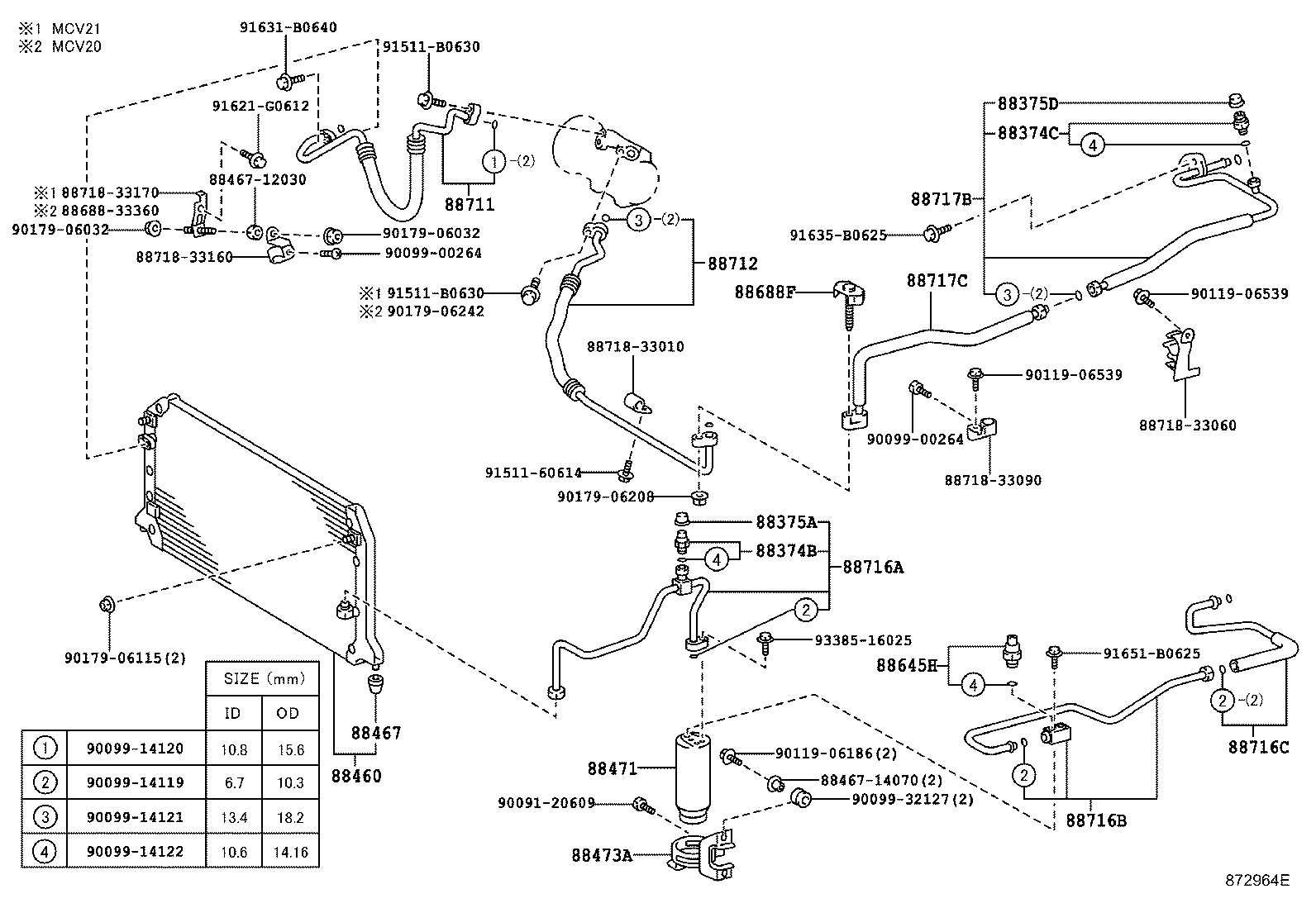

ILLUST NO. 1 OF 2(9705- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
MCV2# |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
MCV2# |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
MCV2# |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
MCV2# |
1 | ||
| 88375-30290 |
MCV21 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0W011 |
MCV2# |
1 | ||
| 88460-0W010 |
MCV2# |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-06020 |
MCV2# |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-20050 |
MCV2# |
1 | ||
| 88473A - HOLDER, RECEIVER | ||||
| 88473-33050 |
MCV2# |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20050 |
MCV2# |
1 | ||
| 88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2 | ||||
| 88688-33240 |
MCV2# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-33111 |
MCV2# |
1 | ||
| 88711-33110 |
MCV2# |
1 | ||
| 88711-33111 |
MCV21 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-33090 |
MCV2# |
1 | ||
| 88712-33091 |
MCV2# |
1 | ||
| 88712-33170 |
MCV21 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-33240 |
MCV2# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-33290 |
MCV2# |
1 | ||
| 88716-33290 |
MCV21 |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-33280 |
MCV2# |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-33170 |
MCV2# |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-33160 |
MCV21 |
1 | ||
| 88717-33160 |
MCV2# |
1 | ||
| Common parts | ||||
| 88467-12030 | ||||
| 88467-14070 | ||||
| 88688-33360 | ||||
| 88718-33010 | ||||
| 88718-33060 | ||||
| 88718-33090 | ||||
| 88718-33160 | ||||
| 88718-33170 | ||||
| 90091-20609 | ||||
| 90099-00264 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90099-32127 | ||||
| 90119-06186 | ||||
| 90119-06539 | ||||
| 90179-06032 | ||||
| 90179-06115 | ||||
| 90179-06208 | ||||
| 90179-06242 | ||||
| 91511-60614 | ||||
| 91511-B0630 | ||||
| 91621-G0612 | ||||
| 91631-B0640 | ||||
| 91635-B0625 | ||||
| 91651-B0625 | ||||
| 93385-16025 | ||||
