MCV21-ATPGK (1996)

Toyota Windom

Production Aug 1996 - Jul 2001
Engine 2MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

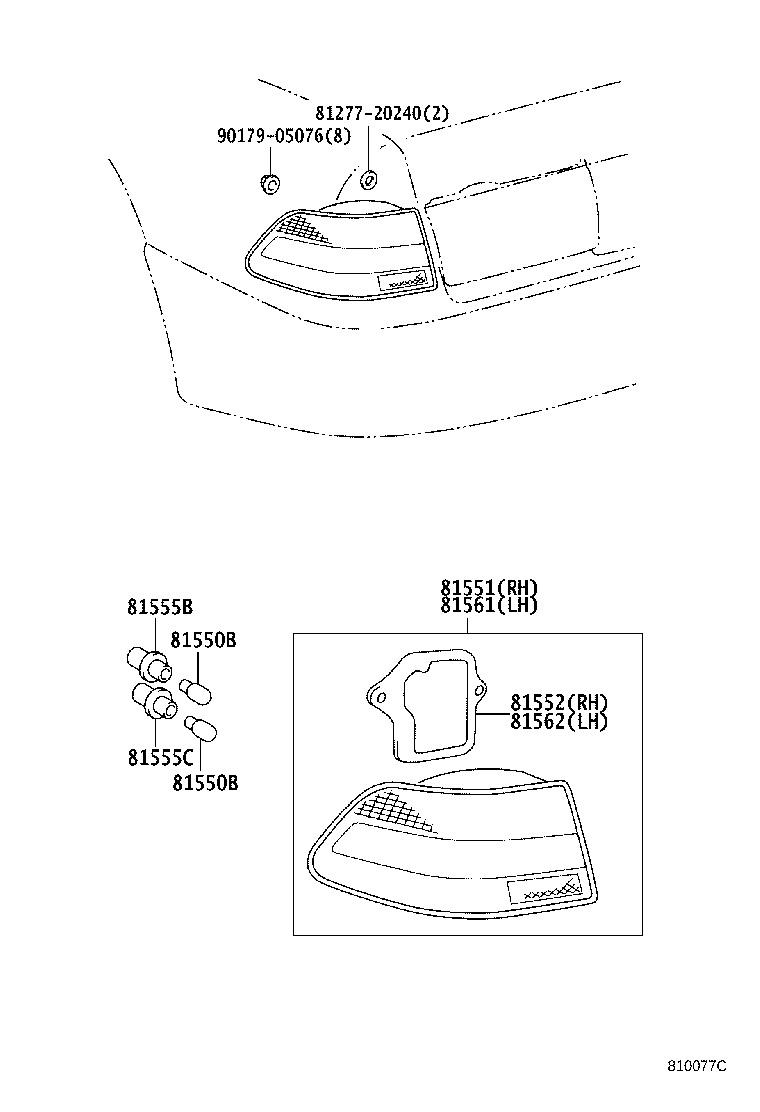

Click highlighted areas on diagram

diagram 8127720240 81550B 81550B 81551 81552 81555B 81555C 81561 81562 9017905076
Part # Description Qty Price
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

MCV2#

12V 21/5W

 2
90981-13043

MCV2#

12V 21W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

MCV2#

12V 21/5W

 2
90981-13043

MCV2#

12V 21W

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-33170

MCV2#

 1
81551-33230

MCV2#

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-33170

MCV2#

 1
81555B - SOCKET PLUG, NO.1
90075-60002

MCV2#

 2
81555C - SOCKET PLUG, NO.2
90075-60003

MCV2#

 2
81561 - LENS, REAR COMBINATION LAMP, LH
81561-33170

MCV2#

 1
81561-33230

MCV2#

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-33170

MCV2#

 1
Common parts
81277-20240
90179-05076
