MCV21-ATPGK (1996)

Toyota Windom

Production Aug 1996 - Jul 2001
Engine 2MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

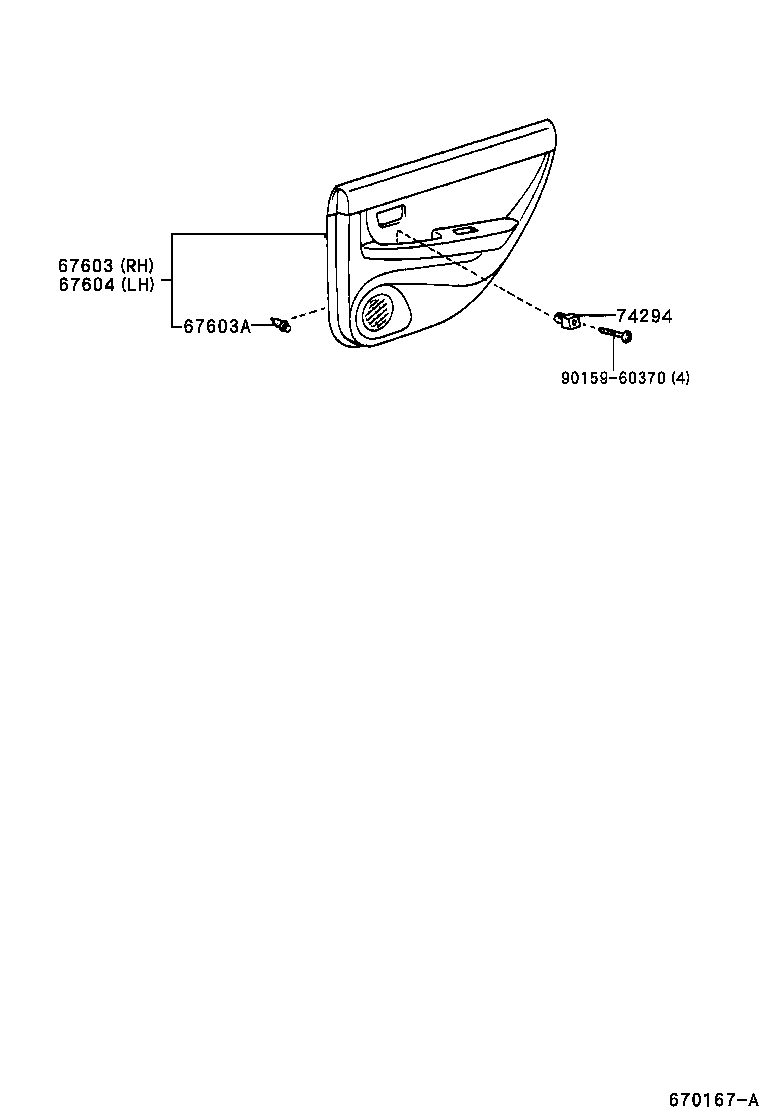

ILLUST NO. 1 OF 2(9608- )

Click highlighted areas on diagram

diagram 67603 67603A 67604 74294 9015960370
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-33380C0

MCV2#

BLACK,TRIM2#

 1
67630-33580A0

MCV2#..25G,30G

ｺｰﾁ ｴﾃﾞｲｼﾖﾝ *(J),IVORY,TRIM01

 1
67630-33390A0

MCV2#

ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0#

 1
67630-33380G0

MCV2#

SAGE,TRIM6#

 1
67630-33390A2

MCV2#..25G,30G,30X

ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0#

 1
67630-33530C2

MCV2#..25G,30G

BLACK,TRIM2#

 1
67630-33530G1

MCV2#

DK.SAGE,TRIM6#

 1
67630-33580C0

MCV2#..25G,30G

ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLACK,TRIM2#

 1
67630-33390C0

MCV2#

ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLACK,TRIM2#

 1
67630-33390G4

MCV2#..25G,30G,30X

ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),DK.SAGE,TRIM6#

 1
67630-33390C4

MCV2#..25G,30G

ｺ-ﾁｴﾃﾞｲｼﾖﾝ *(A) OR ｺ-ﾁｸﾙ-ｼﾞﾝｸﾞｴﾃﾞｲｼﾖﾝ *(B),BLACK,TRIM23

 1
67630-33390G0

MCV2#

ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SAGE,TRIM6#

 1
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-12050

MCV2#

 12
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-33390A0

MCV2#

ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0#

 1
67640-33580A0

MCV2#..25G,30G

ｺｰﾁ ｴﾃﾞｲｼﾖﾝ *(J),IVORY,TRIM01

 1
67640-33390A2

MCV2#..25G,30G,30X

ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0#

 1
67640-33380G0

MCV2#

SAGE,TRIM6#

 1
67640-33390G0

MCV2#

ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SAGE,TRIM6#

 1
67640-33530G1

MCV2#

DK.SAGE,TRIM6#

 1
67640-33390G4

MCV2#..25G,30G,30X

ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),DK.SAGE,TRIM6#

 1
67640-33390C0

MCV2#

ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLACK,TRIM2#

 1
67640-33380C0

MCV2#

BLACK,TRIM2#

 1
67640-33390C4

MCV2#..25G,30G

ｺ-ﾁｴﾃﾞｲｼﾖﾝ *(A) OR ｺ-ﾁｸﾙ-ｼﾞﾝｸﾞｴﾃﾞｲｼﾖﾝ *(B),BLACK,TRIM23

 1
67640-33580C0

MCV2#..25G,30G

ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLACK,TRIM2#

 1
67640-33530C2

MCV2#..25G,30G

BLACK,TRIM2#

 1
74294 - PLATE, REAR DOOR ARMREST, NO.2
74294-32010

MCV2#

 2
Common parts
90159-60370

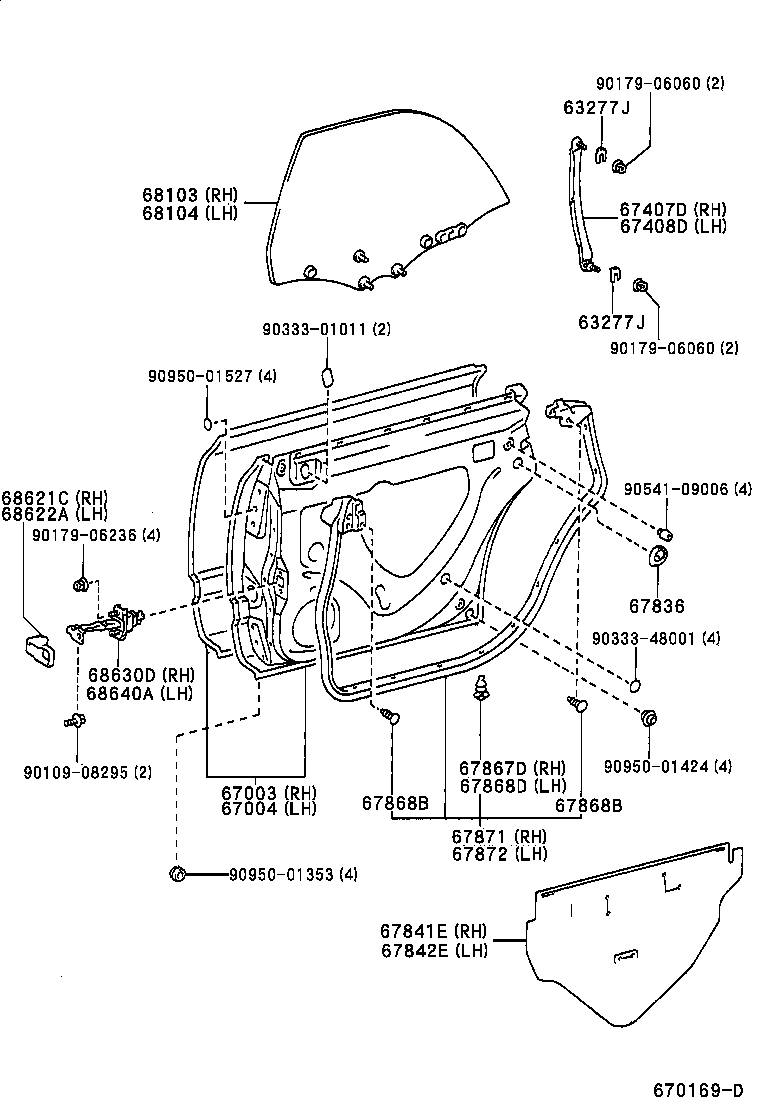

ILLUST NO. 2 OF 2(9608- )

Click highlighted areas on diagram

diagram 63277J 63277J 67003 67004 67407D 67408D 67836 67841E 67842E 67867D 67868B 67868B 67868D 67871 67872 68103 68104 68621C 68622A 68630D 68640A 9010908295 9017906060 9017906060 9017906236 9033301011 9033348001 9054109006 9095001353 9095001424 9095001527
Part # Description Qty Price
63277J - SHIM, REAR DOOR WINDOW GUIDE
63277-20030

MCV2#

厚さ=1.0

 1
63277-20050

MCV2#

厚さ=2.0

 1
63277J - SHIM, REAR DOOR WINDOW GUIDE
63277-20030

MCV2#

厚さ=1.0

 1
63277-20050

MCV2#

厚さ=2.0

 1
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-33080

MCV2#

 1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-33080

MCV2#

 1
67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH
67407-33030

MCV2#

 1
67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH
67408-33030

MCV2#

 1
67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836-33020

MCV2#

 2
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-33040

MCV2#

 1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67842-33040

MCV2#

 1
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-12150

MCV2#

 16
67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)
67869-33010

MCV2#

ﾎﾜｲﾄ

 4
67869-20030

MCV2#

ﾌﾞﾗｯｸ

 6
67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)
67869-33010

MCV2#

ﾎﾜｲﾄ

 4
67869-20030

MCV2#

ﾌﾞﾗｯｸ

 6
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67867-12150

MCV2#

 16
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-33040

MCV2#

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-33040

MCV2#

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68103-33060

MCV2#

*TT,ｸﾞﾘｰﾝ

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68104-33060

MCV2#

*TT,ｸﾞﾘｰﾝ

 1
68621C - COVER, REAR DOOR CHECK, RH
68621-33010

MCV2#

 1
68622A - COVER, REAR DOOR CHECK, LH
68622-33010

MCV2#

 1
68630D - CHECK ASSY, REAR DOOR, RH
68630-33040

MCV2#

 1
68640A - CHECK ASSY, REAR DOOR, LH
68640-33040

MCV2#

 1
Common parts
90109-08295
90179-06060
90179-06236
90333-01011
90333-48001
90541-09006
90950-01353
90950-01424
90950-01527
