MCV21-ATPGK (1996)
Toyota Windom
Production
Aug 1996
-
Jul 2001
Engine
2MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9608- )

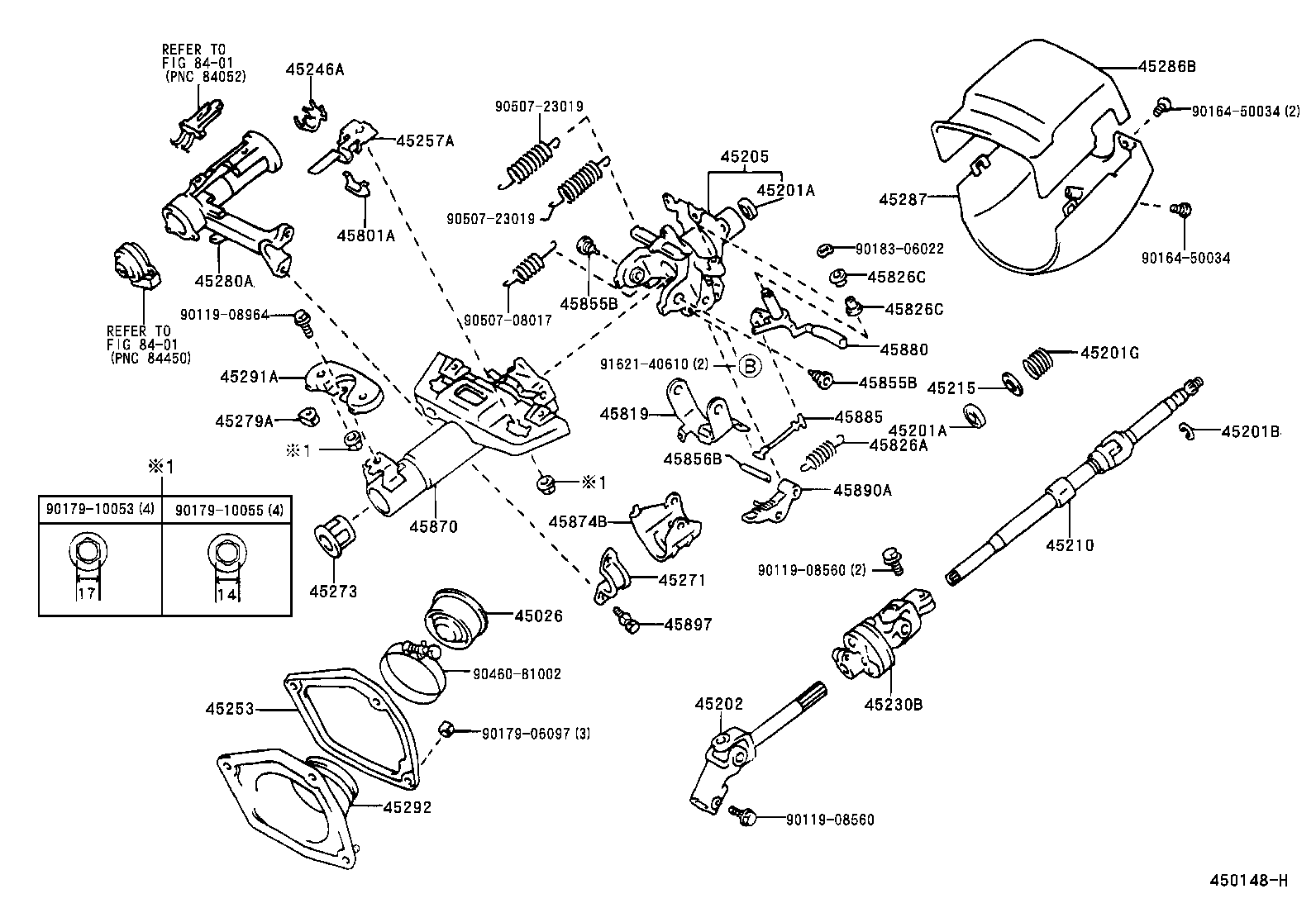

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-33031 |
MCV2# |
1 | ||
| 45026-33030 |
MCV2# |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18005 |
MCV2# |
2 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18005 |
MCV2# |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
MCV2# 厚さ=1.20 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-40017 |
MCV2# |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45202-33020 |
MCV2# |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-33120 |
MCV2# |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-33050 |
MCV2# |
1 | ||
| 45210-33060 |
MCV2# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-12010 |
MCV2# |
1 | ||
| 45230B - JOINT ASSY, STEERING SHAFT UNIVERSAL | ||||
| 45230-33040 |
MCV2# |
1 | ||
| 45246A - GUIDE, STEERING ENERGY ABSORBING PLATE | ||||
| 45246-12110 |
MCV2# |
2 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45253-33040 |
MCV2# |
1 | ||
| 45257A - PLATE, STEERING COLUMN ENERGY ABSORBING | ||||
| 45257-12070 |
MCV2# |
2 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12060 |
MCV2# |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-33030 |
MCV2# |
1 | ||
| 45279A - ATTACHMENT, STEERING COLUMN TUBE, LWR | ||||
| 45279-33030 |
MCV2# |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-33080 |
MCV2# |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-33110C0 |
MCV2#..25G,30G BLACK,TRIM2# |
1 | ||
| 45286-33110E0 |
MCV2#..25G,30G,30X OAK,TRIM0# |
1 | ||
| 45286-33110G0 |
MCV2# DK.SAGE,TRIM6# |
1 | ||
| 45286-33110C0 |
MCV2# BLACK,TRIM2# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-33140G0 |
MCV2# DK.SAGE,TRIM6# |
1 | ||
| 45287-33140C0 |
MCV2# BLACK,TRIM2# |
1 | ||
| 45287-33140C0 |
MCV2#..25G,30G BLACK,TRIM2# |
1 | ||
| 45287-33140E0 |
MCV2#..25G,30G,30X OAK,TRIM0# |
1 | ||
| 45291A - SUPPORT, STEERING COLUMN TUBE | ||||
| 45291-33020 |
MCV2# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-33040 |
MCV2# |
1 | ||
| 45801A - PIN SUB-ASSY, STEERING ENERGY ABSORBING | ||||
| 45875-12010 |
MCV2# |
2 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-33010 |
MCV2# |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90905-07010 |
MCV2# |
1 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90389-08120 |
MCV2# |
2 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90389-08120 |
MCV2# |
2 | ||
| 45855B - SHAFT, T1LT STEERING, NO.1 | ||||
| 45855-26010 |
MCV2# |
2 | ||
| 45855B - SHAFT, T1LT STEERING, NO.1 | ||||
| 45855-26010 |
MCV2# |
2 | ||
| 45856B - SHAFT, T1LT STEERING, NO.2 | ||||
| 45856-26030 |
MCV2# ﾌﾞﾗｯｸ |
1 | ||
| 45856-26010 |
MCV2# ﾎﾜｲﾄ |
1 | ||
| 45856-26020 |
MCV2# ｲｴﾛｰ |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-33200 |
MCV2# |
1 | ||
| 45874B - PROTECTOR, STEERING COLUMN, NO.1 | ||||
| 45874-33030 |
MCV2# |
1 | ||
| 45880 - LEVER ASSY, STEERING TILT | ||||
| 45880-33011 |
MCV2# |
1 | ||
| 45880-33010 |
MCV2# |
1 | ||
| 45885 - LINK, TILT LEVER | ||||
| 45885-35010 |
MCV2# |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-26010 |
MCV2# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
MCV2# |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-08964 | ||||
| 90164-50034 | ||||
| 90179-06097 | ||||
| 90179-10053 | ||||
| 90179-10055 | ||||
| 90183-06022 | ||||
| 90460-81002 | ||||
| 90507-08017 | ||||
| 90507-23019 | ||||
| 91621-40610 | ||||
| Linked diagrams | ||||
| 8401 | ||||
