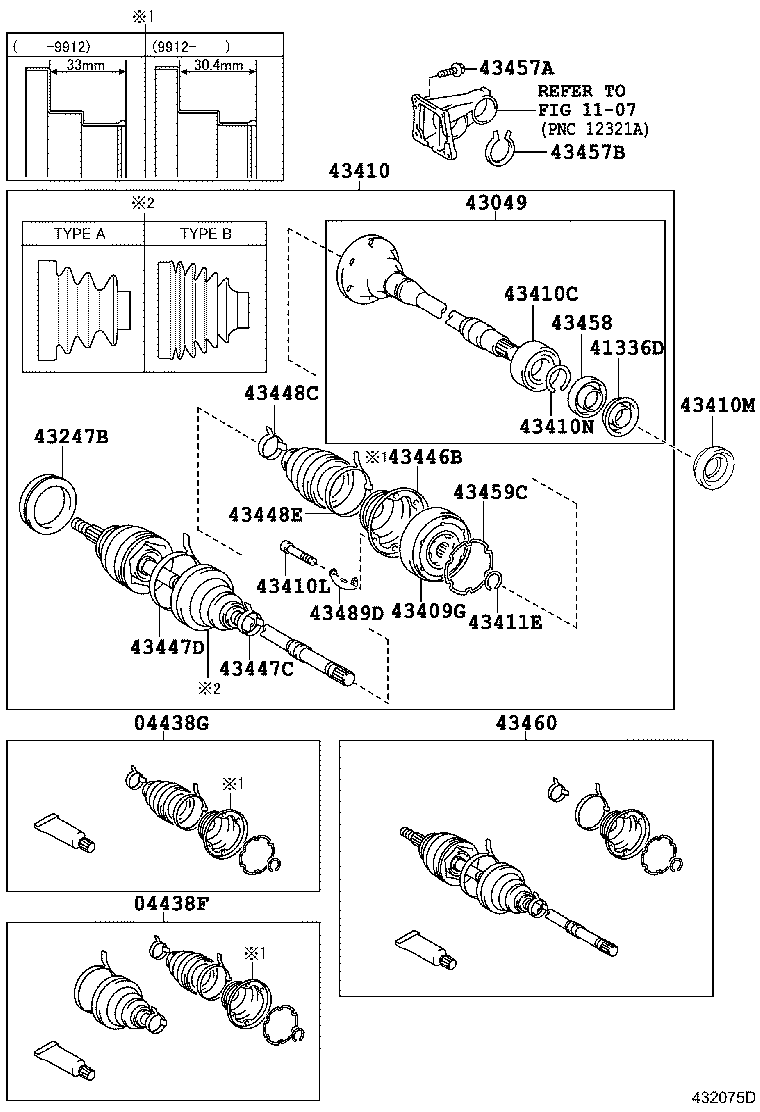

MCV21-ATPGK (1996)
Toyota Windom
(9608- )MCV21
RH,TOYOTA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-48031 |
MCV21 TOYOTA |
1 | ||
| 04438-33021 |
MCV21 TOYOTA,TYPE A |
1 | ||
| 04438-48030 |
MCV21 TOYOTA,TYPE B |
1 | ||
| 04438-06100 |
MCV21 GKN |
1 | ||
| 04438-33090 |
MCV21 TOYOTA |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-33012 |
MCV21 TOYOTA |
1 | ||
| 04438-06090 |
MCV21 GKN |
1 | ||
| 04438-33011 |
MCV21 TOYOTA |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-12020 |
MCV21 TOYOTA |
1 | ||
| 41336-06020 |
MCV21 GKN |
1 | ||
| 43049 - SHAFT SUB-ASSY, FRONT DRIVE FLANGE | ||||
| 43049-33050 |
MCV21 |
1 | ||
| 43049-33020 |
MCV21 |
1 | ||
| 43247B - DEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2 | ||||
| 43247-06010 |
MCV21 GKN |
1 | ||
| 43247-12010 |
MCV21 TOYOTA |
1 | ||
| 43409G - JOINT SUB-ASSY, FRONT DRIVE SHAFT CROSS GROOVE, RH | ||||
| 43409-17010 |
MCV21 |
1 | ||
| 43409-28010 |
MCV21 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-33201 |
MCV21 TOYOTA |
1 | ||
| 43410-33200 |
MCV21 TOYOTA |
1 | ||
| 43410-33150 |
MCV21 TOYOTA |
1 | ||
| 43410-33070 |
MCV21 TOYOTA |
1 | ||
| 43410-33202 |
MCV21 TOYOTA |
1 | ||
| 43410-06170 |
MCV21 GKN |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90369-41001 |
MCV2# |
1 | ||
| 90363-41002 |
MCV2# |
1 | ||
| 43410L - BOLT (FOR FRONT DRIVE SHAFT CROSS GROOVE JOINT RH) | ||||
| 90110-10007 |
MCV21 |
6 | ||
| 90110-10015 |
MCV21 |
6 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-40028 |
MCV21 |
1 | ||
| 90311-40010 |
MCV2# |
1 | ||
| 90311-40010 |
MCV21 |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90080-52013 |
MCV21 GKN |
1 | ||
| 90520-38015 |
MCV21 TOYOTA |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 90520-26028 |
MCV21 |
1 | ||
| 43446B - COVER, FRONT AXLE INBOARD JOINT, RH | ||||
| 43446-28010 |
MCV21 |
1 | ||
| 43446-17010 |
MCV21 |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-06060 |
MCV21 内径=90.9,GKN |
1 | ||
| 42345-48030 |
MCV21 内径=35.0,TOYOTA |
1 | ||
| 42345-16030 |
MCV21 内径=35.75,TOYOTA |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-48040 |
MCV21 内径=101.2,TOYOTA |
1 | ||
| 42345-06070 |
MCV21 内径=29.3,GKN |
1 | ||
| 42345-16070 |
MCV21 TOYOTA |
1 | ||
| 42345-44010 |
MCV21 内径=98.7,TOYOTA |
1 | ||
| 42345-44020 |
MCV21 TOYOTA |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-14010 |
MCV21 TOYOTA |
1 | ||
| 90080-46084 |
MCV21 GKN |
1 | ||
| 90080-46238 |
MCV2# GKN |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90080-46173 |
MCV21 GKN |
1 | ||
| 42345-16100 |
MCV21 TOYOTA |
1 | ||
| 90949-01340 |
MCV21 TOYOTA |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90119-10461 |
MCV2# *10−1.25PX19.8−8.3 |
1 | ||
| 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90521-78002 |
MCV2# |
1 | ||
| 43458 - COVER, FRONT DRIVE SHAFT DUST | ||||
| 43458-06020 |
MCV21 GKN |
1 | ||
| 43458-12010 |
MCV21 TOYOTA |
1 | ||
| 43459C - GASKET, FRONT DRIVE SHAFT CROSS GROOVE JOINT, RH | ||||
| 43459-17010 |
MCV21 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43470-39206 |
MCV21 TOYOTA |
1 | ||
| 43470-39207 |
MCV21 TOYOTA |
1 | ||
| 43470-39209 |
MCV21 TOYOTA |
1 | ||
| 43470-09340 |
MCV21 GKN |
1 | ||
| 43470-39365 |
MCV21 TOYOTA |
1 | ||
| 43470-39366 |
MCV21 TOYOTA |
1 | ||
| 43489D - WASHER, FRONT DRIVE SHAFT CROSS GROOVE JOINT, RH | ||||
| 43489-17010 |
MCV21 |
3 | ||
| Linked diagrams | ||||
| 1107 | ||||

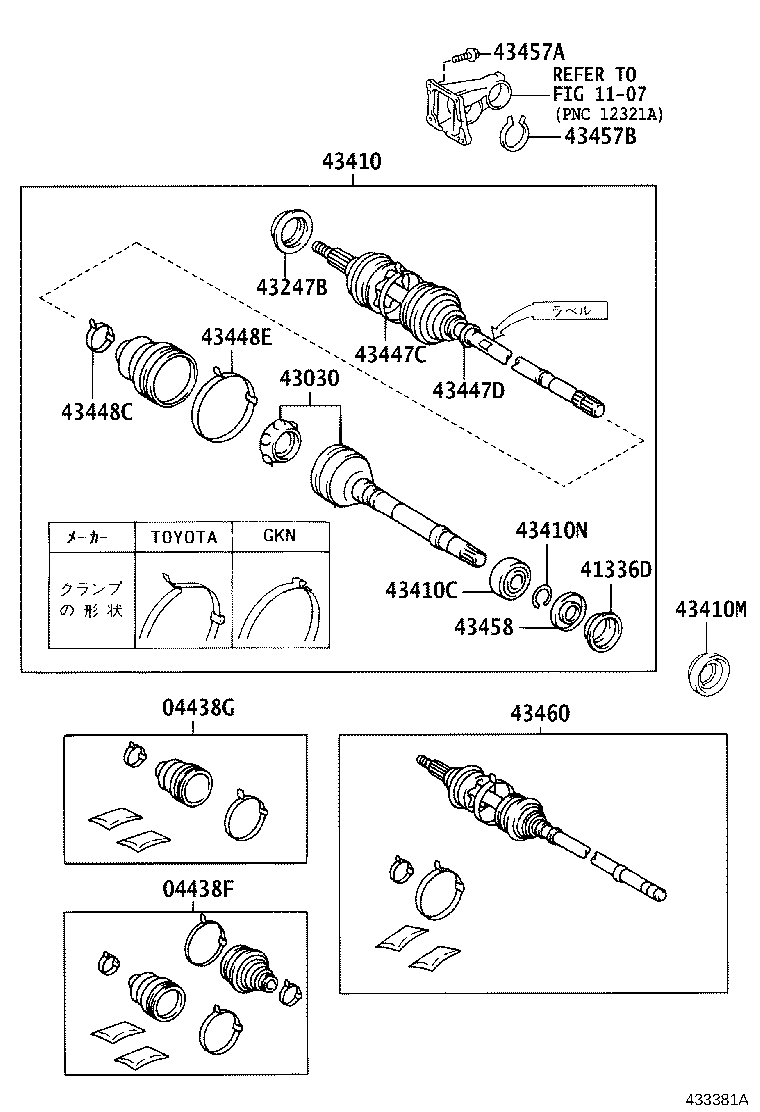

(9608- )
RH,GKN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-48031 |
MCV21 TOYOTA |
1 | ||
| 04438-33021 |
MCV21 TOYOTA,TYPE A |
1 | ||
| 04438-48030 |
MCV21 TOYOTA,TYPE B |
1 | ||
| 04438-06100 |
MCV21 GKN |
1 | ||
| 04438-33090 |
MCV21 TOYOTA |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-33012 |
MCV21 TOYOTA |
1 | ||
| 04438-06090 |
MCV21 GKN |
1 | ||
| 04438-33011 |
MCV21 TOYOTA |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-12020 |
MCV21 TOYOTA |
1 | ||
| 41336-06020 |
MCV21 GKN |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-06040 |
MCV2# |
1 | ||
| 43247B - DEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2 | ||||
| 43247-06010 |
MCV21 GKN |
1 | ||
| 43247-12010 |
MCV21 TOYOTA |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-33201 |
MCV21 TOYOTA |
1 | ||
| 43410-33200 |
MCV21 TOYOTA |
1 | ||
| 43410-33150 |
MCV21 TOYOTA |
1 | ||
| 43410-33070 |
MCV21 TOYOTA |
1 | ||
| 43410-33202 |
MCV21 TOYOTA |
1 | ||
| 43410-06170 |
MCV21 GKN |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90369-41001 |
MCV2# |
1 | ||
| 90363-41002 |
MCV2# |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-40028 |
MCV21 |
1 | ||
| 90311-40010 |
MCV2# |
1 | ||
| 90311-40010 |
MCV21 |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90080-52013 |
MCV21 GKN |
1 | ||
| 90520-38015 |
MCV21 TOYOTA |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-06060 |
MCV21 内径=90.9,GKN |
1 | ||
| 42345-48030 |
MCV21 内径=35.0,TOYOTA |
1 | ||
| 42345-16030 |
MCV21 内径=35.75,TOYOTA |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-48040 |
MCV21 内径=101.2,TOYOTA |
1 | ||
| 42345-06070 |
MCV21 内径=29.3,GKN |
1 | ||
| 42345-16070 |
MCV21 TOYOTA |
1 | ||
| 42345-44010 |
MCV21 内径=98.7,TOYOTA |
1 | ||
| 42345-44020 |
MCV21 TOYOTA |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-14010 |
MCV21 TOYOTA |
1 | ||
| 90080-46084 |
MCV21 GKN |
1 | ||
| 90080-46238 |
MCV2# GKN |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90080-46173 |
MCV21 GKN |
1 | ||
| 42345-16100 |
MCV21 TOYOTA |
1 | ||
| 90949-01340 |
MCV21 TOYOTA |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90119-10461 |
MCV2# *10−1.25PX19.8−8.3 |
1 | ||
| 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90521-78002 |
MCV2# |
1 | ||
| 43458 - COVER, FRONT DRIVE SHAFT DUST | ||||
| 43458-06020 |
MCV21 GKN |
1 | ||
| 43458-12010 |
MCV21 TOYOTA |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43470-39206 |
MCV21 TOYOTA |
1 | ||
| 43470-39207 |
MCV21 TOYOTA |
1 | ||
| 43470-39209 |
MCV21 TOYOTA |
1 | ||
| 43470-09340 |
MCV21 GKN |
1 | ||
| 43470-39365 |
MCV21 TOYOTA |
1 | ||
| 43470-39366 |
MCV21 TOYOTA |
1 | ||
| Linked diagrams | ||||
| 1107 | ||||

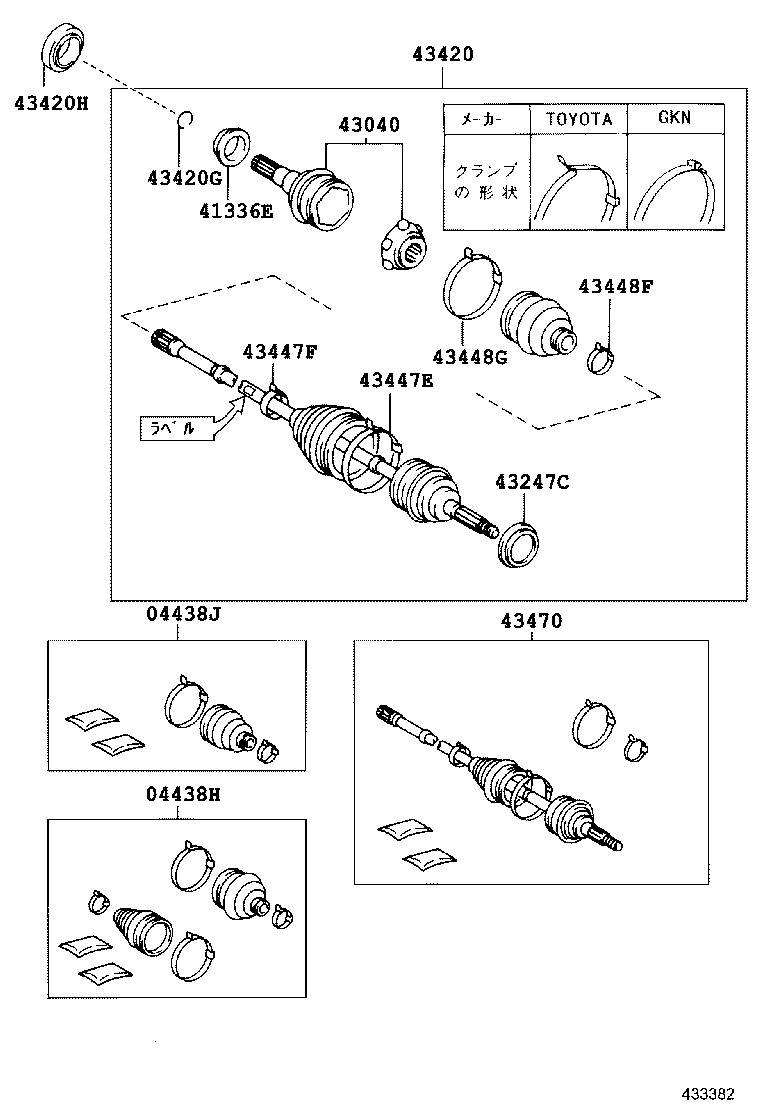

(9608- )
LH,GKN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-33021 |
MCV21 TOYOTA,TYPE A |
1 | ||
| 04438-48031 |
MCV21 TOYOTA |
1 | ||
| 04438-06100 |
MCV21 GKN |
1 | ||
| 04438-48030 |
MCV21 TOYOTA,TYPE B |
1 | ||
| 04438-33090 |
MCV21 TOYOTA |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-06090 |
MCV21 GKN |
1 | ||
| 04438-33011 |
MCV21 TOYOTA |
1 | ||
| 04438-33012 |
MCV21 TOYOTA |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-06040 |
MCV21 GKN |
1 | ||
| 41336-17020 |
MCV21 TOYOTA |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-06050 |
MCV2# |
1 | ||
| 43247C - DEFLECTOR, FRONT WHEEL BEARING DUST, LH NO.2 | ||||
| 43247-06010 |
MCV21 GKN |
1 | ||
| 43247-12010 |
MCV21 TOYOTA |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-33180 |
MCV21 TOYOTA |
1 | ||
| 43420-48041 |
MCV21 TOYOTA |
1 | ||
| 43420-06170 |
MCV21 GKN |
1 | ||
| 43420-33181 |
MCV21 TOYOTA |
1 | ||
| 43420-33140 |
MCV21 TOYOTA |
1 | ||
| 43420-33070 |
MCV21 TOYOTA |
1 | ||
| 43420-48042 |
MCV21 TOYOTA |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90080-52017 |
MCV21 GKN |
1 | ||
| 90521-33002 |
MCV21 TOYOTA |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-50011 |
MCV2# |
1 | ||
| 90311-50029 |
MCV21 |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-16030 |
MCV21 内径=35.75,TOYOTA |
1 | ||
| 42345-48030 |
MCV21 内径=35.0,TOYOTA |
1 | ||
| 42345-06060 |
MCV21 内径=90.9,GKN |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-16070 |
MCV21 TOYOTA |
1 | ||
| 42345-06070 |
MCV21 内径=29.3,GKN |
1 | ||
| 42345-44020 |
MCV21 TOYOTA |
1 | ||
| 42345-44010 |
MCV21 内径=98.7,TOYOTA |
1 | ||
| 42345-48040 |
MCV21 内径=101.2,TOYOTA |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90080-46238 |
MCV2# GKN |
1 | ||
| 42345-14010 |
MCV21 TOYOTA |
1 | ||
| 90080-46084 |
MCV21 GKN |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90080-46173 |
MCV21 GKN |
1 | ||
| 90949-01340 |
MCV21 TOYOTA |
1 | ||
| 42345-16100 |
MCV21 TOYOTA |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-09340 |
MCV21 GKN |
1 | ||
| 43470-39365 |
MCV21 TOYOTA |
1 | ||
| 43470-39206 |
MCV21 TOYOTA |
1 | ||
| 43470-39207 |
MCV21 TOYOTA |
1 | ||
| 43470-39209 |
MCV21 TOYOTA |
1 | ||
| 43470-39366 |
MCV21 TOYOTA |
1 | ||

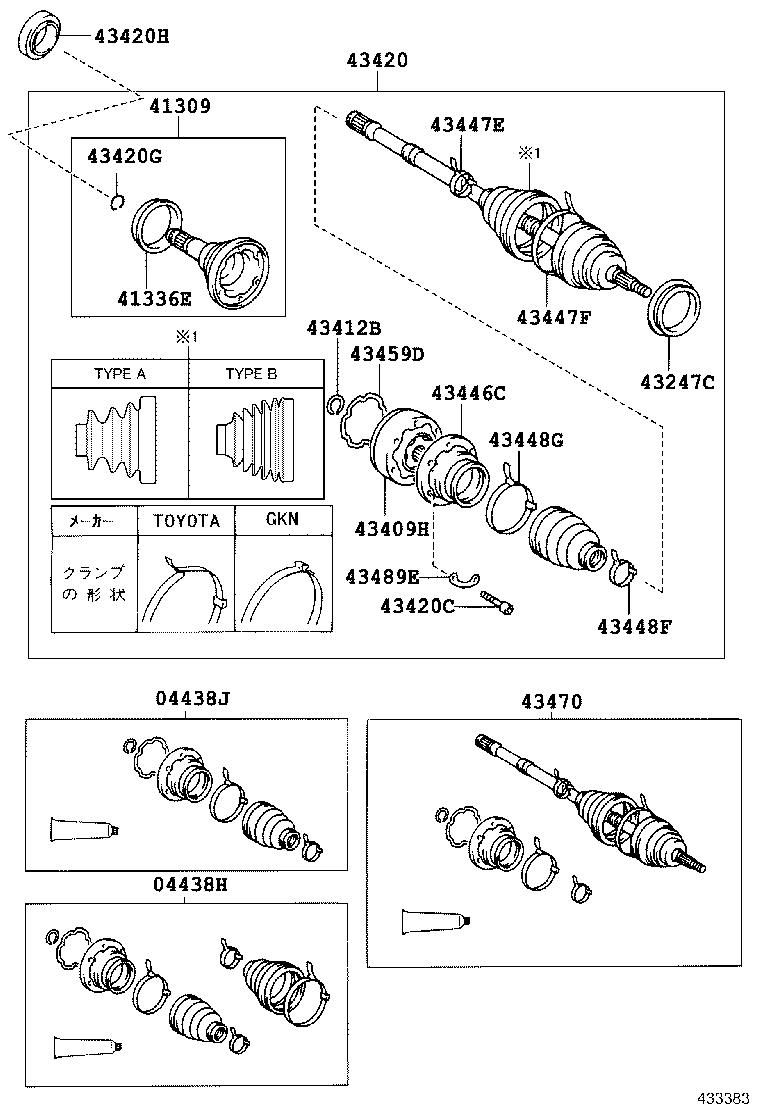

(9608- )MCV21
LH,TOYOTA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-33021 |
MCV21 TOYOTA,TYPE A |
1 | ||
| 04438-48031 |
MCV21 TOYOTA |
1 | ||
| 04438-06100 |
MCV21 GKN |
1 | ||
| 04438-48030 |
MCV21 TOYOTA,TYPE B |
1 | ||
| 04438-33090 |
MCV21 TOYOTA |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-06090 |
MCV21 GKN |
1 | ||
| 04438-33011 |
MCV21 TOYOTA |
1 | ||
| 04438-33012 |
MCV21 TOYOTA |
1 | ||
| 41309 - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH | ||||
| 41309-33010 |
MCV21 |
1 | ||
| 41309-28030 |
MCV21 |
1 | ||
| 41309-33030 |
MCV21 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-06040 |
MCV21 GKN |
1 | ||
| 41336-17020 |
MCV21 TOYOTA |
1 | ||
| 43247C - DEFLECTOR, FRONT WHEEL BEARING DUST, LH NO.2 | ||||
| 43247-06010 |
MCV21 GKN |
1 | ||
| 43247-12010 |
MCV21 TOYOTA |
1 | ||
| 43409H - JOINT SUB-ASSY, FRONT DRIVE SHAFT CROSS GROOVE, LH | ||||
| 43409-28010 |
MCV21 |
1 | ||
| 43409-17010 |
MCV21 |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 90520-26028 |
MCV21 |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-33180 |
MCV21 TOYOTA |
1 | ||
| 43420-48041 |
MCV21 TOYOTA |
1 | ||
| 43420-06170 |
MCV21 GKN |
1 | ||
| 43420-33181 |
MCV21 TOYOTA |
1 | ||
| 43420-33140 |
MCV21 TOYOTA |
1 | ||
| 43420-33070 |
MCV21 TOYOTA |
1 | ||
| 43420-48042 |
MCV21 TOYOTA |
1 | ||
| 43420C - BOLT (FOR FRONT DRIVE SHAFT CROSS GROOVE JOINT LH) | ||||
| 90110-10007 |
MCV21 |
6 | ||
| 90110-10015 |
MCV21 |
6 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90080-52017 |
MCV21 GKN |
1 | ||
| 90521-33002 |
MCV21 TOYOTA |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-50011 |
MCV2# |
1 | ||
| 90311-50029 |
MCV21 |
1 | ||
| 43446C - COVER, FRONT AXLE INBOARD JOINT, LH | ||||
| 43446-17010 |
MCV21 |
1 | ||
| 43446-28010 |
MCV21 |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-16030 |
MCV21 内径=35.75,TOYOTA |
1 | ||
| 42345-48030 |
MCV21 内径=35.0,TOYOTA |
1 | ||
| 42345-06060 |
MCV21 内径=90.9,GKN |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-16070 |
MCV21 TOYOTA |
1 | ||
| 42345-06070 |
MCV21 内径=29.3,GKN |
1 | ||
| 42345-44020 |
MCV21 TOYOTA |
1 | ||
| 42345-44010 |
MCV21 内径=98.7,TOYOTA |
1 | ||
| 42345-48040 |
MCV21 内径=101.2,TOYOTA |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90080-46238 |
MCV2# GKN |
1 | ||
| 42345-14010 |
MCV21 TOYOTA |
1 | ||
| 90080-46084 |
MCV21 GKN |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90080-46173 |
MCV21 GKN |
1 | ||
| 90949-01340 |
MCV21 TOYOTA |
1 | ||
| 42345-16100 |
MCV21 TOYOTA |
1 | ||
| 43459D - GASKET, FRONT DRIVE SHAFT CROSS GROOVE JOINT, LH | ||||
| 43459-17010 |
MCV21 |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-09340 |
MCV21 GKN |
1 | ||
| 43470-39365 |
MCV21 TOYOTA |
1 | ||
| 43470-39206 |
MCV21 TOYOTA |
1 | ||
| 43470-39207 |
MCV21 TOYOTA |
1 | ||
| 43470-39209 |
MCV21 TOYOTA |
1 | ||
| 43470-39366 |
MCV21 TOYOTA |
1 | ||
| 43489E - WASHER, FRONT DRIVE SHAFT CROSS GROOVE JOINT, LH | ||||
| 43489-17010 |
MCV21 |
3 | ||
Part Price Details
Loading price information...
Part Number:
Price:
