MCV20-ATPNK (1996)
Toyota Windom
Production
Aug 1996
-
Jul 2001
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9608- )

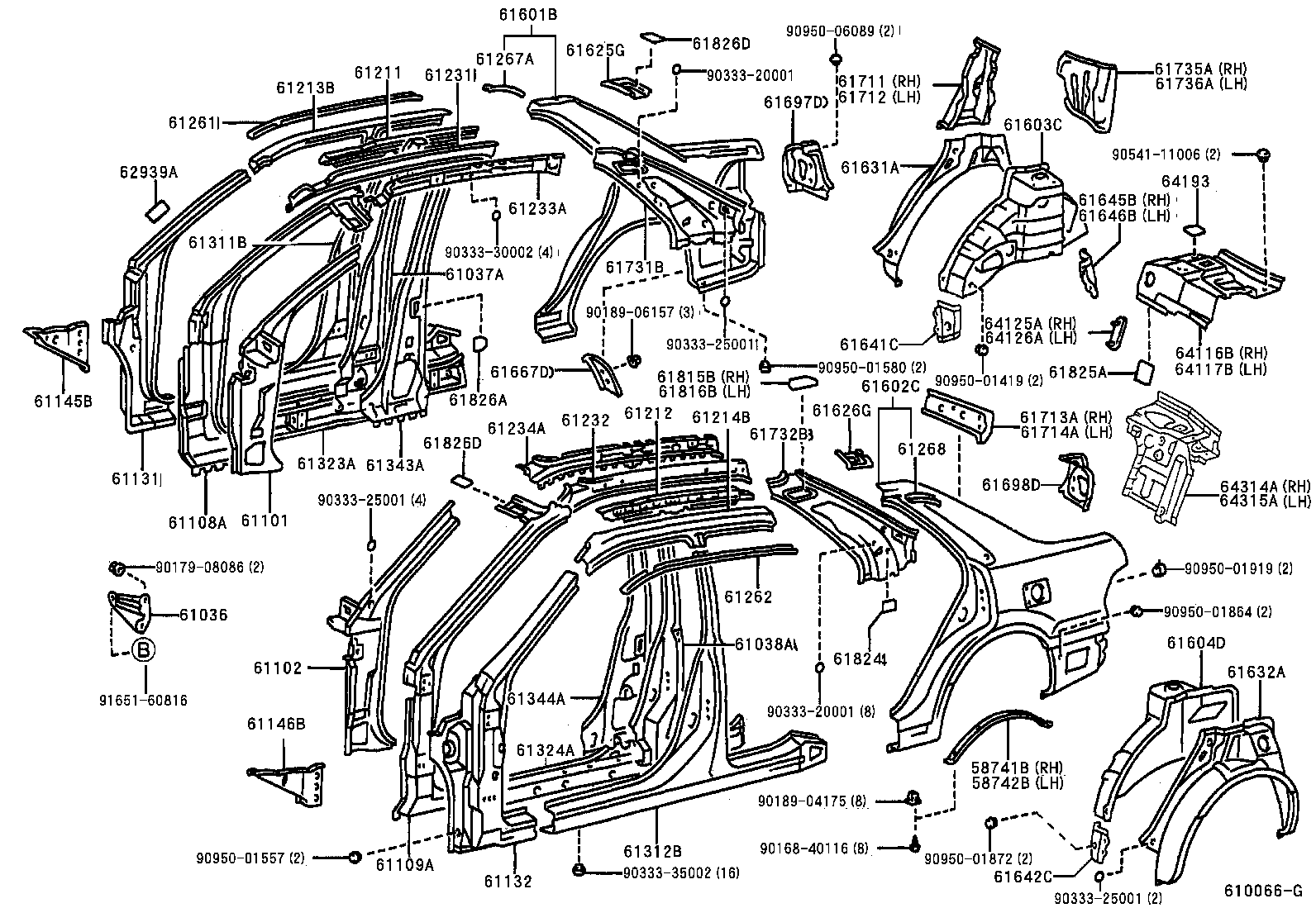

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-33020 |
MCV2# |
1 | ||
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-33020 |
MCV2# |
1 | ||
| 61036 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH | ||||
| 61166-33020 |
MCV2# |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-33110 |
MCV2# |
1 | ||
| 61037-33120 |
MCV2# |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-33120 |
MCV2# |
1 | ||
| 61038-33110 |
MCV2# |
1 | ||
| 61101 - PANEL SUB-ASSY, COWL SIDE, RH | ||||
| 61101-33051 |
MCV2# |
1 | ||
| 61101-33050 |
MCV2# |
1 | ||
| 61102 - PANEL SUB-ASSY, COWL SIDE, LH | ||||
| 61102-33060 |
MCV2# |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-33905 |
MCV2# |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-33905 |
MCV2# |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-33030 |
MCV2# |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-33030 |
MCV2# |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61145-33020 |
MCV2# |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61146-33020 |
MCV2# |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-33010 |
MCV2# |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-33010 |
MCV2# |
1 | ||
| 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH | ||||
| 61213-33030 |
MCV2# |
1 | ||
| 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH | ||||
| 61214-33030 |
MCV2# |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-33040 |
MCV2# |
1 | ||
| 61231-33041 |
MCV2# |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-33040 |
MCV2# |
1 | ||
| 61232-33041 |
MCV2# |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61233-33031 |
MCV2# |
1 | ||
| 61233-33030 |
MCV2# |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-33031 |
MCV2# |
1 | ||
| 61234-33030 |
MCV2# |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-33020 |
MCV2# |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-33020 |
MCV2# |
1 | ||
| 61267A - CHANNEL, ROOF DRIP SIDE, REAR RH | ||||
| 61267-33030 |
MCV2# |
1 | ||
| 61268 - CHANNEL, ROOF DRIP SIDE, REAR LH | ||||
| 61268-33030 |
MCV2# |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-33020 |
MCV2# |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-33020 |
MCV2# |
1 | ||
| 61323A - REINFORCEMENT, CENTER BODY PILLAR, LOWER RH | ||||
| 61305-33010 |
MCV2# |
1 | ||
| 61324A - REINFORCEMENT, CENTER BODY PILLAR, LOWER LH | ||||
| 61306-33010 |
MCV2# |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-33901 |
MCV2# |
1 | ||
| 61343-33902 |
MCV2# |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-33902 |
MCV2# |
1 | ||
| 61344-33901 |
MCV2# |
1 | ||
| 61601B - PANEL SUB-ASSY, QUARTER, RH | ||||
| 61601-33913 |
MCV2# |
1 | ||
| 61602C - PANEL SUB-ASSY, QUARTER, LH | ||||
| 61602-33906 |
MCV2# |
1 | ||
| 61603C - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH | ||||
| 61607-33902 |
MCV2# |
1 | ||
| 61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61608-33902 |
MCV2# |
1 | ||
| 61625G - EXTENSION, QUARTER PANEL, REAR RH | ||||
| 61625-33030 |
MCV2# |
1 | ||
| 61626G - EXTENSION, QUARTER PANEL, REAR LH | ||||
| 61626-33030 |
MCV2# |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-33902 |
MCV2# |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-33902 |
MCV2# |
1 | ||
| 61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH | ||||
| 61641-33010 |
MCV2# |
1 | ||
| 61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH | ||||
| 61642-33010 |
MCV2# |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-33010 |
MCV2# |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-33010 |
MCV2# |
1 | ||
| 61667D - SEAL, QUARTER PANEL | ||||
| 61667-33040 |
MCV2# |
1 | ||
| 61697D - HOUSING, QUARTER PANEL END, RH | ||||
| 61697-33901 |
MCV2# |
1 | ||
| 61698D - HOUSING, QUARTER PANEL END, LH | ||||
| 61698-33901 |
MCV2# |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-33030 |
MCV2# |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-33030 |
MCV2# |
1 | ||
| 61713A - EXTENSION, ROOF SIDE, OUTER RH | ||||
| 61713-33010 |
MCV2# |
1 | ||
| 61714A - EXTENSION, ROOF SIDE, OUTER LH | ||||
| 61714-33010 |
MCV2# |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-33070 |
MCV2# |
1 | ||
| 61731-33071 |
MCV2# |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-33060 |
MCV2# |
1 | ||
| 61732-33061 |
MCV2# |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-33020 |
MCV2# |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-33020 |
MCV2# |
1 | ||
| 61815B - COVER, ROOF SIDE, INNER UPPER RH | ||||
| 61815-33020 |
MCV2# |
1 | ||
| 61816B - COVER, ROOF SIDE, INNER UPPER LH | ||||
| 61816-33020 |
MCV2# |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-20100 |
MCV2# |
14 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61824-30030 |
MCV2# |
2 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61825-12010 |
MCV2# |
4 | ||
| 61825-12010 |
MCV2# |
2 | ||
| 61826-33010 |
MCV2# |
2 | ||
| 61826D - PLATE, NOISE CONTROL, NO.3 | ||||
| 61825-12010 |
MCV2# |
2 | ||
| 61825-12010 |
MCV2# |
4 | ||
| 61826D - PLATE, NOISE CONTROL, NO.3 | ||||
| 61825-12010 |
MCV2# |
2 | ||
| 61825-12010 |
MCV2# |
4 | ||
| 62939A - SILENCER, QUARTER VENT | ||||
| 62939-32020 |
MCV2# |
1 | ||
| 62939-32020 |
MCV2# |
7 | ||
| 64116B - REINFORCEMENT, UPPER BACK, RH | ||||
| 64116-33040 |
MCV2# |
1 | ||
| 64117B - REINFORCEMENT, UPPER BACK, LH | ||||
| 64117-33040 |
MCV2# |
1 | ||
| 64125A - BRACKET, UPPER BACK PANEL, RH | ||||
| 64317-33050 |
MCV2# |
1 | ||
| 64126A - BRACKET, UPPER BACK PANEL, LH | ||||
| 64317-33050 |
MCV2# |
1 | ||
| 64193 - PAD, BACK PANEL SILENCER | ||||
| 64193-33010 |
MCV2# |
2 | ||
| 64314A - REINFORCEMENT, PACKAGE TRAY BRACKET, RH | ||||
| 64304-33900 |
MCV2# |
1 | ||
| 64315A - REINFORCEMENT, PACKAGE TRAY BRACKET, LH | ||||
| 64305-33900 |
MCV2# |
1 | ||
| Common parts | ||||
| 90168-40116 | ||||
| 90179-08086 | ||||
| 90189-04175 | ||||
| 90189-06157 | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90333-30002 | ||||
| 90333-35002 | ||||
| 90541-11006 | ||||
| 90950-01419 | ||||
| 90950-01557 | ||||
| 90950-01580 | ||||
| 90950-01864 | ||||
| 90950-01872 | ||||
| 90950-01919 | ||||
| 90950-06089 | ||||
| 91651-60816 | ||||
