ZZE129-AHPNK (2001)

Toyota Will Vs

Production Apr 2001 - Apr 2004
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0104- )

Click highlighted areas on diagram

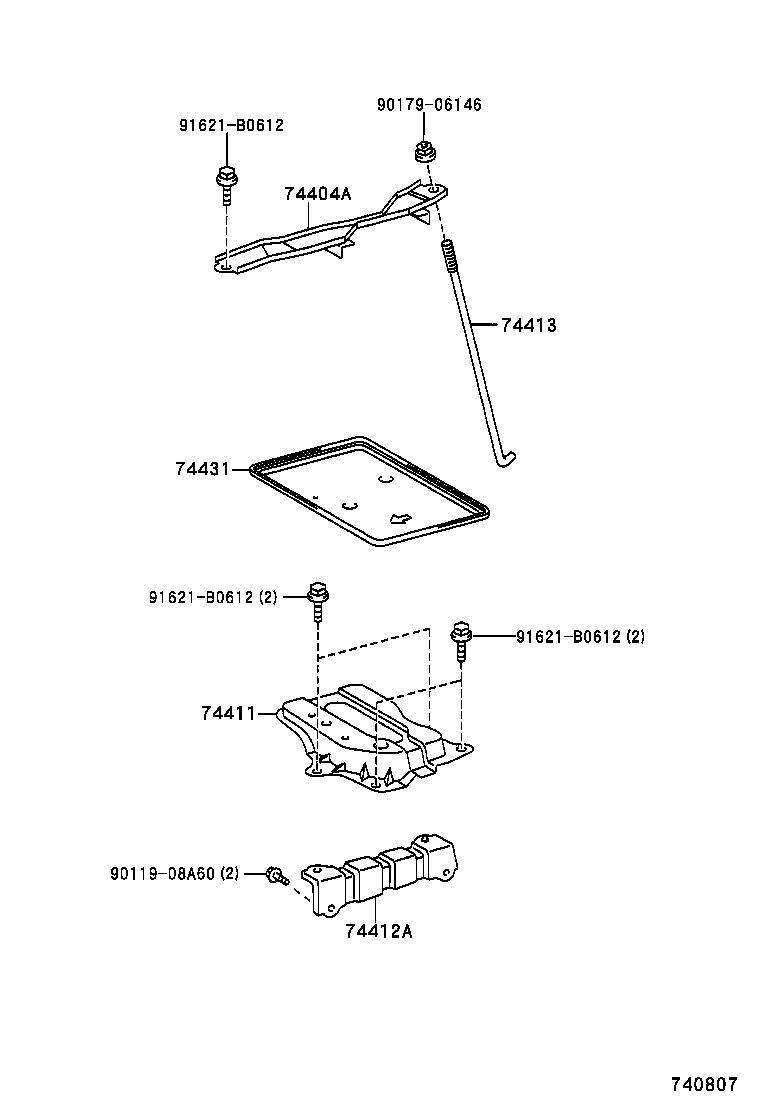

diagram 74404A 74411 74412A 74413 74431 9011908A60 9017906146 91621B0612 91621B0612 91621B0612
Part # Description Qty Price
74404A - CLAMP SUB-ASSY, BATTERY
74404-12400

NZE127,ZZE12#

ｱﾘ(ﾊﾞﾂﾃﾘ=34B19L)

 1
74404-12410

NZE127,ZZE12#

ｱﾘ(ﾊﾞﾂﾃﾘ=32B24L OR 46B24L)

 1
74411 - CARRIER, BATTERY
74411-12140

NZE127,ZZE12#

 1
74412A - CARRIER, BATTERY, NO.2
74412-12020

NZE127,ZZE12#

 1
74413 - BOLT, BATTERY CLAMP
74451-12130

NZE127,ZZE12#

 1
74431 - TRAY, BATTERY
74431-12020

NZE127,ZZE12#

ｱﾘ(ﾊﾞﾂﾃﾘ=34B19L)

 1
74431-12060

NZE127,ZZE12#

ｱﾘ(ﾊﾞﾂﾃﾘ=32B24L OR 46B24L)

 1
Common parts
90119-08A60
90179-06146
91621-B0612
