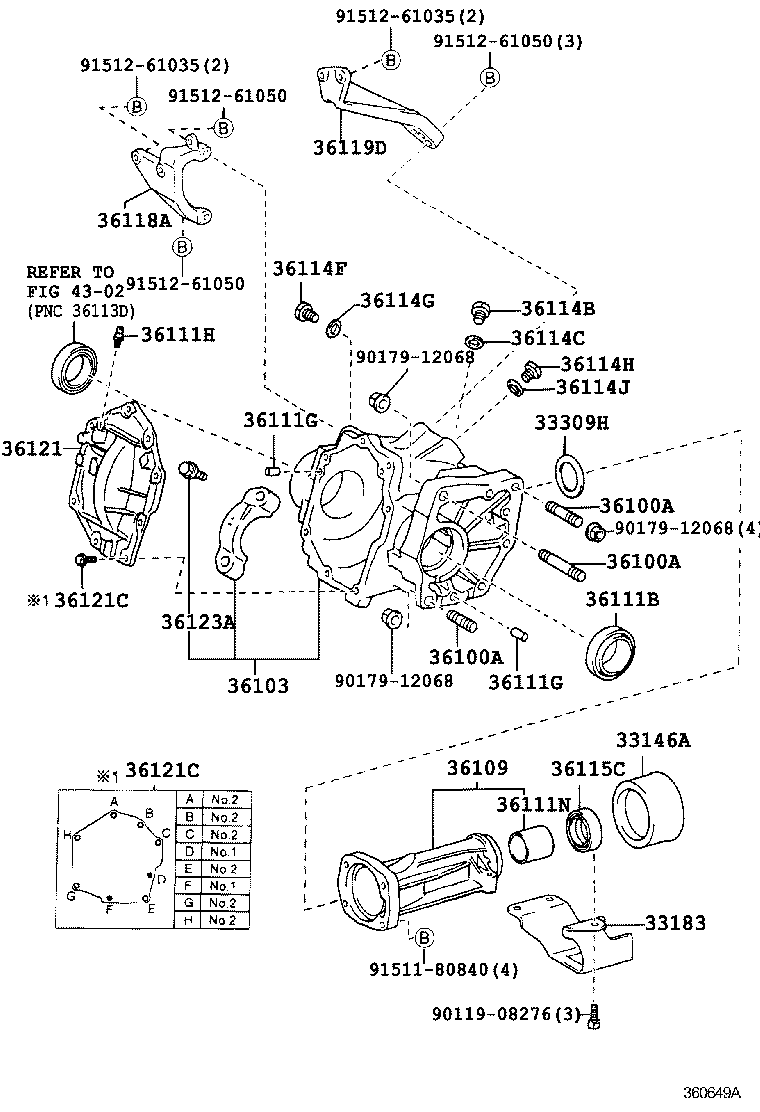

Toyota Will vs ZZE129 TRANSFER CASE & EXTENSION HOUSING

Part #	Description	Period	Qty
33146A - DEFLECTOR, TRANSFER EXTENSION HOUSING DUST
33146-30020	ZZE129	05/2001 - 04/2004	1
33146-30010	ZZE129	04/2001 - 05/2001	1
33183 - DAMPER, TRANSFER DYNAMIC
33183-21020	ZZE129	04/2001 - 12/2999	1
33309H - WASHER, TRANSFER OUTPUT SHAFT
36275-33090	ZZE129 厚さ=2.18,ﾏｰｸ CC	04/2001 - 04/2004	1
36275-33070	ZZE129 厚さ=2.16,ﾏｰｸ CA	04/2001 - 04/2004	1
36275-33110	ZZE129 厚さ=2.20,ﾏｰｸ DB	04/2001 - 04/2004	1
36275-33150	ZZE129 厚さ=2.24,ﾏｰｸ EC	04/2001 - 04/2004	1
36275-33010	ZZE129 厚さ=2.10,ﾏｰｸ AA	04/2001 - 04/2004	1
36275-33130	ZZE129 厚さ=2.22,ﾏｰｸ EA	04/2001 - 04/2004	1
36275-33170	ZZE129 厚さ=2.26,ﾏｰｸ FB	04/2001 - 04/2004	1
36275-33210	ZZE129 厚さ=2.30,ﾏｰｸ GC	04/2001 - 04/2004	1
36275-33030	ZZE129 厚さ=2.12,ﾏｰｸ AC	04/2001 - 04/2004	1
36275-33330	ZZE129 厚さ=2.42,ﾏｰｸ LC	04/2001 - 04/2004	1
36275-33050	ZZE129 厚さ=2.14,ﾏｰｸ BB	04/2001 - 04/2004	1
36275-33250	ZZE129 厚さ=2.34,ﾏｰｸ JA	04/2001 - 04/2004	1
36275-33310	ZZE129 厚さ=2.40,ﾏｰｸ LA	04/2001 - 04/2004	1
36275-33290	ZZE129 厚さ=2.38,ﾏｰｸ KB	04/2001 - 04/2004	1
36275-33370	ZZE129 厚さ=2.46,ﾏｰｸ NA	04/2001 - 04/2004	1
36275-33190	ZZE129 厚さ=2.28,ﾏｰｸ GA	04/2001 - 04/2004	1
36275-33230	ZZE129 厚さ=2.32,ﾏｰｸ HB	04/2001 - 04/2004	1
36275-33270	ZZE129 厚さ=2.36,ﾏｰｸ JC	04/2001 - 04/2004	1
36275-33390	ZZE129 厚さ=2.48,ﾏｰｸ NC	04/2001 - 04/2004	1
36275-33430	ZZE129 厚さ=2.52,ﾏｰｸ QA	04/2001 - 04/2004	1
36275-33410	ZZE129 厚さ=2.50,ﾏｰｸ PB	04/2001 - 04/2004	1
36275-33450	ZZE129 厚さ=2.54,ﾏｰｸ QC	04/2001 - 04/2004	1
36275-33350	ZZE129 厚さ=2.44,ﾏｰｸ MB	04/2001 - 04/2004	1
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12028	ZZE129 ﾈｼﾞ部長さ=22 & 22,長さ=69	04/2001 - 04/2004	1
90116-12041	ZZE129 ﾈｼﾞ部長さ=30 & 22,長さ=64	04/2001 - 04/2004	4
90116-12034	ZZE129 ﾈｼﾞ部長さ=19 & 19,長さ=47	04/2001 - 04/2004	1
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12028	ZZE129 ﾈｼﾞ部長さ=22 & 22,長さ=69	04/2001 - 04/2004	1
90116-12041	ZZE129 ﾈｼﾞ部長さ=30 & 22,長さ=64	04/2001 - 04/2004	4
90116-12034	ZZE129 ﾈｼﾞ部長さ=19 & 19,長さ=47	04/2001 - 04/2004	1
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12028	ZZE129 ﾈｼﾞ部長さ=22 & 22,長さ=69	04/2001 - 04/2004	1
90116-12041	ZZE129 ﾈｼﾞ部長さ=30 & 22,長さ=64	04/2001 - 04/2004	4
90116-12034	ZZE129 ﾈｼﾞ部長さ=19 & 19,長さ=47	04/2001 - 04/2004	1
36103 - CASE SUB-ASSY, TRANSFER
36103-21010	ZZE129	04/2001 - 04/2004	1
36109 - HOUSING SUB-ASSY, TRANSFER EXTENSION
36109-33010	ZZE129	04/2001 - 04/2004	1
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-49001	ZZE129	04/2001 - 04/2004	1
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10017	ZZE129 長さ=20,外径=10	04/2001 - 04/2004	2
90250-08030	ZZE129 長さ=16,外径=8	04/2001 - 04/2004	2
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10017	ZZE129 長さ=20,外径=10	04/2001 - 04/2004	2
90250-08030	ZZE129 長さ=16,外径=8	04/2001 - 04/2004	2
36111H - PLUG, BREATHER (FOR TRANSFER CASE)
90930-03133	ZZE129	04/2001 - 04/2004	1
36111N - BUSH (FOR TRANSFER CASE)
90999-73105	ZZE129	04/2001 - 04/2004	1
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-18045	ZZE129	04/2001 - 04/2004	1
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
12157-10010	ZZE129	04/2001 - 04/2004	1
36114F - PLUG (FOR TRANSFER DRAIN)
90341-18057	ZZE129	04/2001 - 04/2004	1
36114G - GASKET (FOR TRANSFER DRAIN PLUG)
12157-10010	ZZE129	04/2001 - 04/2004	1
36114H - PLUG, NO.2 (FOR TRANSFER CASE)
90341-18006	ZZE129	04/2001 - 04/2004	1
36114J - GASKET, NO.2 (FOR TRANSFER CASE)
12157-10010	ZZE129	04/2001 - 04/2004	1
36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
90311-38062	ZZE129	04/2001 - 04/2004	1
36118A - PLATE, TRANSFER STIFFENER, RH
36118-12070	ZZE129	04/2001 - 12/2999	1
36119D - PLATE, TRANSFER STIFFENER, CENTER
36119-12050	ZZE129	04/2001 - 12/2999	1
36121 - COVER, TRANSFER CASE, NO.1
36121-52010	ZZE129	04/2001 - 04/2004	1
36121C - BOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVE
91511-60820	ZZE129 NO.2	04/2001 - 04/2004	6
90105-08351	ZZE129 NO.1	04/2001 - 04/2004	2
36121C - BOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVE
91511-60820	ZZE129 NO.2	04/2001 - 04/2004	6
90105-08351	ZZE129 NO.1	04/2001 - 04/2004	2
36123A - BOLT, DIFFERENTIAL BEARING CAP
41114-16010	ZZE129	04/2001 - 04/2004	2
Common parts
90119-08276
90179-12068
91511-80840
91512-61035
91512-61050
Linked diagrams
4302

ZZE129-AHPNK (2001)

(0104- )ZZE129
