ZZE128-AHPNF (2001)

Toyota Will Vs

Production Apr 2001 - Apr 2004
Engine 2ZZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0104- )

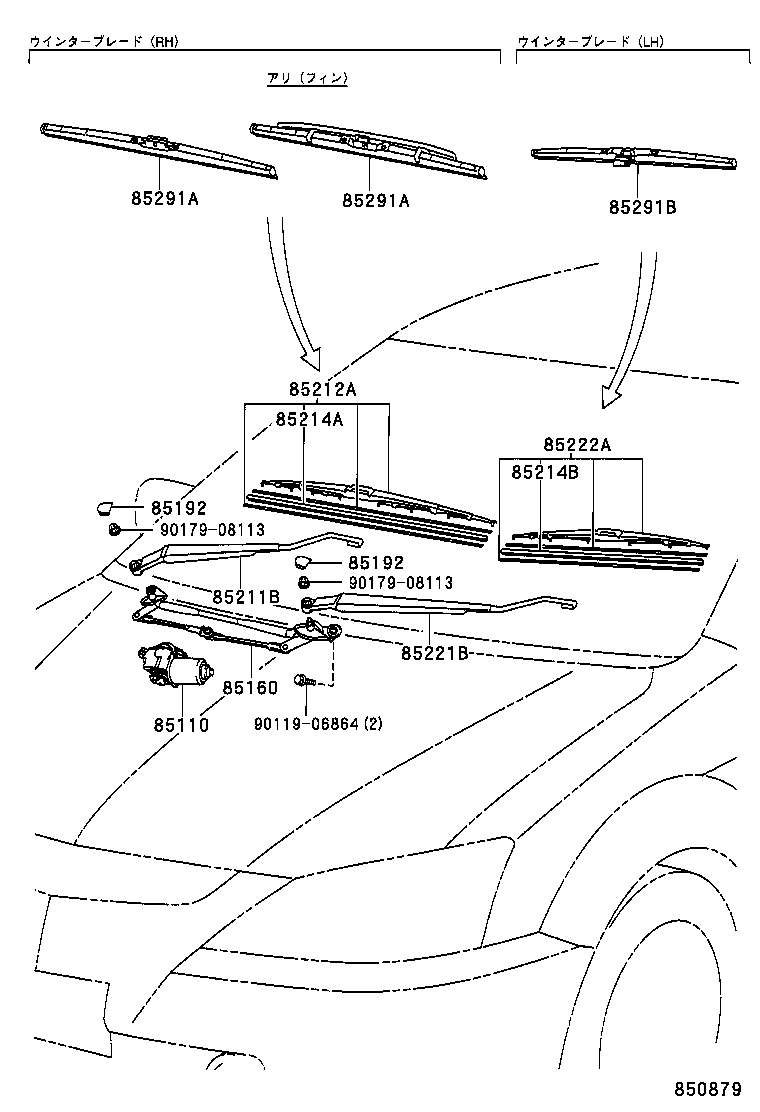

Click highlighted areas on diagram

diagram 85110 85160 85192 85192 85211B 85212A 85214A 85214B 85221B 85222A 85291A 85291A 85291B 9011906864 9017908113 9017908113
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-1A070

NZE127,ZZE12#

 1
85110-1A050

NZE127,ZZE12#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-1A040

NZE127,ZZE12#

 1
85192 - COVER, WINDSHIELD WIPER ARM
85292-12020

NZE127,ZZE12#

 2
85192 - COVER, WINDSHIELD WIPER ARM
85292-12020

NZE127,ZZE12#

 2
85211B - ARM, FRONT WIPER, RH
85211-12430

NZE127,ZZE12#

 1
85212A - BLADE, FR WIPER, RH
85212-12380

NZE127,ZZE12#

 1
85214A - RUBBER, WIPER, RH
85214-50100

NZE127,ZZE12#

 1
85214B - RUBBER, WIPER, LH
85214-50130

NZE127,ZZE12#

 1
85221B - ARM, FRONT WIPER, LH
85221-12340

NZE127,ZZE12#

 1
85222A - BLADE, FR WIPER, LH
85222-12790

NZE127,ZZE12#

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-13040

NZE127,ZZE12#

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-13040

NZE127,ZZE12#

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-41020

NZE127,ZZE12#

 1
Common parts
90119-06864
90179-08113
