ZZE128-AHPNF (2001)

Toyota Will Vs

Production Apr 2001 - Apr 2004
Engine 2ZZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

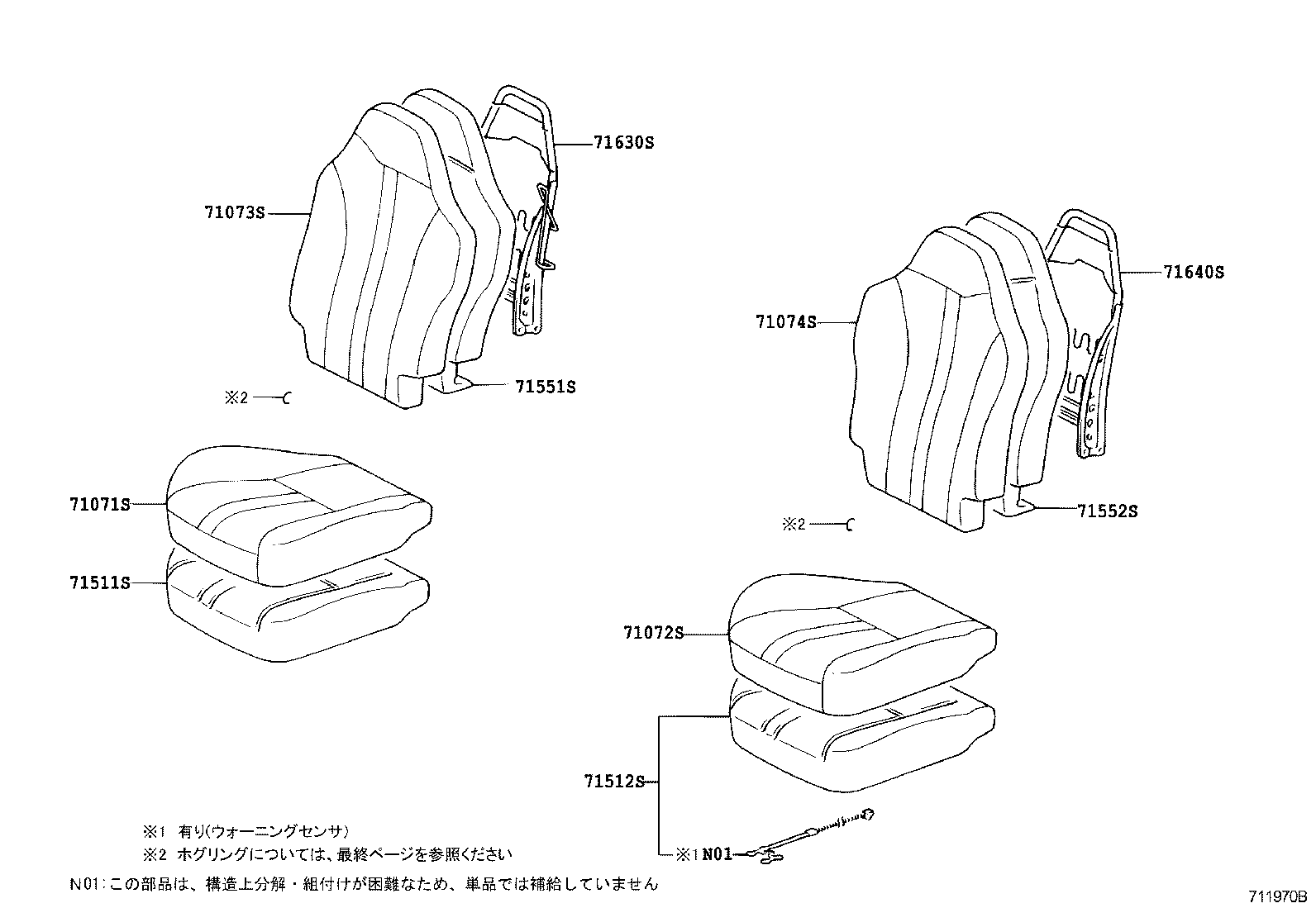

ILLUST NO. 1 OF 2(0104- )

Click highlighted areas on diagram

diagram 71071S 71072S 71073S 71074S 71511S 71512S 71551S 71552S 71630S 71640S
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-1N430C3

ZZE12#

ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2#

 1
71071-1N240C3

ZZE12#

ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-1K210C3

ZZE12#

ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2#

 1
71072-1K200C3

ZZE12#

ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-1N270C0

ZZE12#

ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2#

 1
71073-1N280C0

ZZE12#

ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-1K820C0

ZZE12#

ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2#

 1
71074-1K830C0

ZZE12#

ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-1A070

NZE127,ZZE12#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-12010

NZE127,ZZE12#

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-12770

NZE127,ZZE12#

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-12290

NZE127,ZZE12#

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-12680

NZE127,ZZE12#

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-12490

NZE127,ZZE12#

 1

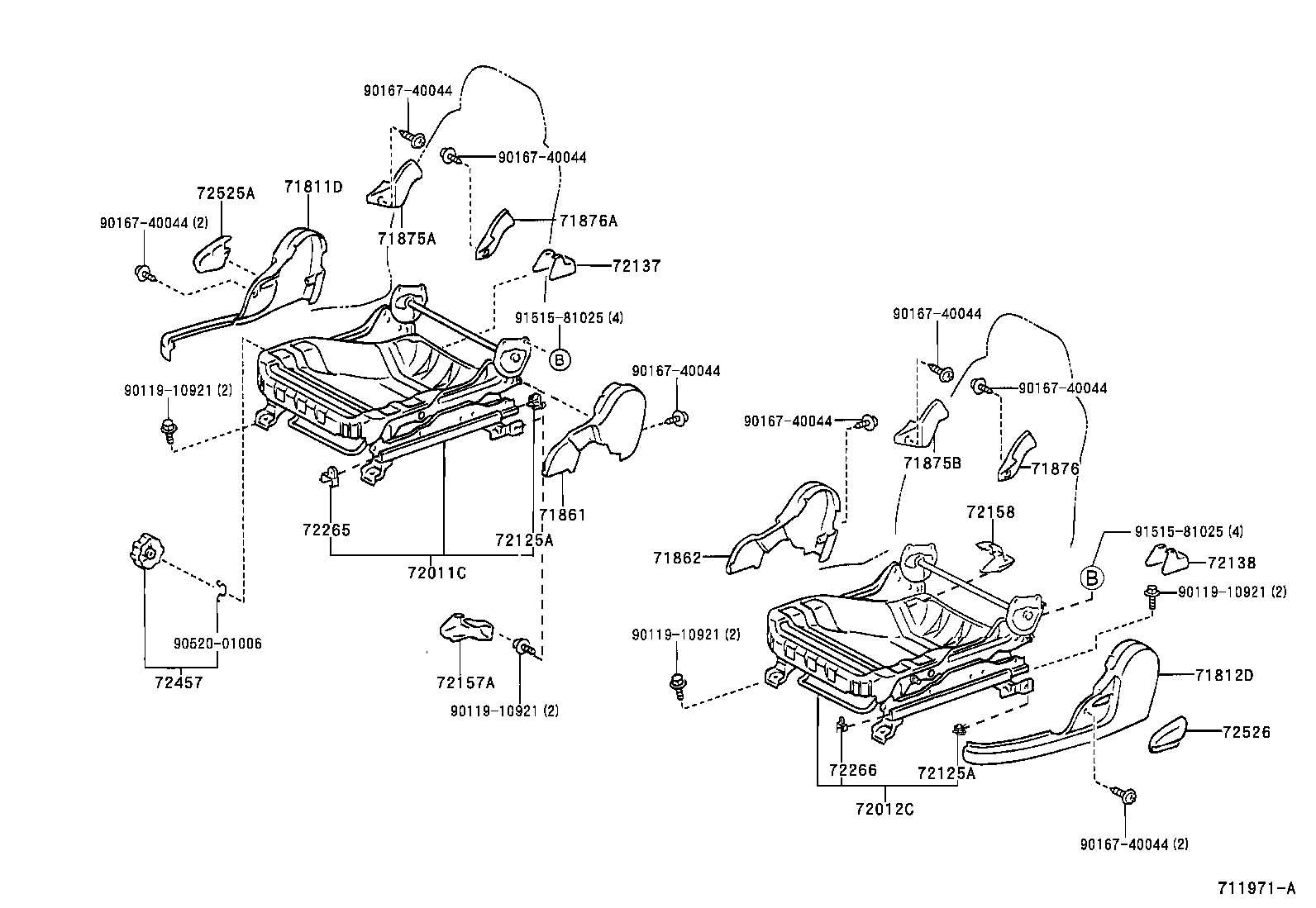

ILLUST NO. 2 OF 2(0104- )

Click highlighted areas on diagram

diagram 71811D 71812D 71861 71862 71875A 71875B 71876 71876A 72011C 72012C 72125A 72125A 72137 72138 72157A 72158 72265 72266 72457 72525A 72526 9011910921 9011910921 9011910921 9011910921 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9052001006 9151581025 9151581025
Part # Description Qty Price
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-12380C0

NZE127,ZZE12#

BLACK,TRIM2#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-12360C0

NZE127,ZZE12#

BLACK,TRIM2#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-12260C0

NZE127,ZZE12#

BLACK,TRIM2#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-12230C0

NZE127,ZZE12#

BLACK,TRIM2#

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-47020C0

NZE127,ZZE12#

BLACK,TRIM2#

 1
71875B - COVER, RECLINING ADJUSTER INSIDE, RH
71875-47020C0

NZE127,ZZE12#

BLACK,TRIM2#

 1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-47020C0

NZE127,ZZE12#

BLACK,TRIM2#

 1
71876A - COVER, RECLINING ADJUSTER INSIDE, LH
71876-47020C0

NZE127,ZZE12#

BLACK,TRIM2#

 1
72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH
72010-12720

NZE127,ZZE12#

 1
72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH
72020-12670

NZE127,ZZE12#

 1
72125A - COVER, SEAT TRACK, UPPER REAR
72125-13040

NZE127,ZZE12#

 4
72125A - COVER, SEAT TRACK, UPPER REAR
72125-13040

NZE127,ZZE12#

 4
72137 - COVER, SEAT TRACK, OUTER RH
72137-52010

NZE127,ZZE12#

 1
72138 - COVER, SEAT TRACK, OUTER LH
72137-52010

NZE127,ZZE12#

 1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-12100

NZE127,ZZE12#

 1
72158 - COVER, SEAT TRACK BRACKET, INNER LH
72158-12100

NZE127,ZZE12#

 1
72265 - COVER, SEAT TRACK UPPER RAIL, RH
72265-13040

NZE127,ZZE12#

 2
72266 - COVER, SEAT TRACK UPPER RAIL, LH
72265-13040

NZE127,ZZE12#

 2
72457 - KNOB, VERTICAL SEAT ADJUSTER
72457-18010C0

NZE127,ZZE12#

BLACK,TRIM2#

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-47020C0

NZE127,ZZE12#

BLACK,TRIM2#

 1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-47020C0

NZE127,ZZE12#

BLACK,TRIM2#

 1
Common parts
90119-10921
90167-40044
90520-01006
91515-81025

(0104- )

Click highlighted areas on diagram

ﾎｸﾞﾘﾝｸﾞ

diagram 9046816019 9046818008
Part # Description Qty Price
Common parts
90468-16019
90468-18008
