ZZE128-AHPNF (2001)

Toyota Will Vs

Production Apr 2001 - Apr 2004
Engine 2ZZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0104-0404)

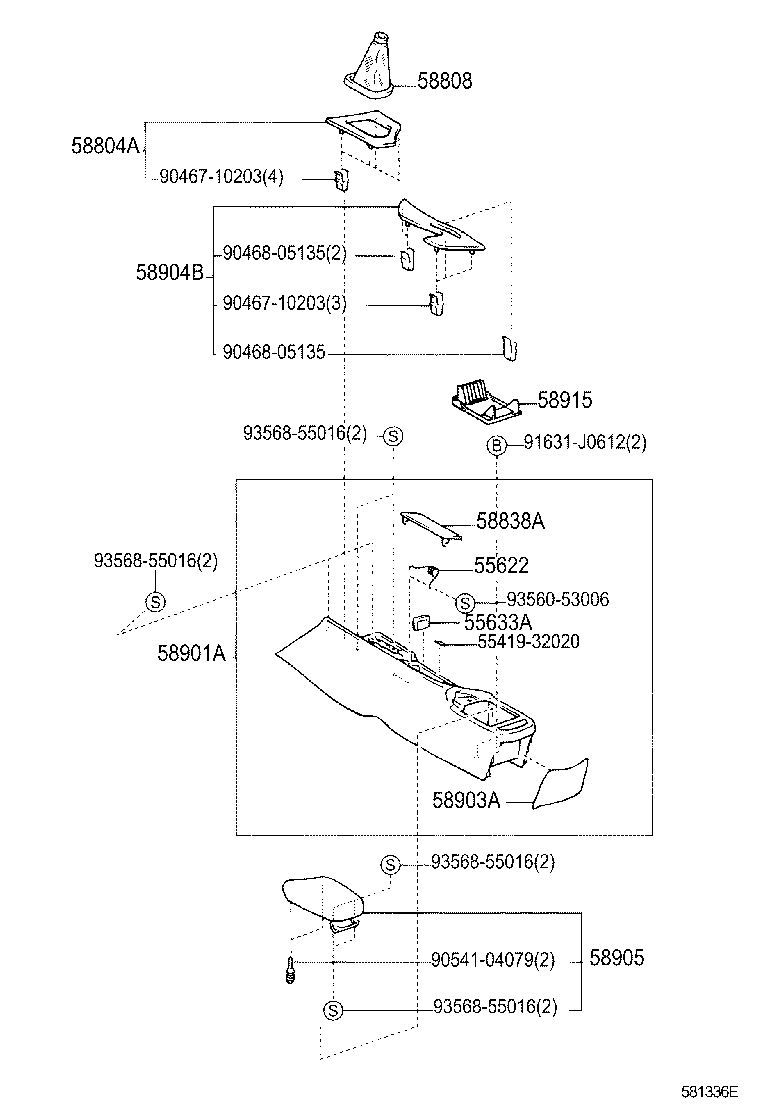

Click highlighted areas on diagram

diagram 5541932020 55622 55633A 58804A 58808 58838A 58901A 58903A 58904B 58905 58915 9046710203 9046710203 9046805135 9046805135 9054104079 91631J0612 9356053006 9356855016 9356855016 9356855016 9356855016
Part # Description Qty Price
55622 - SPRING, INSTR PANEL CUP HOLDER, NO.1
55622-12070

NZE127,ZZE12#

 1
55633A - SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1
55633-12090C0

NZE127,ZZE12#

BLACK,TRIM2#

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-12030C0

NZE127,ZZE12#..ATM

BLACK,TRIM2#

 1
58838A - DOOR, CONSOLE CUP HOLDER BOX
58838-12010C0

NZE127,ZZE12#

BLACK,TRIM2#

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-12430C0

NZE127,ZZE12#

BLACK,TRIM2#

 1
58903A - PANEL SUB-ASSY, CONSOLE REAR END
58912-12100C0

NZE127,ZZE12#

BLACK,TRIM2#

 1
58904B - COVER SUB-ASSY, PARKING BRAKE HOLE
58904-12070C0

NZE127,ZZE12#

BLACK,TRIM2#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-12340C0

NZE127,ZZE12#

BLACK,TRIM2#

 1
58915 - PANEL, BOX BOTTOM
58915-12020C0

NZE127,ZZE12#

BLACK,TRIM2#

 1
Common parts
55419-32020
90467-10203
90468-05135
90541-04079
91631-J0612
93560-53006
93568-55016
