ZZE128-AHPNF (2001)

Toyota Will Vs

Production Apr 2001 - Apr 2004
Engine 2ZZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0104- )2ZZGE

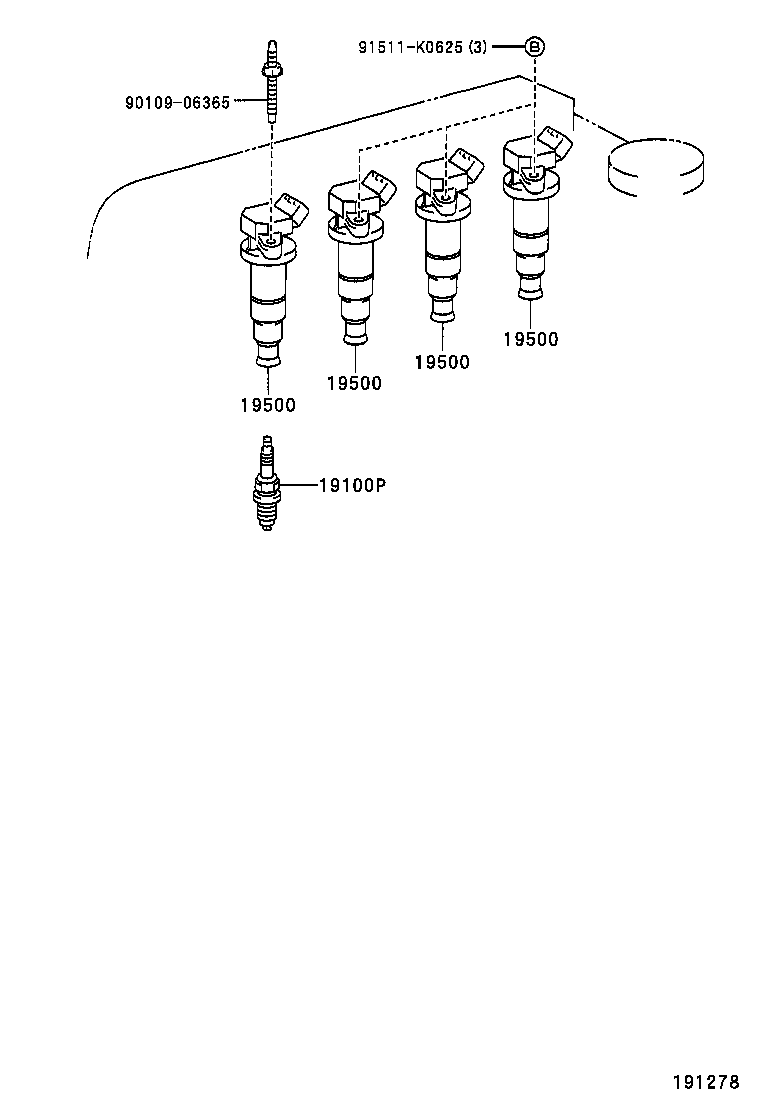

Click highlighted areas on diagram

diagram 19100P 19500 19500 19500 19500 9010906365 91511K0625
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01210

2ZZGE..ZZE128

SK20R11

 4
90919-01237

2ZZGE..ZZE128

SK20R11

 4
90919-01211

2ZZGE..ZZE128

IFR6A11

 4
19500 - COIL ASSY, IGNITION
90919-02238

2ZZGE..ZZE128

 4
19500 - COIL ASSY, IGNITION
90919-02238

2ZZGE..ZZE128

 4
19500 - COIL ASSY, IGNITION
90919-02238

2ZZGE..ZZE128

 4
19500 - COIL ASSY, IGNITION
90919-02238

2ZZGE..ZZE128

 4
Common parts
90109-06365
91511-K0625
